2011-2016 Toyota Highlander 3.5L | 7-Groove Pulley 150A Alternator | 11326N - PHILTOP

2011-2016 Toyota Highlander 3.5L | 7-Groove Pulley 150A Alternator | 11326N - PHILTOP

Pulley Grooves: SC7

Amperage: 150 A

Built to Last

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3164ALT278QUS

Specifications

Brand
PHILTOP
Pulley Grooves
SC7
Amperage
150 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material

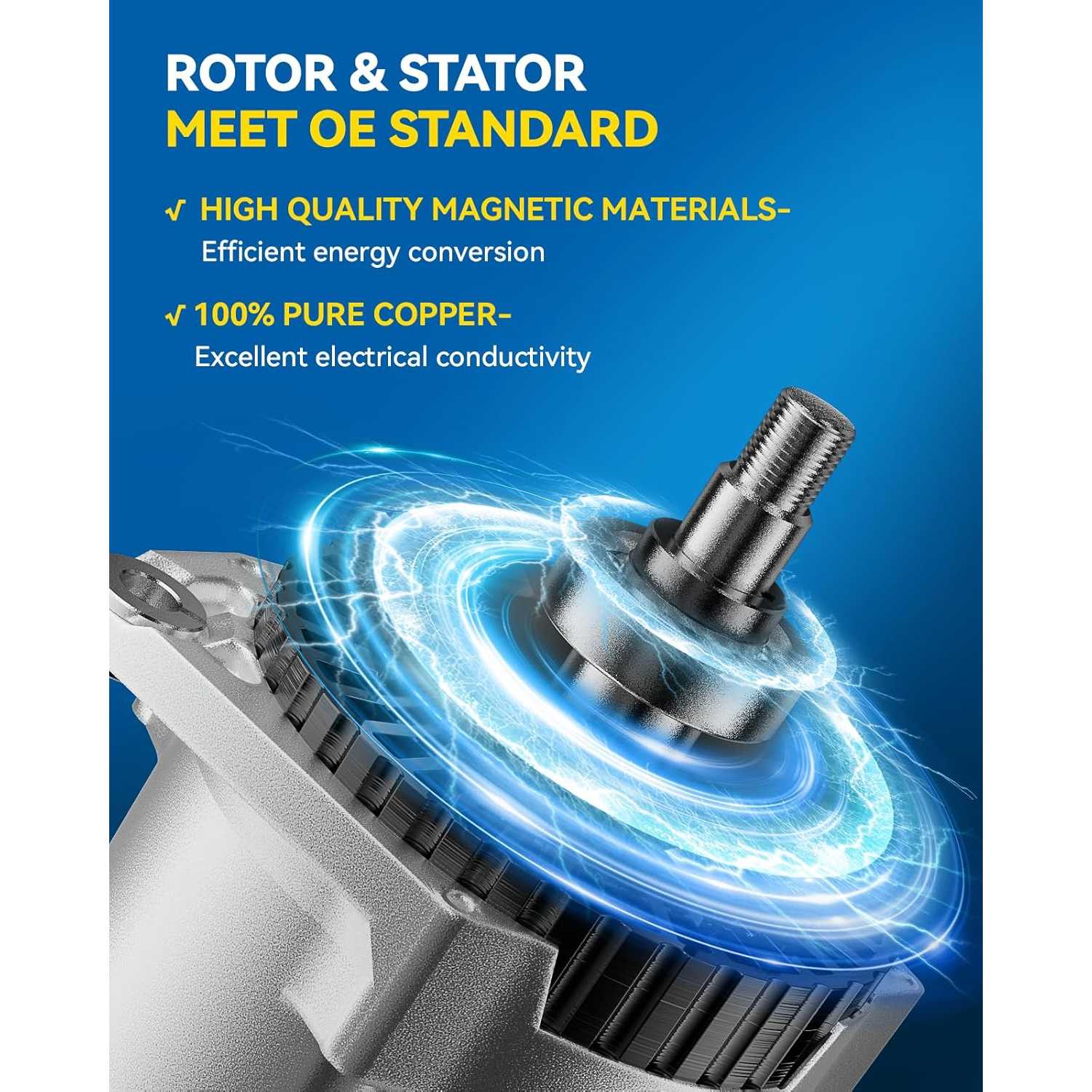

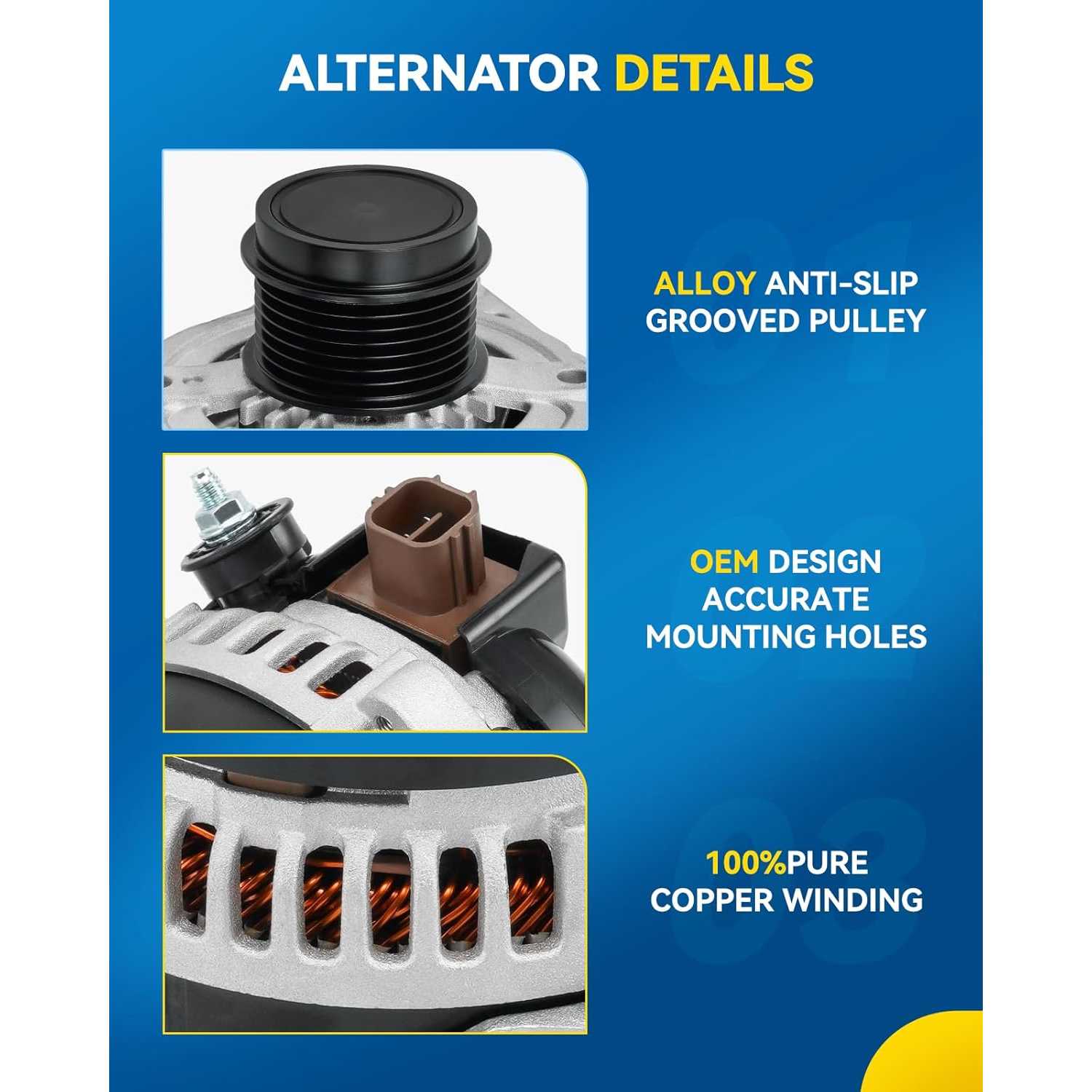

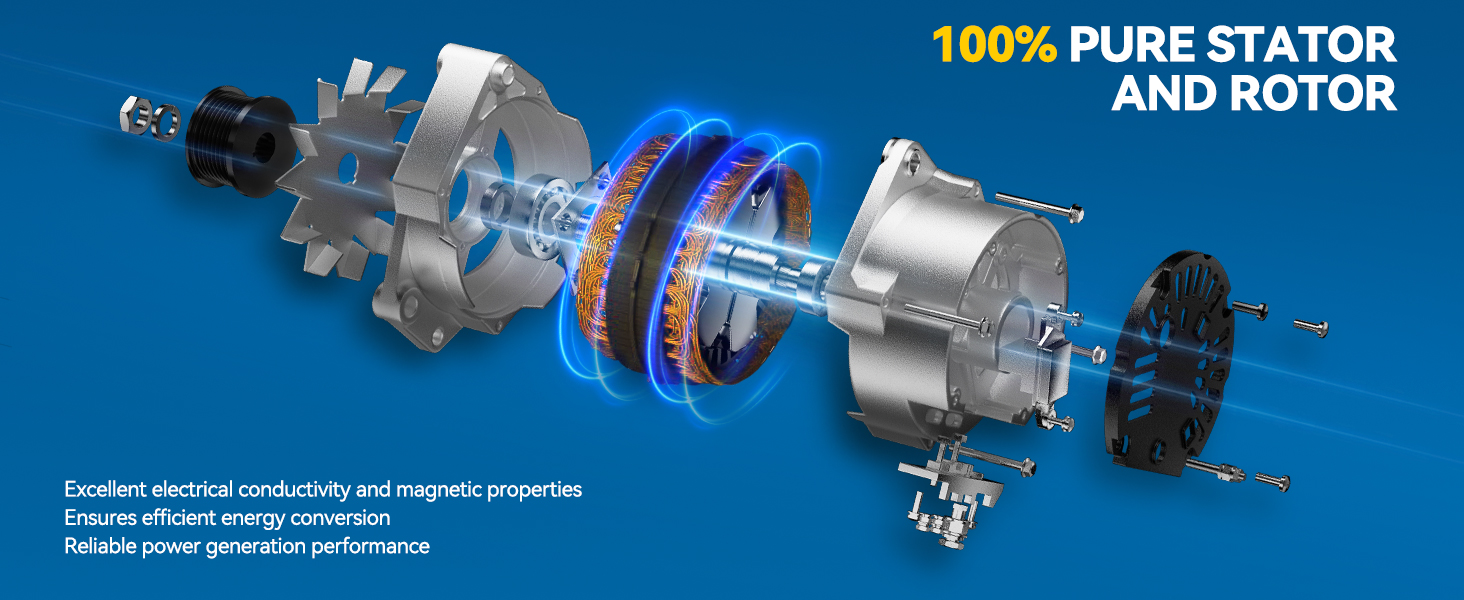

Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 11326N 1x Manual
Warranty Period
2-Year
Part Number
11326N

Highlights

  • Replaces OEM Numbers: 7764N-6G7764,7764N-0G

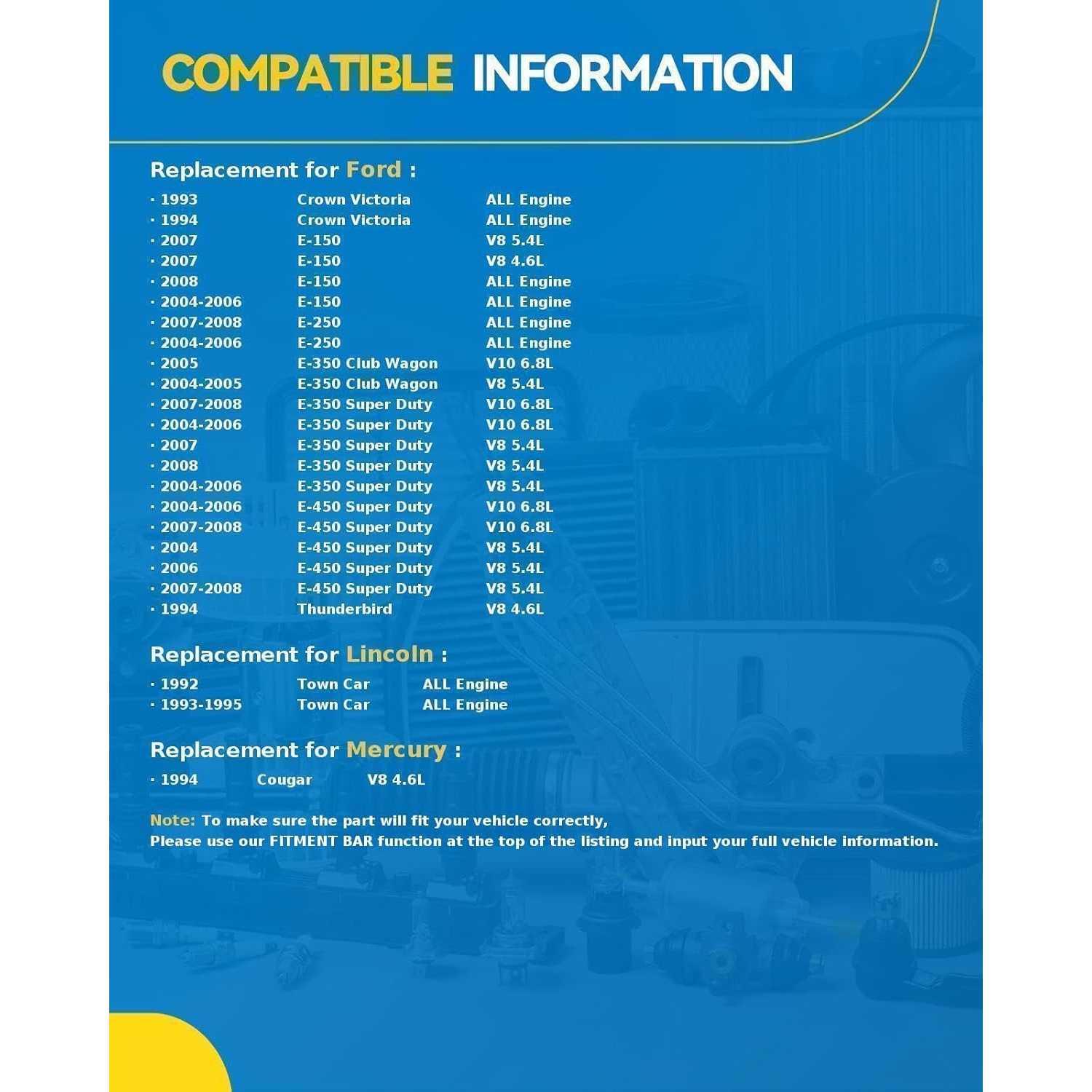

  • Compatible With: 2004-2008 E-350 Super Duty 5.4L, 2004-2008 E-250, 2004-2006 2008 E-1-5-0, 1992-1995 Town Car, 2004-2005 E-350 Club Wagon 5.4L, 2004-2008 E-350 Super Duty 6.8L, 2007 E-1-5-0 4.6L, 1993-1994 Crown Victoria, 1994 Thunderbird 4.6L, 2007 E-1-5-0 5.4L, 2005 E-350 Club Wagon 6.8L, 1994 Cougar 4.6L, 2004 2006-2008 E-450 Super Duty 5.4L, 2004-2008 E-450 Super Duty 6.8L
  • Specifications: 1x Alternator 7764N-6G; Voltage: 12; Amperage: 130; Regulator&Fan Type: IR/IF; Groove PulleyS6; Rotation:CW; Plug Clock:10
  • Premium Alternators: Rigorously tested to OE standards with 2000H endurance, 96H salt spray resistance, extreme temperatures from -40°C to 105°C, and harsh vibration impacts. Built for unparalleled reliability, ensuring your Safety and stable power in any condition
  • Ensure Safety: New Alternator engineered to eliminate persistent vehicle issues. By delivering robust, stable, and protected electrical output, it ensures your vehicle's electrical system operates at its peak, eliminating the worry and risk of roadside breakdowns

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20132016 - 20182010 - 201320132011 - 20132011 - 20132011 - 20162014 - 20162014 - 20162011 - 201620132011 - 20132014 - 20162011 - 20132007 - 20102013 - 20162007 - 20162007 - 20082011 - 20162011 - 20162007 - 20162009 - 20112012 - 20142012 - 20152012 - 2015
MakeLexusLexusLexusLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelES350ES350RX350RX350HighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderSiennaSiennaSiennaSiennaSiennaSiennaSiennaSiennaVenzaVenzaVenzaVenza
TrimBaseBaseBaseF SportBaseHybridHybrid LimitedLELE PlusLimitedPlusSEXLEBaseCELLELimitedLimitedSEXLEBaseLELimitedXLE
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note--
To 08/2012
To 08/2012
---------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

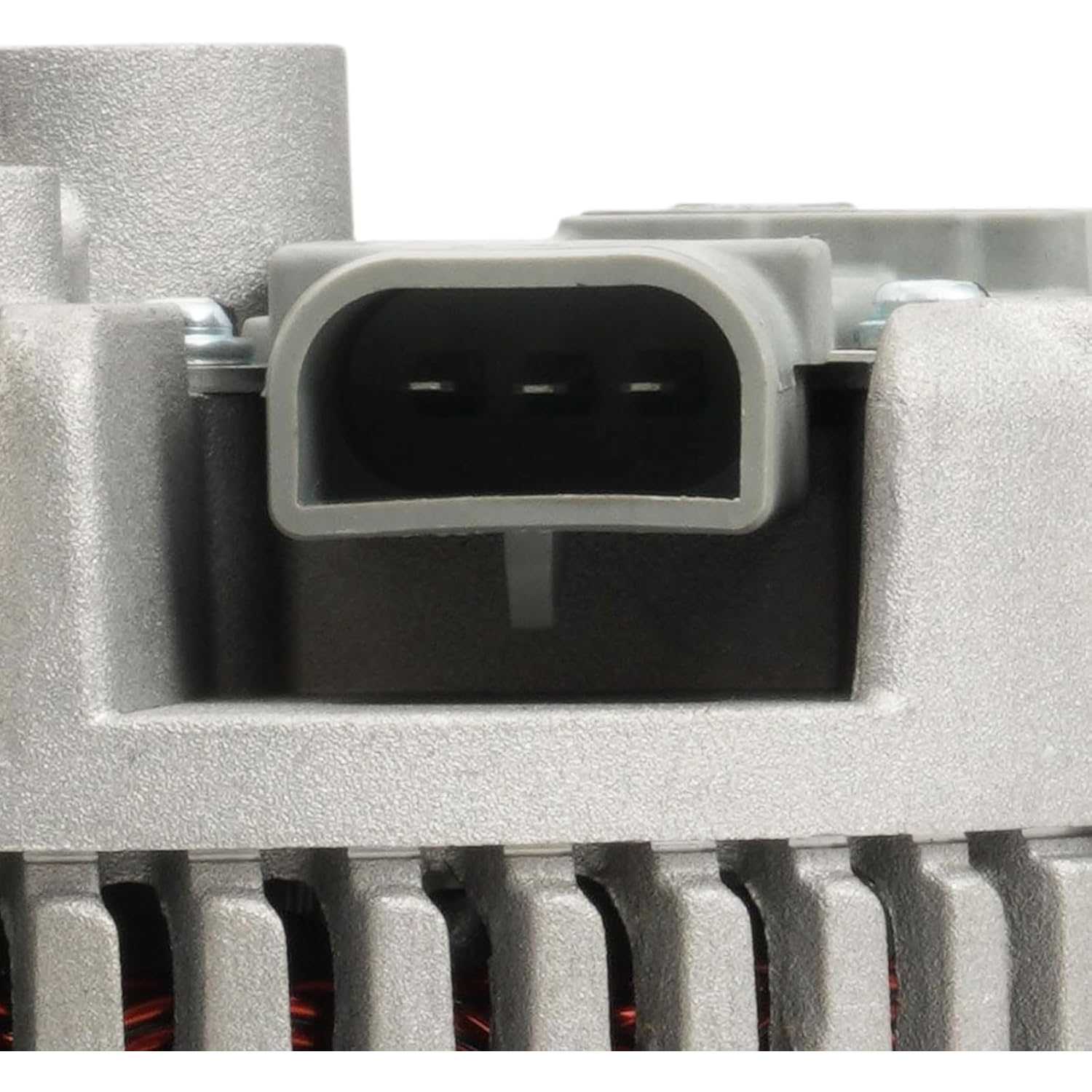

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

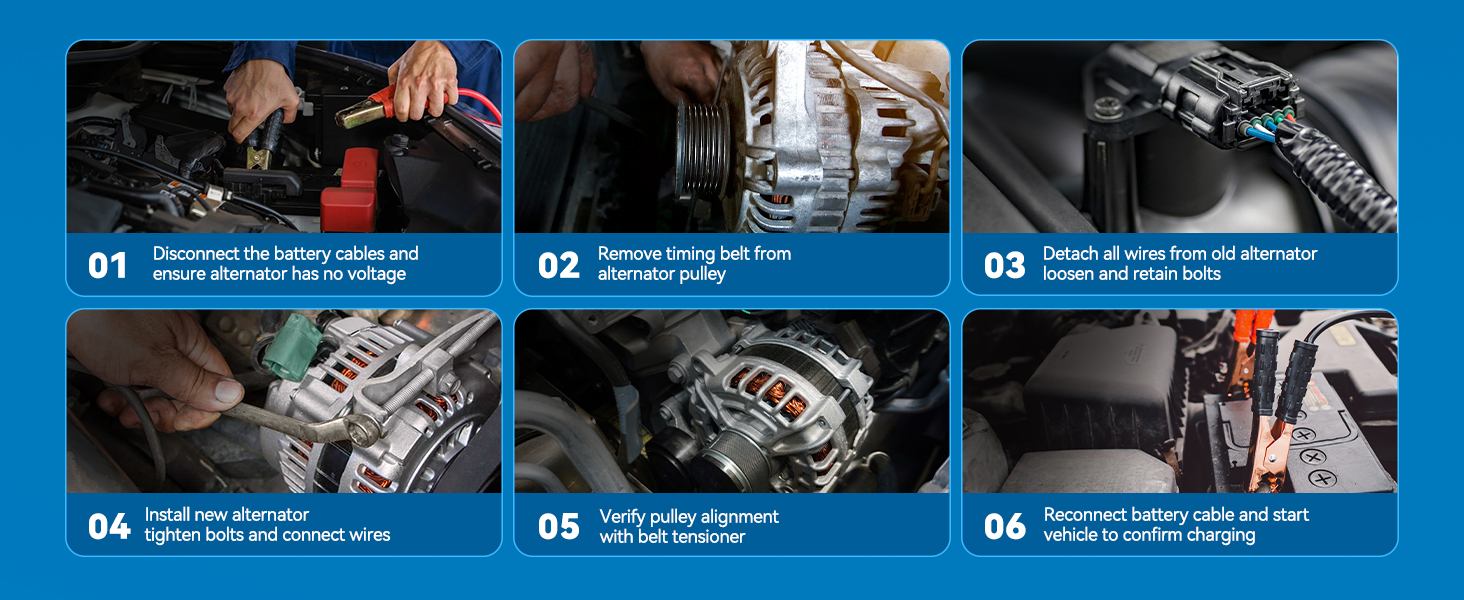

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Alternator Replacement forAlternator Replacement for

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Nathan W

09/22/2026

Verified buyer

Great price, came fast, worked perfectly and installed without any issues I would recommend PHILTOP alternators as they honestly works well along with this there is a alternator output data sheet for the alt purchased in the box contents which is great

FAQS

Easy to install. To ensure safety and correct installation, which varies by vehicle, professional tools are required. Consult our included manual and video guide.

PHILTOP Alternator are specifically designed for [specific vehicle models]. You can check the vehicle compatibility and product images on this page, or reach out for confirmation to ensure a perfect match.

Please refer to the picture. Generally,our alternators do not include bolts or other accessories. It is recommended to make full use of the existing bolts and other accessories, which can be perfectly matched with the original accessories.
