Max Lift: 2 in

Front

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
52ISLLK011007US

Specifications

Brand
PHILTOP
Position
Front
Quantity
2
Maximum Lift Height
2inch
Adjustable
No
Actual Height
2inch
Surface Finish
Powder Coating
Color
Black
Note
Lift Amount Is Equal Spacer Thickness
Items Included

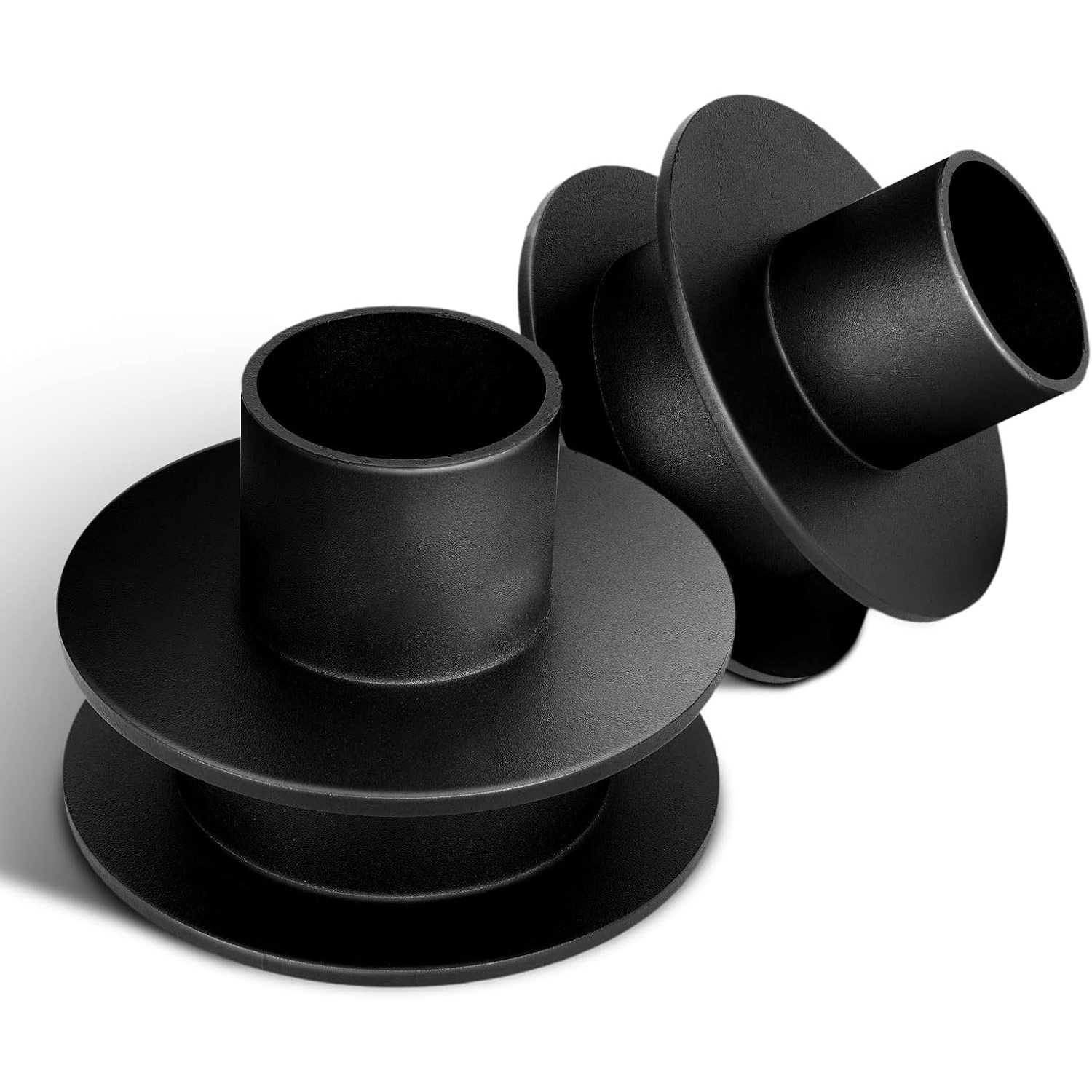

2x Front Coil Spring Spacers
Material
Carbon Steel
Warranty Period
2-Year

Highlights

  • Compatible Auto List: PHILTOP leveling lift kits compatible for F250 Super Duty 4WD (2005-2020); F350 Super Duty 4WD (2005-2020)
  • 2 Hours Installation: The kit comes with everything needed for 100% simple bolt-on installation. The process requires no strut pre-loading, cutting, or modifying any factory parts. An alignment is needed after the installation
  • Aggressive Look:This leveling kit improves the look of your vehicle by lifting the front of your truck to even out the overall body of the vehicle. Offers extra ground clearance to use larger tires and rims

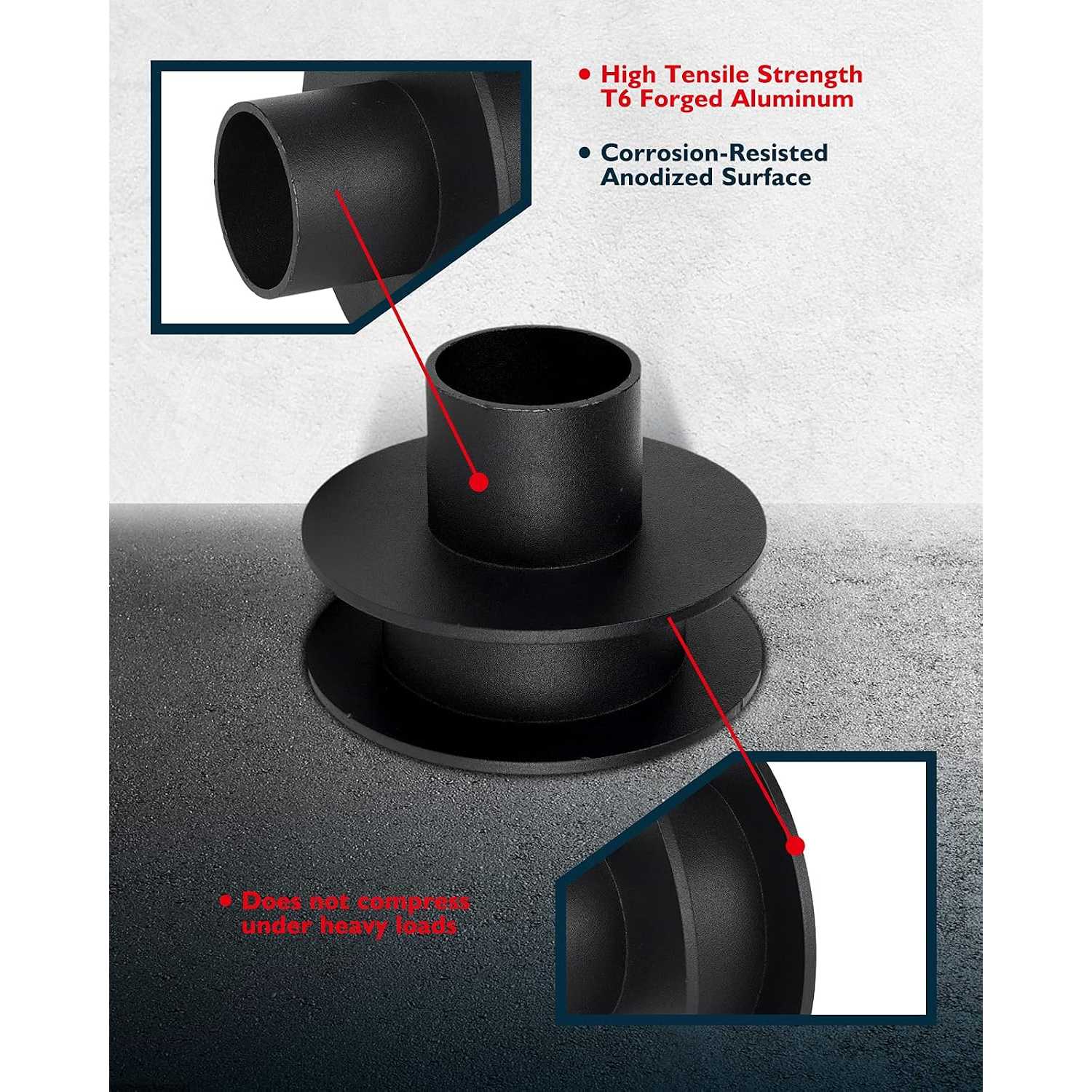

  • High-Quality:PHILTOP leveling kits made of aircraft-grade aluminum billet, 12.9 grade solid bolts. Powder coated black offers better corrosion resistance, it can provide safe driving when harsh environments

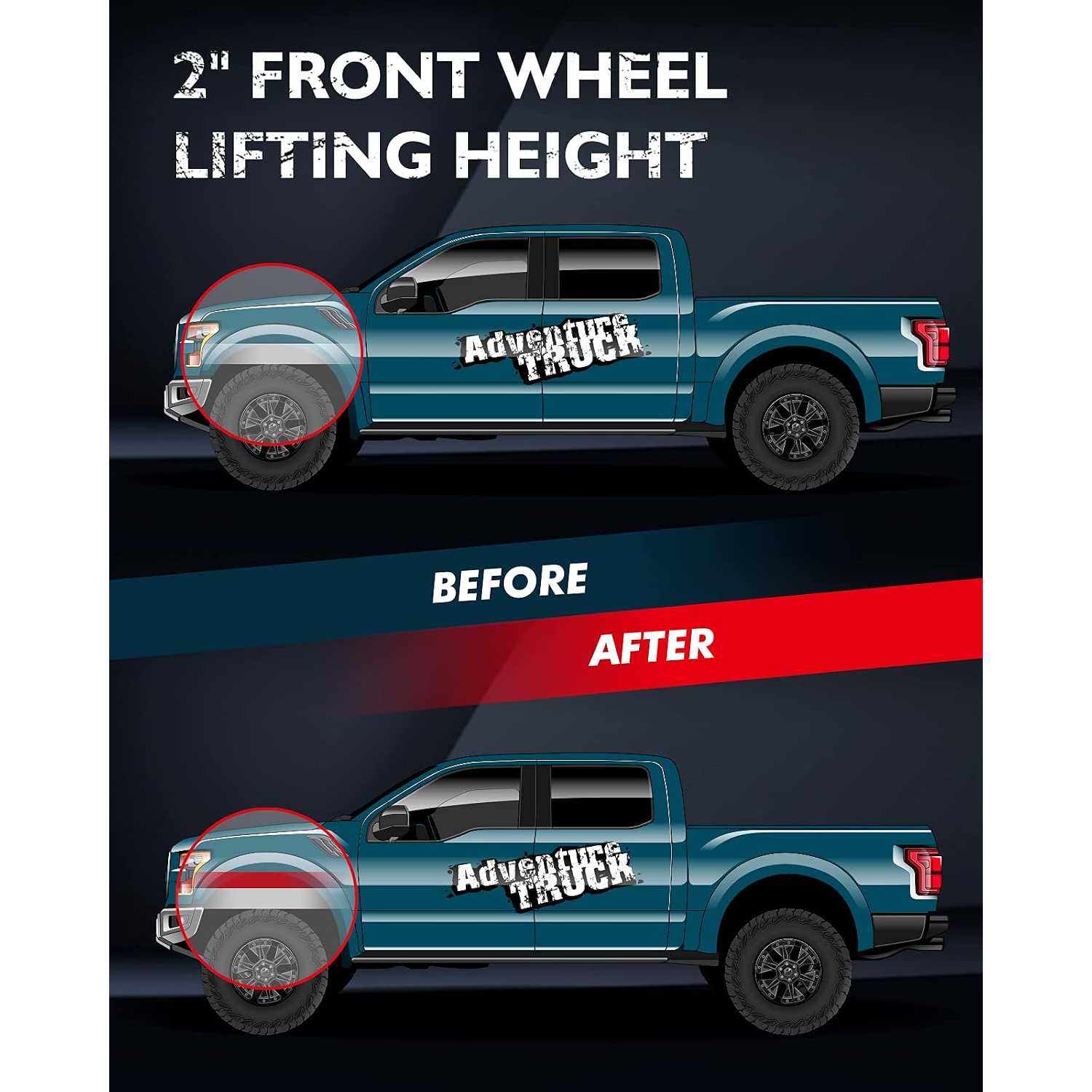

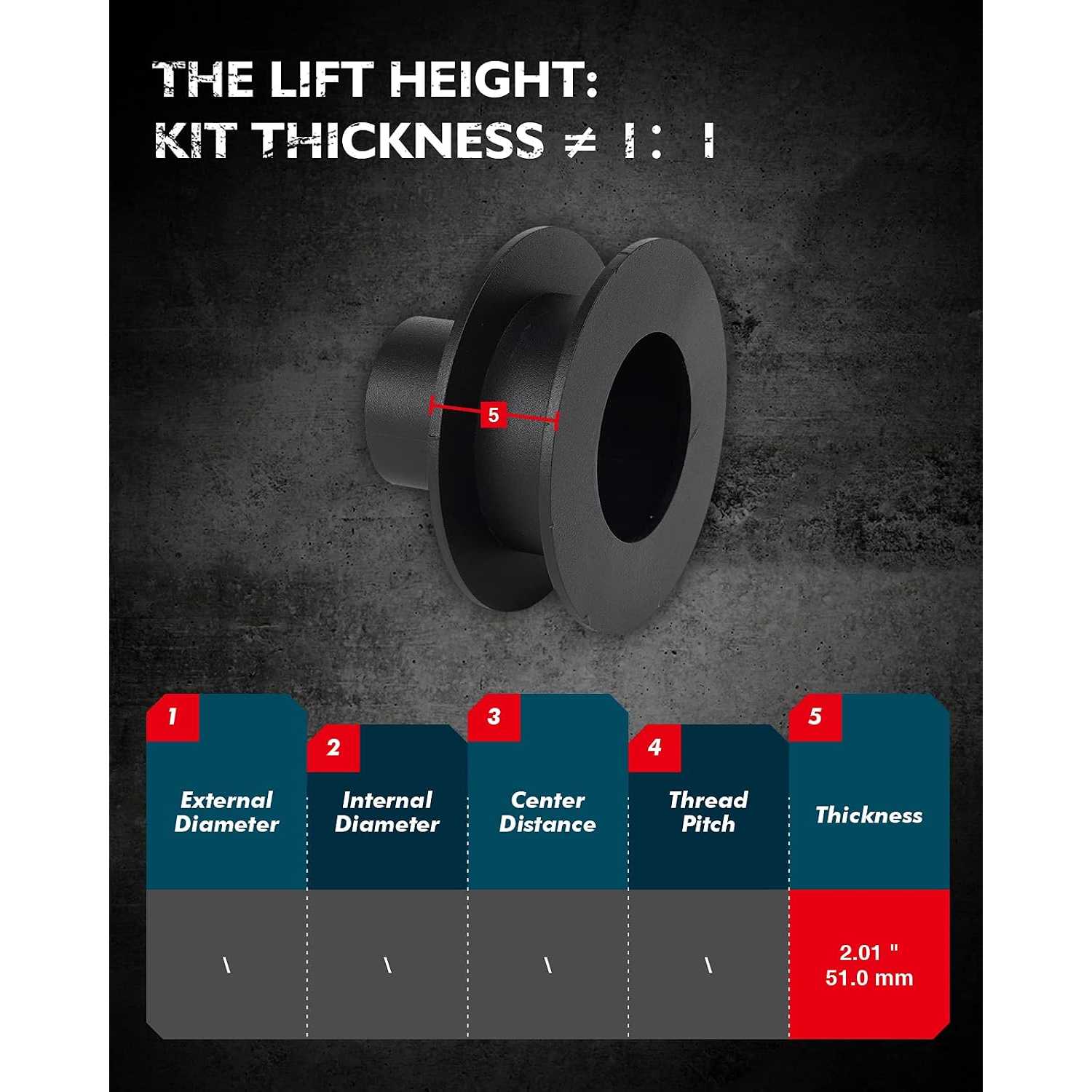

  • Improtant Note: Leveling kits actually raise the truck by 2", because of suspension geometry, and the actual thickness of front lift kits is less than 2". The ratio between lift height and kit thickness is not 1:1

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20222011 - 20252020 - 20252011 - 20222011 - 202520252020 - 20252018 - 20242013 - 20222013 - 20252020 - 20252011 - 20222011 - 20252023 - 20252020 - 20252011 - 20222011 - 202520252020 - 20252011 - 20222011 - 20252020 - 20252011 - 20222011 - 202520252020 - 20252018 - 20242013 - 20222013 - 20252020 - 20252011 - 20222011 - 20252023 - 20252020 - 20252011 - 20222011 - 202520252020 - 2025
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super Duty
TrimKing RanchKing RanchKing RanchLariatLariatLariatLariatLimitedPlatinumPlatinumPlatinumXLXLXLXLXLTXLTXLTXLTKing RanchKing RanchKing RanchLariatLariatLariatLariatLimitedPlatinumPlatinumPlatinumXLXLXLXLXLTXLTXLTXLT
Engine6.2L V86.7L V87.3L V86.2L V86.7L V86.8L V87.3L V86.7L V86.2L V86.7L V87.3L V86.2L V86.7L V86.8L V87.3L V86.2L V86.7L V86.8L V87.3L V86.2L V86.7L V87.3L V86.2L V86.7L V86.8L V87.3L V86.7L V86.2L V86.7L V87.3L V86.2L V86.7L V86.8L V87.3L V86.2L V86.7L V86.8L V87.3L V8
Note--------------------------------------

How to Install?

Checks Before Installation

  • Confirm the vehicle year, trim, drivetrain, suspension type and installation position.
  • Do not install on factory air suspension, magnetic ride control or adaptive dampers unless specifically listed as compatible.
  • Inspect the ball joints, bushings, sway-bar links, wheel bearings and shock absorbers. Replace worn parts first.
  • Check that the brake hoses and ABS wiring have enough length for the increased suspension travel.
  • Record the original ride height from the wheel-hub center to the fender lip.

Installation Steps

  • Step-1: Secure the Vehicle: Support the vehicle with approved jack stands. Never rely on the jack alone.
  • Step-2: Release Hoses and Wiring: Unclip the brake hoses, ABS wiring and related cables before lowering the suspension. Never allow them to stretch.
  • Step-3: Install the Lift Components: Install each spacer in the correct front/rear, left/right and top/bottom orientation.
  • Step-4: Torque Correctly: Hand-start all fasteners and tighten them to the specified torque. Do not use an impact wrench for final tightening.
  • Step-5: Finish at Ride Height: Tighten rubber-bushed suspension components only at normal ride height. Check tire, hose and wiring clearance through full steering travel, then perform a professional wheel alignment.

After Installation

  • Perform a wheel alignment on the same day.
  • Re-torque all fasteners after 50–100 miles.
  • Check for uneven ride height, abnormal noise, pulling, vibration or tire rubbing.
  • Re-aim the headlights and recalibrate ADAS when required.
  • Inspect the CV boots and mounting hardware again after the initial break-in period.

Product Description

Leveling Lift KitLeveling Lift Kit

Reviews

4.6/5

Based on 9 reviews

567%
422%
311%
20%
10%

AutoMom_2019_336

03/08/2026

These look really good and the price was unbeatable. Definitely a great value for leveling the truck. Makes it look so much tougher.

Tom_Handy_516

12/20/2025

Super fast shipping, got here in just a couple days. Everything was well protected in the box. Customer service was great.

FAQS

No FAQs have been added for this product yet.
