2006-2009 Land Rover Range Rover Sport 4.4L V8 | 7SEU17C New A/C Compressor | OE#LR012593/98318 - PHILTOP

2006-2009 Land Rover Range Rover Sport 4.4L V8 | 7SEU17C New A/C Compressor | OE#LR012593/98318 - PHILTOP

PAG

7SEU17C

R134a

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
88ISACC5657US

Specifications

Brand
PHILTOP
Oil Type
Pag 46
Compressor Type
7SEU17C
Belt Type
Serpentine
Refrigerant Type
R134a

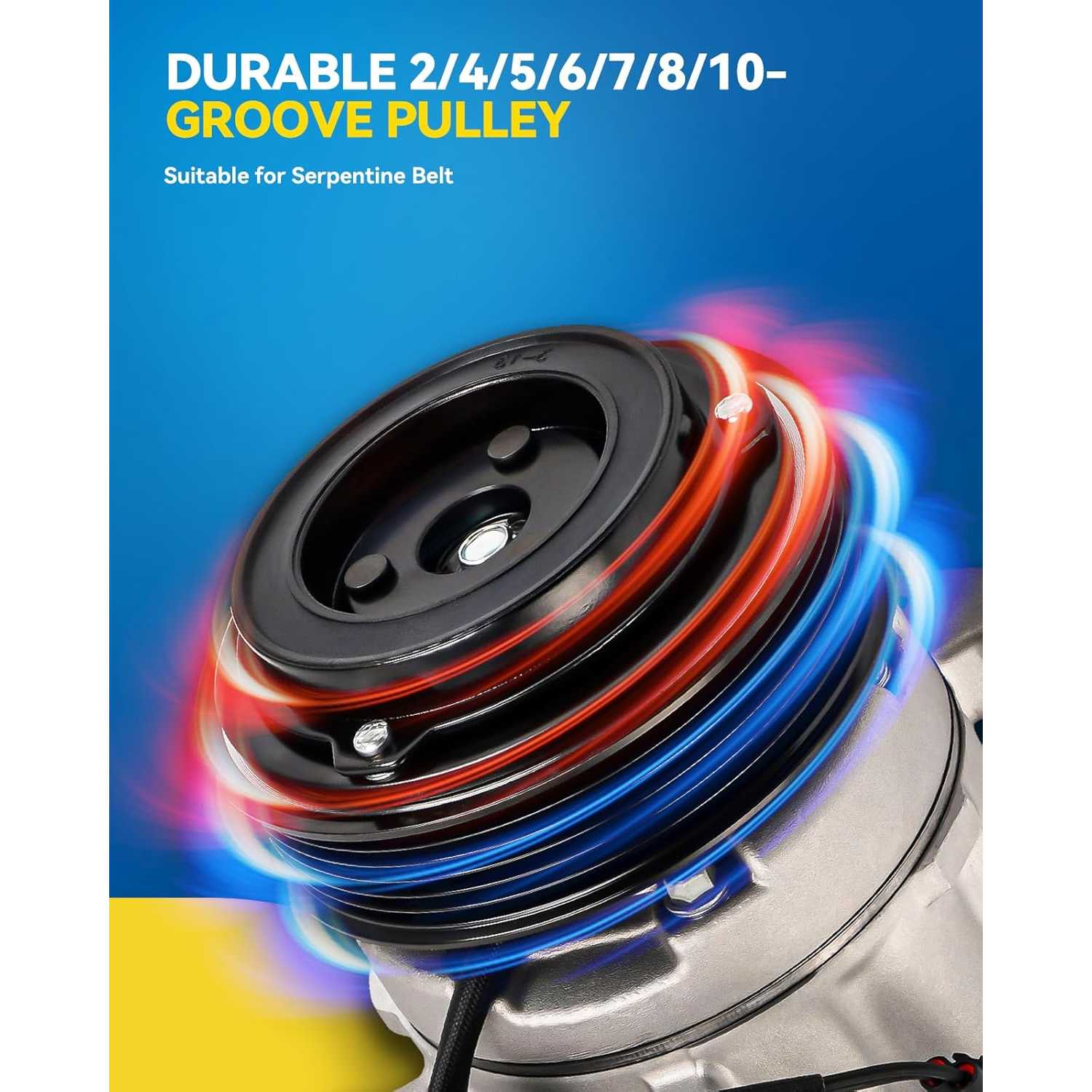

Pulley Groove Count
6
Items Included
1x A/C Compressors & Clutches - 98318,1x Manual
Material
Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
4.33 in/109.982 mm
Maximum Working Pressure
20 bar
Warranty Period
2-Year
OE Number
LR012593,LR015151,JPB000173,LR012794,JPB500091,JPB500280,LR012796,LR019134,LR018427,C2Z1137,LR019131
Part Number
98318,648358,6512768,815663,6512798

Highlights

  • #16,353 in Automotive (See Top 100 in Automotive)
  • #16 in Automotive Replacement Air Conditioning Compressors
  • Ensures Fast Refrigeration And Defogging: ①Oil Type:PAG 46;②R-efrigerant Type:R134a;③Pulley Grooves: 6;④Pulley Diameter:4.33 inch ;⑤Compressor type:7SEU17C;⑥Pulley type:Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • Widely Compatible: PHILTOP AC Compressor with Clutch Compatible withRange Rover Sport 2006-2009, LR3 2005-2009, Range Rover 2006-2009, XF 2009, 2010 4.2L.Please confirm your vehicle details and old part number before ordering.
  • Guaranteed Compatibility : Replaces OEM part numbers:JPB500210,LR012593,98318,LR015151,JPB000173,LR012794,JPB500091,JPB500280,LR012796,LR019134,LR018427,C2Z1137,LR019131,JPB500211,2021948,648358,6512768,815663,6512798,2021948AM.Verify your vehicle info using the Philtop compatibility checker.
  • Fully Tested & Easy Installation: The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor.
  • Low Noise & Low Fuel Consumption: AC compressor works excellent and has low noise with a better experience. With a lower load factor, low power will be input when driving at high speed, which increases fuel economy and makes operation smoothly.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year201020092009200920062005 - 200920092005 - 20072005 - 20082006 - 20092006 - 200920082006 - 200920082006 - 2009
MakeJaguarJaguarJaguarJaguarLand RoverLand RoverLand RoverLand RoverLand RoverLand RoverLand RoverLand RoverLand RoverLand RoverLand Rover
ModelXFXFXFXFLR3LR3LR3LR3LR3Range RoverRange RoverRange RoverRange Rover SportRange Rover SportRange Rover Sport
TrimBaseLuxuryPremium LuxurySuperchargedBaseHSEHSE LuxSESEHSESuperchargedWestminster EditionHSELESupercharged
Engine4.2L V84.2L V84.2L V84.2L V84.0L V64.4L V84.4L V84.0L V64.4L V84.4L V84.2L V84.2L V84.4L V84.2L V84.2L V8
Note
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

PHILTOP AC CompressorAC Compressor

Reviews

4.6/5

Based on 5 reviews

580%
40%
320%
20%
10%

Rob_HomeGarage_724

06/24/2026

This AC compressor was a perfect fit for my LR3. Installation was smooth, and it's working great. Compared to the dealer price, this was a steal and performs just as well.

Rob_HomeGarage_678

12/07/2025

The shipping was lightning fast, arrived a day early! Everything was packed securely and the part itself looks solid. Had a question about the warranty, and the support team was super polite and knowledgeable.

FAQS

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.

A/C compressor replacement usually requires refrigerant recovery, vacuum, measured charging, and contamination checks. Professional service is recommended when the required equipment or procedures are unavailable.

Possible causes include low refrigerant pressure, a fuse or relay issue, wiring, control logic, a pressure sensor, or clutch-related conditions. Diagnose the control circuit before replacing parts.
