Leak-Tested

Durable

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
26ISPSP1207US

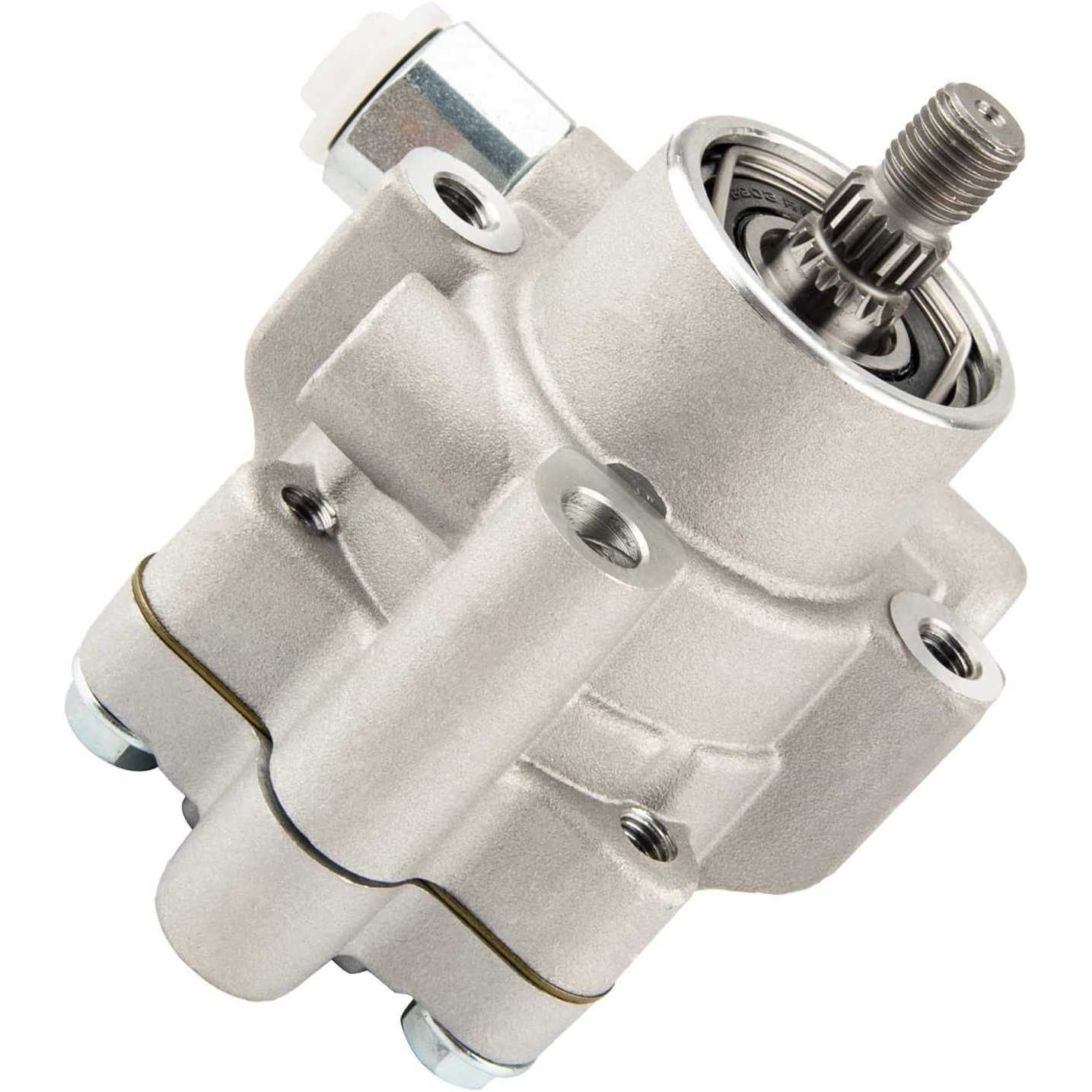

Specifications

Brand
PHILTOP
Pulley Included
No
Reservoir Included
No
Pulley Attachment Type
Bolt-on
Outlet Connection Type
Threaded
Outlet Thread Size
16X1.5 in
Inlet Connection Type
Hose Barb
Drive Type
Engine
Material
Aluminium/Iron
Items Included
1x Power Steering Pump - 965366, 1x Manual
Warranty Period
2-Year
Part Number
215366

Highlights

  • (Fitment)2004-2010 TITAN,2005-2009 Armada,2004 Pathfinder Armada,2008-2010 Pathfinder 5.6L,2004-2011 QX56
  • (Reference Part Number)215366、965366、491107S000、49110ZV00A、49110JK010、49110JK01A、49110VZ00B, Condition: Brand New (Not Remanufactured); Pulley Included: No, Reservoir Included: No, Inlet Attachement Type:Hose Barb, Outlet Attachment Type: Threaded, Pulley attachment types: Bolt-on, Outlet inner diameter size:
  • (Premium Materials & Zero Leak Guarantee) High-temperature and cold-resistant materials; 100% leak-proof. Core components are constructed from high-strength bearing steel to guaranteed never to leak. this offers superior wear resistance and prevents internal metal debris from clogging fluid passages.
  • (Restore Precise Handling & Safety) Power steering pump specifically engineered for high-mileage vehicles, this unit effectively resolves issues such as heavy steering, abnormal noises, and power steering fluid leaks. Each unit undergoes rigorous functional testing prior to leaving the factory, ensuring reliable and safe power steering performance on the road.
  • (Professional Customer Service)PHILTOP provide high-quality customer service and support. If you have any questions or concerns about our products, please to contact us. We offer after-sales support, return policy, and other services. You can trust our products and services completely

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20112005 - 20092005 - 20092005 - 20062008 - 20102008200420042004 - 20102008 - 20102004 - 20102004 - 2010
MakeINFINITINissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissan
ModelQX56ArmadaArmadaArmadaPathfinderPathfinderPathfinder ArmadaPathfinder ArmadaTITANTITANTITANTITAN
TrimBaseLESESE Off-RoadLESELESELEPRO-4XSEXE
Engine5.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V8
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0550-Power steering pressure sensor circuit — inspect the sensor connector and wiring.
  • P0551–P0553-Pressure sensor circuit range/performance or low/high input — check pressure, sensor signals, and wiring.
  • P0620-Generator control circuit — check the charging system and related wiring.
  • P0562-Low system voltage — check the battery, charging output, and power connections.

Codes alone do not confirm power steering pump failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Confirm fitment: Compare mounting points, pulley specifications, fluid ports, and any sensor connectors.
  • Inspect the system: Check fluid condition, hoses, seals, and the drive belt for leaks or damage.
  • Check the new pump: Inspect for shipping damage and confirm smooth pulley rotation where applicable.

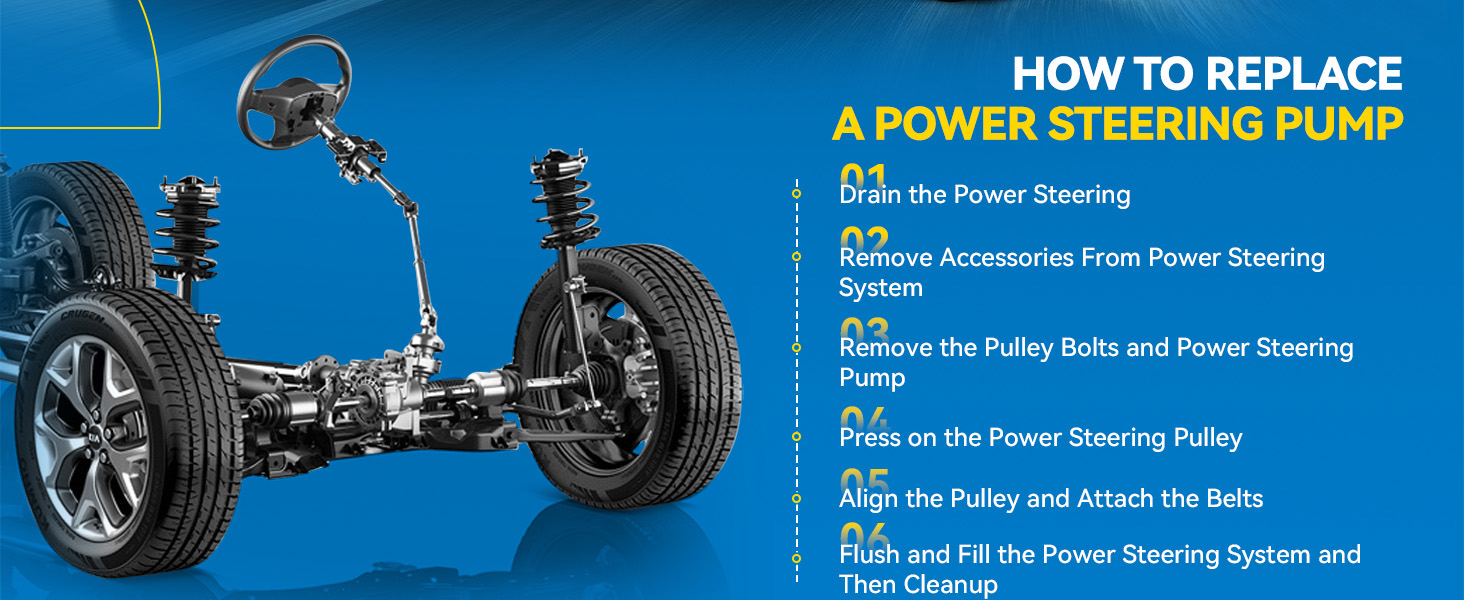

Installation Steps

  • STEP 1 — Let the engine cool, disconnect the negative battery cable, and drain the power steering fluid.
  • STEP 2 — Photograph the belt routing and hose connections. Release belt tension and remove the belt from the pump.
  • STEP 3 — Disconnect hoses and any wiring. Cap open lines to keep out dirt, then remove the old pump.
  • STEP 4 — Clean or flush contaminated lines. Install the new pump with new specified seals and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses and wiring. Reinstall the belt with correct alignment and tension.
  • STEP 6 — Fill with the specified fluid and bleed the system using the vehicle-specific procedure. Never run the pump dry or hold the steering at full lock.

After Installation

  • Verify correct belt seating and secure hose connections.
  • With the engine idling, check for smooth steering assist without unusual noise or vibration.
  • Inspect the pump and lines for leaks.
  • Switch off the engine, allow the fluid to settle, and recheck the level.

Product Video

Product Description

Power Steering PumpPower Assist Pump

Reviews

4.5/5

Based on 11 reviews

564%
418%
318%
20%
10%

Customer

01/05/2024

Verified buyer

Good

bruce

06/08/2023

Verified buyer

fit good as original

FAQS

Mismatched high-pressure interface size, aging of sealing ring or gasket. The low-pressure pipe is damaged or loosened: Check whether the oil pipe is loose after tightening the bolts, and whether the gasket or seal is deformed.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.

Unused products may be eligible for return according to the Philtop return policy. Please keep the product and packaging in their original condition and contact us before sending it back.
