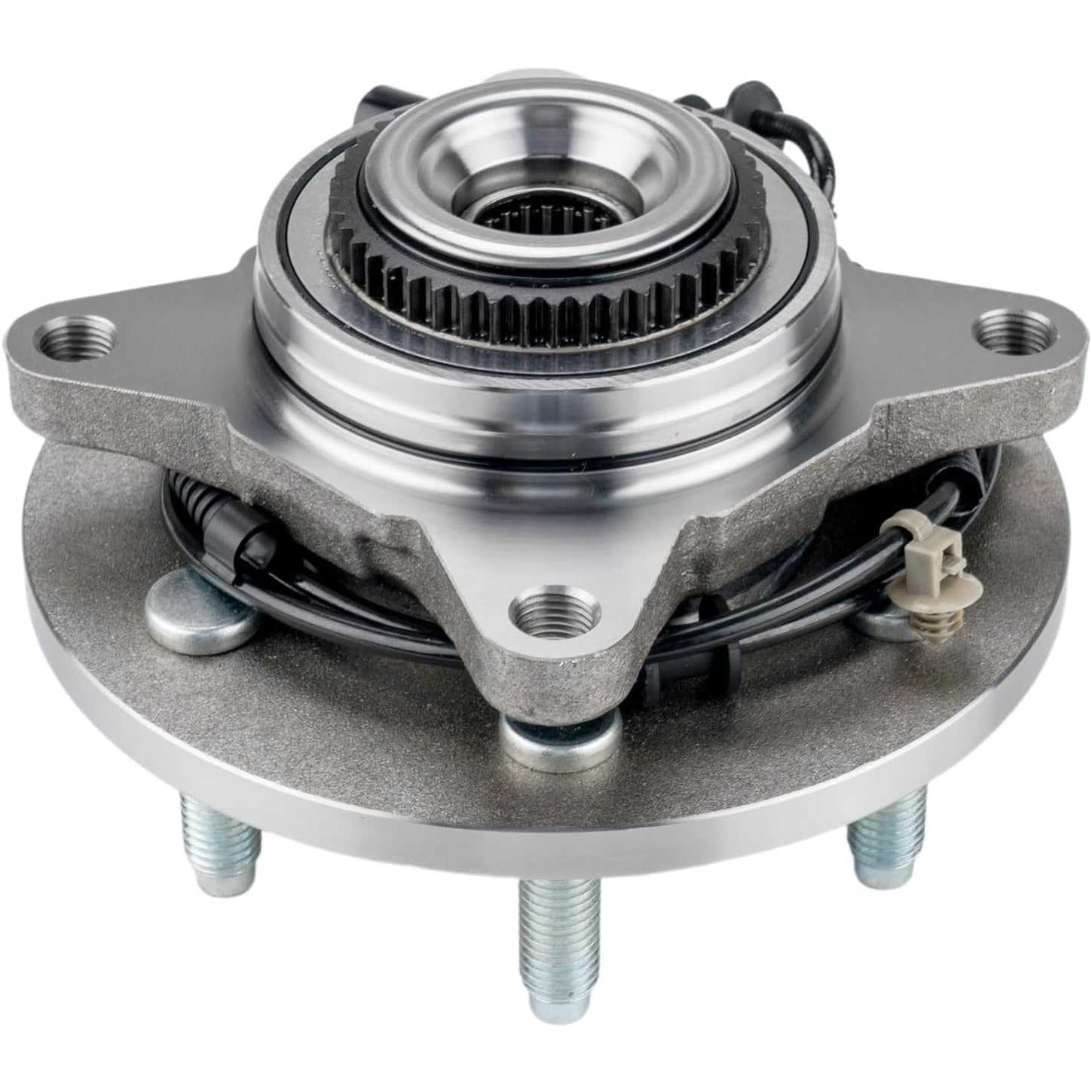

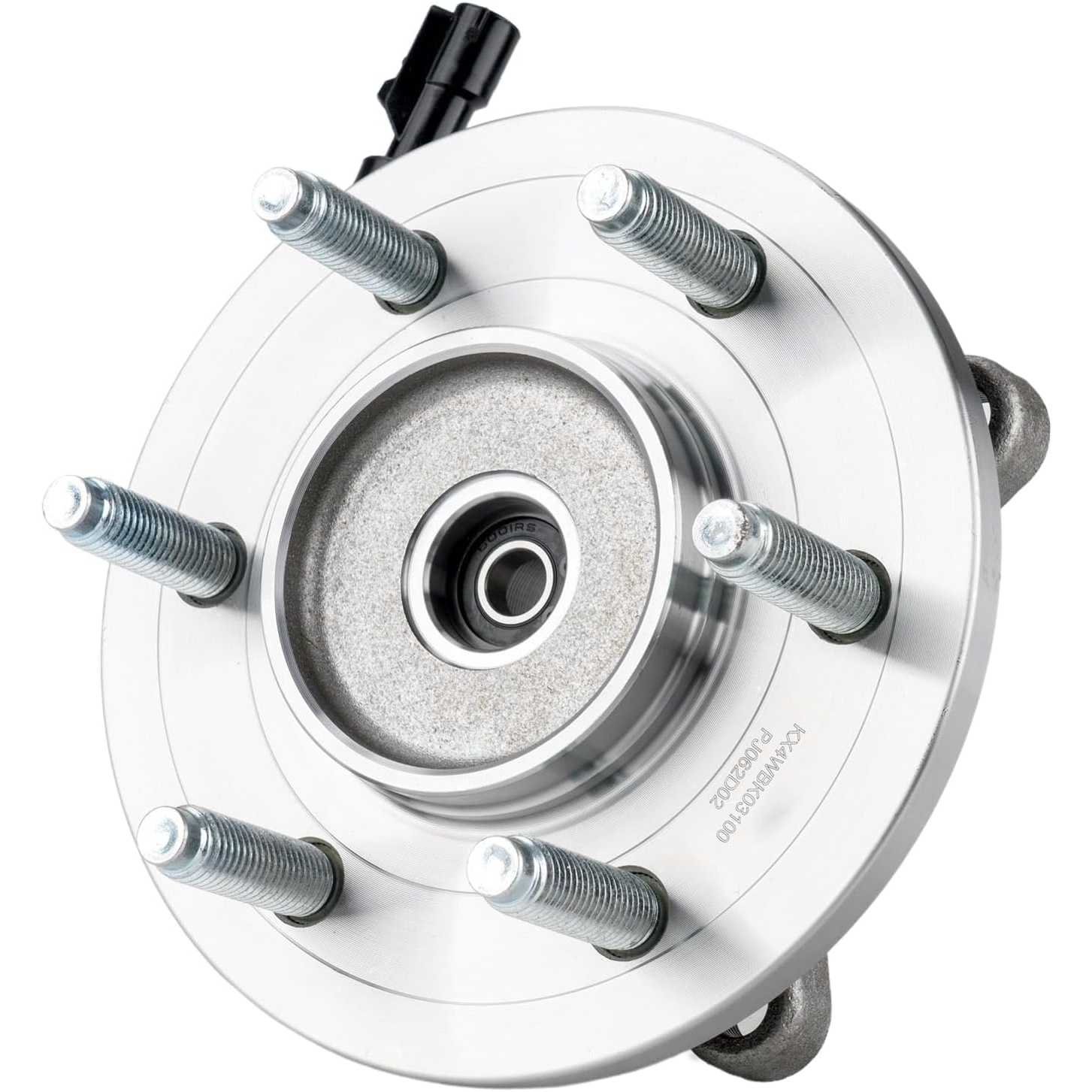

2004-2005 Ford F-150 5.4L V8/4.2L V6/4.6L V8 | 2 PC Front 4WD Wheel Bearing | 4L3Z1104ABFC/515046 - PHILTOP

2004-2005 Ford F-150 5.4L V8/4.2L V6/4.6L V8 | 2 PC Front 4WD Wheel Bearing | 4L3Z1104ABFC/515046 - PHILTOP

Triple-Lip Seal

Front

4WD

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
41ISWBK0517US

Specifications

Brand
PHILTOP
ABS Type
Speed Sensor
Drive Type
4WD
Lug Count
6
Position
Front
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

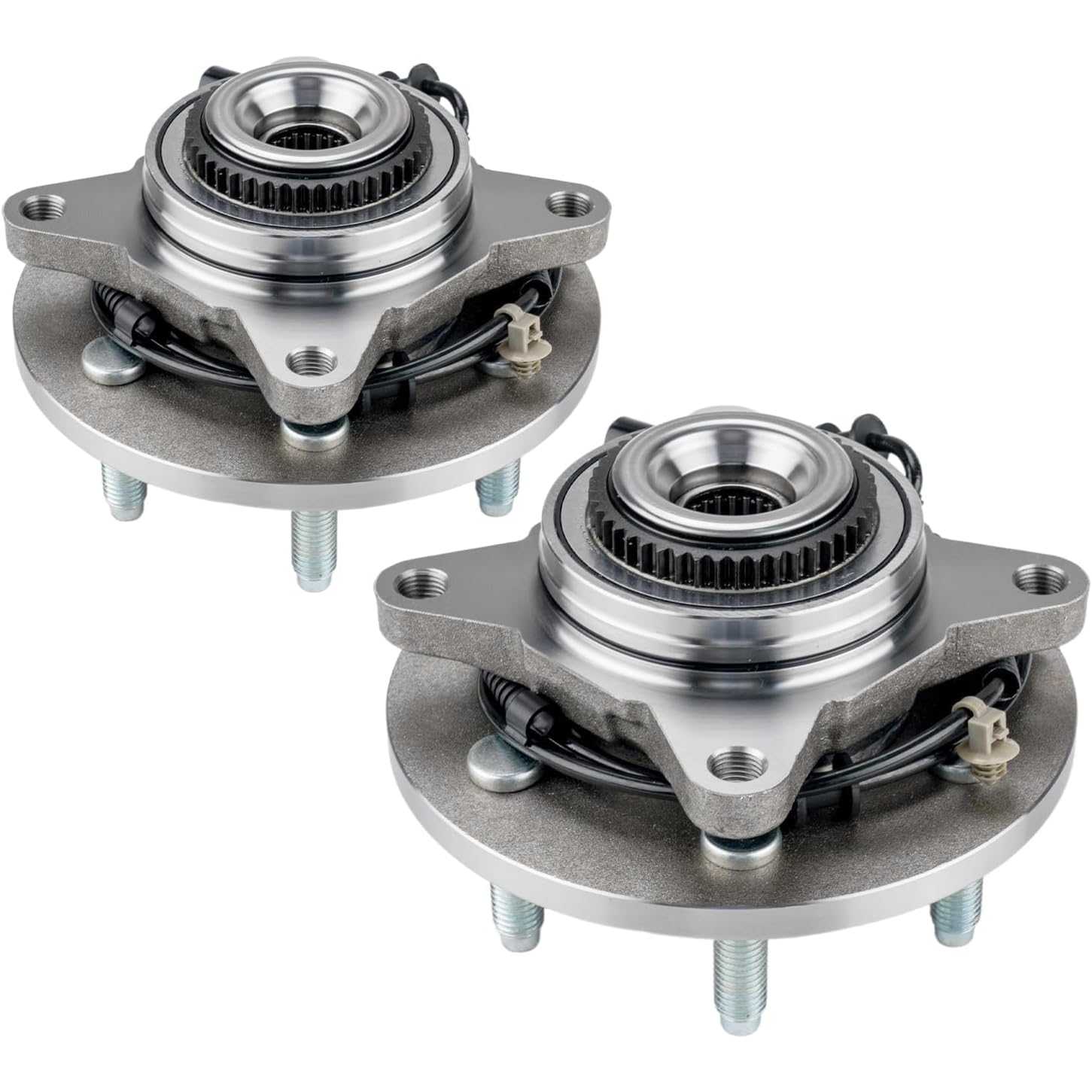

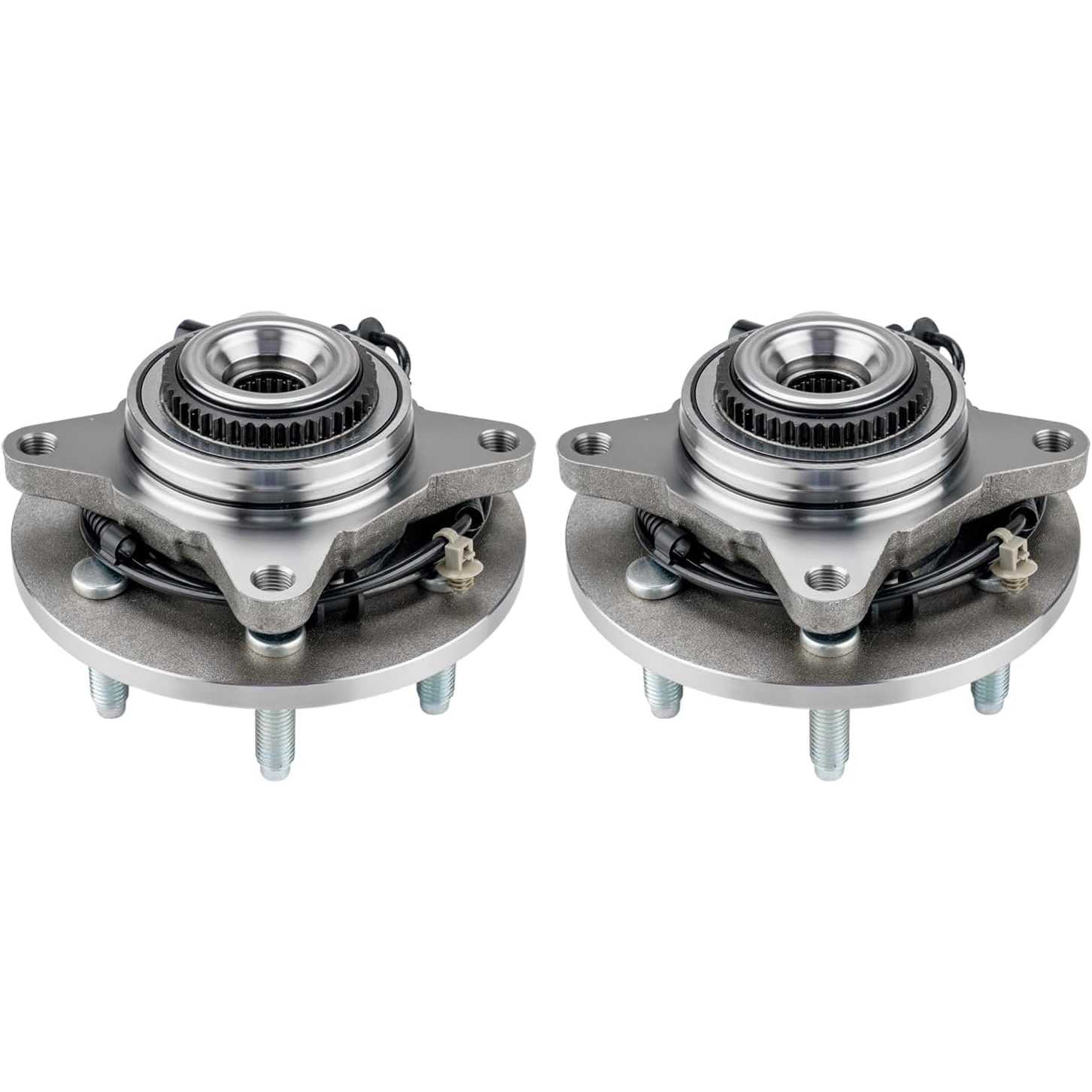

2x Front Wheel Hub and Bearing Assembly - 515046,Installation Instructions
Bolt Pattern
6 X 5.31
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.9 in
Wheel Stud Size
M14*2.0
Flange Offset
1.79 in/45.5 mm
Flange Diameter
7.2 in/183.0 mm
Brake Pilot Diameter
3.54 in/90.0 mm
Warranty Period
2-Year
OE Number
4L3Z1104ABFC,4L3Z1104AB,4L3Z1104AA,4L342B663AC,4L342B663AE,4L342B663AF,4L342C530AC,4L342B663AG,4L342C530AB
Part Number
515046,7990301,SP550212
Quantity
2

Highlights

  • [Fitment] Wheel Bearing and Hub Assemblies compatible with 2004-2008 Ford F-150 4WD, 2003-2006 Lincoln Navigator 4WD, 2006-2008 Lincoln Mark LT 4WD, 2004 Ford F-150 Heritage 4WD
  • [OE Number] 515046, 7990301, SP550212, 4L3Z1104ABFC, 4L3Z1104AB, 4L3Z1104AA, 4L342B663AC, 4L342B663AE, 4L342B663AF, 4L342C530AC, 4L342B663AG, 4L342C530AB

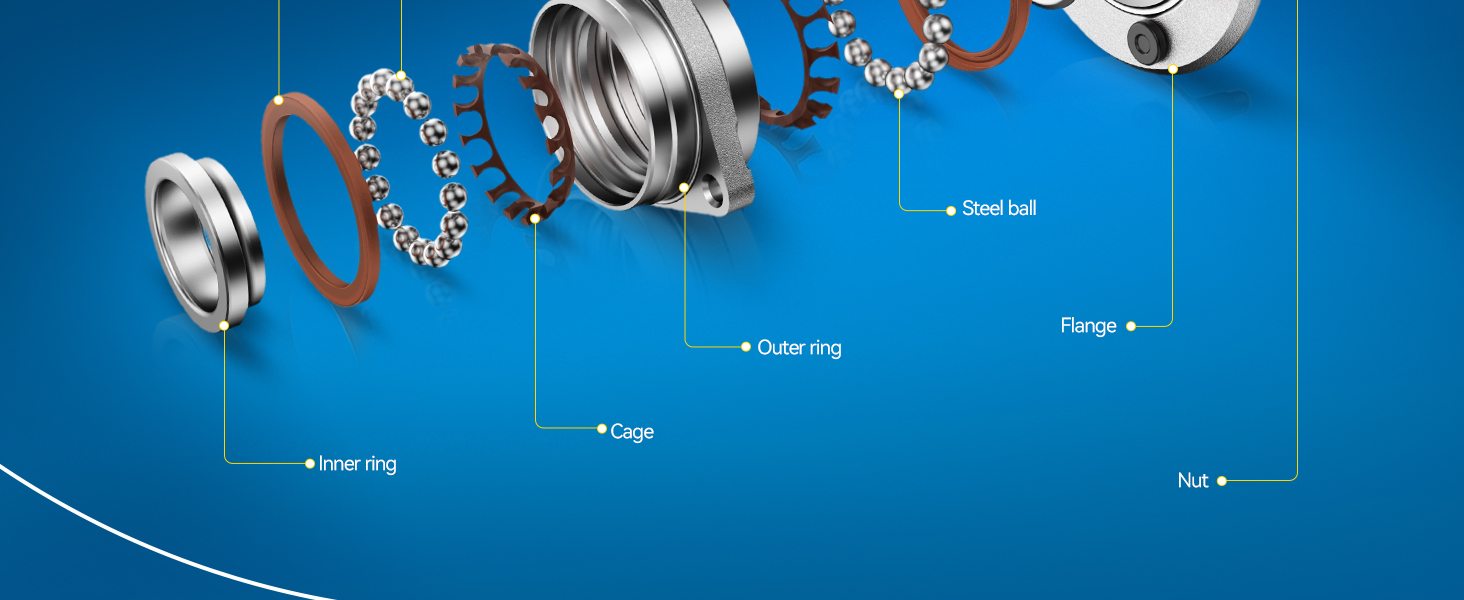

  • [Premium Materials] The outer ring and flange are made of high-quality #55 carbon structural steel for superior hardness and strength; the inner ring is crafted from GCr15 bearing steel, which achieves uniform hardness after quenching and tempering for excellent wear resistance and fatigue strength.
  • [Long Life, Stable Drive] Our brand-new hub assemblies and studs are finished with rust-proof coating for longer service life. Featuring a triple oil seal structure, they effectively block moisture and dust, while minimizing noise and vibration to deliver a smoother, more comfortable drive.
  • [Pro Installation for Safety] If you lack installation instructions or professional experience, have a qualified mechanic install the bearing to guarantee optimal performance and safe driving.

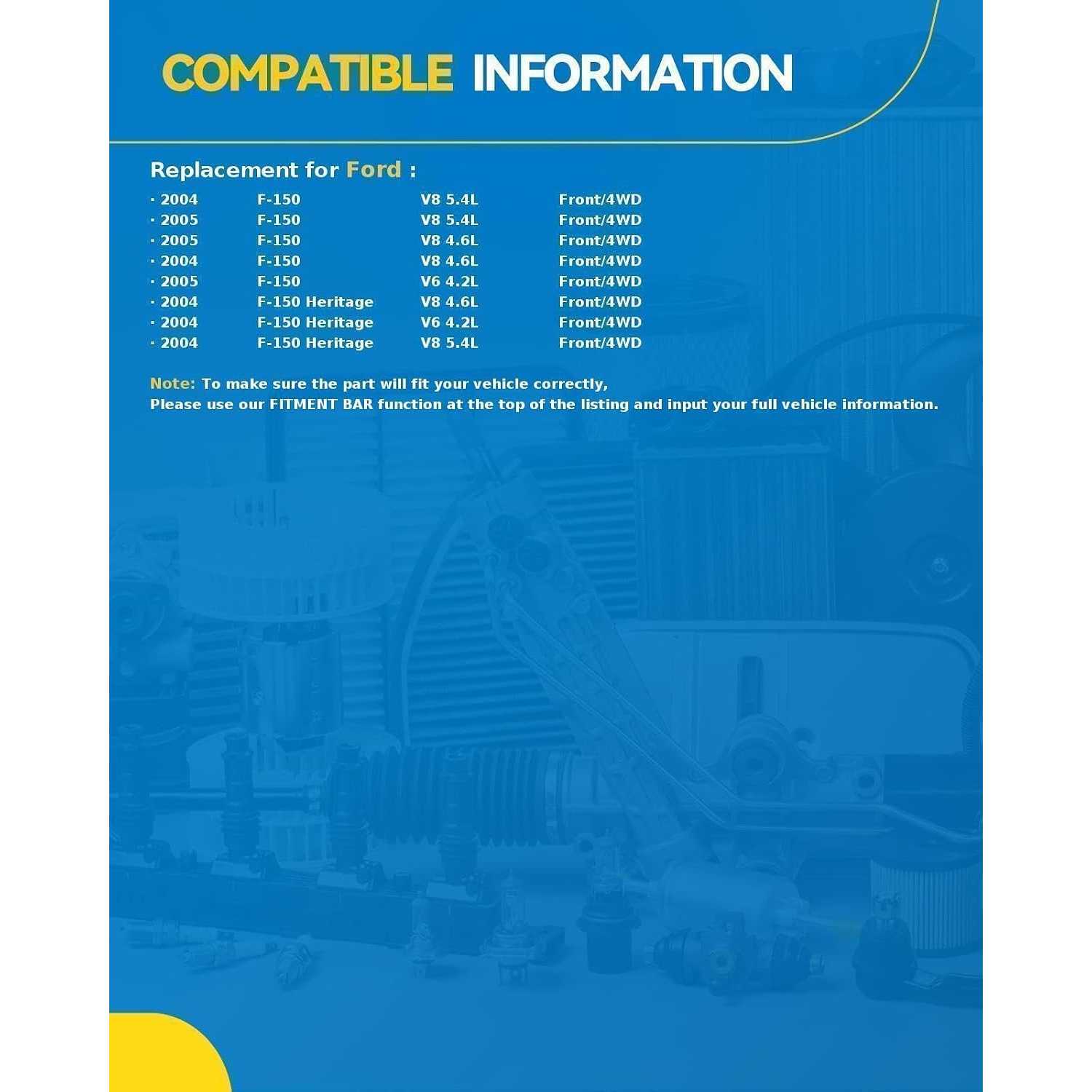

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year200420052005200420052005200420052005200420052004200520052004200520042005200420042004200420042004
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-150 Heritage
TrimFX4FX4King RanchLariatLariatSTXSTXSTXXLXLXLXLXLXLTXLTXLTXLTXLTXLXLXLXLTXLTXLT
Engine5.4L V85.4L V85.4L V85.4L V85.4L V84.2L V64.6L V84.6L V84.2L V64.6L V84.6L V85.4L V85.4L V84.2L V64.6L V84.6L V85.4L V85.4L V84.2L V64.6L V85.4L V84.2L V64.6L V85.4L V8
Note
6 Stud
6 Stud;Built Before 11/29/04
6 Stud;Built Before 11/29/04
6 Stud
6 Stud;Built Before 11/29/04
6 Stud;Built Before 11/29/04
6 Stud
6 Stud;Built Before 11/29/04
6 Stud;Built Before 11/29/04
6 Stud
6 Stud;Built Before 11/29/04
6 Stud
6 Stud;Built Before 11/29/04
6 Stud;Built Before 11/29/04
6 Stud
6 Stud;Built Before 11/29/04
6 Stud
6 Stud;Built Before 11/29/04
6 Stud
6 Stud
6 Stud
6 Stud
6 Stud
6 Stud

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.
