2011-2015 Ford Explorer 3.5L V6 | 3x Aluminum Alloy Engine Mount | A5663HY - PHILTOP

2011-2015 Ford Explorer 3.5L V6 | 3x Aluminum Alloy Engine Mount | A5663HY - PHILTOP

Aluminum Alloy

Fatigue-Resistant

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
78ISEMO0817US

Specifications

Brand
PHILTOP
Items Included

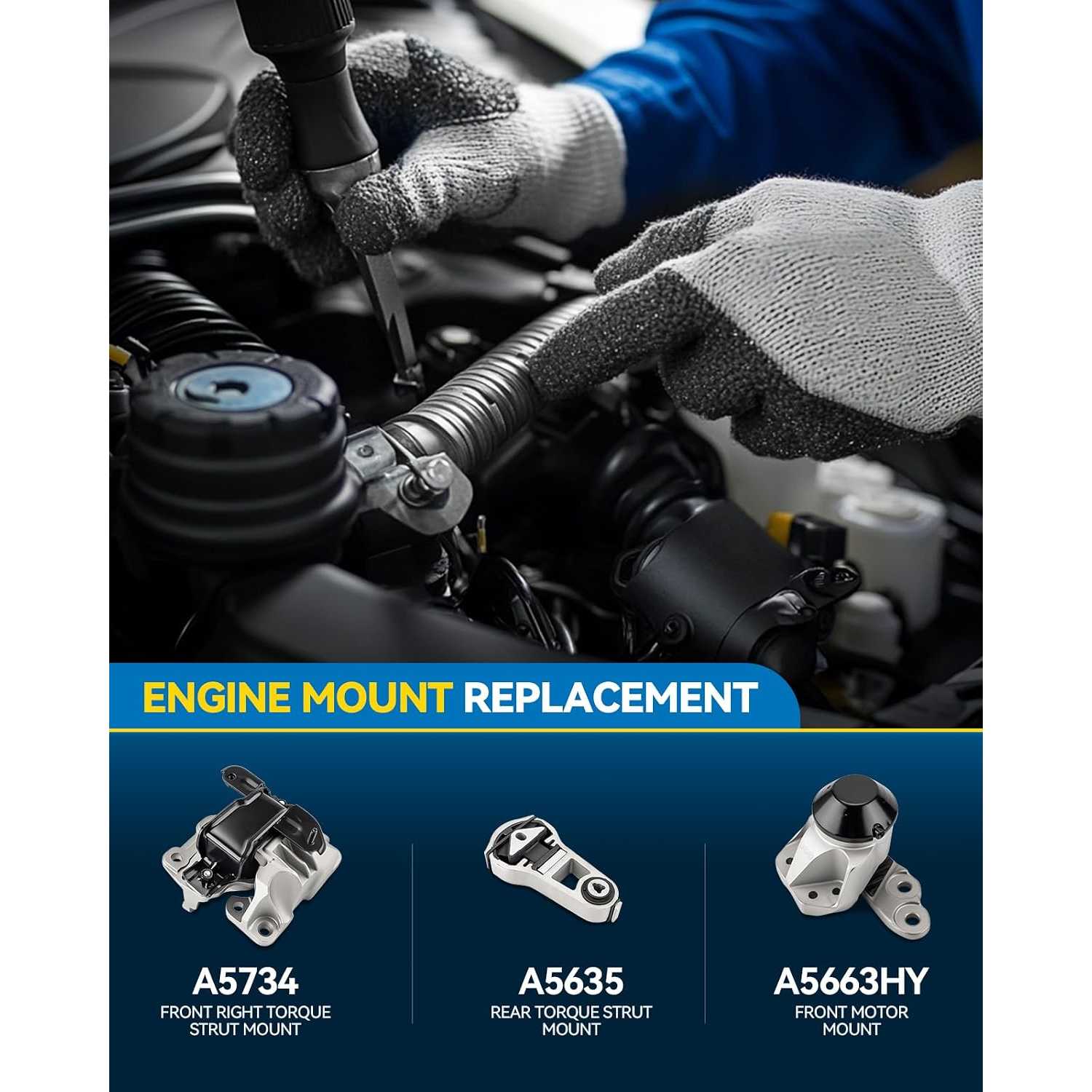

1x Front Right Motor Mount - A5663 1x Left Transmission Mount - A5734 1x Rear Torque Strut Mount- A5635
Position
Front, Rear, Right, Left
Quantity
3
Material
Aluminium Alloy&Rubber
Warranty Period
2-Year
Part Number
A5663HY,A5734

Highlights

  • (Vehicle Fitment)PHILTOP Engine Motor Mount for 2011-2015 Ford Explorer, for 2016-2017 Ford Explorer 3.5L
  • (OEM Number)A5635 A5663HY A5734
  • (Package Included)1x Front Right Motor Mount - A5663, 1x Left Transmission Mount - A5734, 1x Rear Torque Strut Mount- A5635. PHILTOP engine mounts adopt a modular design that can adapt to different engine layouts and achieve seamless installation.
  • (Installation Instructions): 1. Align all bolts; 2. Gently screw the bolts into the holes; 3. Tighten all bolts simultaneously(Do not tighten them one by one). The heat shield can be bent for easy installation, but be sure to clean the adhesive in the installation area before installation and restore any bent areas from disassembly to a flat state.

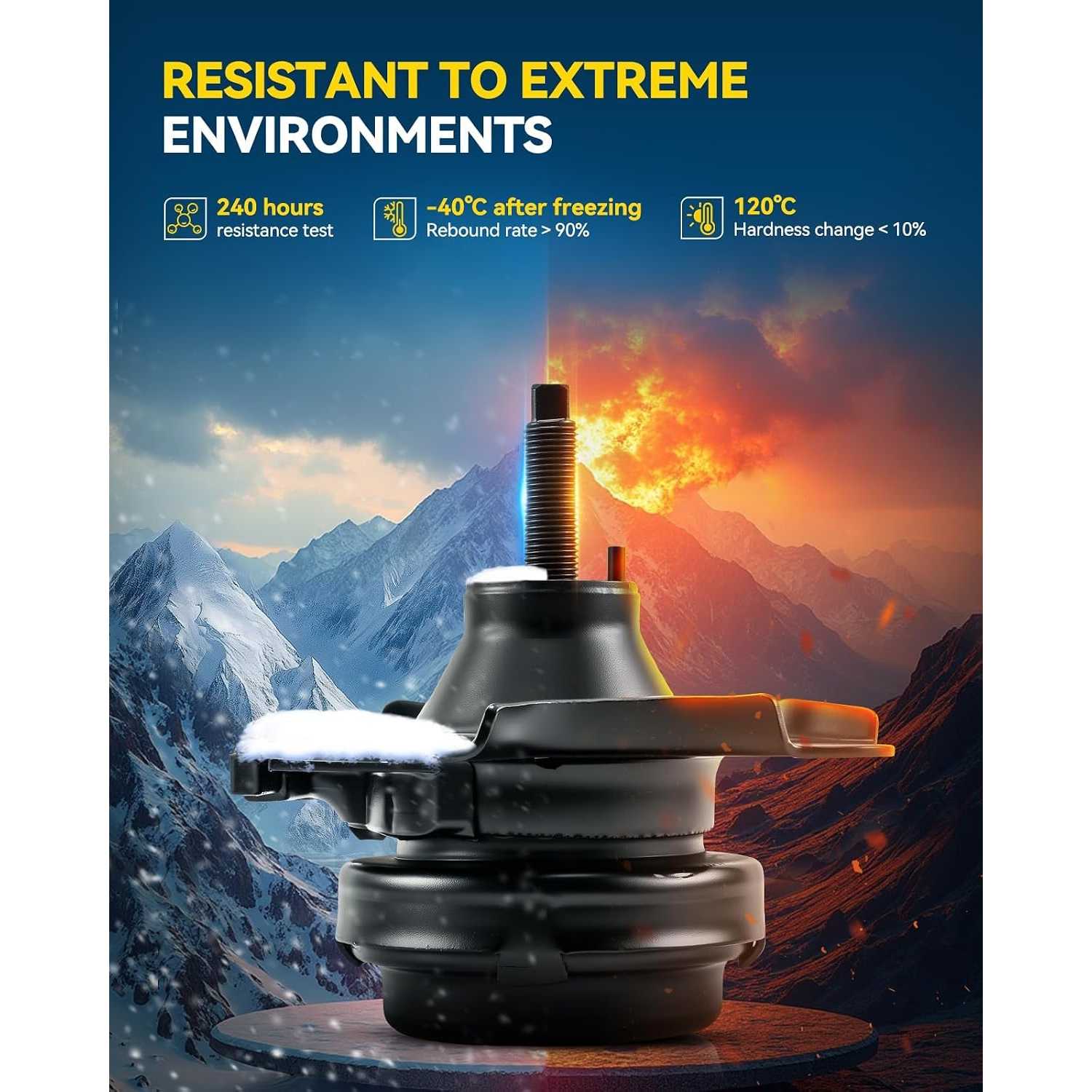

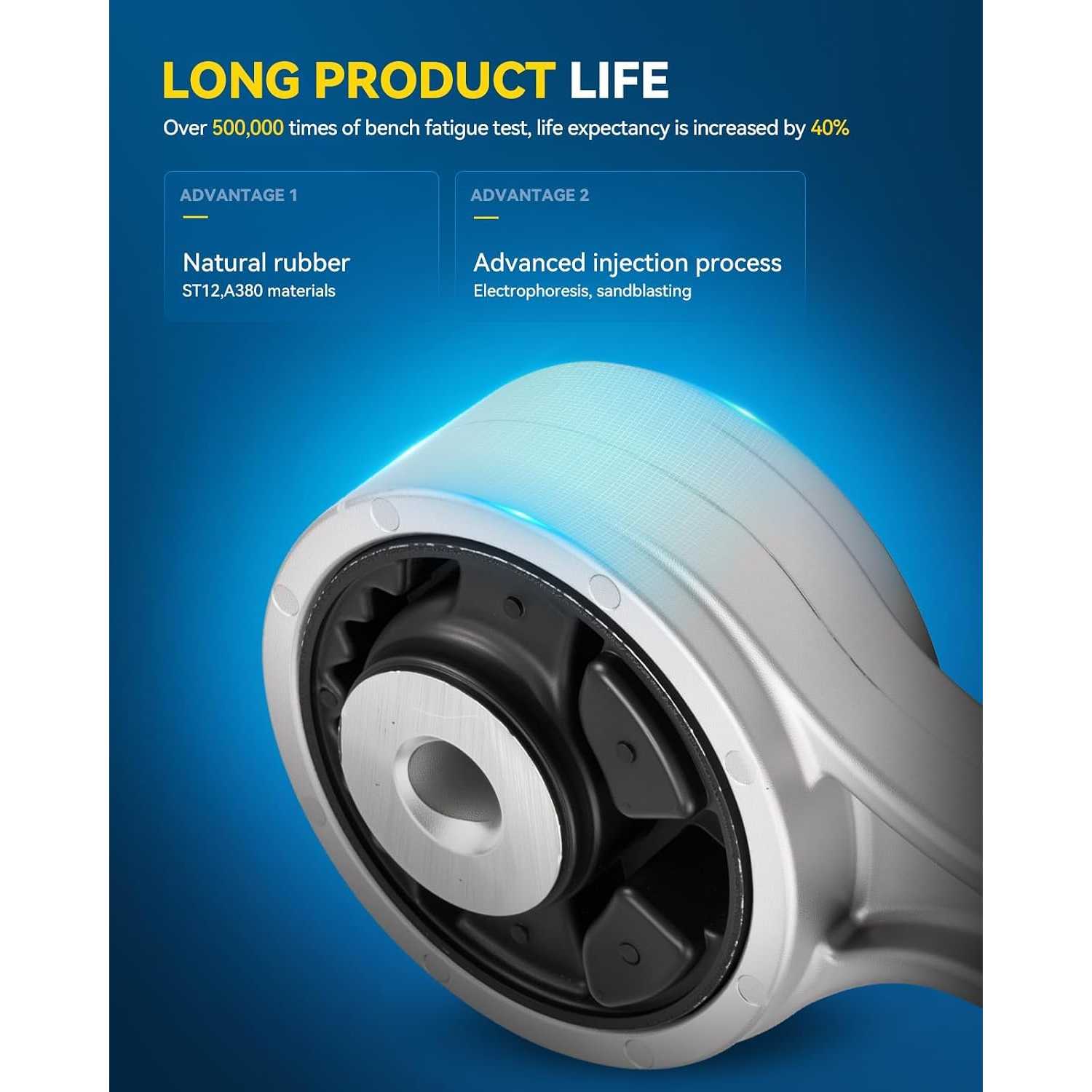

  • (High Performance)The engine mounts are made of natural rubber and metal materials, adapting to cold, high temperature and extreme environment of the engine compartment. Improve NVH performance, reduce high-frequency vibration 20-200Hz, reduce vehicle vibration amplitude by about 70%, and reduce cockpit noise by 5-10 db, able to withstand extreme environments of -40℃ and 120℃.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20152011 - 20152011 - 2015
MakeFordFordFord
ModelExplorerExplorerExplorer
TrimBaseLimitedXLT
Engine3.5L V63.5L V63.5L V6
Note
OEM Hydraulic Design;SOLID
OEM Hydraulic Design;SOLID
OEM Hydraulic Design;SOLID

Engine Mount Important Notes

Verify Before Purchase

  • Engine Displacement: Four-cylinder, V6 and V8 versions of the same vehicle often use completely different mounts. Engine displacement is more important than the vehicle model name.
  • Transmission & Drivetrain: Automatic and manual transmissions may use different mounts. FWD, RWD and AWD vehicles may also differ in mount position and quantity.
  • Mount Position: Most vehicles use three or four mounts, including the engine-side mount, transmission-side mount, and front or rear torque mount. Each is a different part, cannot be interchanged and is rarely symmetrical from side to side.
  • Mount Type: Verify whether the original mount is solid rubber, hydraulic or electronically controlled. Active mounts with vacuum lines or electrical connectors must match exactly.

Replacement Recommendation

On vehicles with approximately 80,000 miles, more than one mount may be near the end of its service life. If only one is replaced, the worn mounts may continue allowing excessive movement, forcing the new mount to absorb the full displacement and causing premature failure.

Replace mounts on the same load axis together whenever possible. A new mount paired with a worn mount may carry excessive load and fail again quickly.

Critical Installation Notes

  • Support the engine before removing any bolts. Never allow the engine to hang from the remaining mounts.
  • Allow the engine to return to its natural resting position before applying final torque. Otherwise, the mount rubber will remain preloaded throughout its service life.

Product Description

PHILTOP ENGINE MOUNTEngine MOTOR MOUNT

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Arthur Martins

11/10/2024

Verified buyer

Todo llegó en perfecto estado Read more

DaveTheMechanic_332

05/22/2026

Installation was pretty straightforward, everything lined up perfectly. Took me a couple of hours but was no harder than any other motor mount job I've done.

FAQS

No FAQs have been added for this product yet.
