Iridium

Torque: 15 N

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
96ISSPP0447US

Specifications

Brand
PHILTOP
Installation Torque
15 N
Items Included
4x Spark Plug - 5476
Ground Electrode Material
Iridium
Spark Plug Gap
0.0016 in/0.04 mm
Spark Plug Insulator Height
2.09 in/53.00 mm
Spark Plug Thread Diameter
0.55 in/14 mm
Spark Plug Reach
0.99 in
Quantity
4
Center Electrode Tip Material
Iridium
Center Electrode Core Material
Copper
Warranty Period
2-Year
OE Number
12620540
Part Number
5476,ILTR5D

Highlights

  • (Compatible Vehicles) [Buick] 2012-2017 Verano 2.0/2.4L, 2011-2017 Regal 2.0/2.4L, 2010-2016 LaCrosse 2.4L, [Cadillac] 2016-2019 CTS 6.2L, 2022-2024 CT5 6.2L, 2023-2024 Escalade/Escalade ESV V, [Chevrolet] 2010-2017 Equinox 2.4L, 2012-2015 Captiva Sport 2.4L, 2015-2019 Corvette Z06, 2017-2023 Camaro ZL1, 2013-2014 Malibu 2.4L, 2008-2010 HHR/Cobalt 2.0L, [GMC] 2010-2017 Terrain 2.4L, [Pontiac] 2007-2009 Solstice 2.0L, [Saab] 2011-2011 9-5 2.0L, [Saturn] 2007-2010 Sky 2.0L

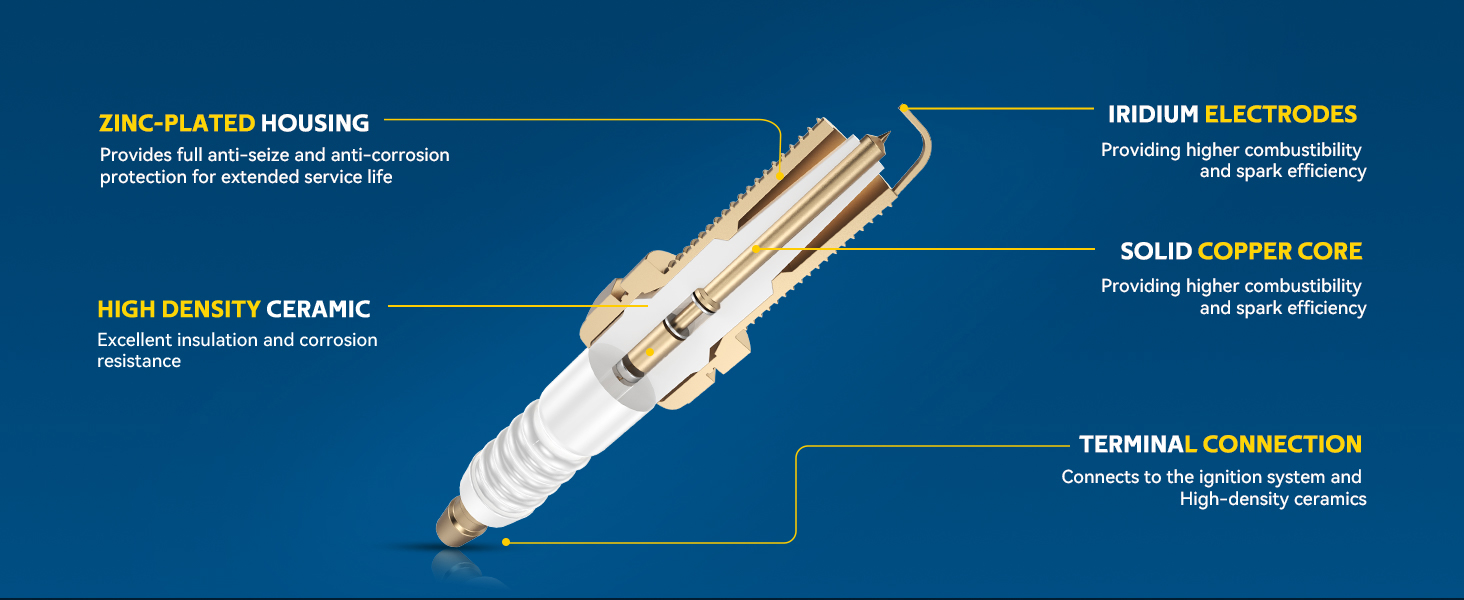

  • (Longer Lifespan) PHILTOP automotive replacement spark plugs are made of double iridium, with excellent durability, heat and corrosion resistance, effectively burns off the carbon deposits on the plug tip, extending the service life.
  • (Faster Starts)The double iridium spark plugs can realize the center electrode pole refinement and concentrates spark energy, providing better ignitibility for vehicles and smoother environment for engine, no worry for misfire.
  • (Fuel Economy) 1.1mm fine wire iridium center wire tip design for sufficient combustion, efficiently reducing carbon accumulation. The external sealing gasket can prevent combustion gas leakage and relief fuel consumption.
  • (OE Replace)12620540, 5476, ILTR5D
  • (Warm Tips)Please enter your vehicle's year/make/model and then check the fitment before purchasing.

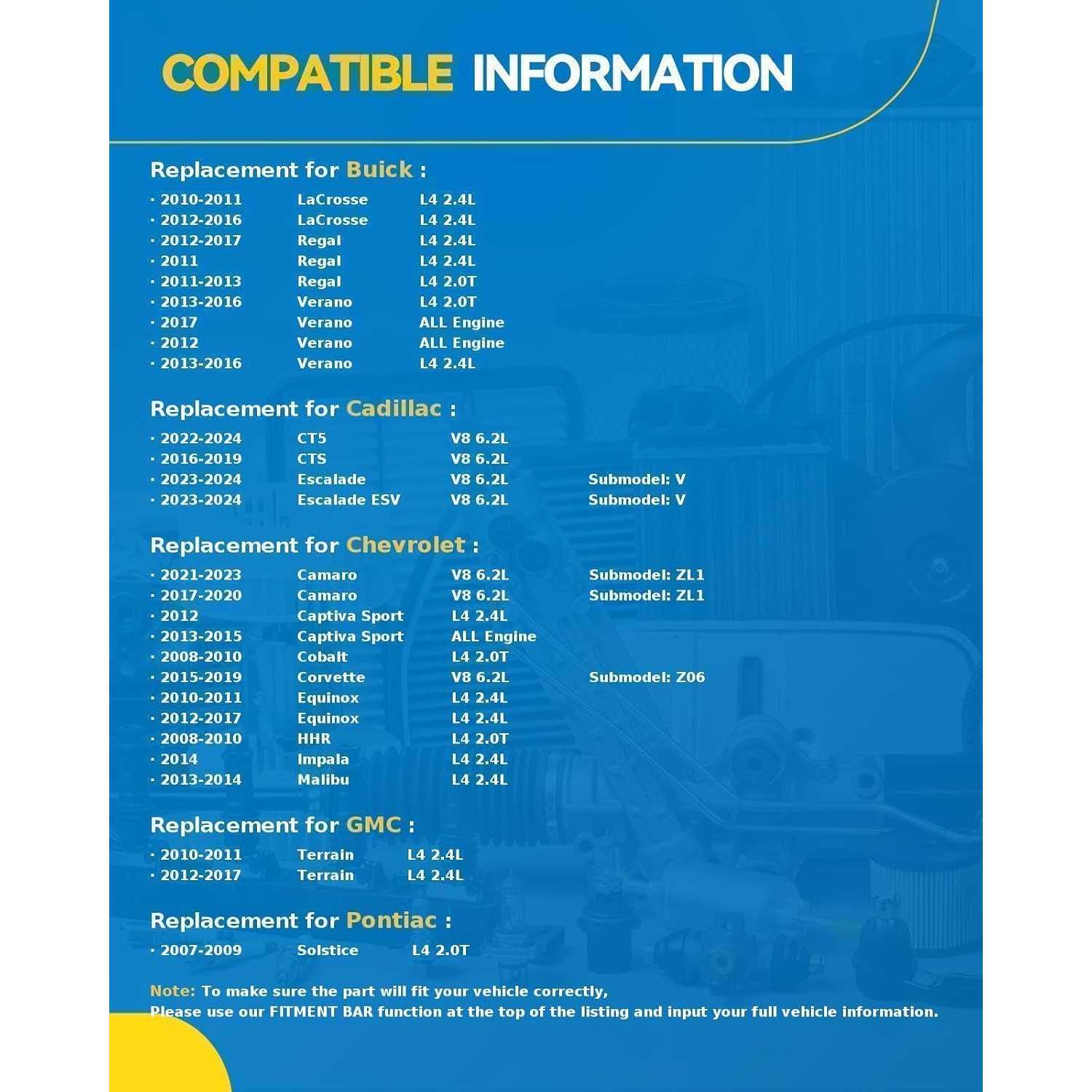

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20162010 - 2011201120122012 - 201620122012 - 2017201120112012 - 20132012 - 20132012 - 201620122013 - 2016201720122013 - 201620122013 - 201620172013 - 20162016201720132022 - 20252016 - 20192023 - 20252023 - 20252017 - 20202021 - 20232012 - 20152013 - 20152013 - 20152008 - 20102015 - 20192015 - 20172010 - 20112012 - 20172010 - 20112012 - 20172010 - 20112012 - 201620172008 - 2010200920142013 - 20142013 - 20172015 - 20172010 - 20112012 - 20172010 - 20112012 - 20172007 - 200920112007 - 2010
MakeBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickCadillacCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCPontiacSaabSaturn
ModelLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseLaCrosseRegalRegalRegalRegalRegalRegalVeranoVeranoVeranoVeranoVeranoVeranoVeranoVeranoVeranoVeranoVeranoVeranoCT5CTSEscaladeEscalade ESVCamaroCamaroCaptiva SportCaptiva SportCaptiva SportCobaltCorvetteEquinoxEquinoxEquinoxEquinoxEquinoxEquinoxEquinoxEquinoxHHRHHRImpalaMalibuTerrainTerrainTerrainTerrainTerrainTerrainSolstice9-5Sky
TrimBaseCXCXLConvenienceLeatherPremiumBaseCXLCXLGSPremiumPremiumBaseBaseBaseConvenienceConvenienceLeatherLeatherLeatherPremiumSport TouringSport TouringTurboV BlackwingVVVZL1ZL1LSLTLTZSSZ06LLSLSLTLTLTZLTZPremierSSSS PanelEcoEcoDenaliSLSLESLESLTSLTGXPTurbo4Red Line
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.0L L42.4L L42.0L L42.0L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.0L L42.4L L42.4L L42.0L L46.2L V86.2L V86.2L V86.2L V86.2L V86.2L V82.4L L42.4L L42.4L L42.0L L46.2L V82.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.0L L42.0L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.0L L42.0L L42.0L L4
Note
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
60,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
60,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
60,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
60,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
60,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
60,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
60,000 mi Factory Recommended Service Interval;Gap 0.036";OE Equivalent Design
60,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design
60,000 mi Factory Recommended Service Interval;Gap 0.036";OE Equivalent Design
60,000 mi Factory Recommended Service Interval;Gap 0.036";OE Equivalent Design
60,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design
60,000 mi Factory Recommended Service Interval;Gap 0.036";OE Equivalent Design
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
60,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";New Model;OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
97,500 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
80,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*
100,000 mi OE Mfr Recommended Service Interval;Gap 0.036";OE Equivalent Design*

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

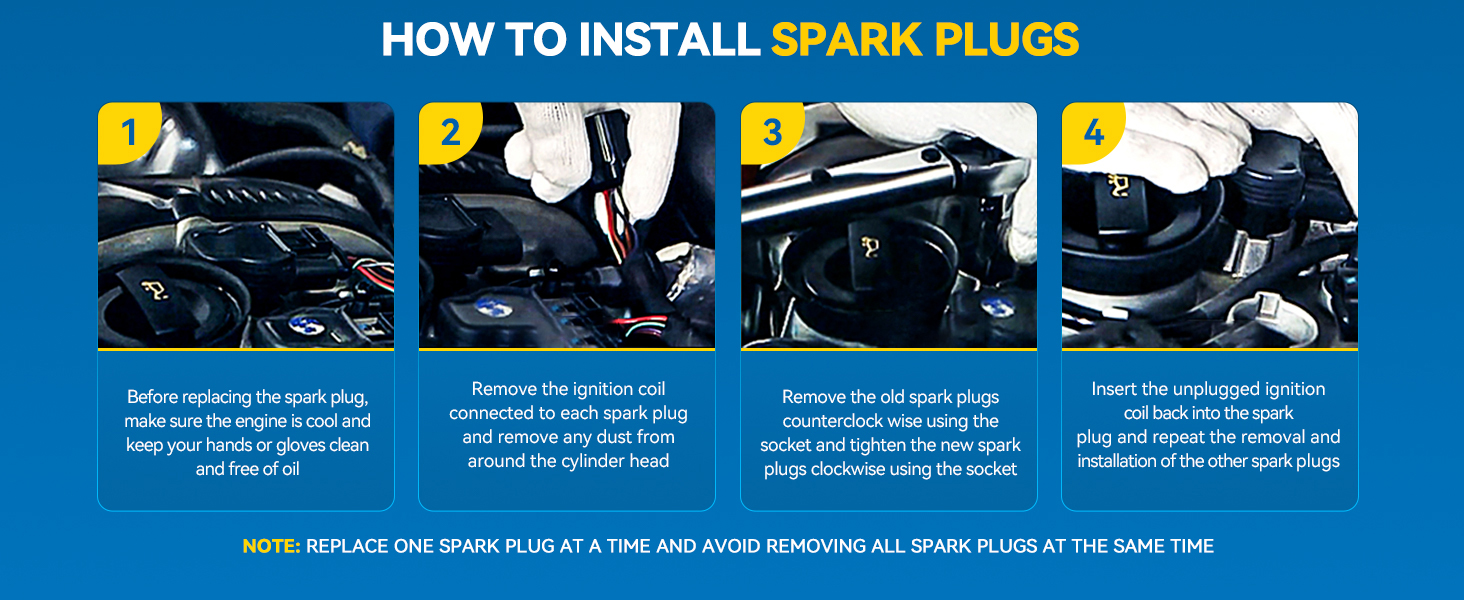

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.
