Iridium

Torque: 25 N

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
26ISSPP0727US

Specifications

Brand
PHILTOP
Installation Torque
25 N
Items Included
4x Spark Plug - LFR7AIX
Ground Electrode Material
Iridium
Spark Plug Gap
0.0012 in/0.03 mm
Spark Plug Insulator Height
1.99 in/50.50 mm
Spark Plug Thread Diameter
0.55 in/14 mm
Spark Plug Reach
1.04 in
Quantity
4
Center Electrode Tip Material
Iridium
Center Electrode Core Material
Copper
Warranty Period
2-Year
Part Number
2309,LFR7AIX

Highlights

  • (Compatible Vehicles) [Mitsubishi] 2006 Lancer Turbocharged, [Yamaha] 2014-2016 FC1800 WaveRunner FX SVHO, FC1800A WaveRunner FX Cruiser SVHO, GX1800 WaveRunner FZR, GX1800A WaveRunner FZS, 2016 FC1800 WaveRunner FX Cruiser SVHO

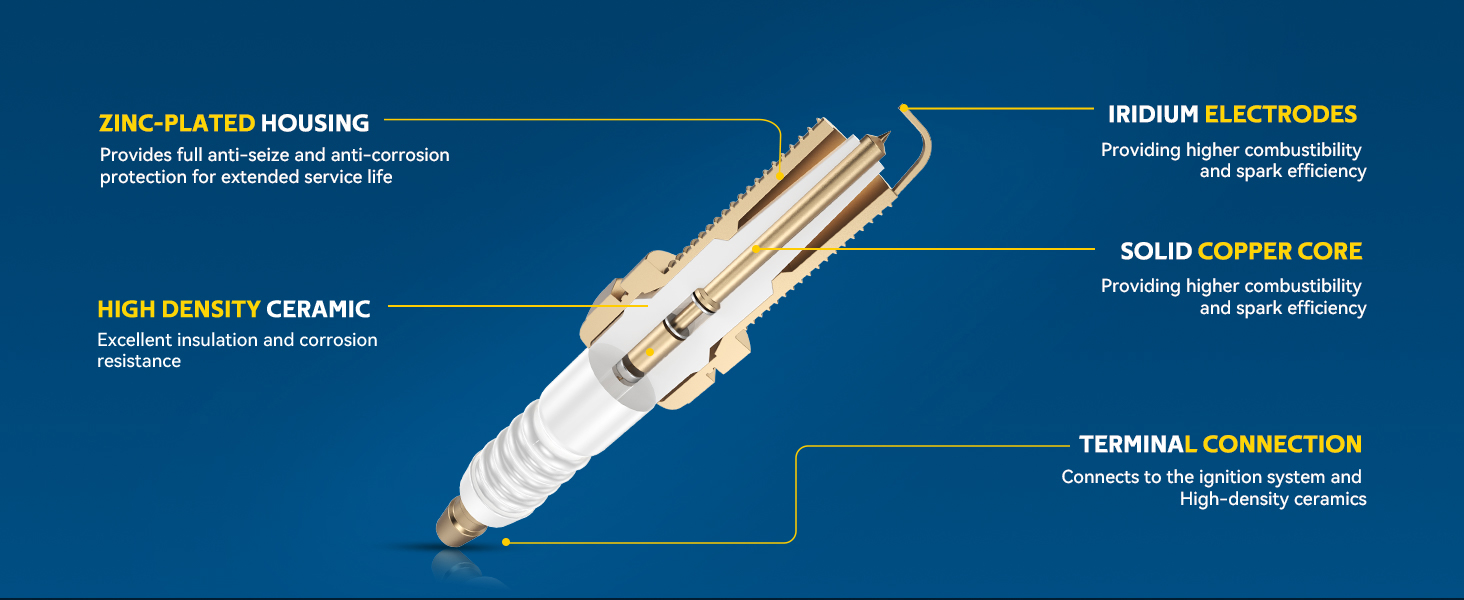

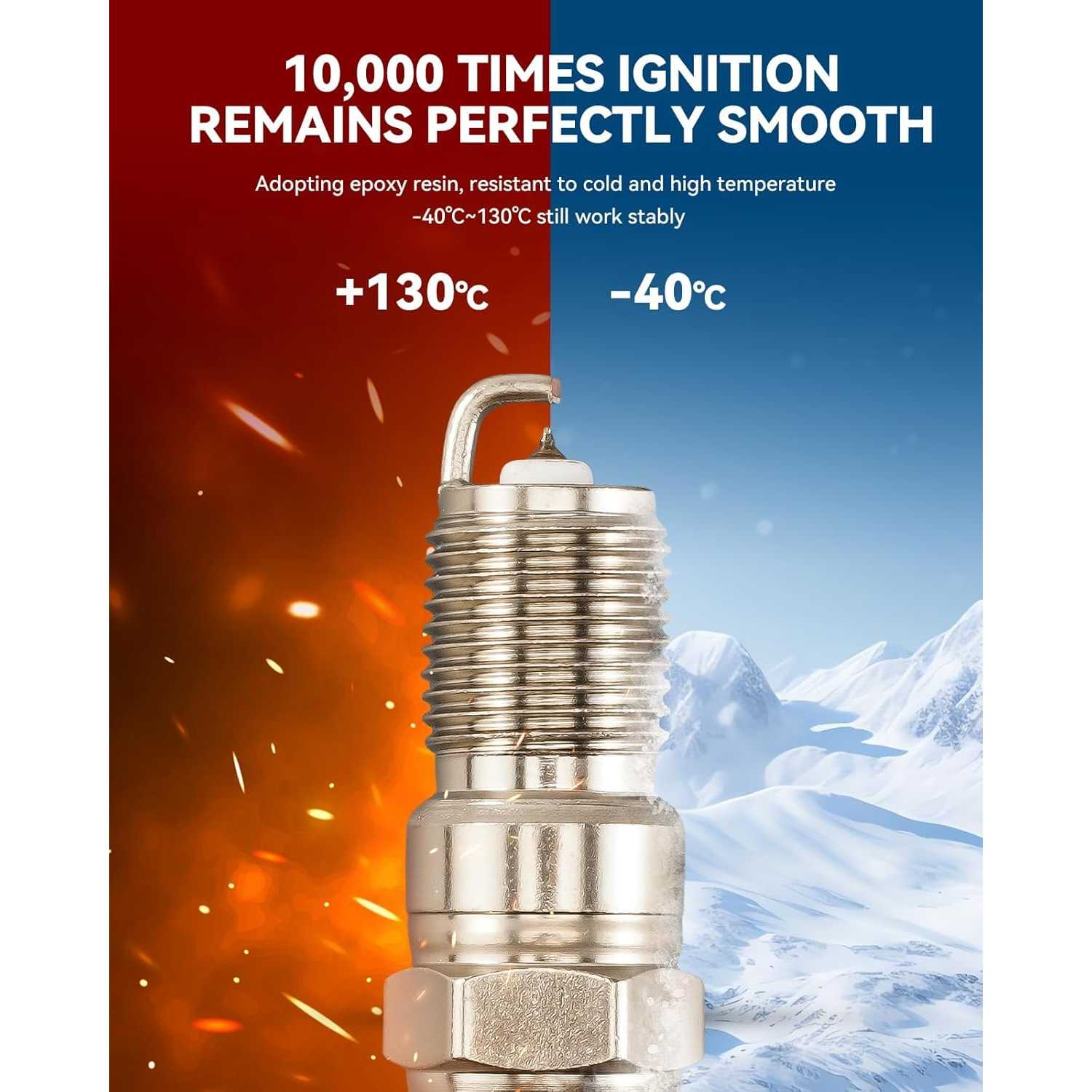

  • (Longer Lifespan) PHILTOP automotive replacement spark plugs are made of double iridium, with excellent durability, heat and corrosion resistance, effectively burns off the carbon deposits on the plug tip, extending the service life.

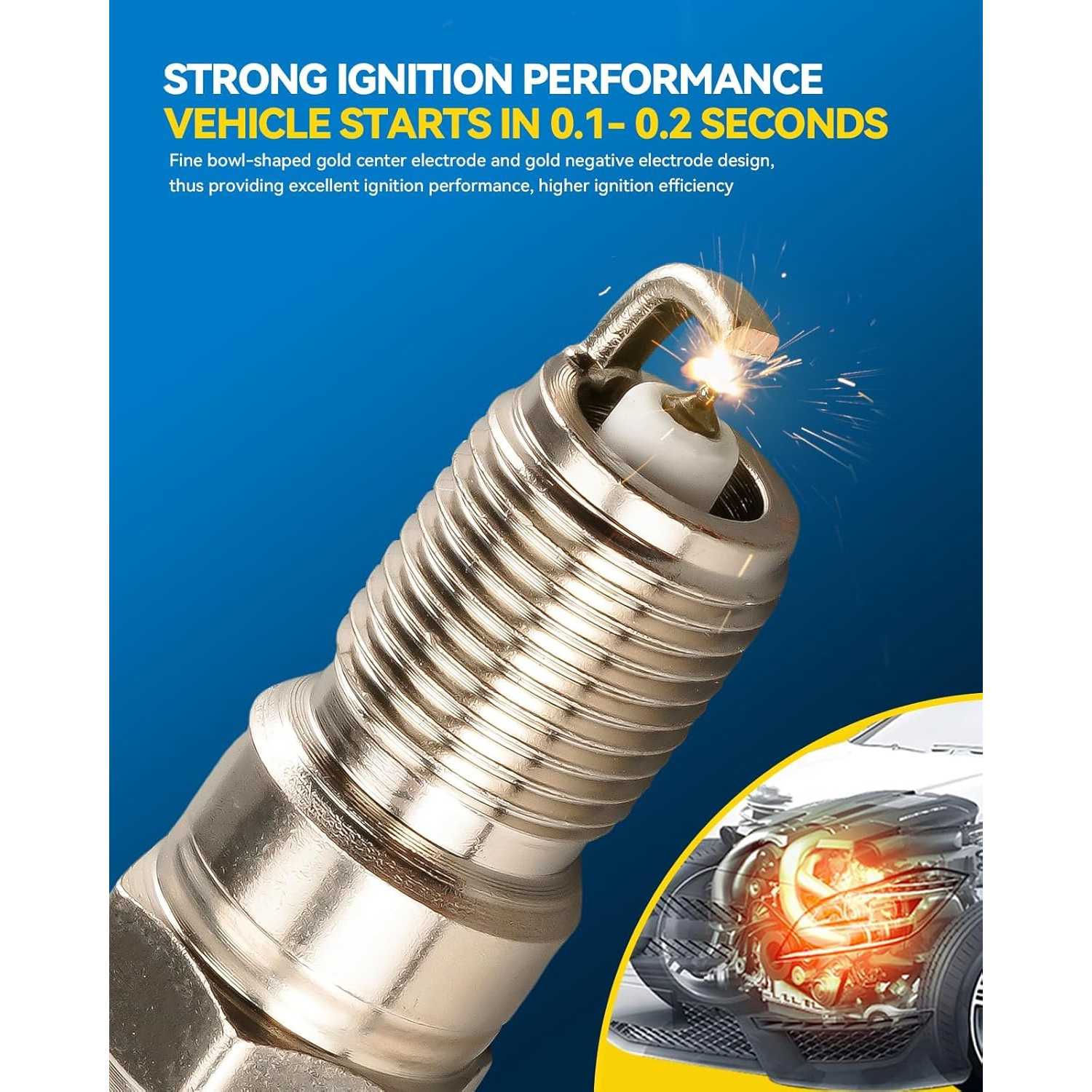

  • (Faster Starts)The double iridium spark plugs can realize the center electrode pole refinement and concentrates spark energy, providing better ignitibility for vehicles and smoother environment for engine, no worry for misfire.
  • (Fuel Economy) 1.1mm fine wire iridium center wire tip design for sufficient combustion, efficiently reducing carbon accumulation. The external sealing gasket can prevent combustion gas leakage and relief fuel consumption.
  • (OE Replace)2309, LFR7AIX, IKH22, FGR5NQE0, F6MPP332, VKH22, 242245570000, 0242245570000, 5619

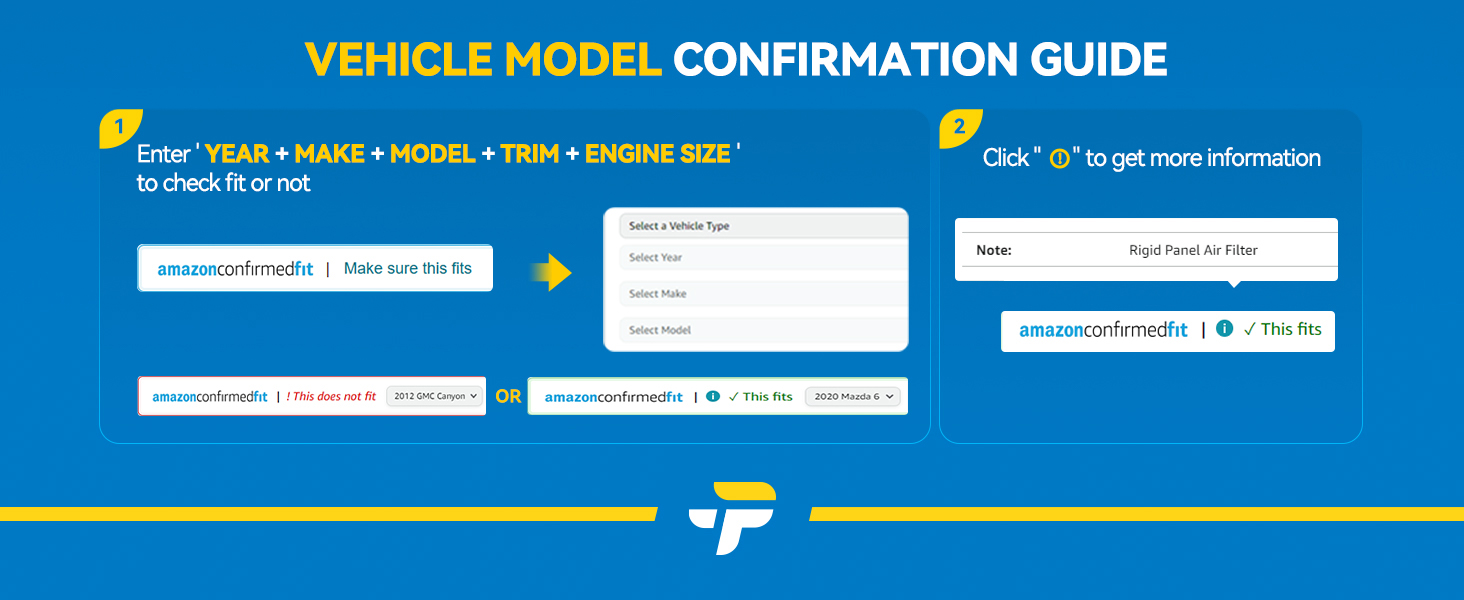

  • (Warm Tips)Please enter your vehicle's year/make/model and then check the fitment before purchasing.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year200620062006200620162014 - 20162014 - 20162014 - 20162014 - 2016
MakeMitsubishiMitsubishiMitsubishiMitsubishiYamahaYamahaYamahaYamahaYamaha
ModelLancerLancerLancerLancerFC1800 WaveRunner FX Cruiser SVHOFC1800 WaveRunner FX SVHOFC1800A WaveRunner FX Cruiser SVHOGX1800 WaveRunner FZRGX1800A WaveRunner FZS
TrimEvolutionEvolution MREvolution RSEvolution SEBaseBaseBaseBaseBase
Engine2.0L L42.0L L42.0L L42.0L L4-----
Note
Gap 0.024"
Gap 0.024"
Gap 0.024"
Gap 0.024"
Gap 0.036"
Gap 0.036"
Gap 0.036"
Gap 0.036"
Gap 0.036"

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

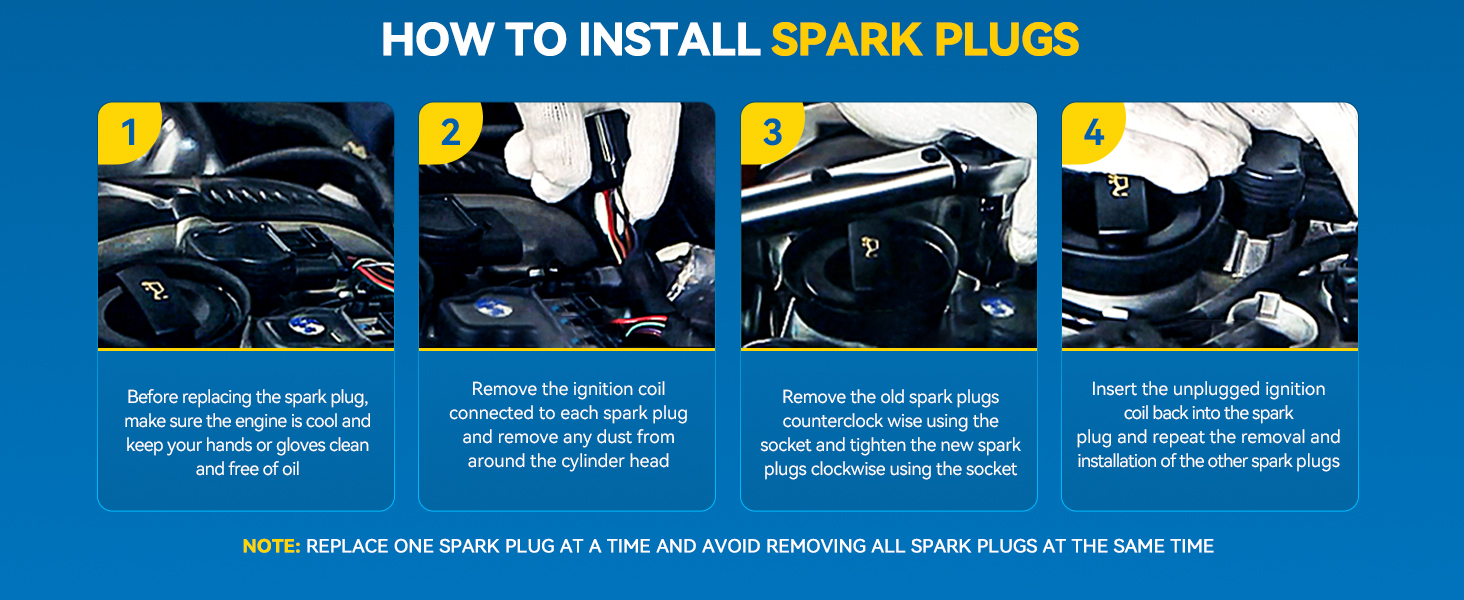

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.
