1986-2004 Kawasaki KLF300 Bayou 2x4 4X137mm 110mm Center Bore M10x1.25 Thread Wheel Hub Accessory - PHILTOP

1986-2004 Kawasaki KLF300 Bayou 2x4 4X137mm 110mm Center Bore M10x1.25 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
70ISWSA5627US

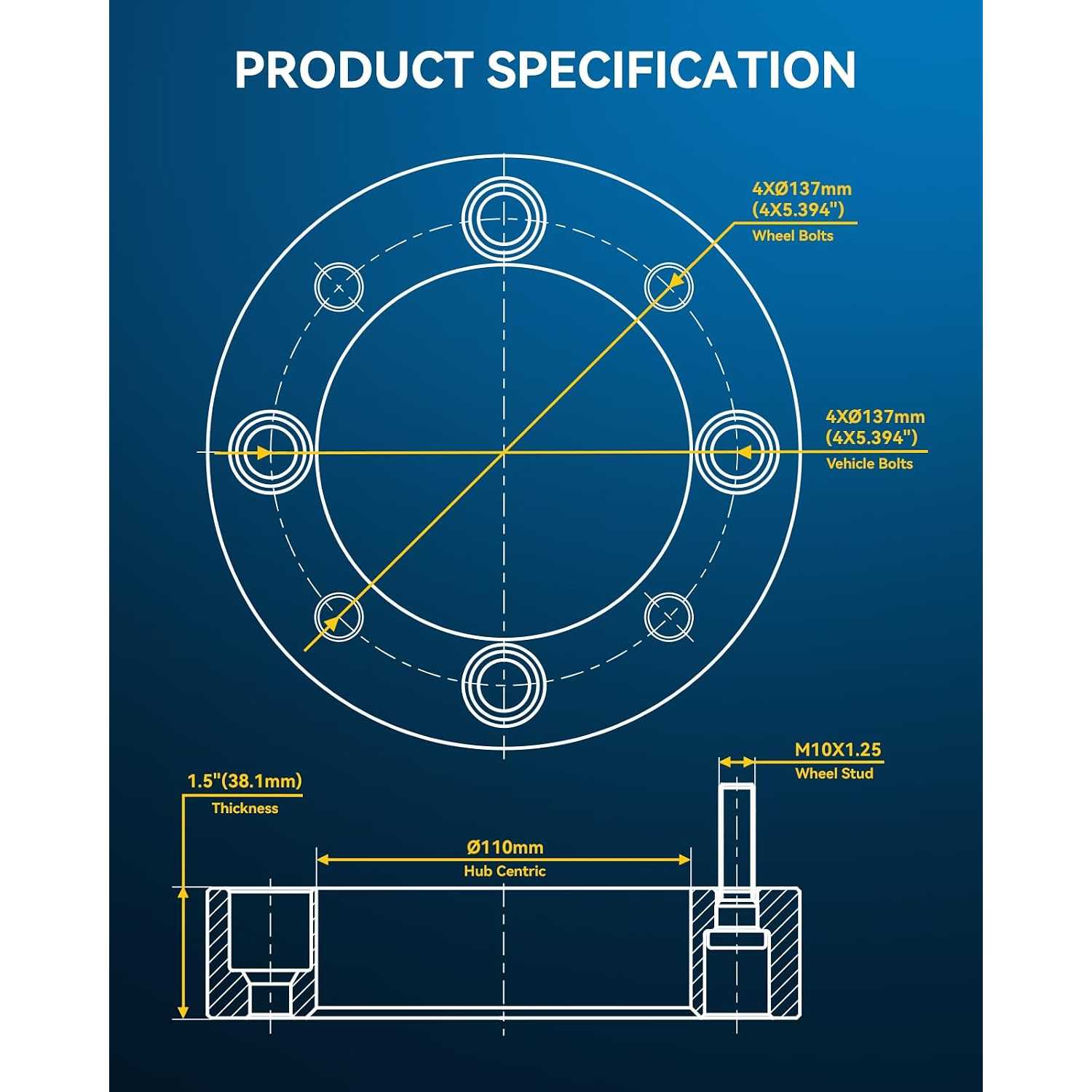

Specifications

Brand
PHILTOP
Bolt Pattern
4X137mm
Wheel Bolt Pattern
4X137mm
Vehicle Bolt Pattern
4X137mm
Thread Size
M10x1.25
Center Bore
110
Hub-Centric Lip
No
Thickness
1.5inch
Outside Diameter
174
Inside Diameter
4.33 in/110 mm
Lug Patterns
4
Type
Wheel Spacers
Items Included
2x Lug-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
40-50 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • (Spacers Parameter): Vehicle Bolt Pattern = Wheels Bolt Pattern Must Be 4X137mm | Threaded Studs/Nuts: M10x1.25 | Thickness: 1.5 inch(38.1mm) | Center Bore with no lip: 110mm | Recommended Torque: 40-50 ft/lbs
  • (Compatibility) : 4X137mm Wheel spacers fit for 2003-2011 Kawasaki KLF250 Bayou, 2003-2012 KVF360 Prairie 4x4, 2003-2009 KVF360 Prairie 2x4, 1988-2002 KLF220 Bayou, 2005-2012 KVF650 Brute Force 4x4, 2005-2015 KAF400 Mule 600, 2002-2003 KVF650 Prairie 4x4, 2006-2009 KVF650 Brute Force 4x4i, 2011-2014 Can-Am Commander 1000 XT, Commander 1000, 1986-2004 KLF300 Bayou 2x4, 2004-2006 KVF700 Prairie 4x4, 2011-2013 Commander 1000 X, 1989-2004 KLF300 Bayou 4x4, 2012-2014 Commander 1000 LTD
  • (Not Easy to Break): PHILTOP 1.5 inch wheel spacers are made of lightweight anodized 6061-T6 aluminum by Forged Manufacturing Methods, compared with other Casting Spacers, high duty and more durable. The bolts (SGS Test Approved) are higher hardness and against rust. CNC automatic processing, enhance the hardness and corrosion resistance of the material.The above can effectively prevent bolt breakage
  • (Advantage) : 38.1mm wheel spacers provide extra width for the wheel track to bring an aggressive appearance, and with the improvement of traction, the vehicle's anti-roll performance and handling comfort have been greatly improved
  • (Warm Reminder): Better to use some glue on the spacers, alignment recommended after installation, re-torque the nuts after some 25-50 miles. NOTE: Please use the "Philtop comfirmed fit" tool again to verify if it is compatible with your vehicle before purchasing the wheel spacers

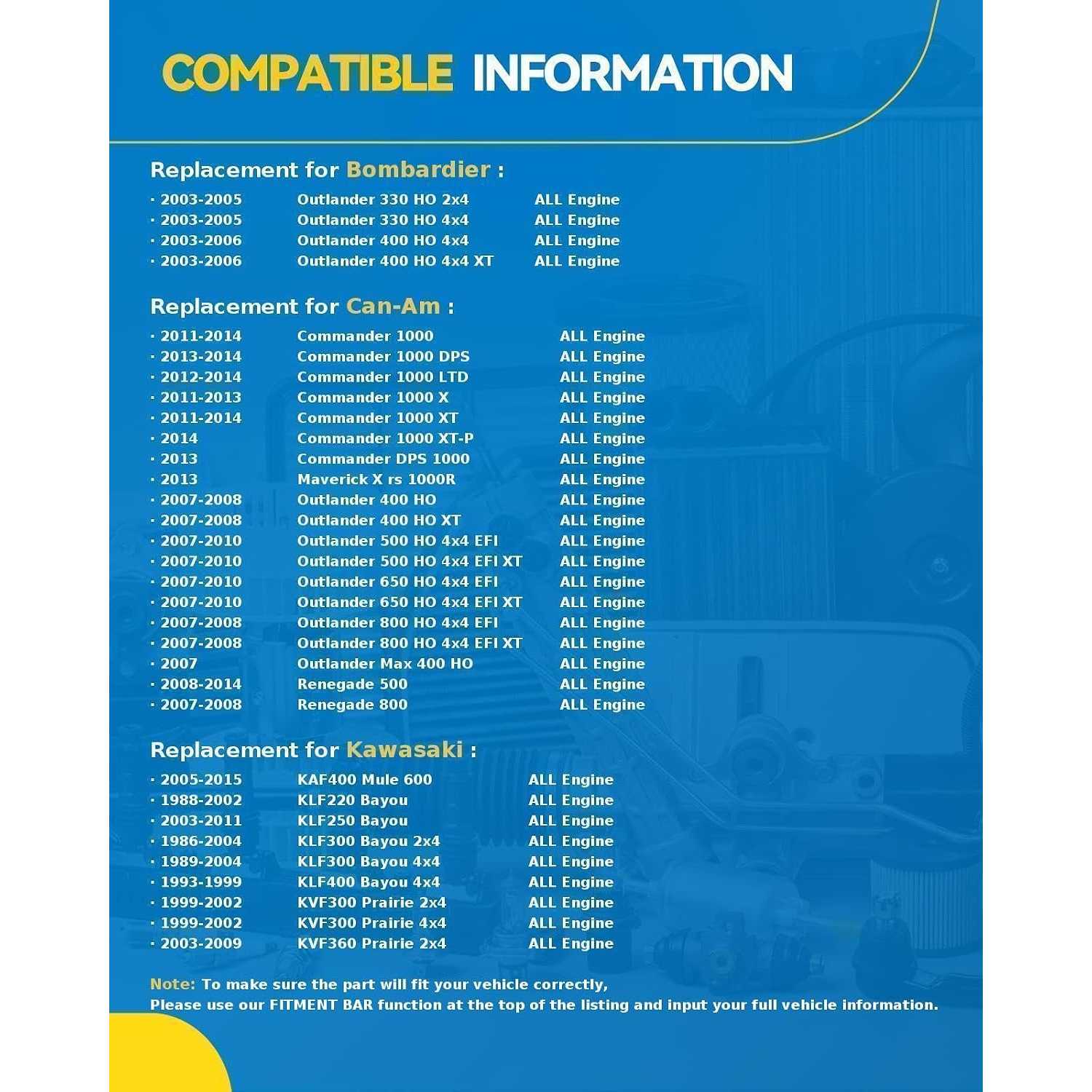

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 20052003 - 20052003 - 20042003 - 20062003 - 200620062006200620062011 - 20142013 - 20142012 - 20142011 - 20132011 - 2014201420112014201120142013201420132011 - 20142011 - 20142007 - 20082008 - 20102008 - 20102007 - 20082011 - 20142013 - 20142011 - 20142007 - 20102007 - 20102011 - 20142013 - 20142011 - 20142007 - 20102007 - 20102013 - 20142007 - 20082007 - 200820072008 - 20142007 - 200820081991199319952005 - 20151994 - 19951988 - 20022003 - 20111986 - 20041989 - 20041993 - 19991999 - 20021999 - 20022003 - 20092003 - 20121998 - 20021997 - 20022005 - 20122006 - 20092011 - 20122002 - 20032004 - 20062004 - 2005
MakeBombardierBombardierBombardierBombardierBombardierBombardierBombardierBombardierBombardierCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiSuzuki
ModelOutlander 330 HO 2x4Outlander 330 HO 4x4Outlander 400 HO 2x4Outlander 400 HO 4x4Outlander 400 HO 4x4 XTOutlander 650 HO EFI 4x4Outlander 650 HO EFI 4x4 XTOutlander 800 HO EFI 4x4Outlander 800 HO EFI 4x4 XTCommander 1000Commander 1000 DPSCommander 1000 LTDCommander 1000 XCommander 1000 XTCommander 1000 XT-PCommander 800RCommander 800RCommander 800R XTCommander 800R XTCommander DPS 1000Commander DPS 800RMaverick X rs 1000ROutlander 400 EFIOutlander 400 EFI XTOutlander 400 HOOutlander 400 HO EFIOutlander 400 HO EFI XTOutlander 400 HO XTOutlander 500 EFIOutlander 500 EFI DPSOutlander 500 EFI XTOutlander 500 HO 4x4 EFIOutlander 500 HO 4x4 EFI XTOutlander 650 EFIOutlander 650 EFI DPSOutlander 650 EFI XTOutlander 650 HO 4x4 EFIOutlander 650 HO 4x4 EFI XTOutlander 650 X mrOutlander 800 HO 4x4 EFIOutlander 800 HO 4x4 EFI XTOutlander Max 400 HORenegade 500Renegade 800Renegade 800 XKAF300 Mule 500KAF300 Mule 500KAF300 Mule 500KAF400 Mule 600KAF620 Mule 2500KLF220 BayouKLF250 BayouKLF300 Bayou 2x4KLF300 Bayou 4x4KLF400 Bayou 4x4KVF300 Prairie 2x4KVF300 Prairie 4x4KVF360 Prairie 2x4KVF360 Prairie 4x4KVF400 Prairie 2x4KVF400 Prairie 4x4KVF650 Brute Force 4x4KVF650 Brute Force 4x4iKVF650 Brute Force 4x4iKVF650 Prairie 4x4KVF700 Prairie 4x4LT-V700F Twin Peaks 700 4x4
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine-------------------------------------------------------------------
Note--------------------------------------------------
Only fit for Rear Wheel
----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel SpacerWheel Spacer
