2008-2013 Polaris Outlaw 50 | 4x156 mm 131 mm Center Bore 3/8"-24 Thread Wheel Hub Accessory 5933WSA563QUS - PHILTOP

2008-2013 Polaris Outlaw 50 | 4x156 mm 131 mm Center Bore 3/8"-24 Thread Wheel Hub Accessory 5933WSA563QUS - PHILTOP

Durable

6061T6

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
74ISWSA5637US

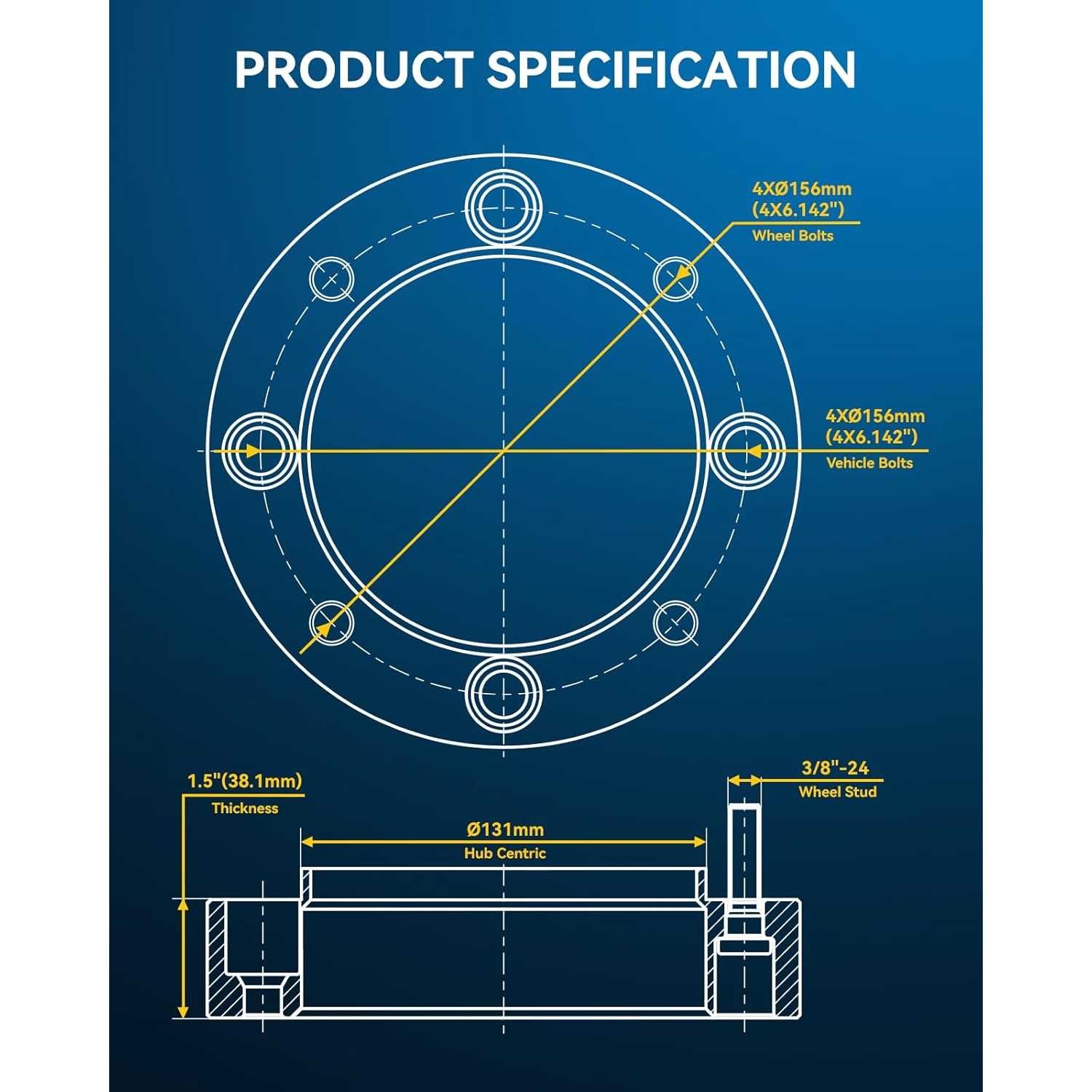

Specifications

Brand
PHILTOP
Bolt Pattern
4x156mm
Wheel Bolt Pattern
4x156mm
Vehicle Bolt Pattern
4x156mm
Thread Size
3/8"-24
Center Bore
131
Hub-Centric Lip
Yes
Thickness
1.5inch
Outside Diameter
192
Inside Diameter
5.16 in/131 mm
Lug Patterns
4
Type
Wheel Spacers
Items Included
4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
62-72 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • (Spacers Parameter): Vehicle Bolt Pattern = Wheels Bolt Pattern Must Be 4x156mm | Threaded Studs/Nuts: 3/8"-24 | Thickness: 1.5 inch (38.1mm) | Center Bore with lip: 131mm | Recommended Torque: 62-72 ft/lbs
  • (Compatibility) : 4x156mm Wheel Spacers all for: 2002-2006 Polaris Sportsman 700, 2003-2007 Predator 500, 1996-2000 Sportsman 500 4x4, 2003-2005 Sportsman 600, 2001-2005 Sportsman 400, 1998-1999 Sportsman 335, front for: 1997-2012 Scrambler 500 4x4, 2007-2011 Outlaw 90, Outlaw 525 IRS, 2008-2013 Outlaw 50, 2006-2007 Outlaw 500, 2008-2010 Outlaw 525 S, Outlaw 450 MXR, 1995-2002 Scrambler 400 4x4

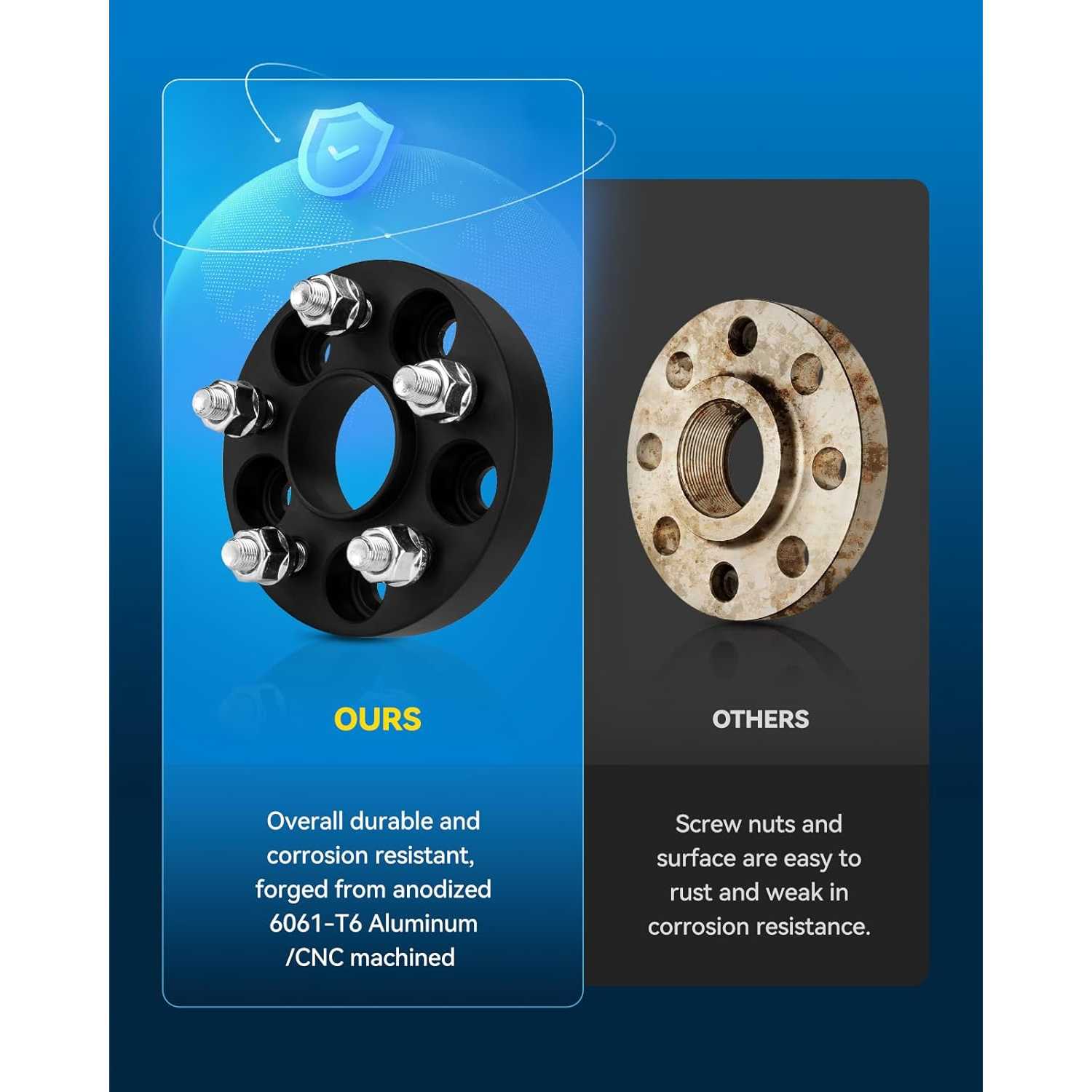

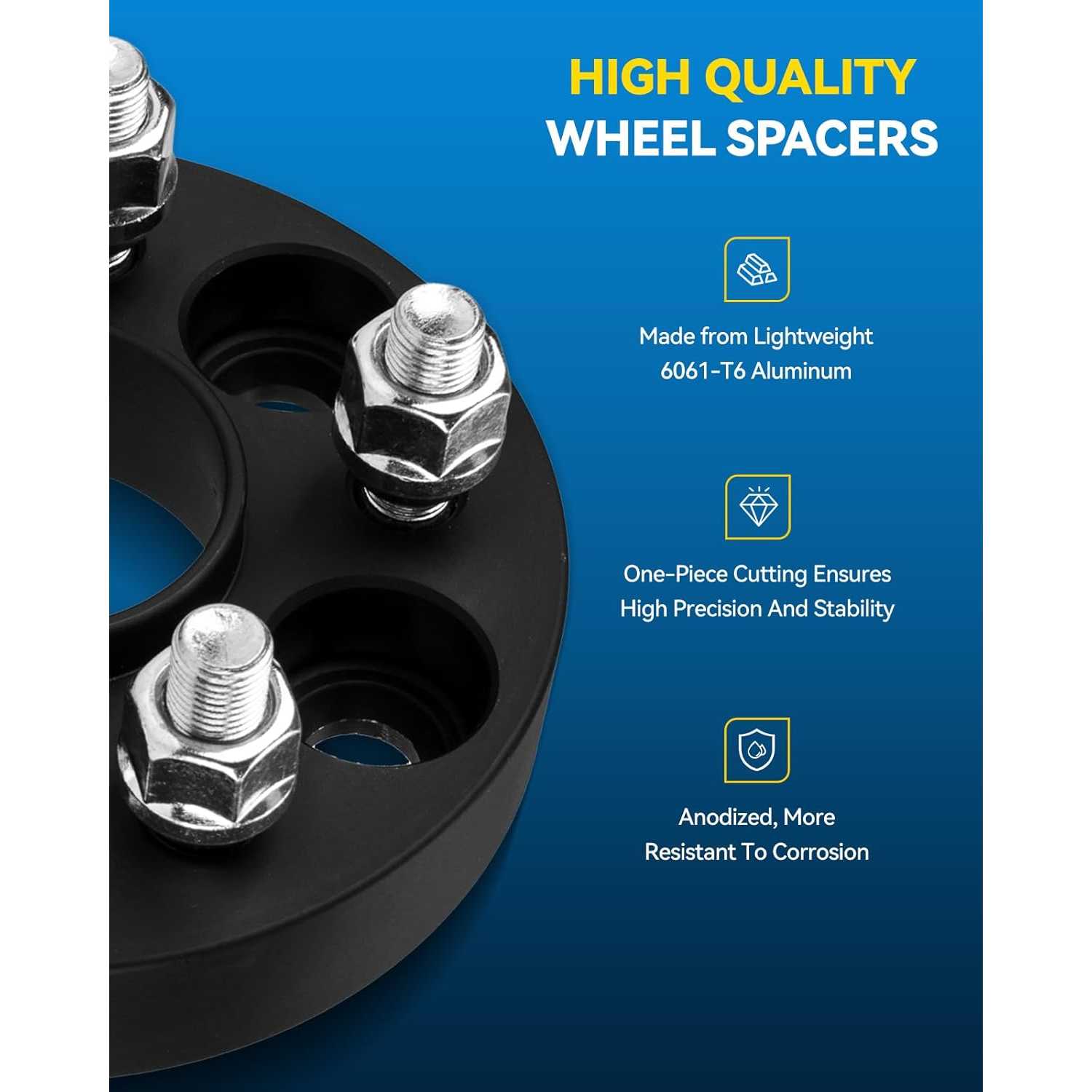

  • (Not Easy to Break): PHILTOP 1.5 inch Wheel Spacers are made of lightweight anodized 6061-T6 aluminum by Forged Manufacturing Methods, compared with other Casting Spacers, high duty and more durable. The bolts (SGS Test Approved) are higher hardness and against rust. CNC automatic processing, enhance the hardness and corrosion resistance of the material.The above can effectively prevent bolt breakage

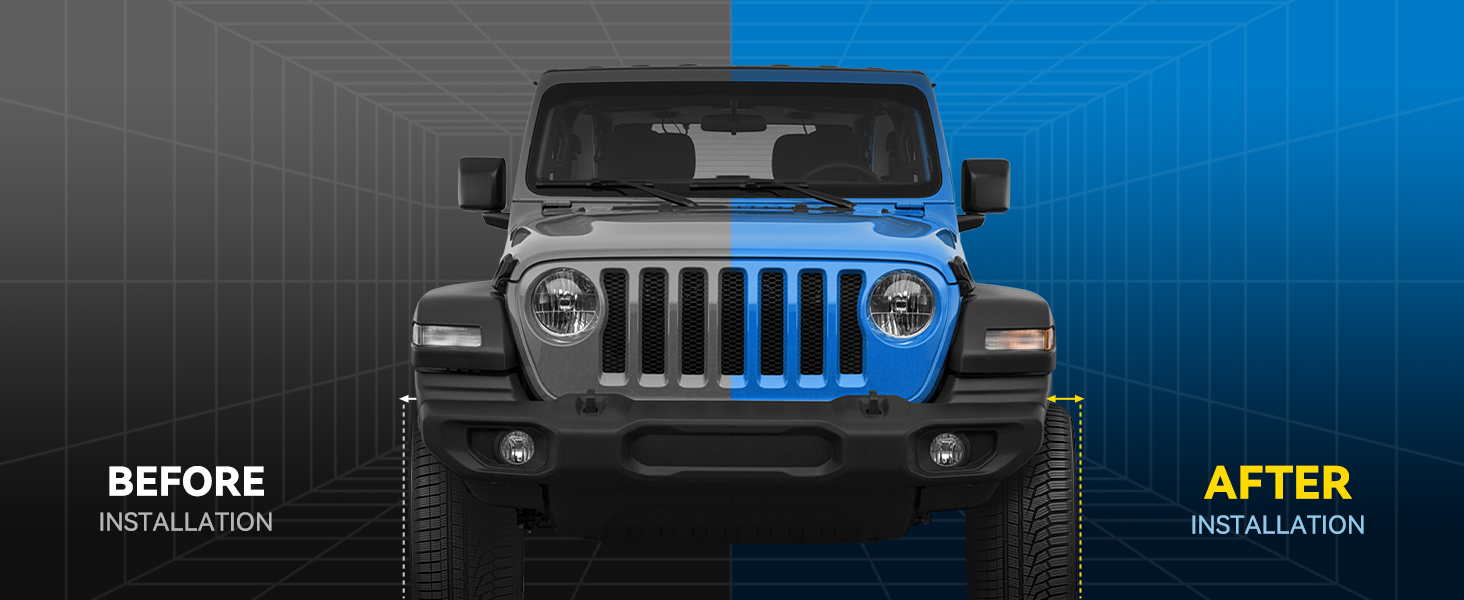

  • (Advantage) : 38.1 mm Wheel Spacers provide extra width for the wheel track to bring an aggressive appearance, and with the improvement of traction, the vehicle's anti-roll performance and handling comfort have been greatly improved

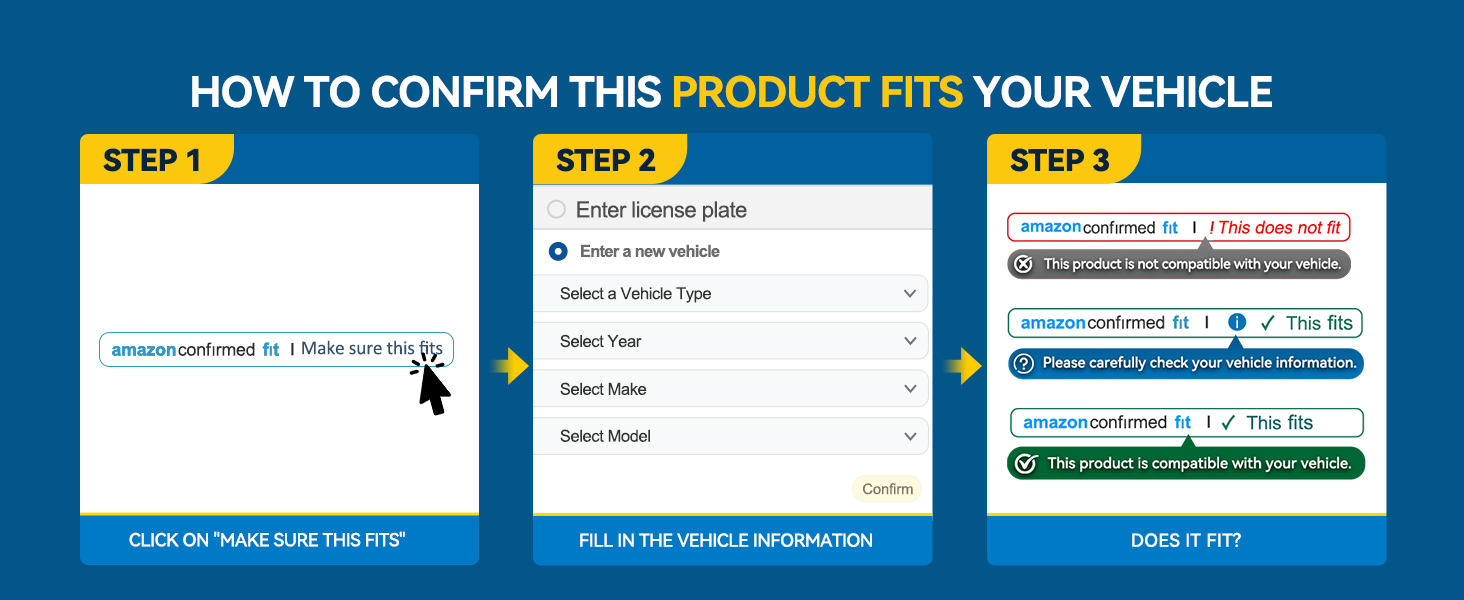

  • (Warm Reminder): Better to use some glue on the spacers, alignment recommended after installation, re-torque the lug nuts after some 25-50 miles. NOTE: Please use the "Philtop comfirmed fit" tool again to verify if it is compatible with your vehicle before purchasing the wheel spacers

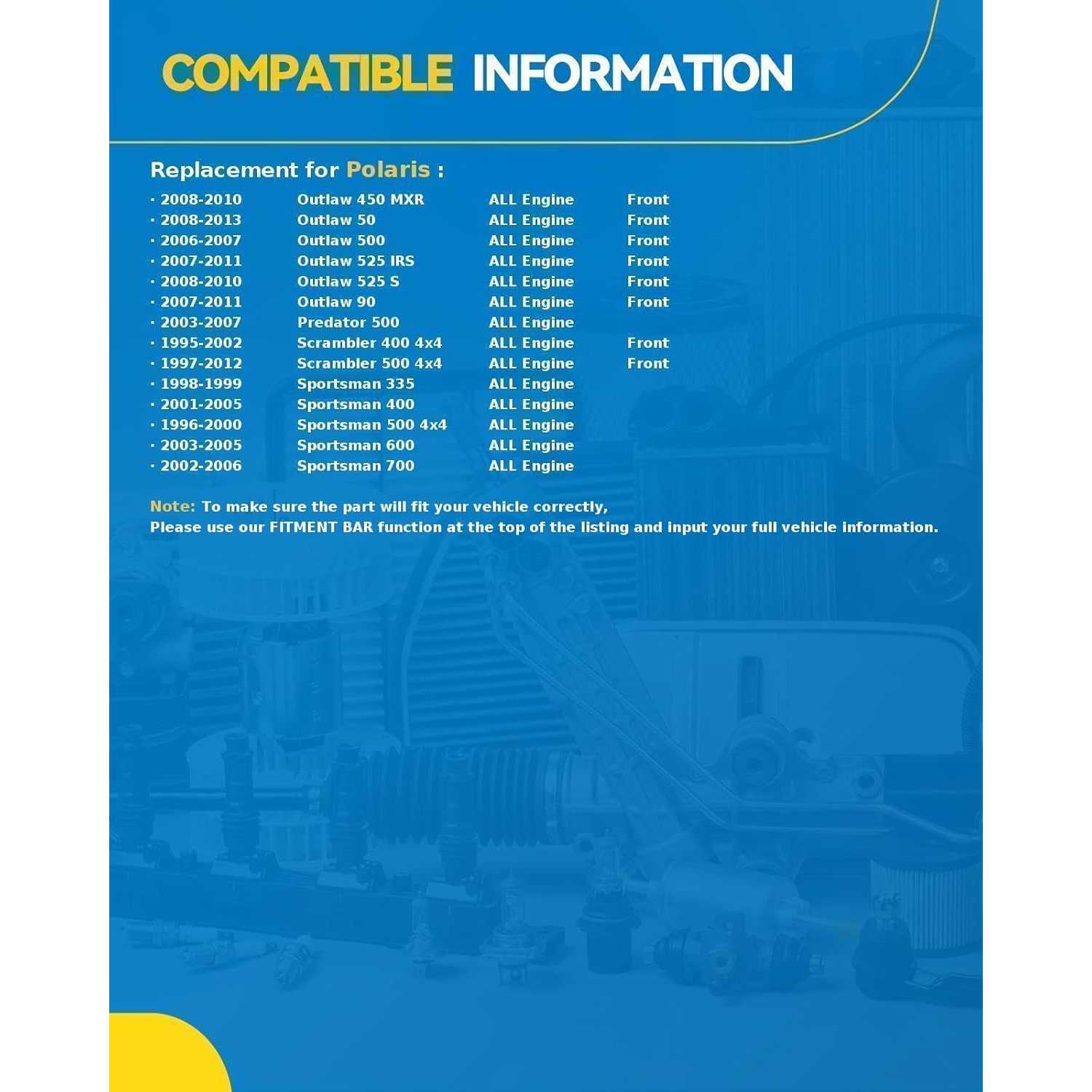

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 20102008 - 20132006 - 20072007 - 20112008 - 20102007 - 20112003 - 20071995 - 20021997 - 20121998 - 19992001 - 20051996 - 20002003 - 20052002 - 2006
MakePolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolaris
ModelOutlaw 450 MXROutlaw 50Outlaw 500Outlaw 525 IRSOutlaw 525 SOutlaw 90Predator 500Scrambler 400 4x4Scrambler 500 4x4Sportsman 335Sportsman 400Sportsman 500 4x4Sportsman 600Sportsman 700
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine--------------
Note--------------

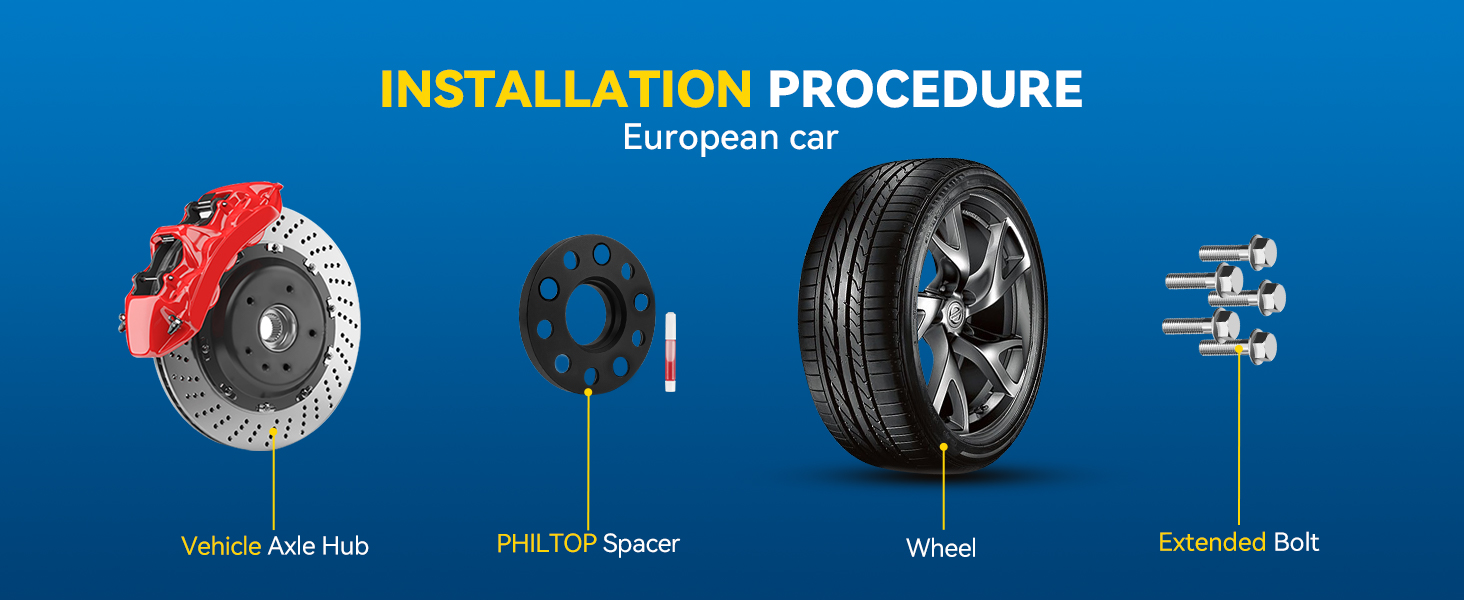

How to Install?

Installation Manual Download

User manual (PDF)
Download

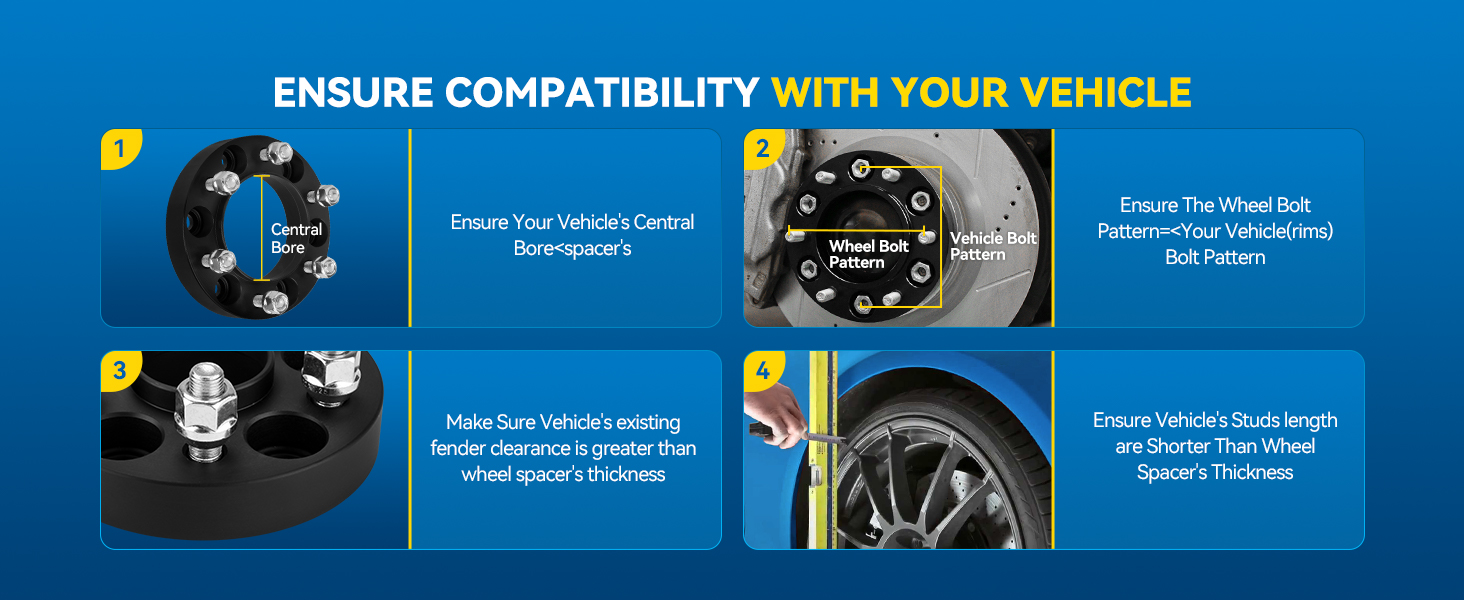

Checks Before Installation

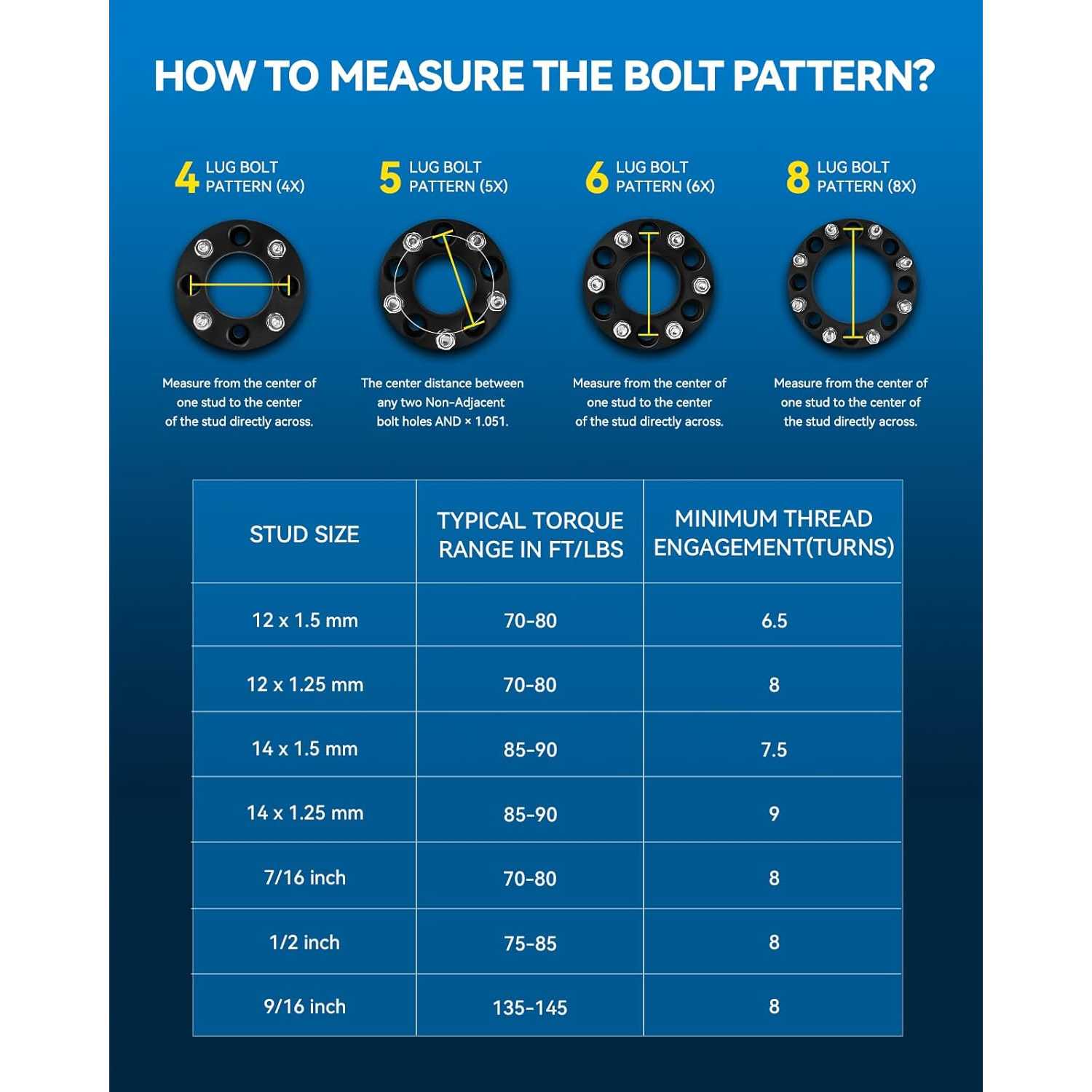

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

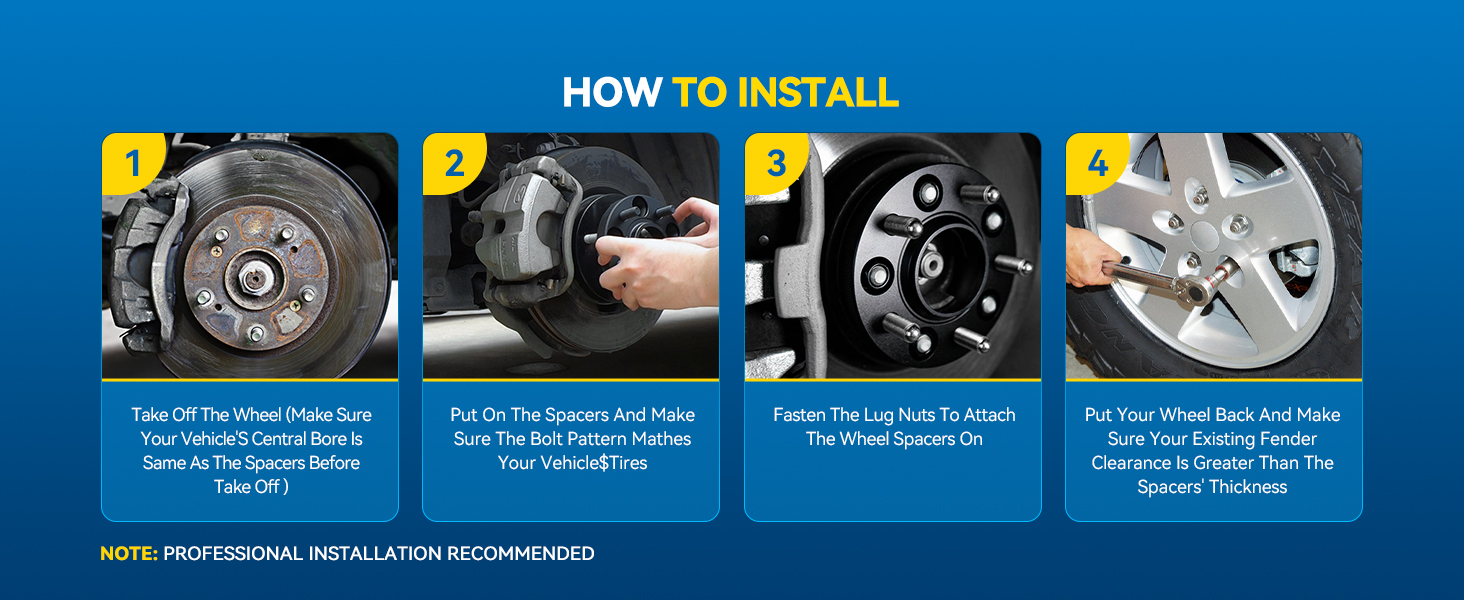

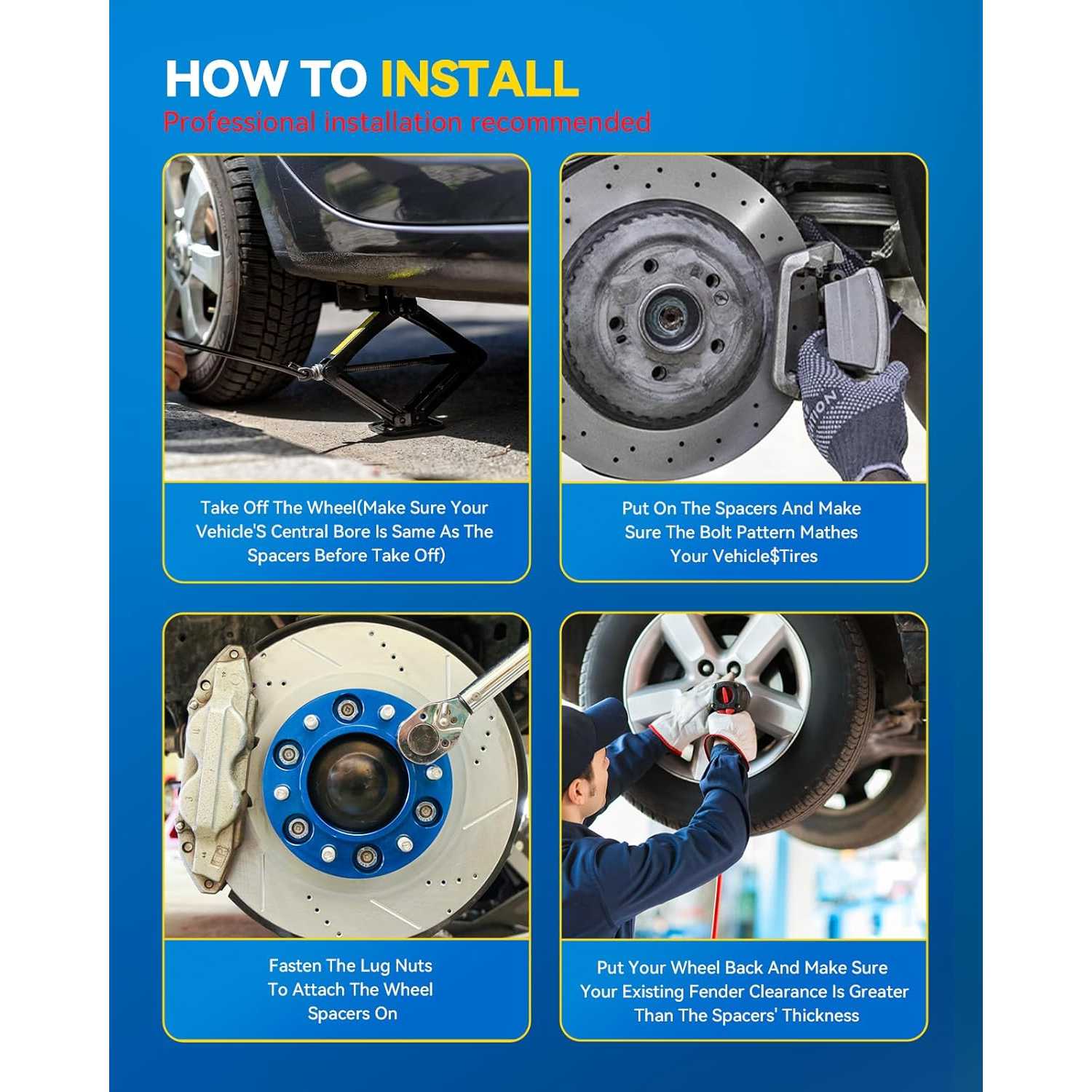

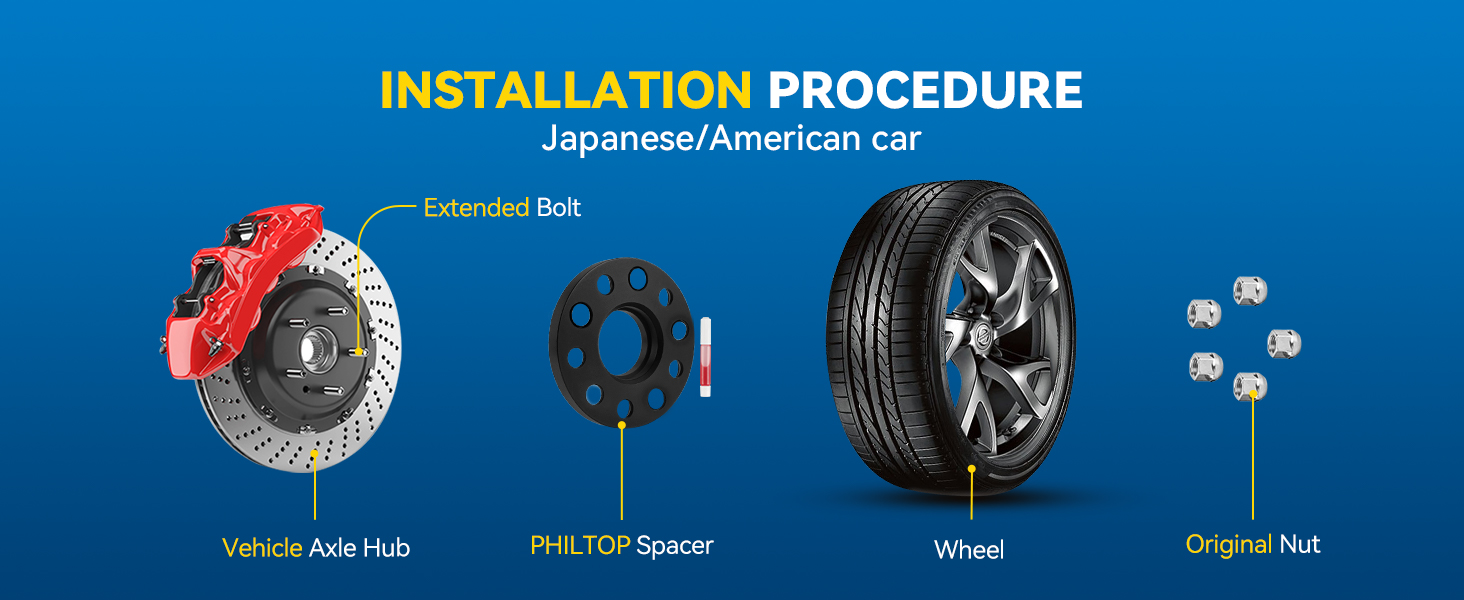

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.

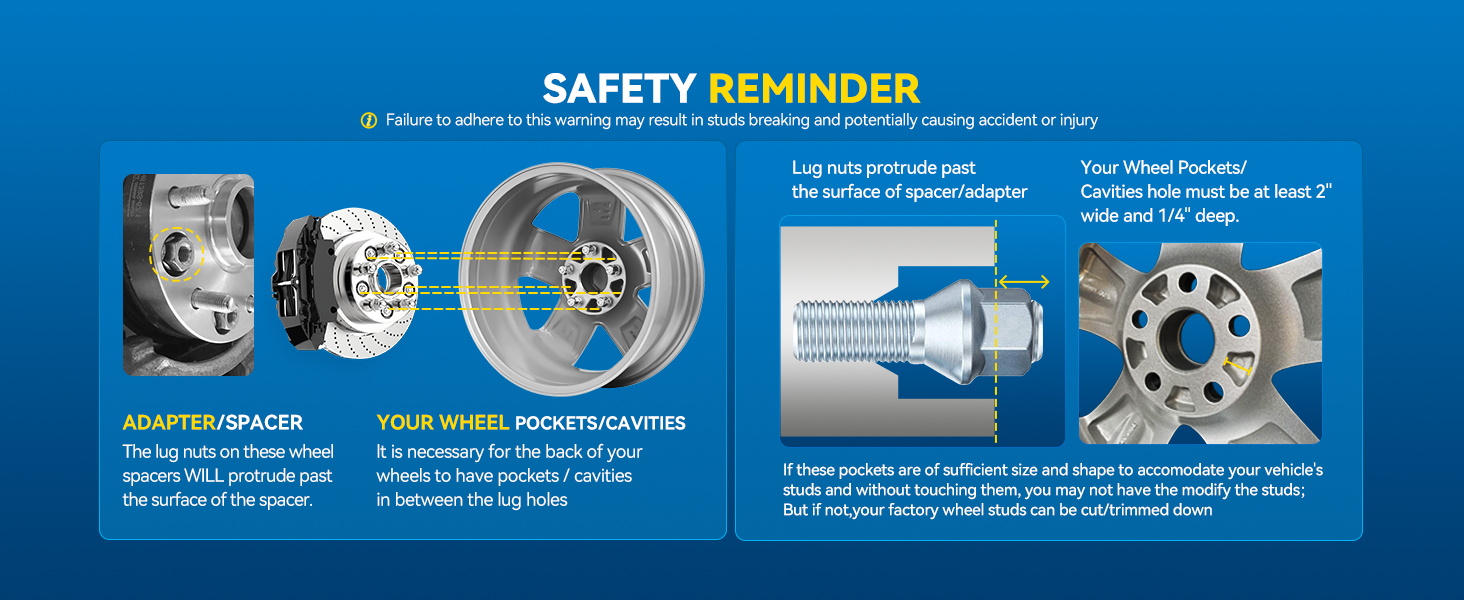

  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel SpacerWheel Spacer

Reviews

4.5/5

Based on 6 reviews

567%
417%
317%
20%
10%

Jason_Trucks_963

05/08/2026

Install was a snap, fit perfectly on my Predator. Compared to some other spacers I've looked at, these feel way more solid and well-made. Glad I went with these.

Tom_Handy_66

11/19/2025

Arrived super fast and everything was packed well. Had a question about fitment and customer service was on the ball, very helpful. Really happy with the speed of delivery and support.

FAQS

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.
