2014-2017 Polaris RZR XP 1000 EPS 4x156mm 131mm Center Bore M12x1.5 Thread Wheel Hub Accessory | 4506WSA575UUS - PHILTOP

2014-2017 Polaris RZR XP 1000 EPS 4x156mm 131mm Center Bore M12x1.5 Thread Wheel Hub Accessory | 4506WSA575UUS - PHILTOP

Durable

6061T6

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
40ISWSA5757US

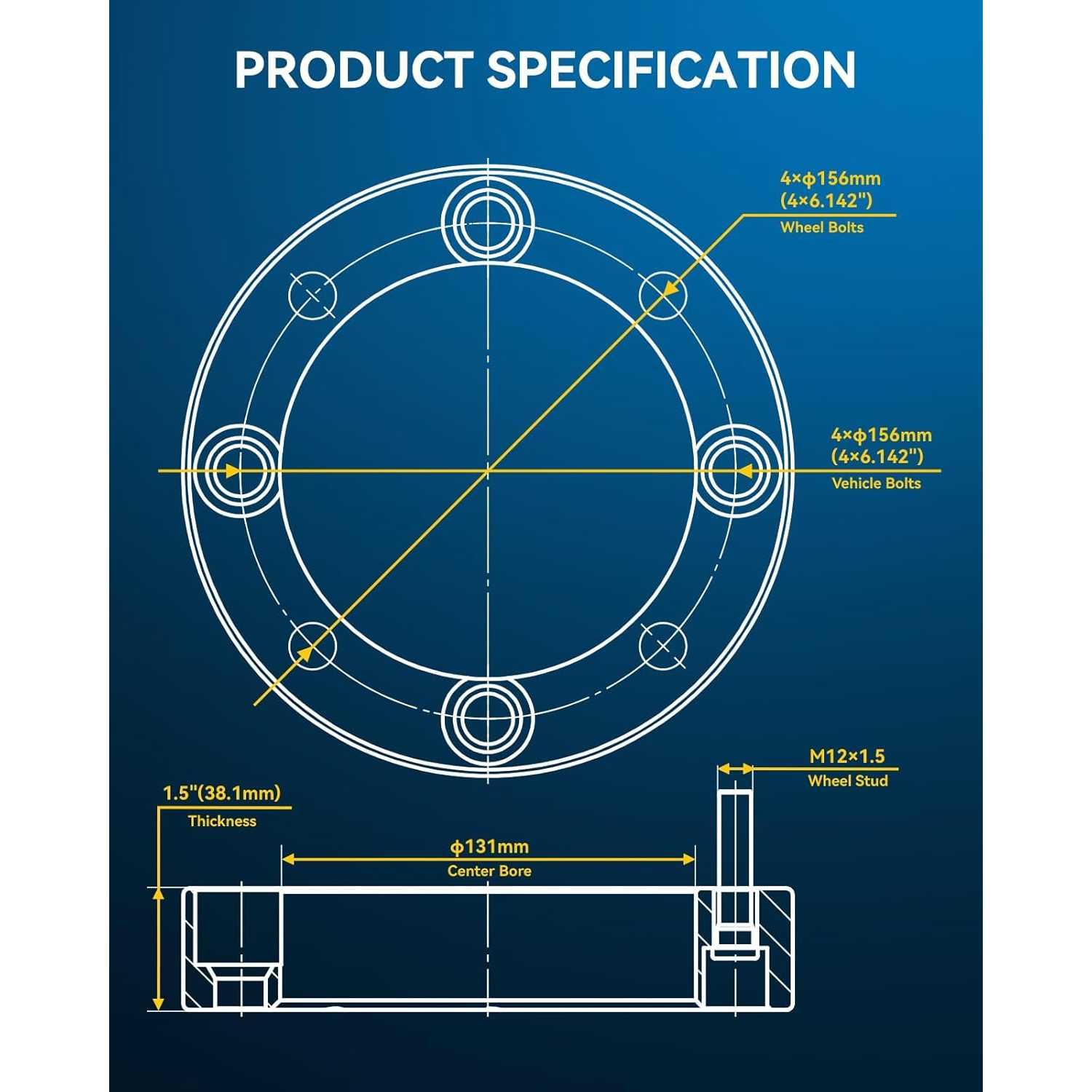

Specifications

Brand
PHILTOP
Bolt Pattern
4x156mm
Wheel Bolt Pattern
4x156mm
Vehicle Bolt Pattern
4x156mm
Thread Size
M12x1.5
Center Bore
131
Hub-Centric Lip
No
Thickness
1.5inch
Outside Diameter
192
Inside Diameter
5.16 in/131 mm
Lug Patterns
4
Type
Wheel Spacers
Items Included
4x Lug-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge

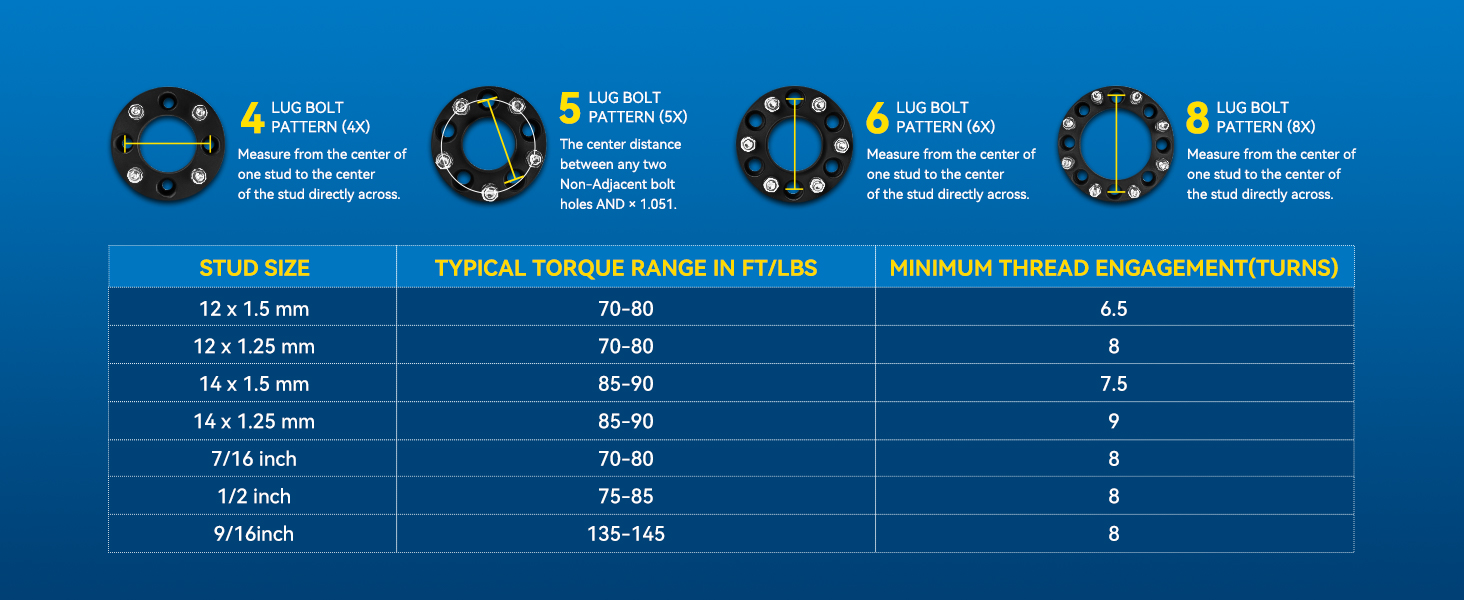

Recommended Torque
70-80 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • (Spacers Parameter): Vehicle Bolt Pattern = Wheels Bolt Pattern Must Be 4x156mm | Threaded Studs/Nuts: M12x1.5 | Thickness: 1.5 inch (38.1mm) | Center Bore with no lip: 131mm | Recommended Torque: 70-80 ft/lbs
  • (Compatibility) : 4x156mm Wheel Spacers compatible with 2014-2017 Polaris RZR XP 4 1000 EPS, RZR XP 1000 EPS, RZR 900, 2016-2017 RZR S 1000 EPS, 2015-2017 RZR S 900, RZR S 900 EPS, RZR 4 900 EPS, 2015-2016 RZR 900 EPS Trail, 2014-2015 Ranger 900 Crew, Ranger 900 Crew EPS, 2013 Ranger RZR XP 900, 2017 Ranger Crew XP 900, RZR 900 EPS, Ranger Crew XP 1000, Ranger XP 1000, 2016 Ranger 900-5 Crew, Ranger 900-6 Crew, 2014 RZR 4 900 EPS LE, 2013-2014 Ranger Diesel

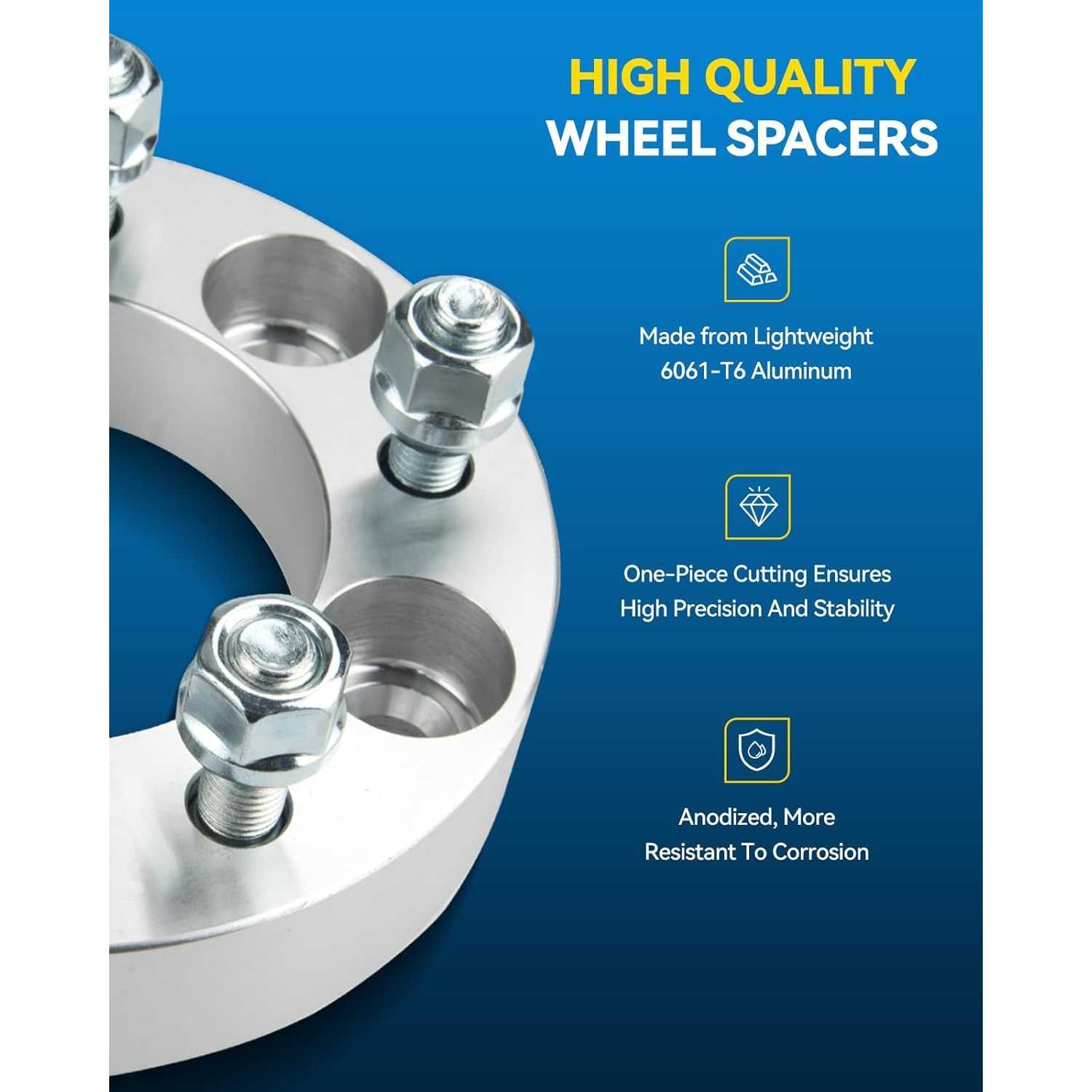

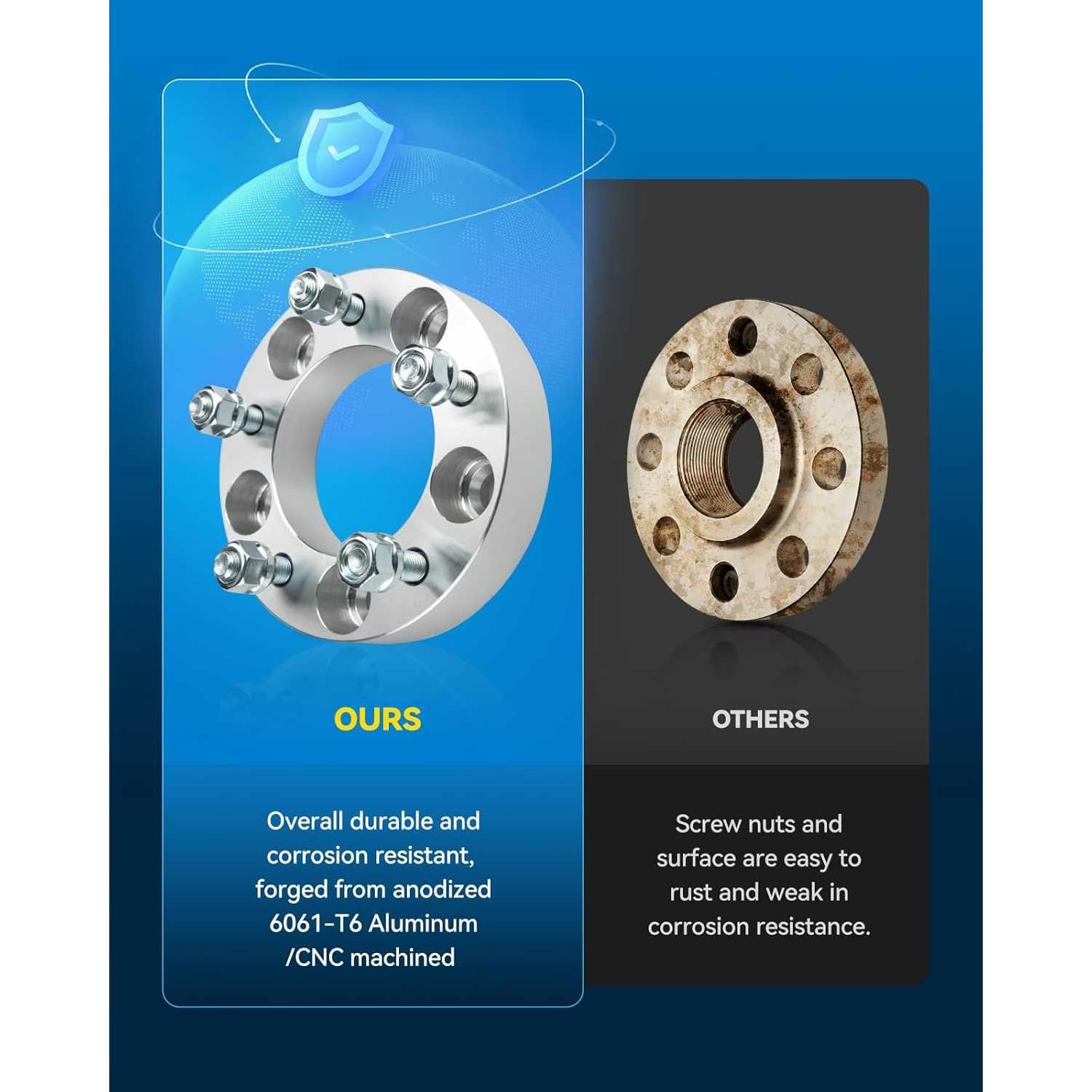

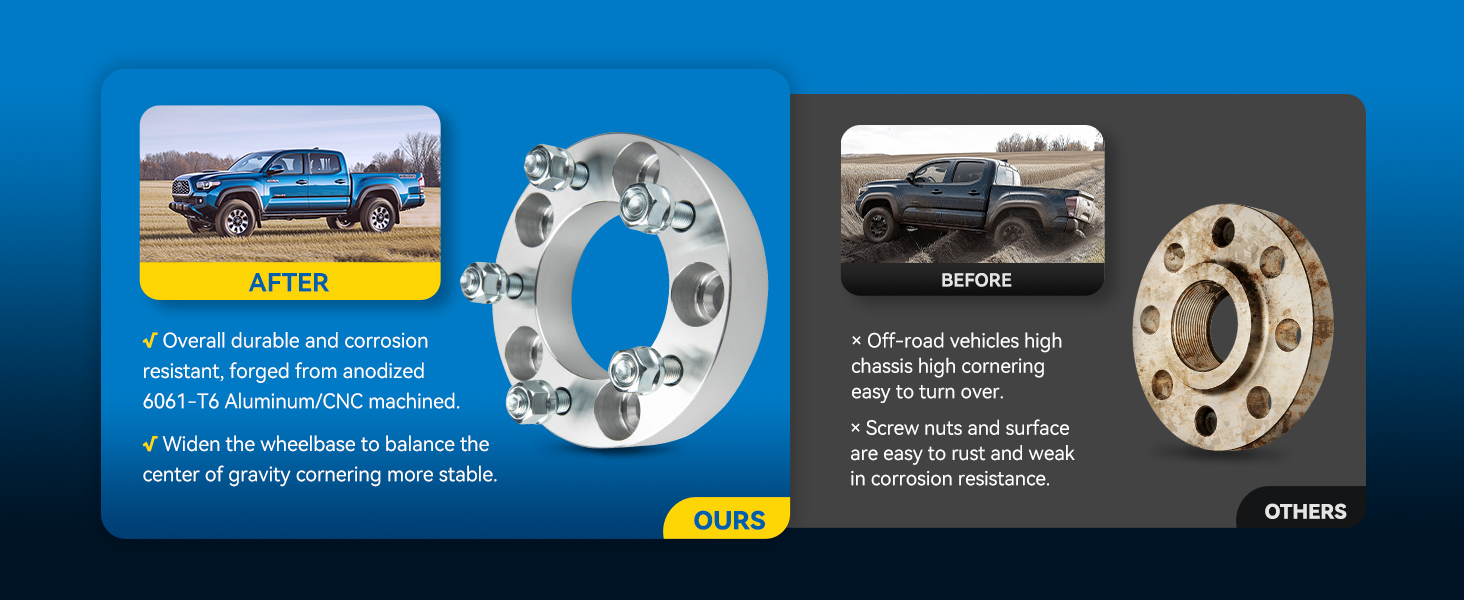

  • (Not Easy to Break): PHILTOP 1.5 inch Wheel Spacers are made of lightweight anodized 6061-T6 aluminum by Forged Manufacturing Methods, compared with other Casting Spacers, high duty and more durable. The bolts (SGS Test Approved) are higher hardness and against rust. CNC automatic processing, enhance the hardness and corrosion resistance of the material.The above can effectively prevent bolt breakage
  • (Advantage) : 38.1 mm Wheel Spacers provide extra width for the wheel track to bring an aggressive appearance, and with the improvement of traction, the vehicle's anti-roll performance and handling comfort have been greatly improved

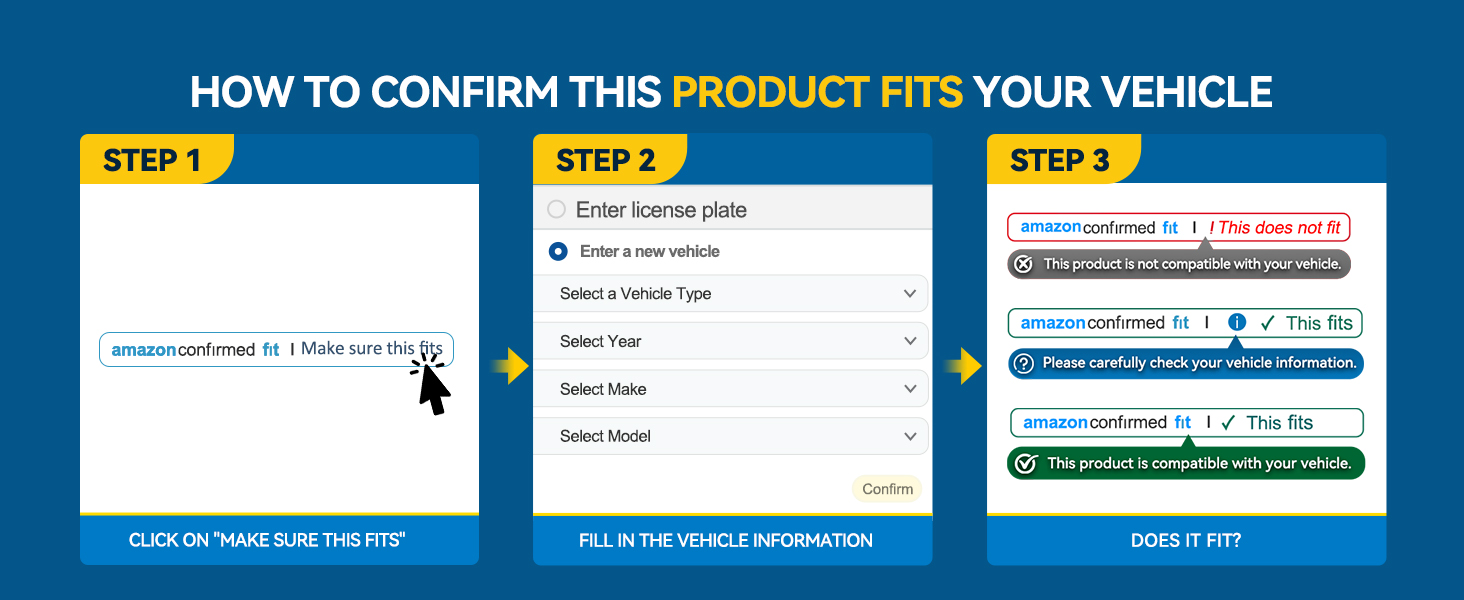

  • (Warm Reminder): Better to use some glue on the spacers, alignment recommended after installation, re-torque the lug nuts after some 25-50 miles. NOTE: Please use the "Philtop comfirmed fit" tool again to verify if it is compatible with your vehicle before purchasing the wheel spacers

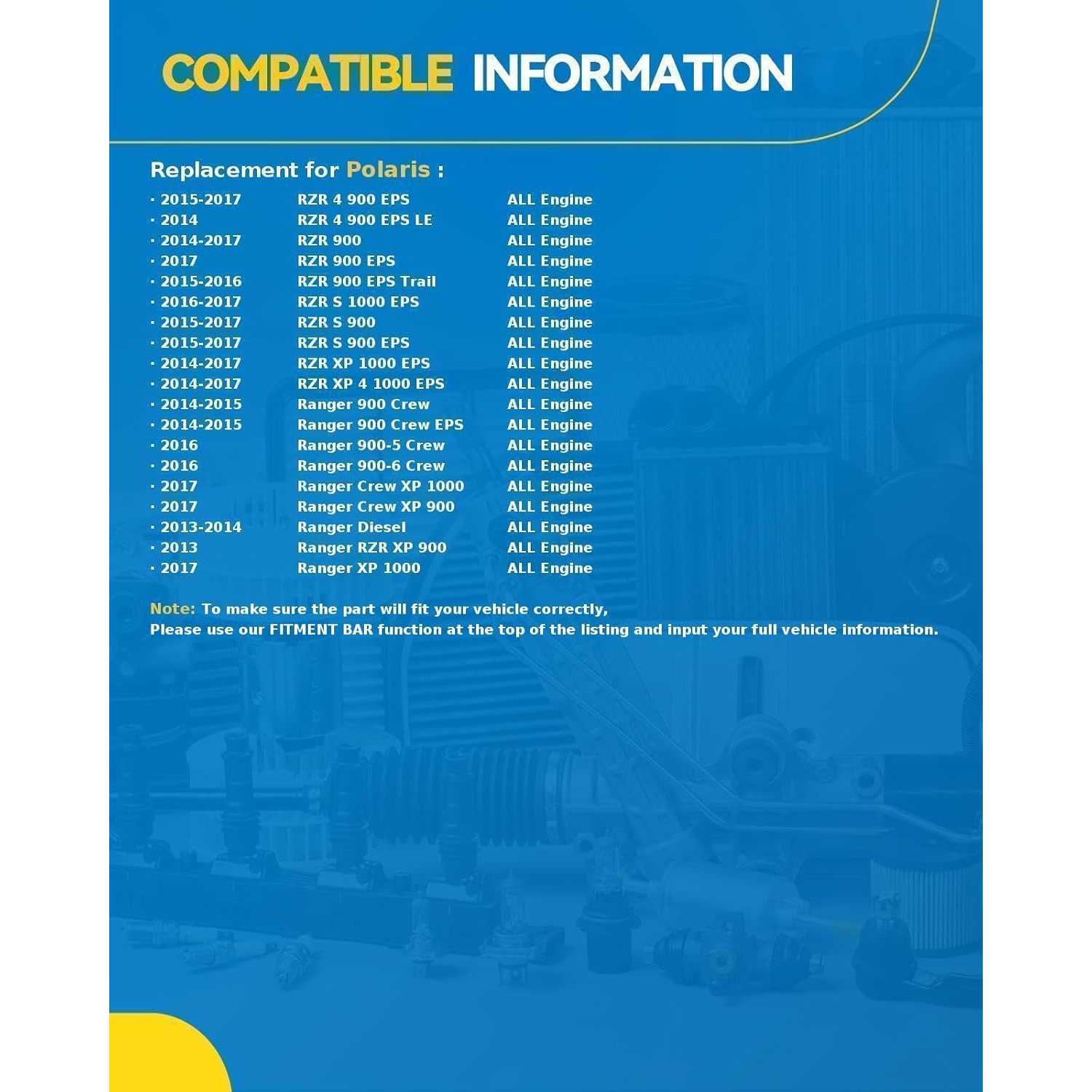

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015 - 201720142014 - 201720172015 - 20162016 - 20172015 - 20172015 - 20172014 - 20172014 - 20172014 - 20152014 - 201520162016201720172013 - 201420132017
MakePolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolaris
ModelRZR 4 900 EPSRZR 4 900 EPS LERZR 900RZR 900 EPSRZR 900 EPS TrailRZR S 1000 EPSRZR S 900RZR S 900 EPSRZR XP 1000 EPSRZR XP 4 1000 EPSRanger 900 CrewRanger 900 Crew EPSRanger 900-5 CrewRanger 900-6 CrewRanger Crew XP 1000Ranger Crew XP 900Ranger DieselRanger RZR XP 900Ranger XP 1000
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine-------------------
Note
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/

How to Install?

Installation Manual Download

User manual (PDF)
Download

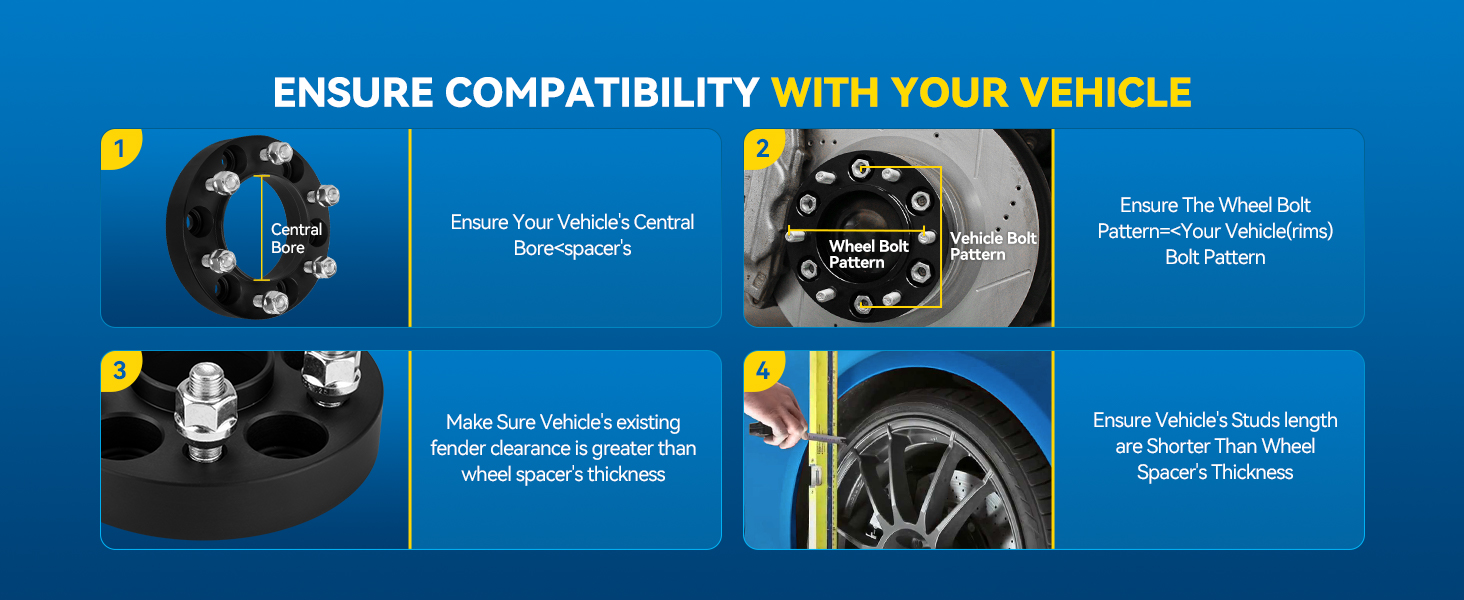

Checks Before Installation

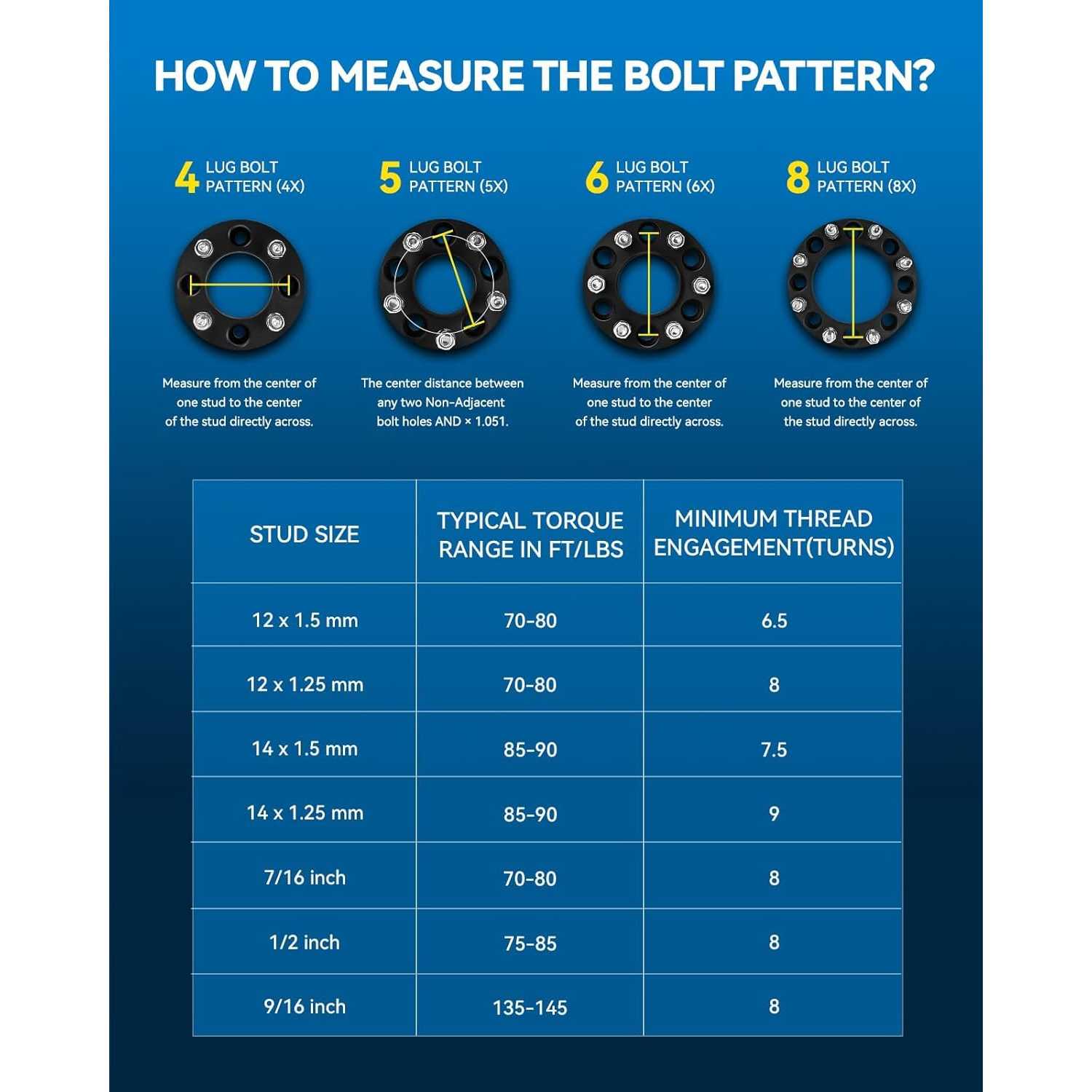

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.

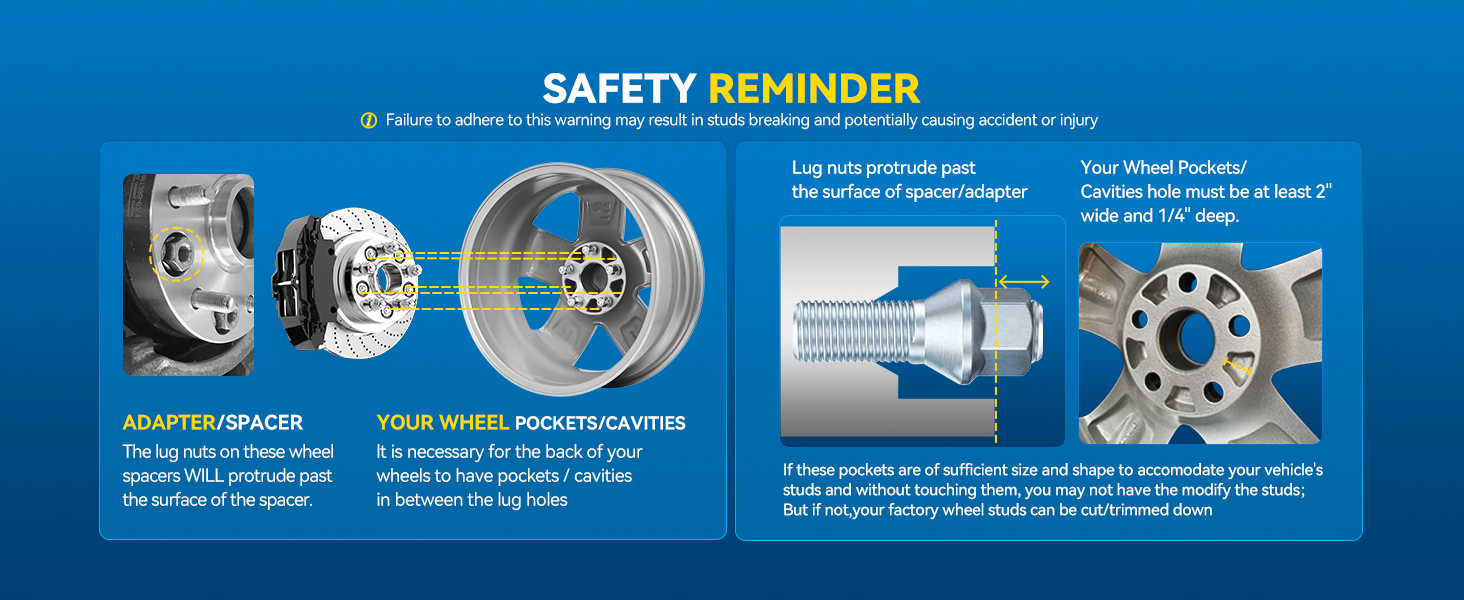

  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

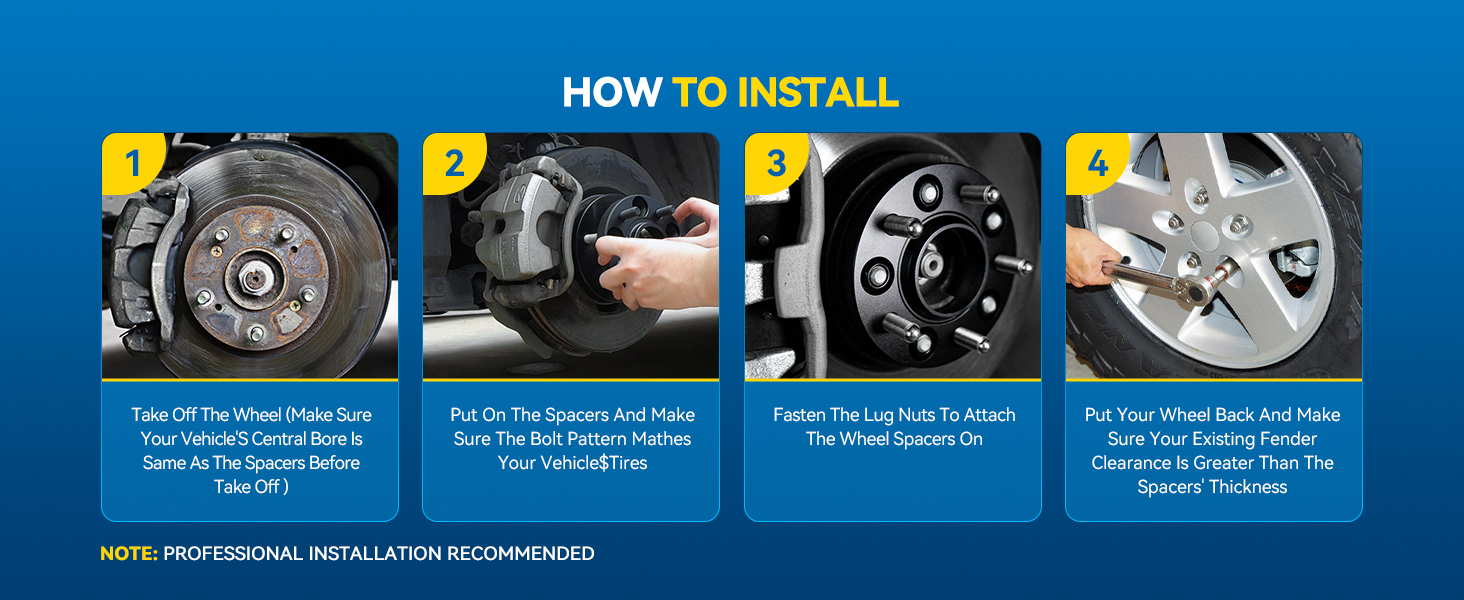

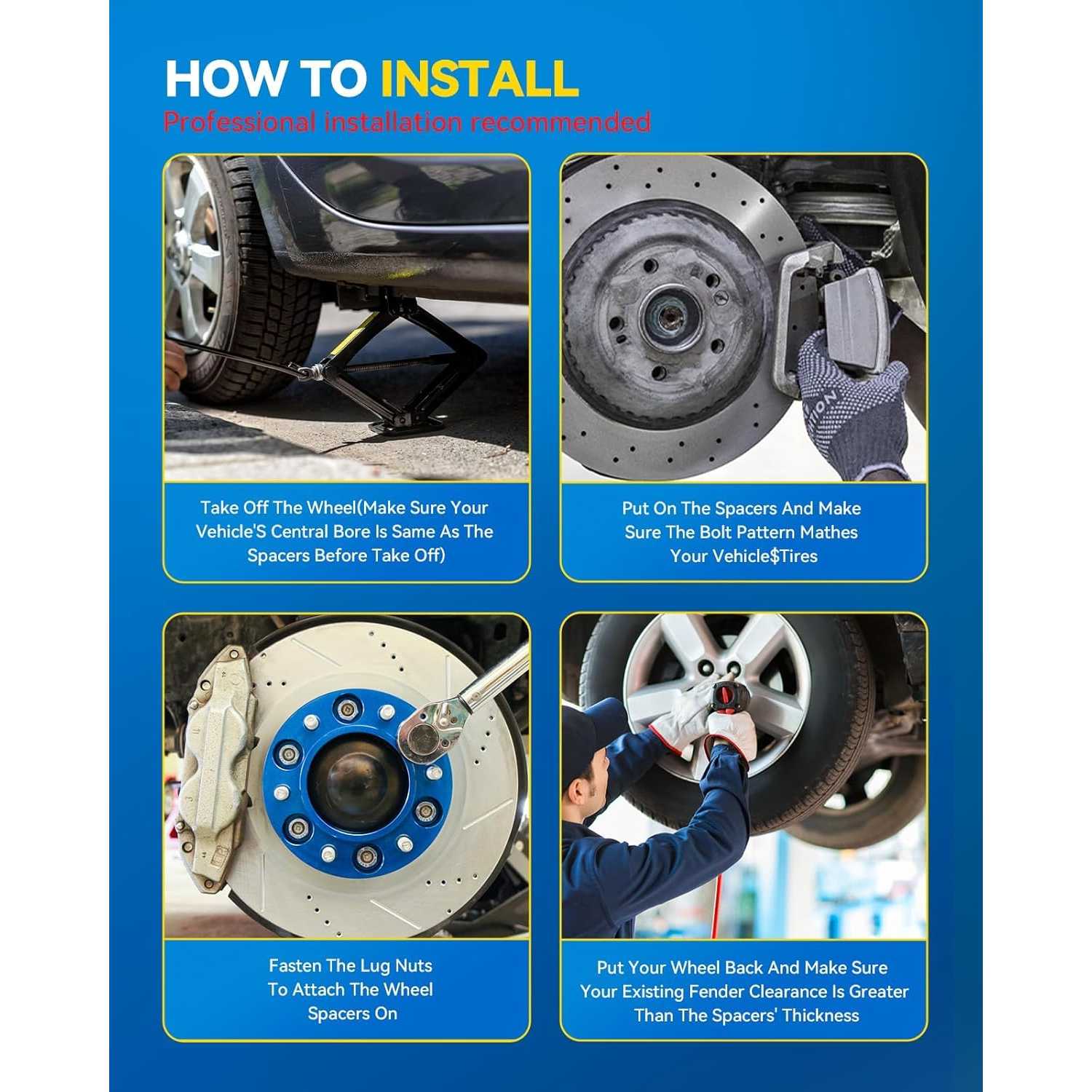

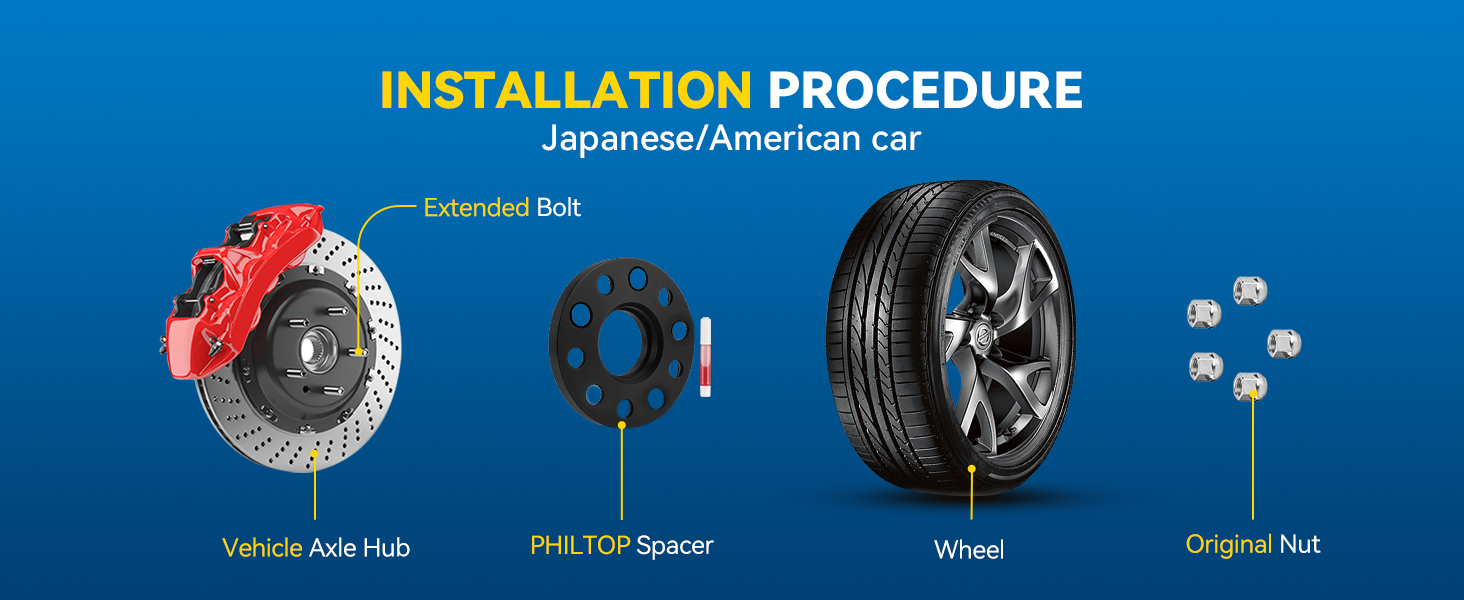

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel SpacerWheel Spacer

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

Nancy_FirstCar_385

04/17/2026

These look fantastic on the machine, really changed the whole stance. The price is great for what you get, feels like I got a really good deal. Super happy with how they turned out.

Chris_GearHead_88

01/21/2026

These spacers look awesome on my RZR! The finish is really nice and they feel super sturdy. Definitely got my money's worth with these, they make the machine look way more aggressive. Highly recommend.

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.
