2012-2013 Polaris Sportsman 850 HO XP EPS Browning LE | 4x156mm 131 mm Center Bore 3/8"-24 Thread Wheel Hub Accessory - PHILTOP

2012-2013 Polaris Sportsman 850 HO XP EPS Browning LE | 4x156mm 131 mm Center Bore 3/8"-24 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
16ISWSA5647US

Specifications

Brand
PHILTOP
Bolt Pattern
4x156mm
Wheel Bolt Pattern
4x156mm
Vehicle Bolt Pattern
4x156mm
Thread Size
3/8"-24
Center Bore
131
Hub-Centric Lip
No
Thickness
2inch
Outside Diameter
192
Inside Diameter
5.16 in/131 mm
Lug Patterns
4
Type
Wheel Spacers
Items Included
2x Lug-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
62-72 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

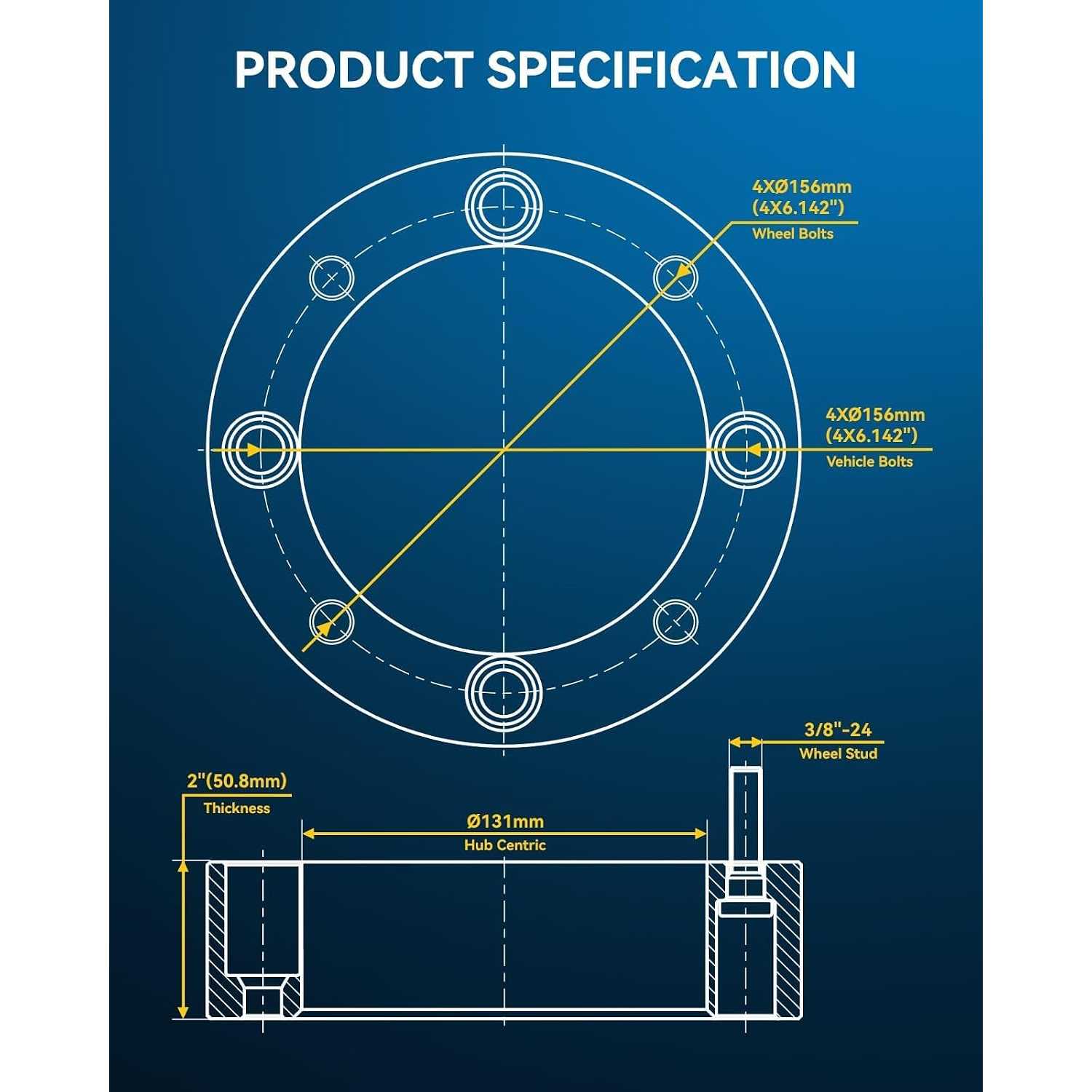

  • (Spacers Parameter): Vehicle Bolt Pattern Must Be 4x156mm | Wheels Bolt Pattern Must Be 4x156mm | Threaded Studs/Nuts: 3/8"-24 | Thickness: 2 inch(50.8mm) | Center Bore with no lip: 131mm | Recommended Torque: 62-72 ft/lbs | Bolt Grade: 12.9
  • (Compatibility) : 4x156mm Wheel spacers fit for 2001-2005 Yamaha YFM660R Raptor, 1987-2006 YFZ350 Banshee, 1988-2006 YFS200 Blaster, 1987-2004 YFM350X Warrior, 2001-2006 2008 Polaris Sportsman 500 HO, 2003-2007 Predator 500, 1996-2000 Sportsman 500 4x4, 1997-2009 Scrambler 500 4x4, 2006-2008 Sportsman 500 EFI, 2011 2013 Ranger RZR XP 900 LE, 2000 Sportsman 500 RSE, 2007-2009 2011-2013 Sportsman 800 EFI, 2009-2011 Sportsman 850 EFI XP, 2000-2003 Magnum 500 4x4, 2013 Ranger RZR XP 900 HO Jagged X Edition, 2013 Ranger RZR XP 900 EPS LE, 2013 Ranger RZR XP 900 EPS Walker Evans LE, 2008 Sportsman 500 EFI Touring
  • (Not Easy to Break): PHILTOP 2 inch wheel spacers are made of lightweight anodized 6061-T6 aluminum by Forged Manufacturing Methods, compared with other Casting Spacers, high duty and more durable. The bolts (SGS Test Approved) are higher hardness and against rust. CNC automatic processing, enhance the hardness and corrosion resistance of the material.The above can effectively prevent bolt breakage
  • (Advantage) : 50.8mm wheel spacers provide extra width for the wheel track to bring an aggressive appearance, and with the improvement of traction, the vehicle's anti-roll performance and handling comfort have been greatly improved
  • (Warm Reminder):Better to use some glue on the spacers, alignment recommended after installation, re-torque the lug nuts after some 25-50 miles. NOTE: Please use the "Philtop comfirmed fit" tool again to verify if it is compatible with your vehicle before purchasing the wheel spacers

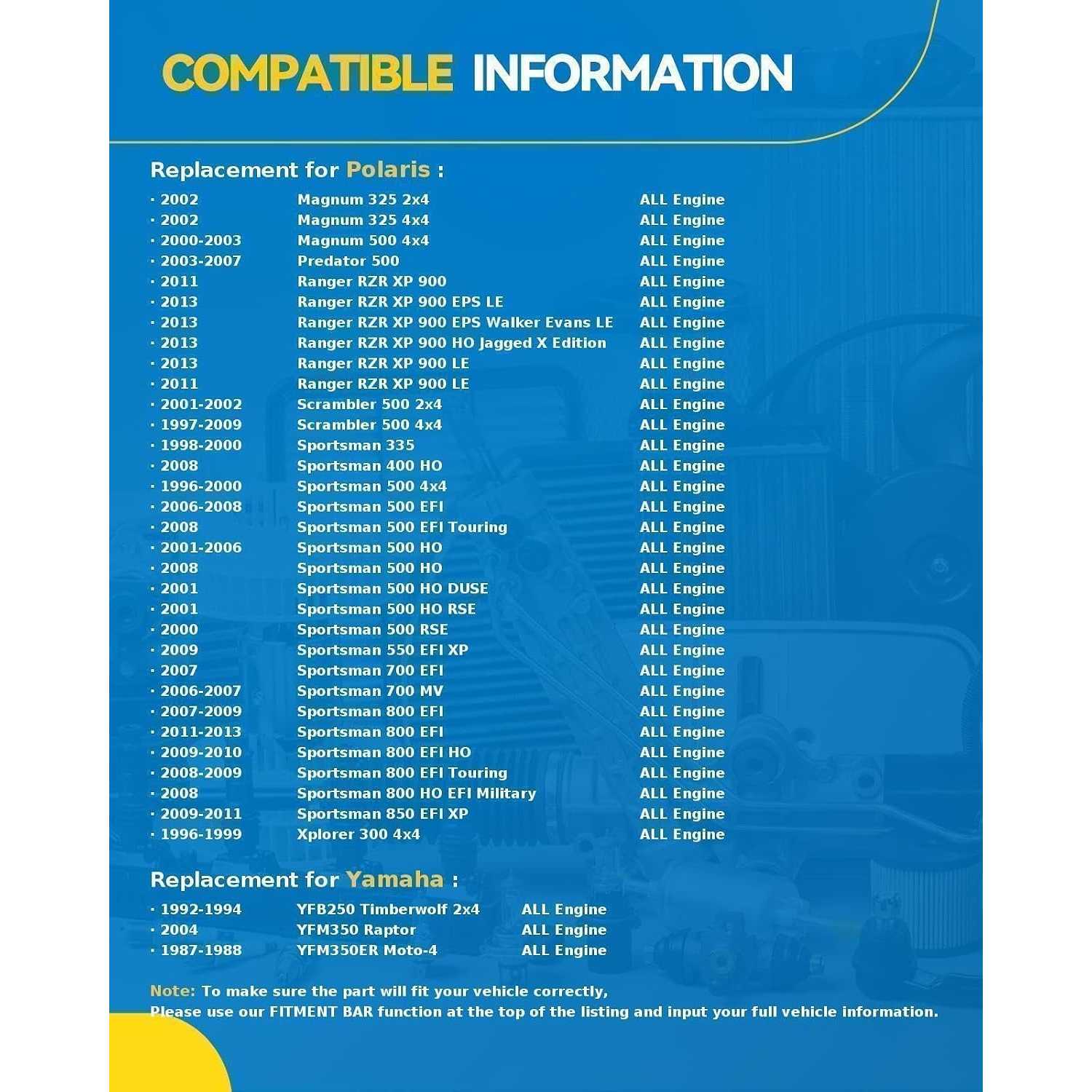

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2002200220022000 - 20032003 - 2007201320132011201320132013201120132001 - 20021997 - 20091994 - 19991998 - 200020081996 - 20002006 - 200820082001 - 20062008200120012000200920072006 - 20072007 - 20092011 - 201320072009 - 20102008 - 2009200820102009 - 20112012 - 20132012 - 20132012 - 201319951990 - 19932000 - 20021996 - 19991992 - 199420041987 - 19881987 - 20042001 - 200520091988 - 20061987 - 2006
MakePolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisPolarisYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamaha
ModelMagnum 325 2x4Magnum 325 4x4Magnum 500 2x4Magnum 500 4x4Predator 500Ranger 800 EFI EPS LERanger 800 EFI LERanger RZR XP 900Ranger RZR XP 900 EPS LERanger RZR XP 900 EPS Walker Evans LERanger RZR XP 900 HO Jagged X EditionRanger RZR XP 900 LERanger RZR XP 900 LEScrambler 500 2x4Scrambler 500 4x4Sport 400LSportsman 335Sportsman 400 HOSportsman 500 4x4Sportsman 500 EFISportsman 500 EFI TouringSportsman 500 HOSportsman 500 HOSportsman 500 HO DUSESportsman 500 HO RSESportsman 500 RSESportsman 550 EFI XPSportsman 700 EFISportsman 700 MVSportsman 800 EFISportsman 800 EFISportsman 800 EFI DeluxeSportsman 800 EFI HOSportsman 800 EFI TouringSportsman 800 HO EFI MilitarySportsman 850 EFI Touring EPSSportsman 850 EFI XPSportsman 850 HO XPSportsman 850 HO XP EPSSportsman 850 HO XP EPS Browning LETrail Boss 300 4x4Trail Boss 350L 2x4Xpedition 325Xplorer 300 4x4YFB250 Timberwolf 2x4YFM350 RaptorYFM350ER Moto-4YFM350X WarriorYFM660R RaptorYFM700R RaptorYFS200 BlasterYFZ350 Banshee
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine----------------------------------------------------
Note----------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel SpacerWheel Spacer

Reviews

4.5/5

Based on 6 reviews

567%
417%
317%
20%
10%

AutoMom_2019_183

12/29/2025

These spacers look great on my quad, give it a nice aggressive stance. The quality for the price is really impressive. Definitely a good bang for your buck.

SarahDrives_413

01/26/2026

Arrived quicker than I thought and everything was in perfect condition. Had a question about fitment, and the support team was super helpful. Really smooth transaction.

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
