4x4" 62mm Center Bore 1/2"x20 Thread Wheel Hub Accessory 4290WSA569UUS - PHILTOP

4x4" 62mm Center Bore 1/2"x20 Thread Wheel Hub Accessory 4290WSA569UUS - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
50ISWSA5697US

Specifications

Brand
PHILTOP
Bolt Pattern
4x4"
Wheel Bolt Pattern
4x4"
Vehicle Bolt Pattern
4x4"
Thread Size
1/2"x20
Center Bore
62
Hub-Centric Lip
No
Thickness
1.5inch
Outside Diameter
138
Inside Diameter
2.44 in/62 mm
Lug Patterns
4
Type
Wheel Spacers
Items Included
4x Lug-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
75-85 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

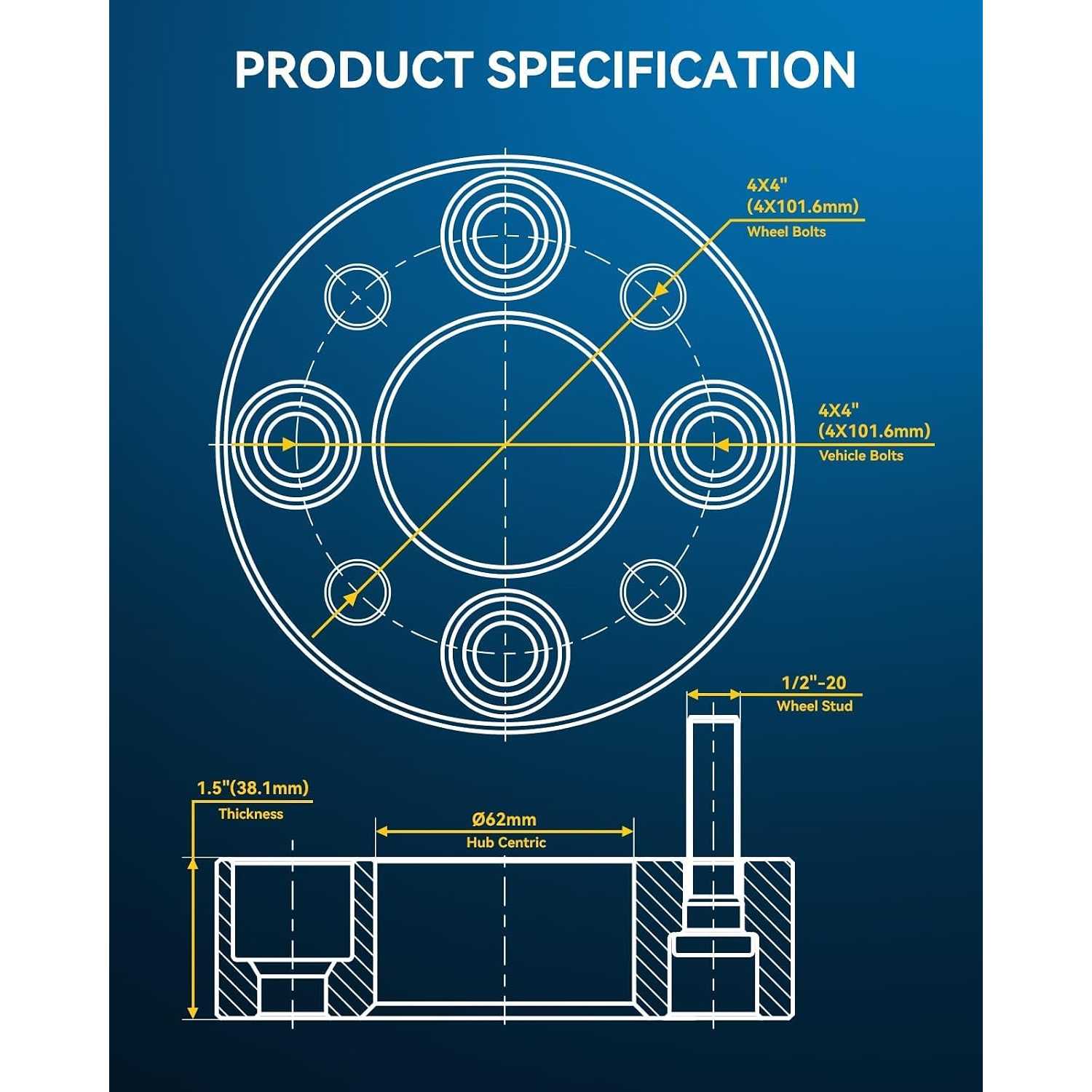

  • (Spacers Parameter): Vehicle Bolt Pattern Must Be 4x4" | Wheels Bolt Pattern Must Be 4x4" | Threaded Studs/Nuts: 1/2"x20 | Thickness: 1.5 inch(38.1mm) | Center Bore with no lip: 62mm | Recommended Torque: 75-85 ft/lbs | Bolt Grade: 12.9
  • (Compatibility) : 4x4" Wheel spacers fit for 2019-2022 EZ Go Freedom, 2019-2022 Fleet, 2019-2022 Fleet Freedom, 2014 Express S6, 2014 TXT, 2014 RXV, 2014 Express S4, 2019-2022 Express, 2014 Terrain 1500, 2014 Shuttle TXT, 2014 Shuttle RXV, 2020 Limited Edition Shoreline, 2014 Express L6, 2014 Freedom TXT, 2014 Express L4, 2014 2019-2020 2Five, 2014 Freedom RXV, 2014 Terrain 250, 2022 Liberty, 2014 2019-2022 ClubCar Villager LSV, 2019-2022 Tempo 4FUN, 2019-2022 Tempo, 2021 Sunshine, 2020-2021 Ice Storm 2, 2014 Precedent i3, 2014 2019-2022 Cafe Express, 2021 Sea Foam, 2019-2021 Villager 2, 2014 2019-2021 Precedent, 2019-2022 Onward 2, 2020-2021 Sandstorm 2

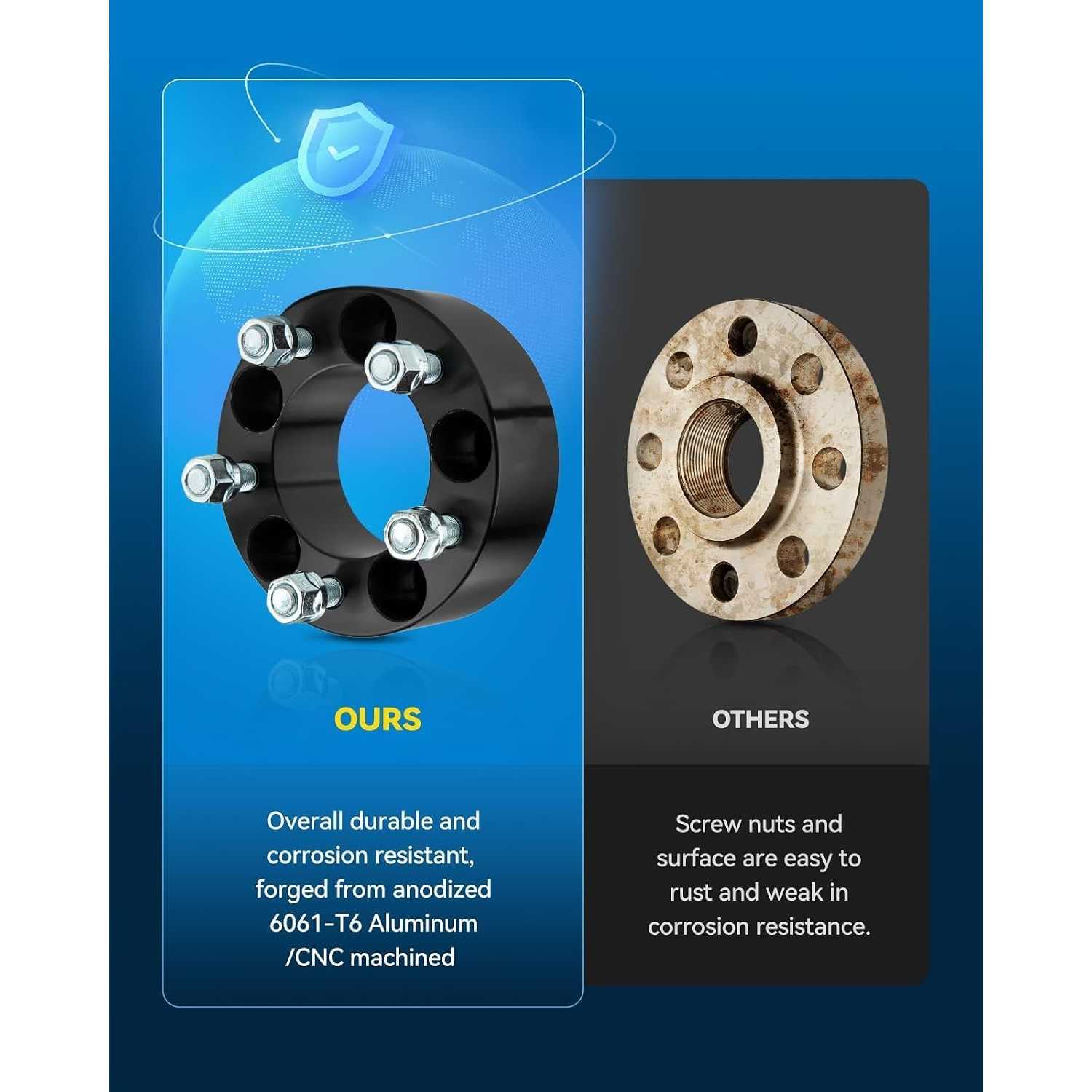

  • (Not Easy to Break): PHILTOP 1.5 inch wheel adapters are made of lightweight anodized 6061-T6 aluminum by Forged Manufacturing Methods, compared with other Casting Spacers, high duty and more durable. The bolts (SGS Test Approved) are higher hardness and against rust. CNC automatic processing, enhance the hardness and corrosion resistance of the material.The above can effectively prevent bolt breakage
  • (Advantage) : 38.1mm wheel spacers provide extra width for the wheel track to bring an aggressive appearance, and with the improvement of traction, the vehicle's anti-roll performance and handling comfort have been greatly improved
  • (Warm Reminder):Better to use some glue on the spacers, alignment recommended after installation, re-torque the open-end lug nuts after some 25-50 miles. NOTE: Please use the "Philtop comfirmed fit" tool again to verify if it is compatible with your vehicle before purchasing the wheel spacers

Compatible Vehicles

Check if this fits your vehicle

Compatible vehicle data is being verified for this product.

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.
