2019-2022 Yamaha DR2E The Drive2 Adventurer Sport 2+2 AC | 4x4" 68.5mm Center Bore M12x1.25 Thread Wheel Hub Accessory | 2482WSA

2019-2022 Yamaha DR2E The Drive2 Adventurer Sport 2+2 AC | 4x4" 68.5mm Center Bore M12x1.25 Thread Wheel Hub Accessory | 2482WSA

Durable

6061T6

12.9-Grade Bolts

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
39ISWSA5797US

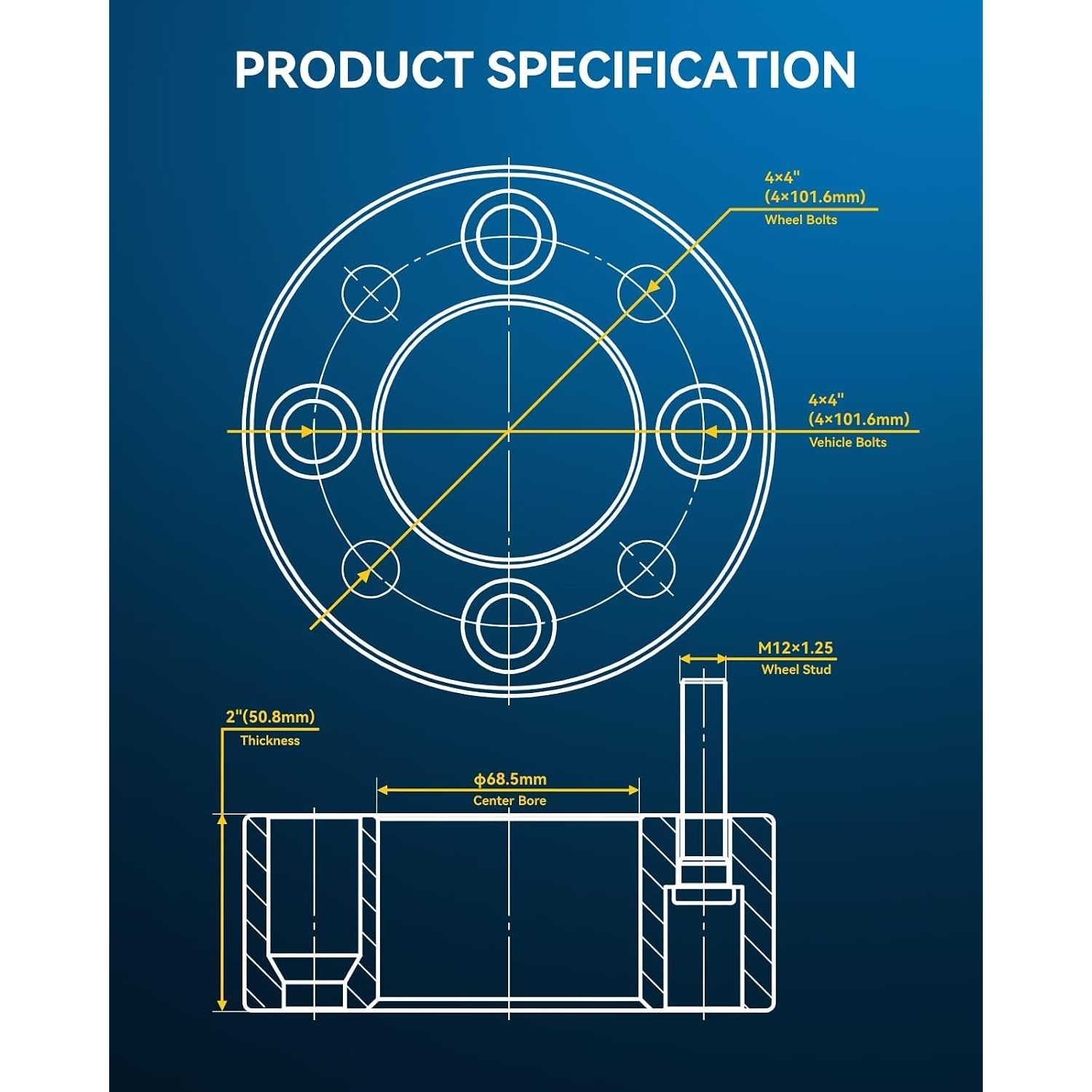

Specifications

Brand
PHILTOP
Bolt Pattern
4x4
Wheel Bolt Pattern
4x4
Vehicle Bolt Pattern
4x4
Thread Size
M12x1.25
Center Bore
68.5
Hub-Centric Lip
No
Thickness
2inch
Outside Diameter
138
Inside Diameter
2.7 in/68.5 mm
Lug Patterns
4
Type
Wheel Spacers
Items Included
4x Lug-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • (Spacers Parameter): Vehicle Bolt Pattern Must Be 4x4" | Wheels Bolt Pattern Must Be 4x4" | Threaded Studs/Nuts: M12x1.25 | Thickness: 2 inch(50.8mm) | Center Bore with no lip: 68.5mm | Recommended Torque: 70-80 ft/lbs | Bolt Grade: 12.9
  • (Compatibility) : 4x4" Wheel spacers fit for 2004-2009 Yamaha G28-A U-MAX Medium Duty II, 2003-2007 G22-A G-MAX, 2003-2007 G22-E G-MAX, 2000-2004 G21-A, 2004-2008 G27-A U-MAX Light Duty, 2004-2008 G27-E U-MAX Light Duty, 2004 2006-2009 G23-A U-MAX Medium Duty I, 2004 2006-2008 G23-E U-MAX Medium Duty I, 2000-2002 G19-E Ultima, 2000-2002 G16-A Ultima, 2000-2002 G20-A Concierge, 2009-2013 YTF-2 Adventurer Two, 2009-2013 YTF-1 Adventurer One, 2000-2002 G16-E Ultima, 2010-2013 YDR-A The DRIVE PTV, 2010-2013 YDR-E The DRIVE PTV, 2009-2011 YDR-E SVS Concierge 4-Passenger, 2009-2011 YDR-A SVS Concierge 4-Passenger, 2009-2011 YDR-E SVL Concierge 6-Passenger

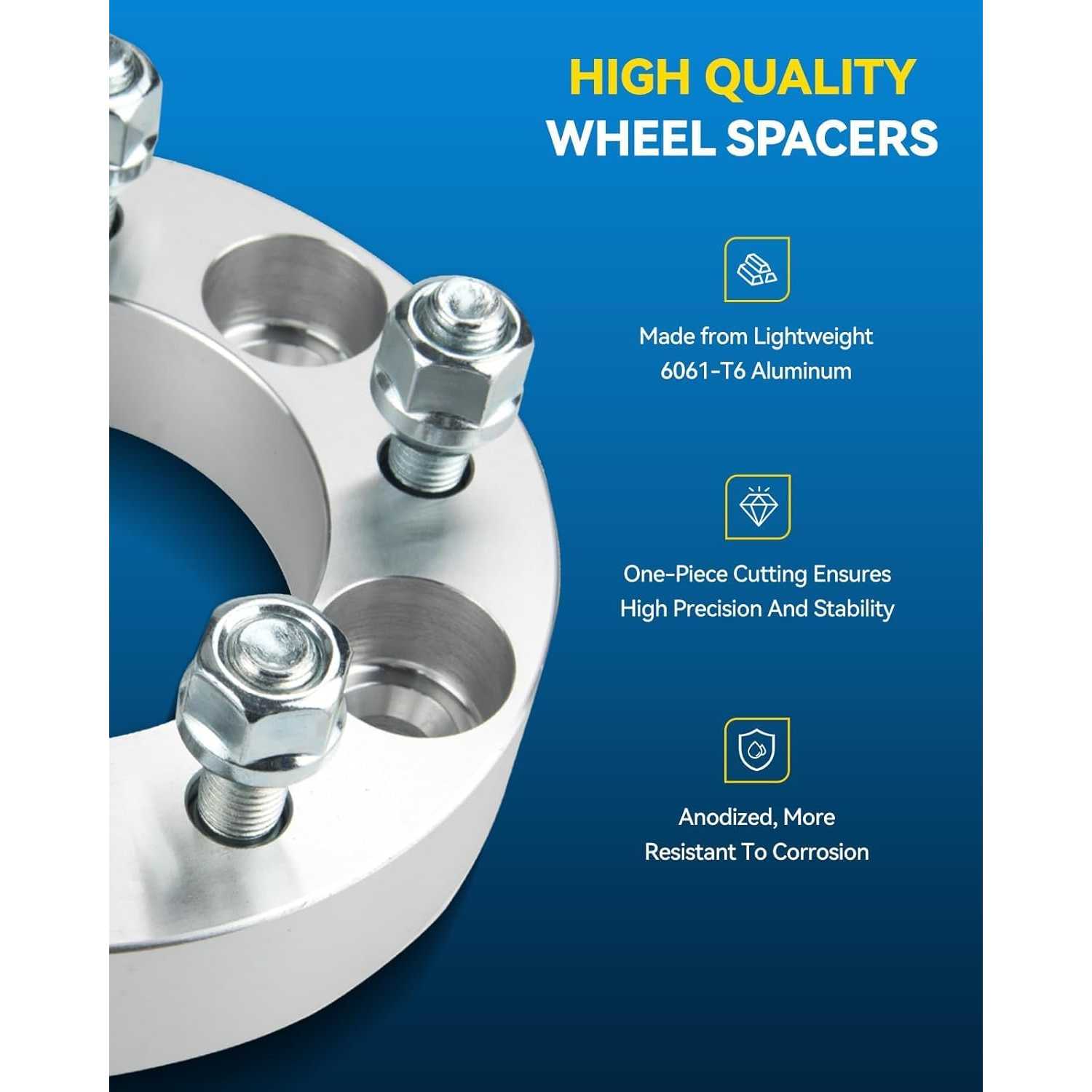

  • (Not Easy to Break): PHILTOP 2 inch wheel adapters are made of lightweight anodized 6061-T6 aluminum by Forged Manufacturing Methods, compared with other Casting Spacers, high duty and more durable. The bolts (SGS Test Approved) are higher hardness and against rust. CNC automatic processing, enhance the hardness and corrosion resistance of the material.The above can effectively prevent bolt breakage
  • (Advantage) : 50.8mm wheel spacers provide extra width for the wheel track to bring an aggressive appearance, and with the improvement of traction, the vehicle's anti-roll performance and handling comfort have been greatly improved
  • (Warm Reminder):Better to use some glue on the spacers, alignment recommended after installation, re-torque the open-end lug nuts after some 25-50 miles. NOTE: Please use the "Philtop comfirmed fit" tool again to verify if it is compatible with your vehicle before purchasing the wheel spacers

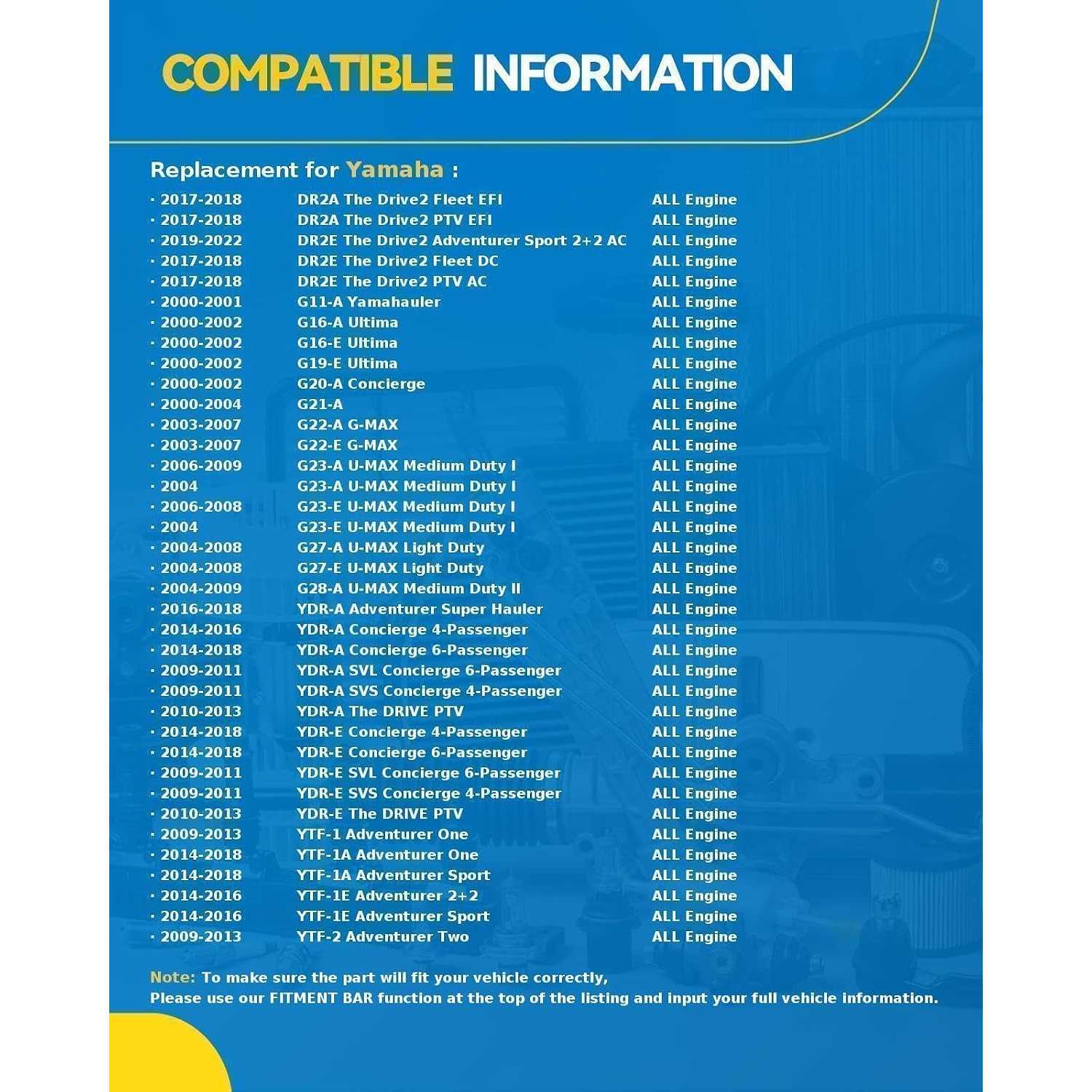

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2019 - 20202019 - 20202019 - 20202017 - 20182017 - 20182017 - 20182019 - 20222019 - 20202019 - 20202017 - 20182017 - 20182000 - 20012000 - 20022000 - 20022000 - 20022000 - 20022000 - 20042003 - 20072003 - 200720042006 - 200920042006 - 20082004 - 20082004 - 20082004 - 20092016 - 20182014 - 20162014 - 20182009 - 20112009 - 20112010 - 20132014 - 20182014 - 20182009 - 20112009 - 20112010 - 20132009 - 20132014 - 20182014 - 201820182014 - 20162014 - 20162009 - 201320112017 - 20182014 - 20182017
MakeYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamahaYamaha
ModelDR2A The Drive2 Adventurer Sport 2+2 EFIDR2A The Drive2 Concierge 4 EFIDR2A The Drive2 Concierge 6 EFIDR2A The Drive2 Fleet CarbDR2A The Drive2 Fleet EFIDR2A The Drive2 PTV EFIDR2E The Drive2 Adventurer Sport 2+2 ACDR2E The Drive2 Concierge 4 ACDR2E The Drive2 Concierge 6 ACDR2E The Drive2 Fleet DCDR2E The Drive2 PTV ACG11-A YamahaulerG16-A UltimaG16-E UltimaG19-E UltimaG20-A ConciergeG21-AG22-A G-MAXG22-E G-MAXG23-A U-MAX Medium Duty IG23-A U-MAX Medium Duty IG23-E U-MAX Medium Duty IG23-E U-MAX Medium Duty IG27-A U-MAX Light DutyG27-E U-MAX Light DutyG28-A U-MAX Medium Duty IIYDR-A Adventurer Super HaulerYDR-A Concierge 4-PassengerYDR-A Concierge 6-PassengerYDR-A SVL Concierge 6-PassengerYDR-A SVS Concierge 4-PassengerYDR-A The DRIVE PTVYDR-E Concierge 4-PassengerYDR-E Concierge 6-PassengerYDR-E SVL Concierge 6-PassengerYDR-E SVS Concierge 4-PassengerYDR-E The DRIVE PTVYTF-1 Adventurer OneYTF-1A Adventurer OneYTF-1A Adventurer SportYTF-1A Adventurer Sport 2+2YTF-1E Adventurer 2+2YTF-1E Adventurer SportYTF-2 Adventurer TwoYTF-2 Fairway LoungeYTF-2A Adventurer TwoYTF-2A Fairway LoungeYTF-2E Adventurer Two
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine------------------------------------------------
Note
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel SpacerWheel Spacer
