2000-2011 Ford Focus 2.0L | 4x4.25" 78 mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

2000-2011 Ford Focus 2.0L | 4x4.25" 78 mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
89ISWSA5357US

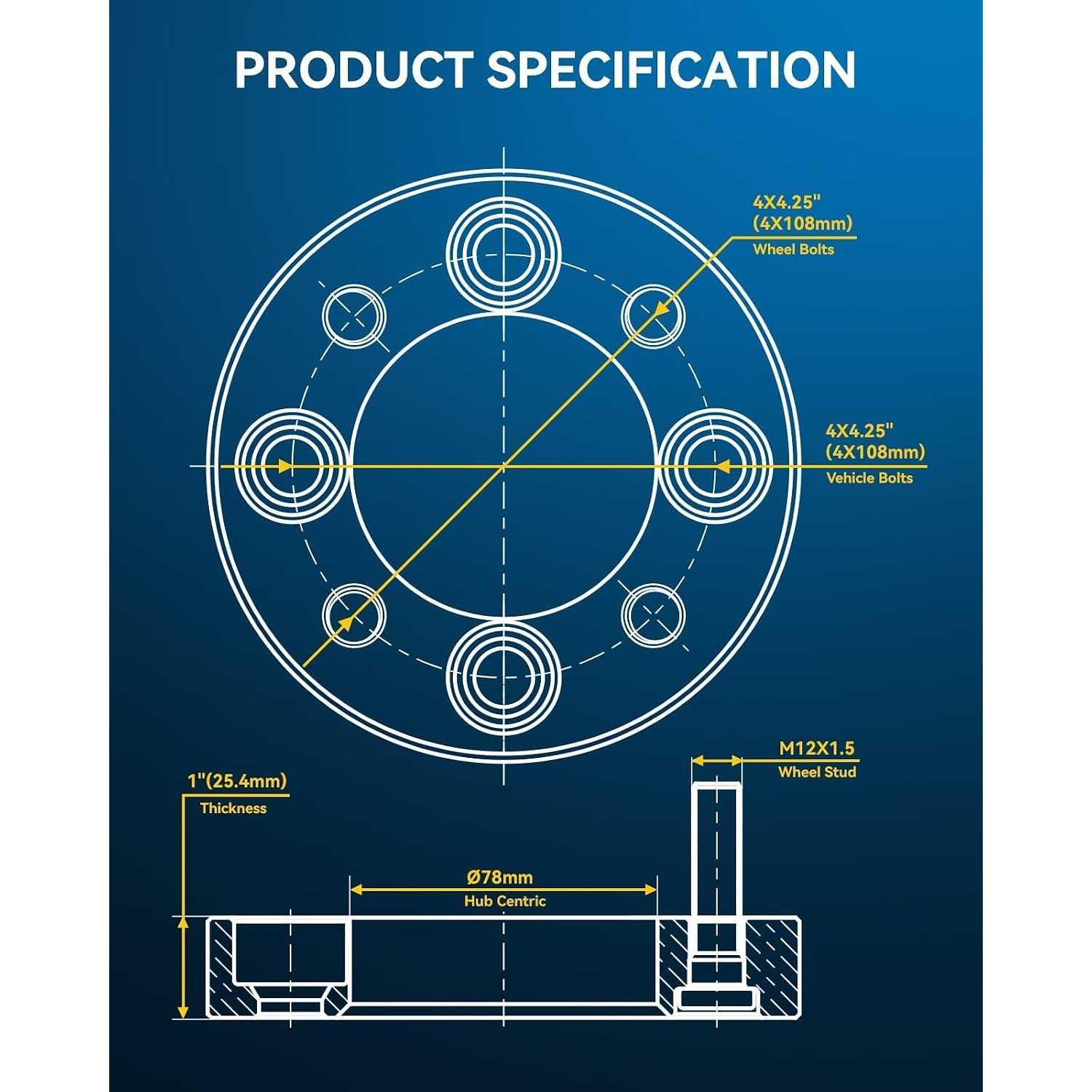

Specifications

Brand
PHILTOP
Bolt Pattern
4x4.25"
Wheel Bolt Pattern
4x4.25"
Vehicle Bolt Pattern
4x4.25"
Thread Size
M12x1.5
Center Bore
78
Hub-Centric Lip
No
Thickness
1inch
Outside Diameter
150
Inside Diameter
3.07 in/78 mm
Lug Patterns
4
Type
Wheel Spacer
Items Included
2x Lug-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
ATV / Utv
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • ✨[Wheel Spacers Specification] --- Bolt Pattern: 4x4.25" ; | Thickness: 1 inch(25mm) ; | Thread Pitch: M12x1.5 ; | Hub Bore: 78mm ; | Recommended torque: 70-80 ft/lbs. !!! Note: If the length of the vehicle bolts exceed the thickness of the wheel adapters, you need to cut the vehicle bolts
  • ✨[Vehicle Application] --- The 4x4.25 Wheel Spacer set replacement for ALL For: 2000-2004 Focus 2.0L DOHC;2007 Focus 2.0L DOHC;1995-2000 Contour, Mystique;2002-2004 Focus 2.0L SOHC;2003-2007 Focus 2.3L DOHC;2000 Focus 2.0L SOHC;1999-2002 Cougar;Front For:;2011-2019 Fiesta;2008-2011 Focus 2.0L DOHC;2005-2006 Focus 2.0L DOHC;2001 Focus 2.0L SOHC;1991-1994 Tempo, Topaz
  • ✨[High Quality] ---4x4.25 Wheel Spacer is truly forged from lightweight anodized 6061-T6 aircraft-grade aluminum alloy, the surface anodized coating can protect the metal surface from environmental erosion under extreme conditions. CNC precisely machined, with pre-installed heat treated 12.9 grade carbon steel studs, 7-10 times the corrosion resistance of similar products. The installation fit more better, so as to prevent wheel vibration and maintain the stock driving
  • ✨[Aggressive Driving Experience] --- These 4x4.25 Wheel Spacers can move your wheels further out from the wheel hub, allow for larger tire installation to the vehicle. Installing the wheel spacers can fix brake caliper clearance issues, correct tire friction issues, increase cornering stability, give your vehicle a more aggressive stance
  • ✨[Professional Services] --- Before placing an order, confirm compatibility by entering the year, make, and model in the Philtop suitability filter in the upper left corner. --- IMPORTANT SAFETY ADVISORY --- : Torque lug bolts/nuts to manufacturer specifications. Check and re-torque all hardware after 25-50 miles. See Product Description for additional install information

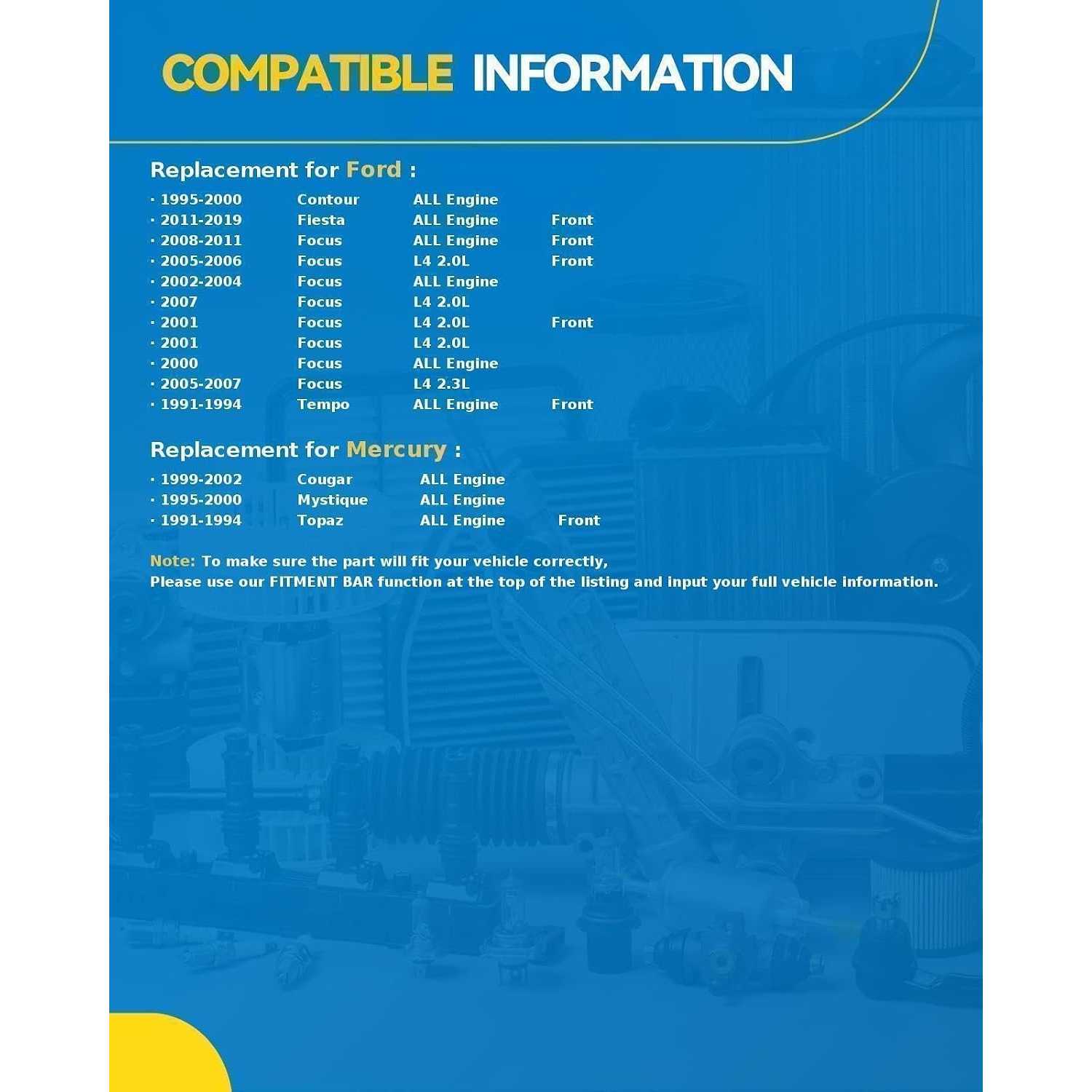

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1997 - 19981995 - 19981995 - 1998199519951995 - 20001995 - 2000199519951998 - 20001995 - 20001998 - 200019961996 - 19972011 - 20192014 - 20172011 - 20192011 - 20122011 - 20122014 - 201920192013 - 201820002001 - 20042003 - 200420072008 - 201120002001 - 200420072008 - 20112003 - 20042009 - 201120072008 - 201120072002 - 2004200020002001 - 20042003 - 20042002 - 20042003 - 200420002001 - 20042005 - 20062003 - 20042005 - 20062005 - 20062002 - 20042005 - 20062003 - 20042005 - 20061991 - 19941992 - 199419911992199119911991 - 19941992 - 19941991199119921999 - 20022001 - 200220011999 - 2002199519951995 - 20001995 - 1997199519951995 - 19971996 - 200019951991 - 19941992 - 199419911991 - 1992199219911991 - 1992199219911991 - 199219921991199119921991
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercury
ModelContourContourContourContourContourContourContourContourContourContourContourContourContourContourFiestaFiestaFiestaFiestaFiestaFiestaFiestaFiestaFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusTempoTempoTempoTempoTempoTempoTempoTempoTempoTempoTempoCougarCougarCougarCougarMystiqueMystiqueMystiqueMystiqueMystiqueMystiqueMystiqueMystiqueMystiqueTopazTopazTopazTopazTopazTopazTopazTopazTopazTopazTopazTopazTopazTopazTopaz
TrimBaseGLGLGL SportGL SportLXLXLX SportLX SportSESESVTSportSportSSESESELSESSTST LineTitaniumLXLXLXSSSESESESESESELSESSESSTSVTSony Limited EditionZTSZTSZTSZTWZTWZX3ZX3ZX3ZX3ZX4ZX4 STZX5ZX5ZX5ZXWGLGLGLSGLSLL AWDLXLXLX AWDSportSportBaseBaseSV6BaseBaseGSGSGS SpreeGS SpreeLSLSLS Young AmericaGSGSGS AWDLSLSLS AWDLTSLTSLTS AWDSportSportSport AWDXR5XR5XR5 AWD
Engine2.0L L42.0L L42.5L V62.0L L42.5L V62.0L L42.5L V62.0L L42.5L V62.0L L42.5L V62.5L V62.0L L42.5L V61.6L L41.0L L31.6L L41.6L L41.6L L41.6L L41.6L L41.6L L42.0L L42.0L L42.3L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.3L L42.0L L42.0L L42.0L L42.3L L42.0L L42.0L L42.0L L42.0L L42.3L L42.0L L42.3L L42.0L L42.0L L42.0L L42.3L L42.0L L42.3L L42.0L L42.0L L42.3L L42.0L L42.3L L43.0L V62.3L L43.0L V62.3L L42.3L L42.3L L43.0L V62.3L L42.3L L43.0L V62.0L L42.5L V62.5L V62.5L V62.0L L42.5L V62.0L L42.5L V62.0L L42.5L V62.0L L42.5L V62.5L V62.3L L43.0L V62.3L L42.3L L43.0L V62.3L L42.3L L43.0L V62.3L L42.3L L43.0L V62.3L L42.3L L43.0L V62.3L L4
Note
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front
Front
Front
Front
Front
Front
Front
Front
Front
Front;Rear;Rear Disc Brakes
Front;Rear;Rear Disc Brakes
Front;Rear
Front
Front
Front;Rear;Rear Disc Brakes
Front;Rear
Front
Front;Rear;Rear Disc Brakes
Front
Front;Rear
Front
Front;Rear
Front;Rear;Rear Disc Brakes
Front
Front
Front;Rear;Rear Disc Brakes
Front;Rear;Rear Disc Brakes
Front;Rear;Rear Disc Brakes
Front;Rear;Rear Disc Brakes
Front
Front;Rear;Rear Disc Brakes
Front
Front;Rear;Rear Disc Brakes
Front
Front
Front;Rear;Rear Disc Brakes
Front
Front;Rear;Rear Disc Brakes
Front
Front
Front
Front
Front
Front
Front
Front
Front
Front
Front
Front
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front
Front
Front
Front
Front
Front
Front
Front
Front
Front
Front
Front
Front
Front
Front

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

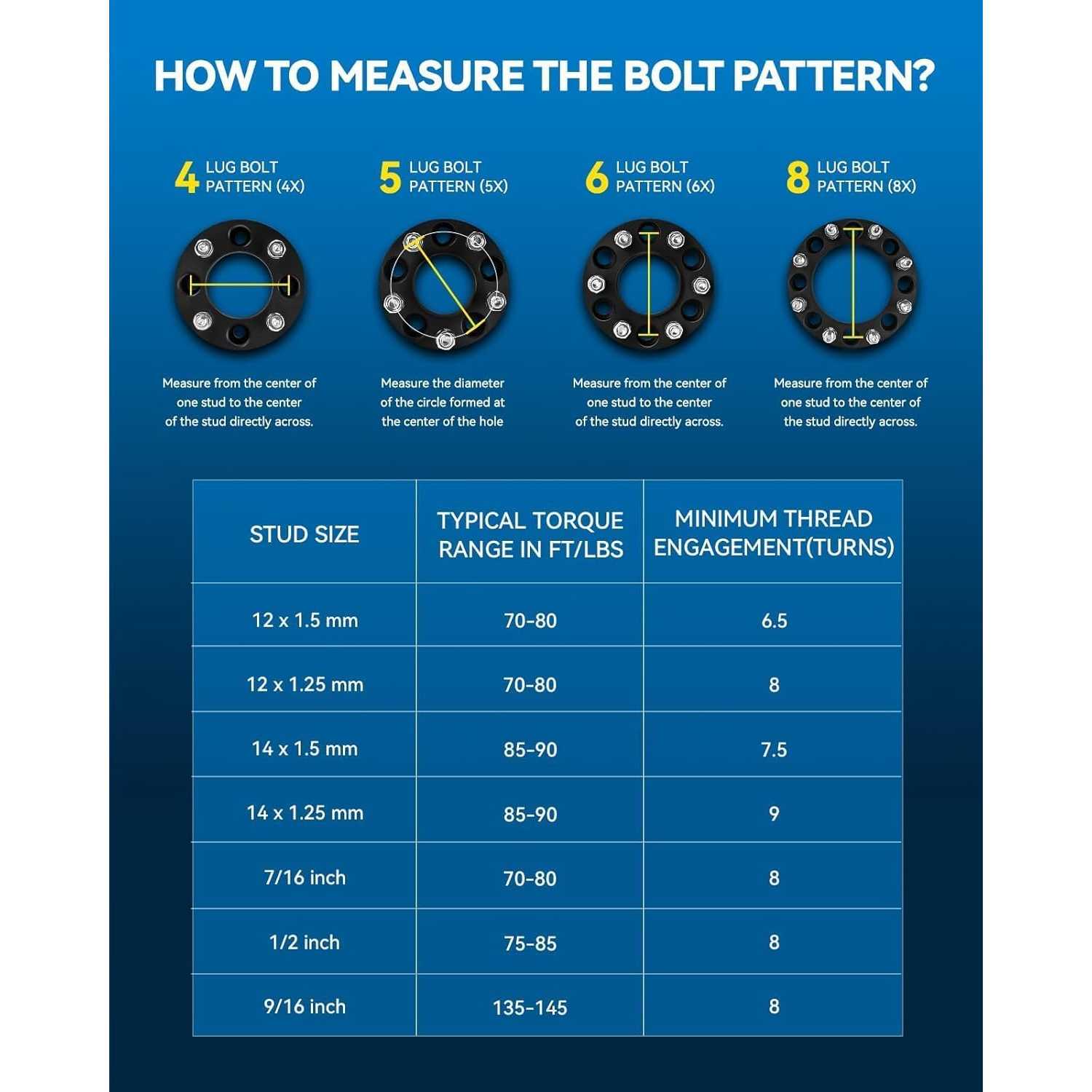

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel SpacerWheel Spacer

Reviews

4.9/5

Based on 7 reviews

586%
414%
30%
20%
10%

Linda Gommesen

12/01/2024

Verified buyer

It's been 1,000 kilometers, and it's still in great shape Read more

Customer

12/01/2024

Verified buyer

Very fast shipping very good packaging really nice quality looks really cool Read more

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.
