2020-2022 Chevrolet Malibu 1.5L/2.0L | 1 PC Front Rear Wheel Bearing | OE#13517641/WE61950 - PHILTOP

2020-2022 Chevrolet Malibu 1.5L/2.0L | 1 PC Front Rear Wheel Bearing | OE#13517641/WE61950 - PHILTOP

Triple-Lip Seal

Front、Rear

AISI 52100

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
49ISWBO0167US

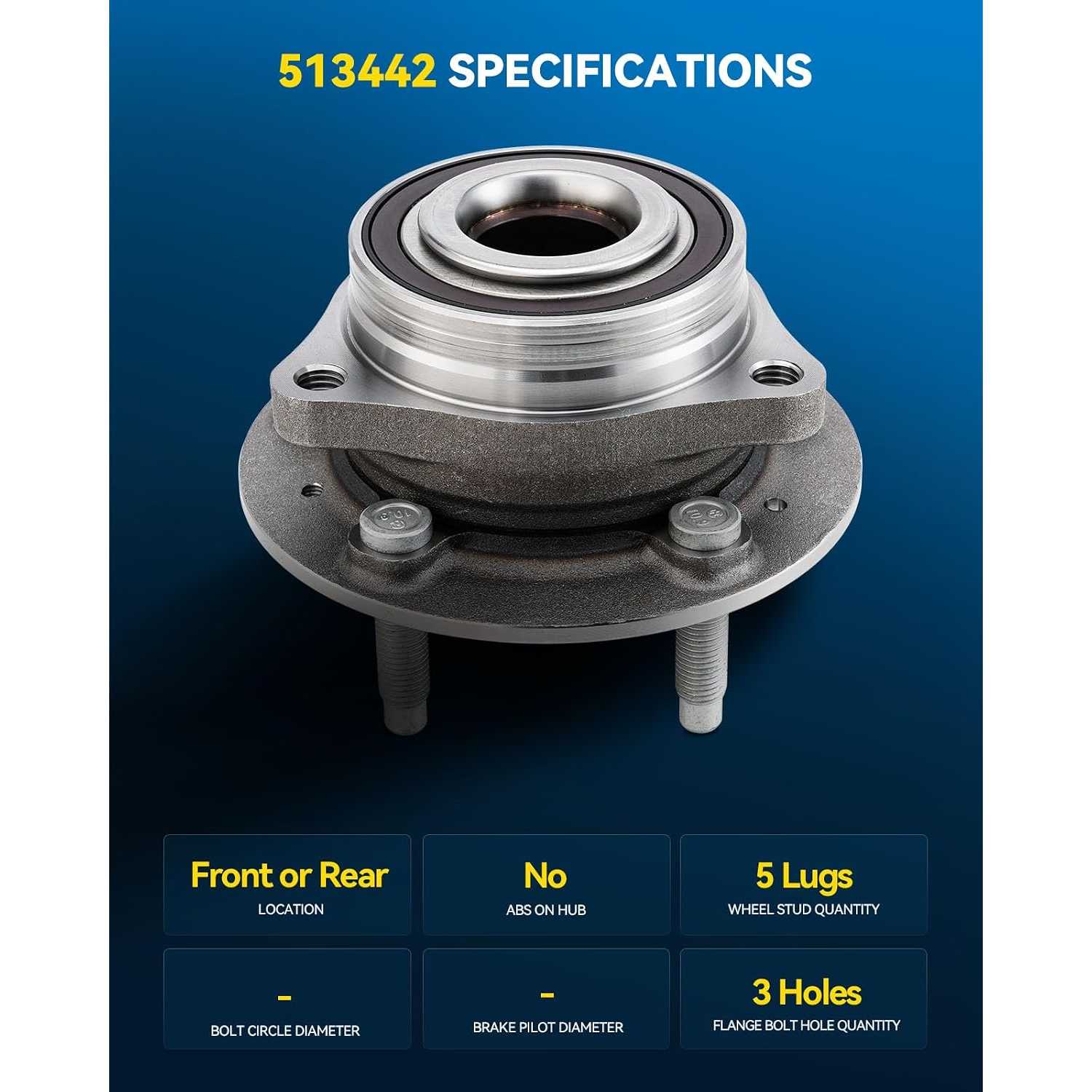

Specifications

Brand
PHILTOP
ABS Type
Magnetic Ring
Lug Count
5
Position
Front、Rear
Flange Bolt Hole Count
3
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

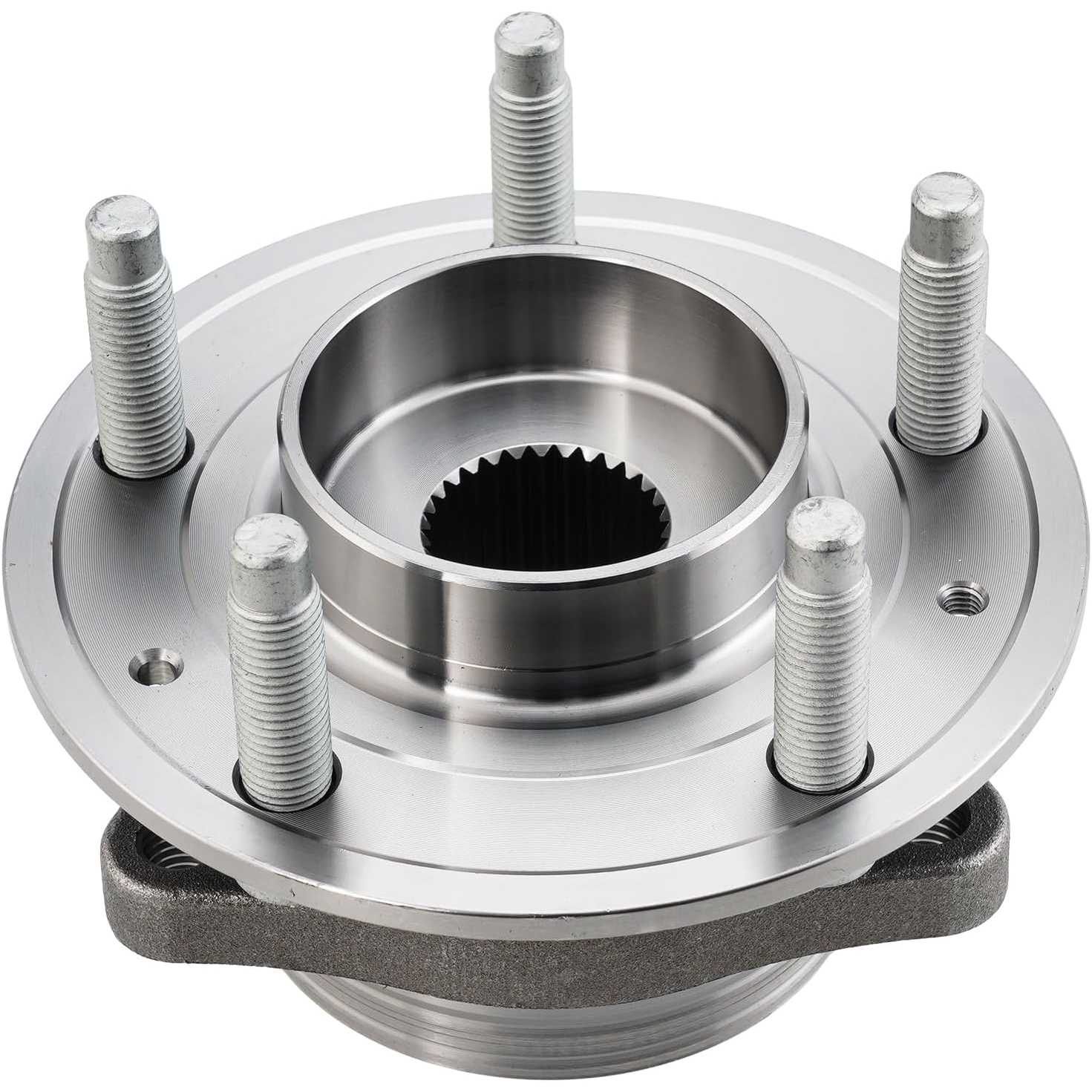

1x Front、Rear Wheel Hub and Bearing Assembly - 513442,Installation Instructions
Warranty Period
2-Year
OE Number
13517641
Part Number
WE61950,513442,HA590786,1411711507
Quantity
1

Highlights

  • [Exact Replacement] 513442 Front Rear Wheel Bearing and Hub Assembly fit for 2022-2024 Chevrolet Equinox (Front), 2019-2021 Chevrolet Equinox FWD (Front), 2019-2021 Chevrolet Equinox 4WD (Front), 2020-2022 Chevrolet Malibu (Front), 2018-2021 GMC Terrain FWD (Front), 2021-2022 Chevrolet Trailblazer (Front), 2020-2022 Buick Encore GX (Front), 2018-2019 GMC Terrain 4WD (Front), 2020-2021 GMC Terrain 4WD (Front)and Rear), 2021-2022 Cadillac CT4 (Rear), 2020 Cadillac CT4 RWD (Rear), 2020 Cadillac CT4 AWD (Front and Rear), 2020 Buick Regal Sportback FWD (Front), 2020 Buick Regal Sportback AWD (Front and Rear), 2020 Buick Regal TourX (Front and Rear)

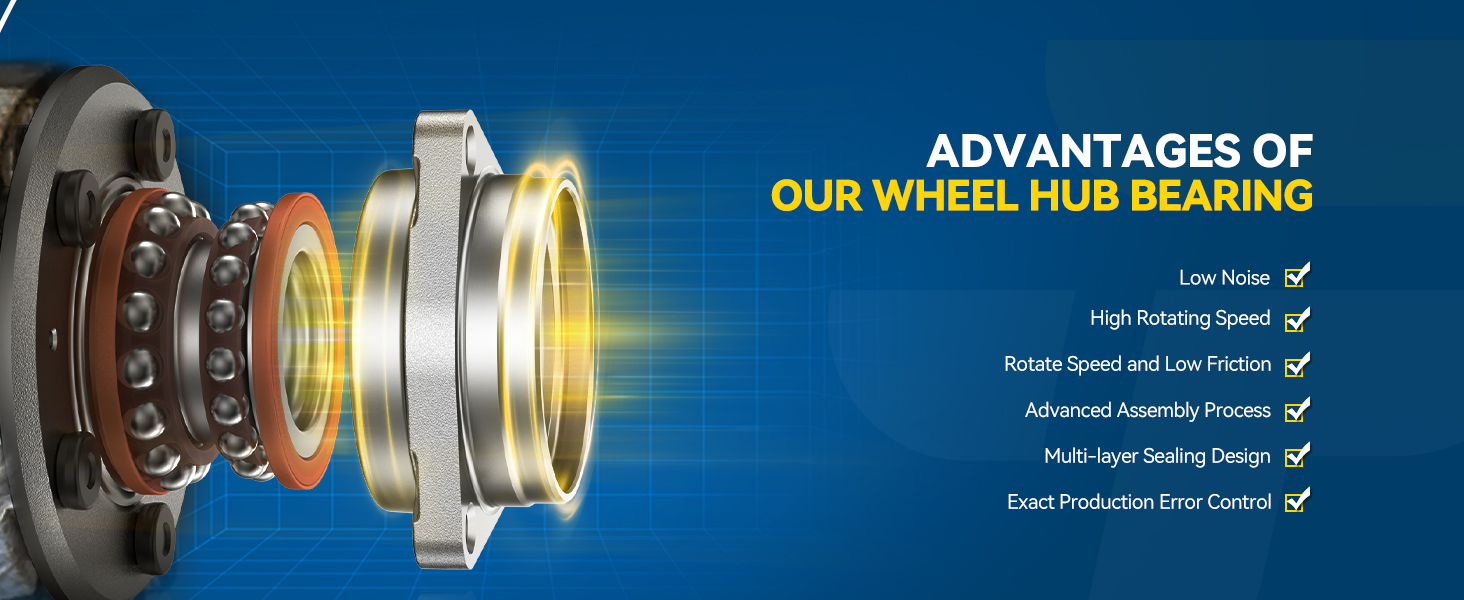

  • [Premium Quality Materials] Front Rear wheel bearing hub assembly are manufactured with premium quality materials. The outer ring and flange are made of high quality #55 carbon structural steel for high surface hardness and strength.
  • [Long lifespan] Brand new wheel hub assemblies and studs with rust and corrosion protected surface finish, making it has longer bearing life. Better seal design and triple oil seal, which lasts and minimizes noise and vibration and vibration also keeping moisture and other contaminants out.
  • [Specification] ①Position: Front Rear ; ②ABS Included: No; ③Wheel Stud Quantity: 5; ④Flange Bolt Hole Quantity: 3; ⑤Reference Part Number: 13526966, 13507355, 13517641, WE61950, 513442, 91605224. Please refer to the Vehicle menu at the top of the list, select your vehicle's "Year, Make, Model" and click "Confirm" to make sure the wheel bearing fit your car.
  • [Customer Service] PHILTOP Wheel hub assembly meet OE quality standards and come with a 2 year warranty. If you have any questions about our products, please contact us 24 hours a day.

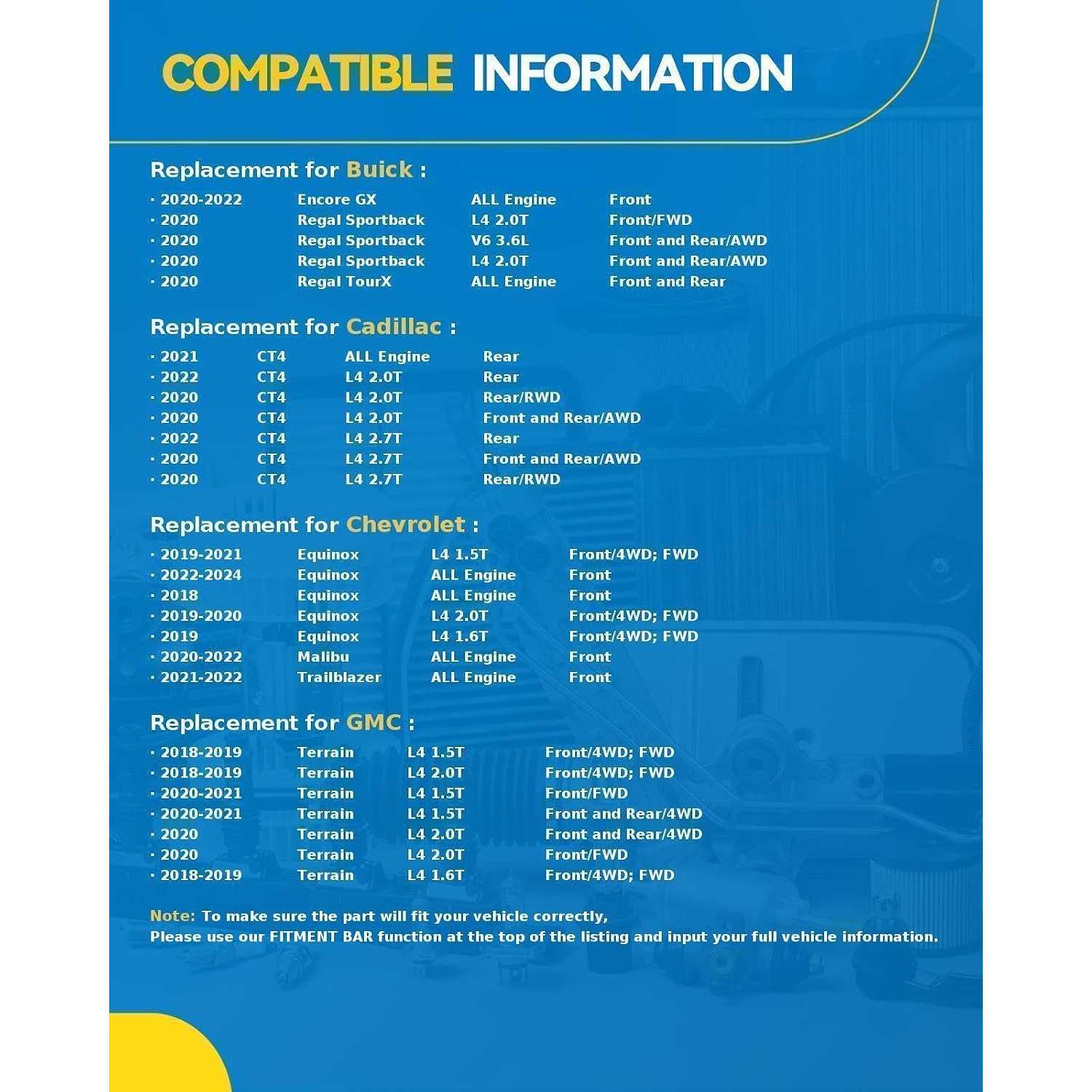

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2020 - 20222020 - 20222020 - 20222020 - 20222020 - 20222020 - 2022202020202020202020202020202020202020 - 20222020 - 20222020 - 20222020 - 20222020 - 20222018 - 20212018 - 20242018 - 20242018 - 20192018 - 20202018 - 20242018 - 20192018 - 20202022 - 20242020 - 20212020 - 20222020 - 20222020 - 20222020 - 20222021 - 20222021 - 20222021 - 20222021 - 20222021 - 20222021 - 20222021 - 202220212018 - 20202018 - 20212018 - 20212018 - 20192018 - 20192018 - 20212018 - 20192018 - 2020
MakeBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickCadillacCadillacCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMC
ModelEncore GXEncore GXEncore GXEncore GXEncore GXEncore GXRegal SportbackRegal SportbackRegal SportbackRegal SportbackRegal SportbackRegal TourXRegal TourXRegal TourXCT4CT4CT4CT4CT4EquinoxEquinoxEquinoxEquinoxEquinoxEquinoxEquinoxEquinoxEquinoxMalibuMalibuMalibuMalibuMalibuTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTerrainTerrainTerrainTerrainTerrainTerrainTerrainTerrainTerrain
TrimEssenceEssencePreferredPreferredSelectSelectAvenirBaseEssenceGSPreferredBaseEssencePreferredLuxuryPremium LuxuryPremium LuxurySportVLLSLTLTLTPremierPremierPremierRSLLSLTPremierRSACTIVLLSLSLTLTRSDenaliDenaliSLSLESLESLESLTSLTSLT
Engine1.2L L31.3L L31.2L L31.3L L31.2L L31.3L L32.0L L42.0L L42.0L L43.6L V62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.7L L42.0L L42.7L L41.5L L41.5L L41.5L L41.6L L42.0L L41.5L L41.6L L42.0L L41.5L L41.5L L41.5L L41.5L L42.0L L41.5L L41.3L L31.2L L31.2L L31.3L L31.2L L31.3L L31.3L L31.5L L42.0L L41.5L L41.5L L41.6L L42.0L L41.5L L41.6L L42.0L L4
Note-------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

PHILTOPPT

Reviews

4.4/5

Based on 5 reviews

560%
420%
320%
20%
10%

Nancy_FirstCar_827

10/14/2025

Arrived super fast and was packaged really well. Everything was in perfect shape when I opened the box. Customer service was great too, answered all my questions quickly.

DIY_Karen_327

05/26/2026

Looks great and feels like a high-quality part. The price is unbelievable for what you get. My Chevy Equinox runs so much smoother now, I'm really happy with this purchase.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.
