2000-2002 Dodge Ram 2500 5.9L L6/5.9L V8/8.0L V10; 2000-2002 Dodge Ram 3500 5.9L L6/5.9L V8/8.0L V10 | 1 PC Front RWD Wheel Bear

2000-2002 Dodge Ram 2500 5.9L L6/5.9L V8/8.0L V10; 2000-2002 Dodge Ram 3500 5.9L L6/5.9L V8/8.0L V10 | 1 PC Front RWD Wheel Bear

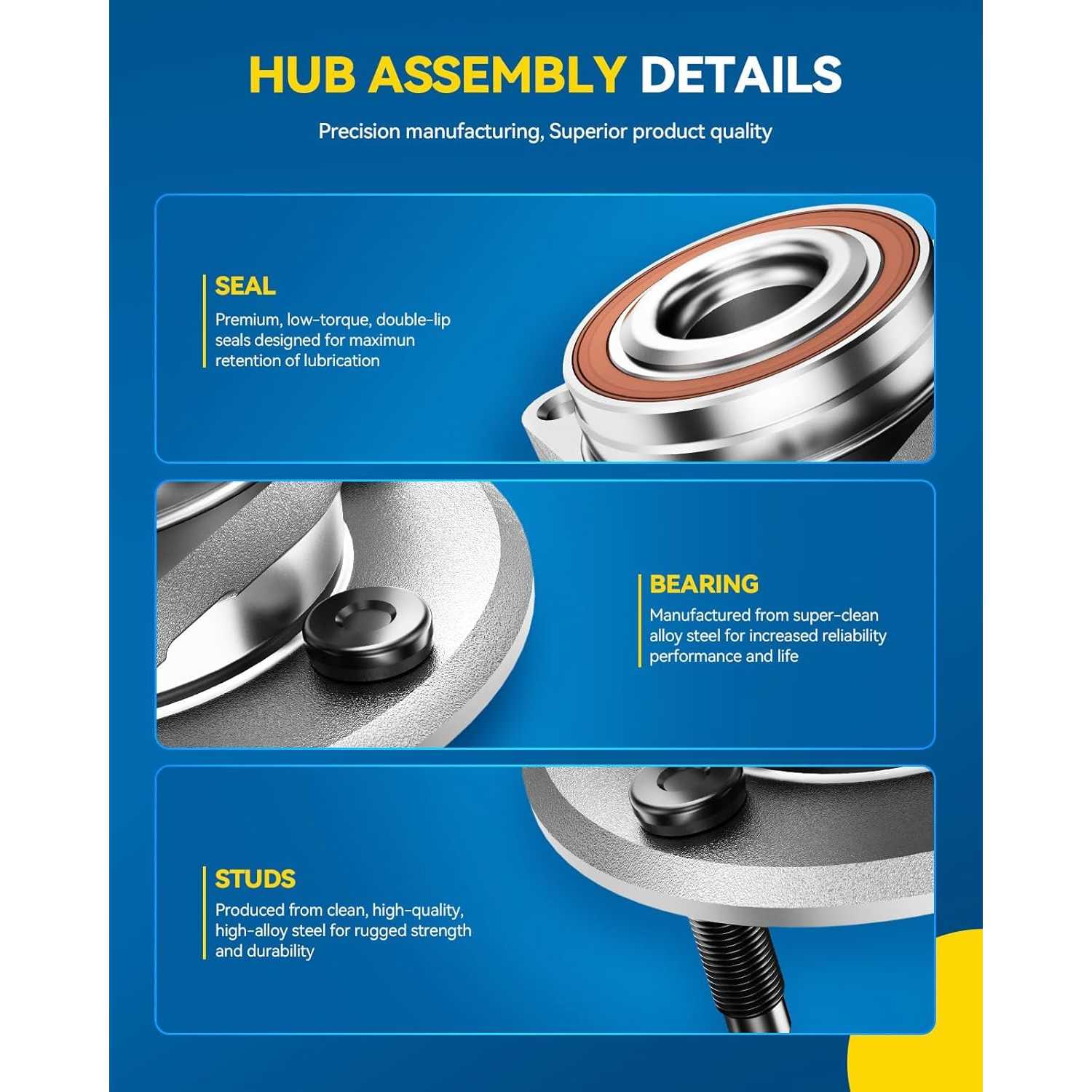

Triple-Lip Seal

Front

RWD

4.7

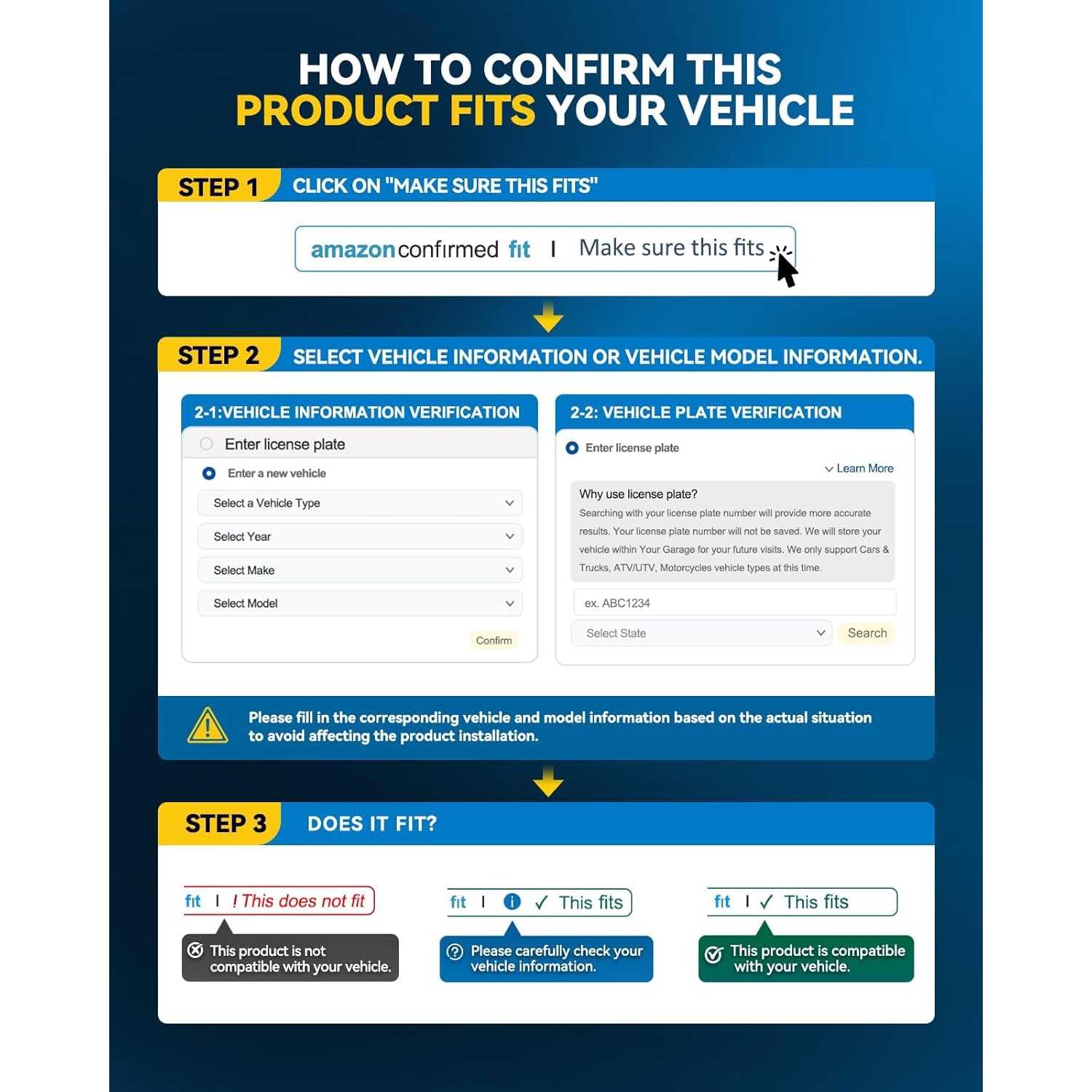

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
15ISWBR0187US

Specifications

Brand
PHILTOP
ABS Type
Tone Ring
Drive Type
RWD
Lug Count
8
Position
Front
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

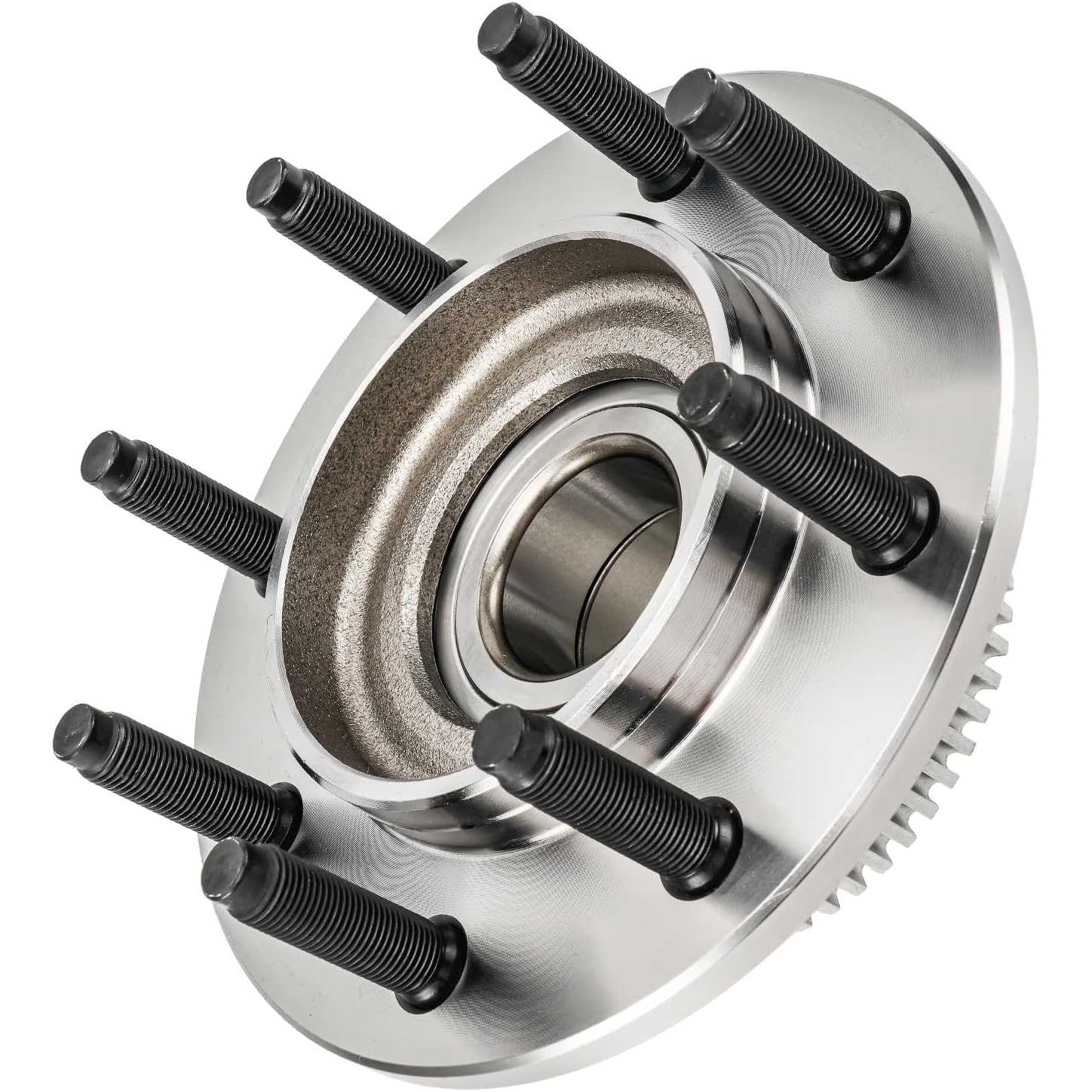

1x Front Wheel Hub and Bearing Assembly - 515139,Installation Instructions
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.9 in
Flange Offset
2.25 in/57.1 mm
Warranty Period
2-Year
OE Number
05015228AA,5015228AA
Part Number
515139,HA590000,H515139,715139,BR930476
Quantity
1

Highlights

  • Compatibility: Front Wheel Bearing and Hub Assembly for 2000-2002 Dodge Ram 2500 RWD, 2000-2002 Dodge Ram 3500 RWD. Please refer to the Vehicle menu at the top of the list, select your vehicle's "Year, Make, Model" and click "Confirm" to make sure the wheel bearing fit your car.
  • Wheel Hub Num: 515139, 5015228AA, 05015228AA, HA590000, BR930476, BR930492, 715139, NT515139, 7200361, WE61640, 40667003E, 102587, 40667003, H515139, 141144760, PT515139, WH515139.
  • Superior Quality: Our wheel hubs are made of high quality materials and have the same performance as the original equipment. In addition, the wheel bearing hub assembly is vehicle tested to ensure proper fit and excellent performance, thus extending the user's service life.
  • Recovery Performance: Wheel bearings support the gravity of the entire body and precisely guide the wheel rotation. High-quality wheel hub assemblies allow you to drive your vehicle safely and smoothly.
  • Please Note: If you do not have an installation manual or are not skilled enough to install wheel bearings, it is recommended that you seek assistance from a qualified mechanic.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2000 - 20022000 - 20022000 - 20022000 - 20022000 - 20022000 - 2002
MakeDodgeDodgeDodgeDodgeDodgeDodge
ModelRam 2500Ram 2500Ram 2500Ram 3500Ram 3500Ram 3500
TrimBaseBaseBaseBaseBaseBase
Engine5.9L L65.9L V88.0L V105.9L L65.9L V88.0L V10
Note
Rear-Wheel Drive;With Independent Front Axle
Rear-Wheel Drive;With Independent Front Axle
Rear-Wheel Drive;With Independent Front Axle
Rear-Wheel Drive;With Independent Front Axle
Rear-Wheel Drive;With Independent Front Axle
Rear-Wheel Drive;With Independent Front Axle

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

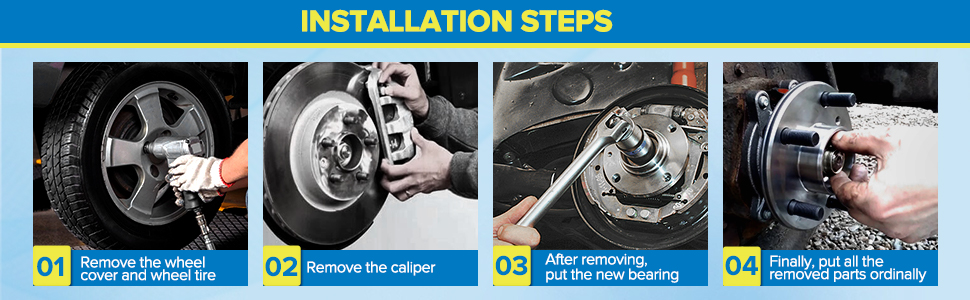

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.7/5

Based on 6 reviews

567%
433%
30%
20%
10%

CarGuy_John_189

12/01/2025

Got here super fast, and the packaging was really good. No issues at all. I had a quick question and the customer service folks were super helpful. Very pleased with the whole process.

Rob_HomeGarage_377

02/14/2026

Pretty simple installation on my Ram. They seated properly and everything tightened up just fine. No complaints here, fit perfectly and worked right away.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Warranty coverage and duration may vary by product. For specific warranty period details by product category, please refer to our Warranty & Returns Policy page. Damage related to incorrect fitment, installation or other vehicle problems may require further review.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
