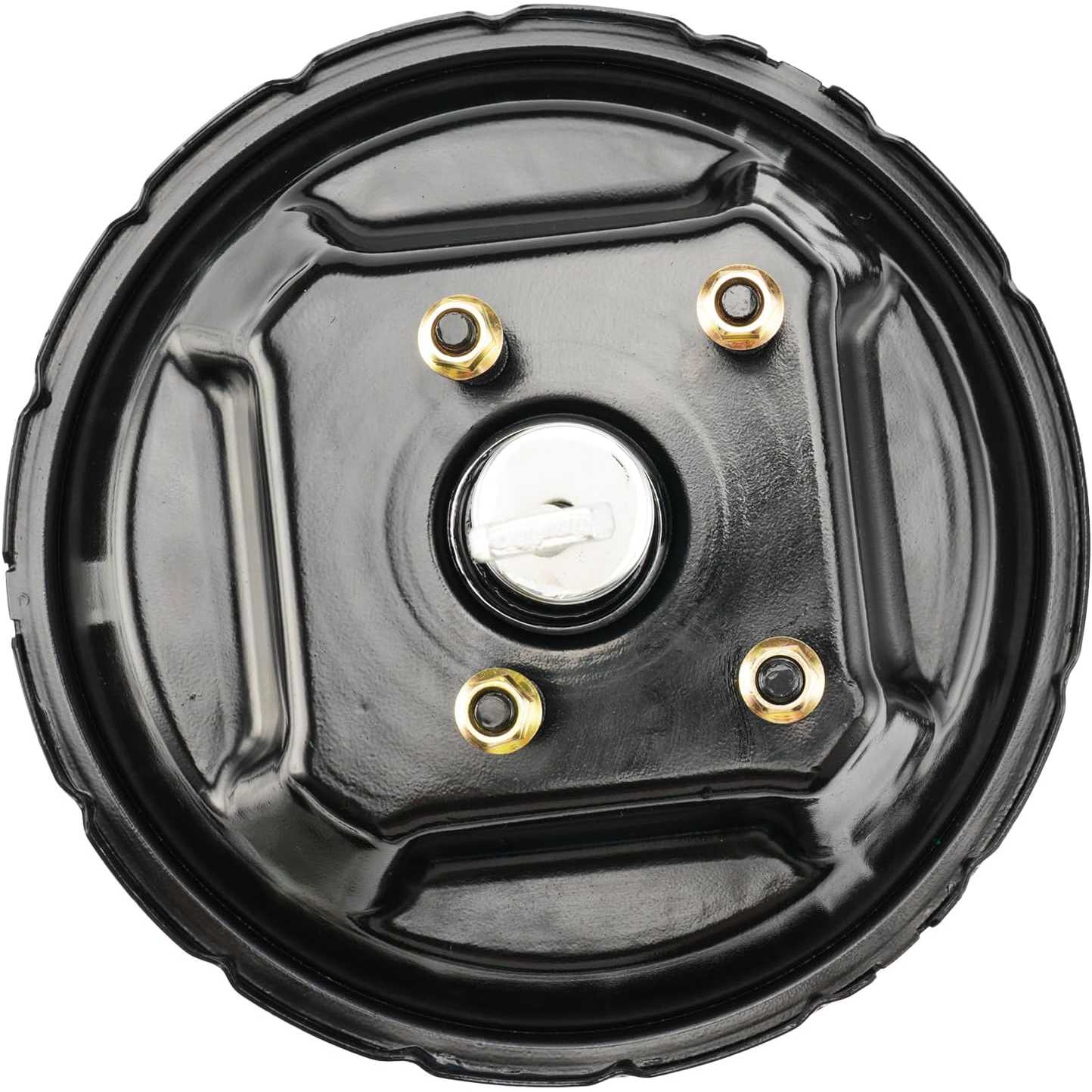

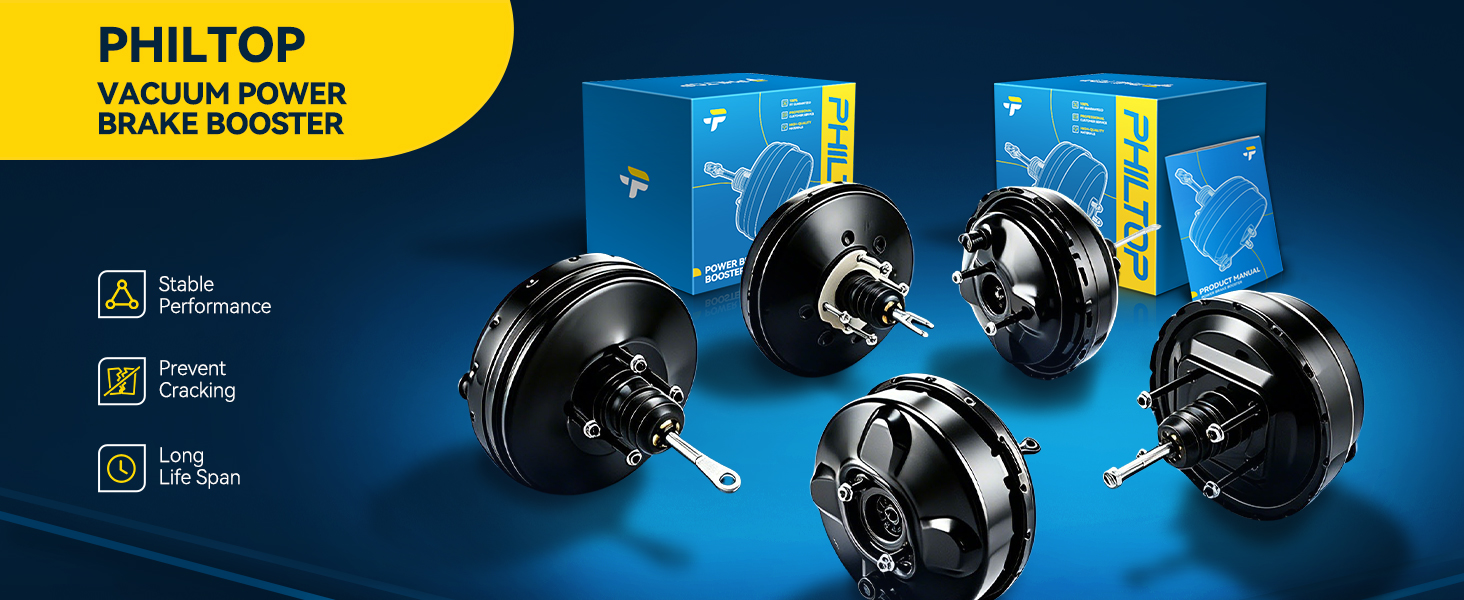

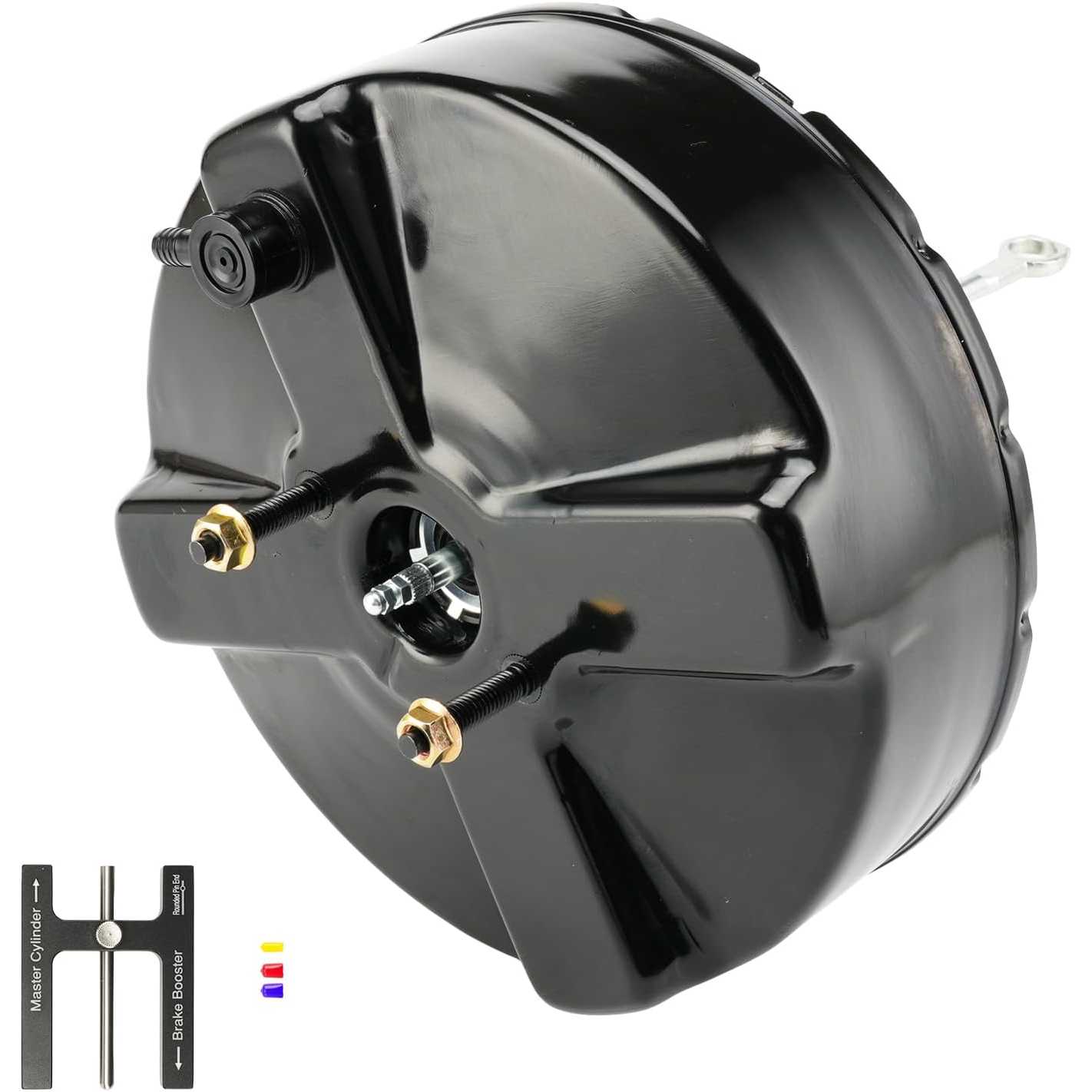

Vacuum Brake Booster

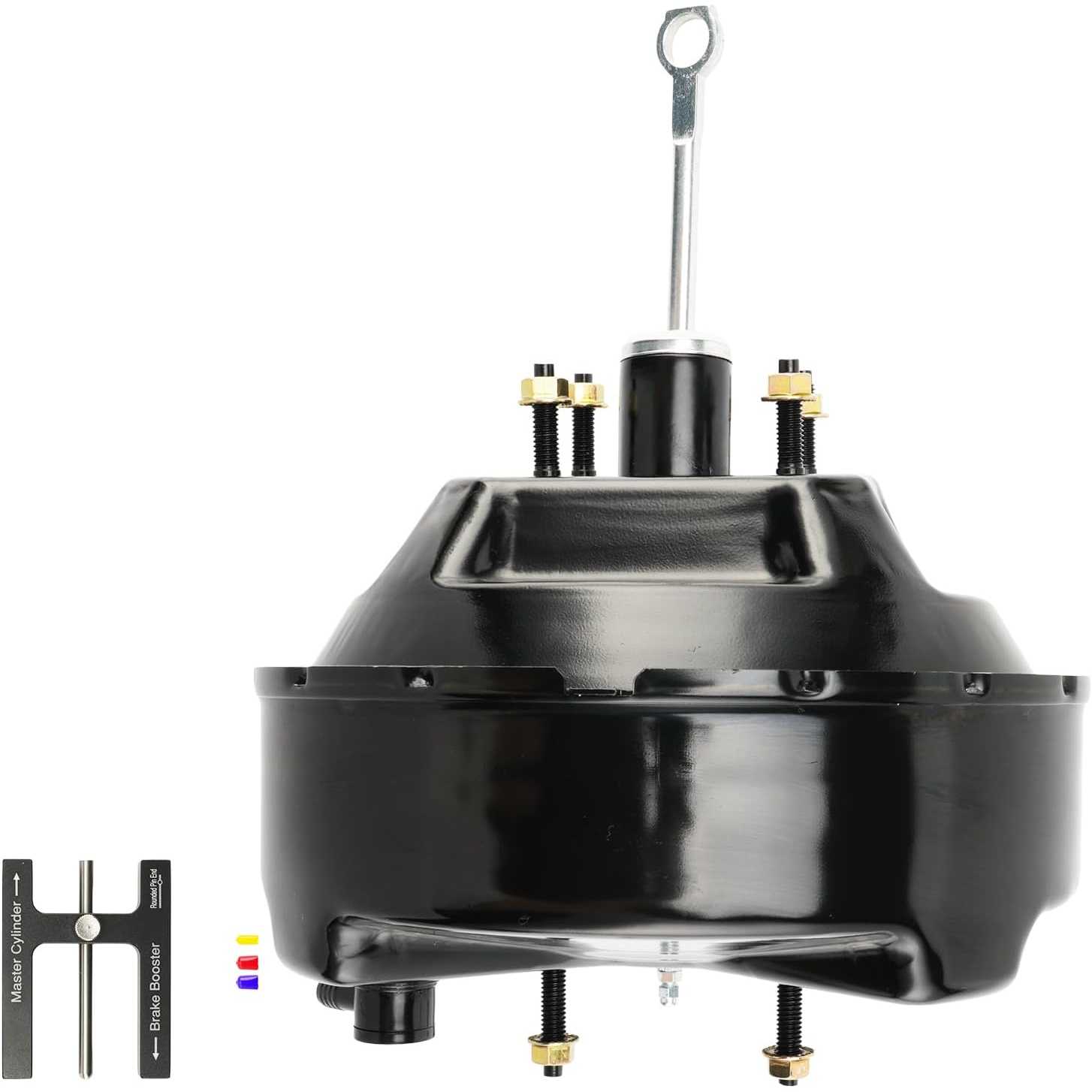

Push Rod Adjustment Tool Included

Responsive Braking Assist

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
33ISBEB1137US

Specifications

Brand
PHILTOP
Booster Type
Vacuum
Master Cylinder Stud Thread Size
3/8x16
Diaphragm Diameter
10.704 in
Diaphragm Type
Single
Housing Diameter
10.9 in
Housing Material
Steel
Warranty Period
2-Year
OE Number
E4TZ2005A,E8TZ2005C
Part Number
5474211

Highlights

  • Vacuum Power Brake Booster 5474211

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1984 - 19881984 - 19881984 - 19881985 - 19881985 - 19881985 - 19881984 - 19881984 - 19881984 - 19881984 - 19861984 - 19861984 - 198619841987198819871988198719881984 - 198719881984 - 198719881984 - 19871988198419841984198419841985 - 198719881985 - 198719881985 - 198719881984 - 19861984 - 19861984 - 19861984 - 19861984 - 19861987 - 19881987 - 19881987 - 1988198719881987 - 19881984 - 19861987 - 19881984 - 19861987 - 19881984 - 19861987 - 19881984 - 1986198719881984 - 19861987 - 1988198419841984198419841985 - 19861987 - 19881985 - 19861987 - 19881985 - 19861987 - 19881985 - 1986198719881985 - 19861987 - 1988
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelBroncoBroncoBroncoBroncoBroncoBroncoBroncoBroncoBroncoF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250
TrimCustomCustomCustomEddie BauerEddie BauerEddie BauerXLTXLTXLTBaseBaseBaseBaseCustomCustomCustomCustomCustomCustomXLXLXLXLXLXLXLXLTXLTXLTXLTXLT LariatXLT LariatXLT LariatXLT LariatXLT LariatXLT LariatBaseBaseBaseBaseBaseCustomCustomCustomCustomCustomCustomXLXLXLXLXLXLXLXLXLXLXLXLTXLTXLTXLTXLTXLT LariatXLT LariatXLT LariatXLT LariatXLT LariatXLT LariatXLT LariatXLT LariatXLT LariatXLT LariatXLT Lariat
Engine4.9L L65.0L V85.8L V84.9L L65.0L V85.8L V84.9L L65.0L V85.8L V84.9L L65.0L V85.8L V86.9L V84.9L L64.9L L65.0L V85.0L V85.8L V85.8L V84.9L L64.9L L65.0L V85.0L V85.8L V85.8L V86.9L V84.9L L65.0L V85.8L V86.9L V84.9L L64.9L L65.0L V85.0L V85.8L V85.8L V84.9L L65.0L V85.8L V86.9L V87.5L V84.9L L65.0L V85.8L V86.9L V87.3L V87.5L V84.9L L64.9L L65.0L V85.0L V85.8L V85.8L V86.9L V86.9L V87.3L V87.5L V87.5L V84.9L L65.0L V85.8L V86.9L V87.5L V84.9L L64.9L L65.0L V85.0L V85.8L V85.8L V86.9L V86.9L V87.3L V87.5L V87.5L V8
Note
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
with 10-3/4 (in) Diameter Booster;without Master Cylinder
without Master Cylinder
with 10-3/4 (in) Diameter Booster;without Master Cylinder
without Master Cylinder
with 10-3/4 (in) Diameter Booster;without Master Cylinder
without Master Cylinder
with 10-3/4 (in) Diameter Booster;without Master Cylinder
without Master Cylinder
with 10-3/4 (in) Diameter Booster;without Master Cylinder
without Master Cylinder
with 10-3/4 (in) Diameter Booster;without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
with 10-3/4 (in) Diameter Booster;without Master Cylinder
without Master Cylinder
with 10-3/4 (in) Diameter Booster;without Master Cylinder
without Master Cylinder
with 10-3/4 (in) Diameter Booster;without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 8500 (lb) Gross Vehicle Weight (GVW);without Master Cylinder
Under 7000 (lb) Gross Vehicle Weight (GVW);without Master Cylinder

How to Use the Push Rod Adjustment Tool?

Installation Manual Download

User manual (PDF)
Download
  • Step-1: Measure the Master Cylinder Depth: Place the tool against the master cylinder mounting surface. Extend the center gauge pin until it touches the bottom of the master cylinder piston recess, then lock the setting.
  • Step-2: Check the Booster Push Rod: Without changing the tool setting, place it against the brake booster mounting surface and compare the gauge position with the push rod tip.
  • Step-3: Verify the Clearance: The push rod must match the clearance specified in the vehicle service manual:
    • Too short: excessive pedal travel and reduced braking response.
    • Too long: constant pressure on the master cylinder, brake drag or overheating.
  • Step-4: Adjust Only When Required: Adjust the push rod only if the vehicle service manual permits it. Tighten the locknut and measure again after adjustment.
  • Step-5: Confirm Proper Fit: The master cylinder must sit flush against the booster without force. The push rod must not preload the master cylinder piston.

Important

  • Do not estimate the push rod length by eye.
  • Do not change the factory setting unless measurement confirms adjustment is required.
  • Use the vehicle manufacturer’s specified clearance; the correct value varies by vehicle.
  • Never force the master cylinder onto the booster to overcome incorrect push rod length.
  • Recheck the measurement after every adjustment.

Product Description

12

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

DaveTheMechanic_354

03/25/2026

Installation was pretty straightforward, lined up well with everything. It feels just as good as the original part, maybe even a little better. Definitely a good replacement option.

Steve_DIYer_878

12/13/2025

This booster looks really good, feels very sturdy. I was honestly surprised by the quality given the low price. It's a great value and makes a big difference in braking performance. Worth every penny.

FAQS

The master cylinder is not always included. Review the package contents and product images to confirm which components are supplied.

Possible signs include a hard brake pedal, increased pedal effort, a change in engine idle when braking, or an air-leak sound. Similar symptoms can have other causes, so diagnosis is recommended.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
