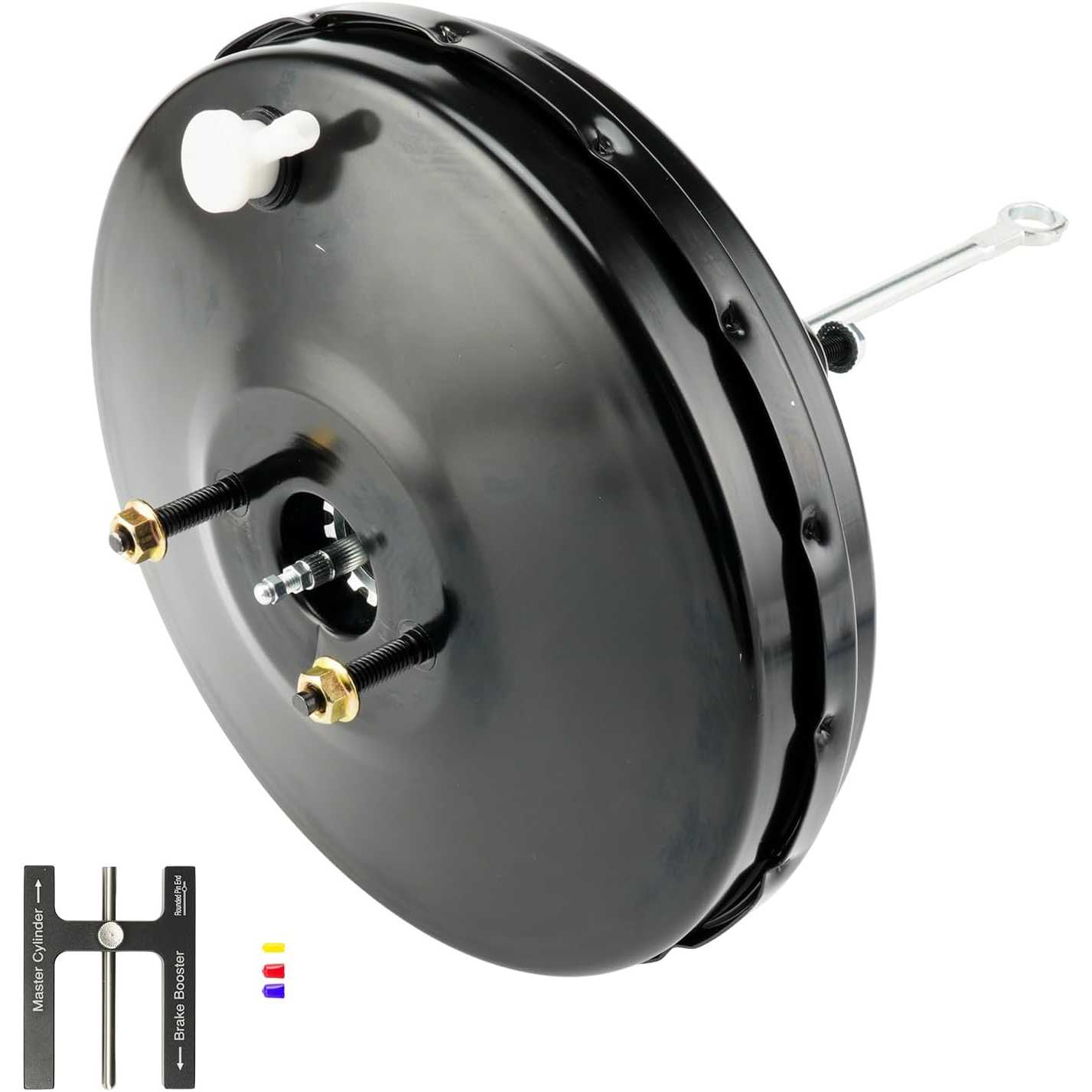

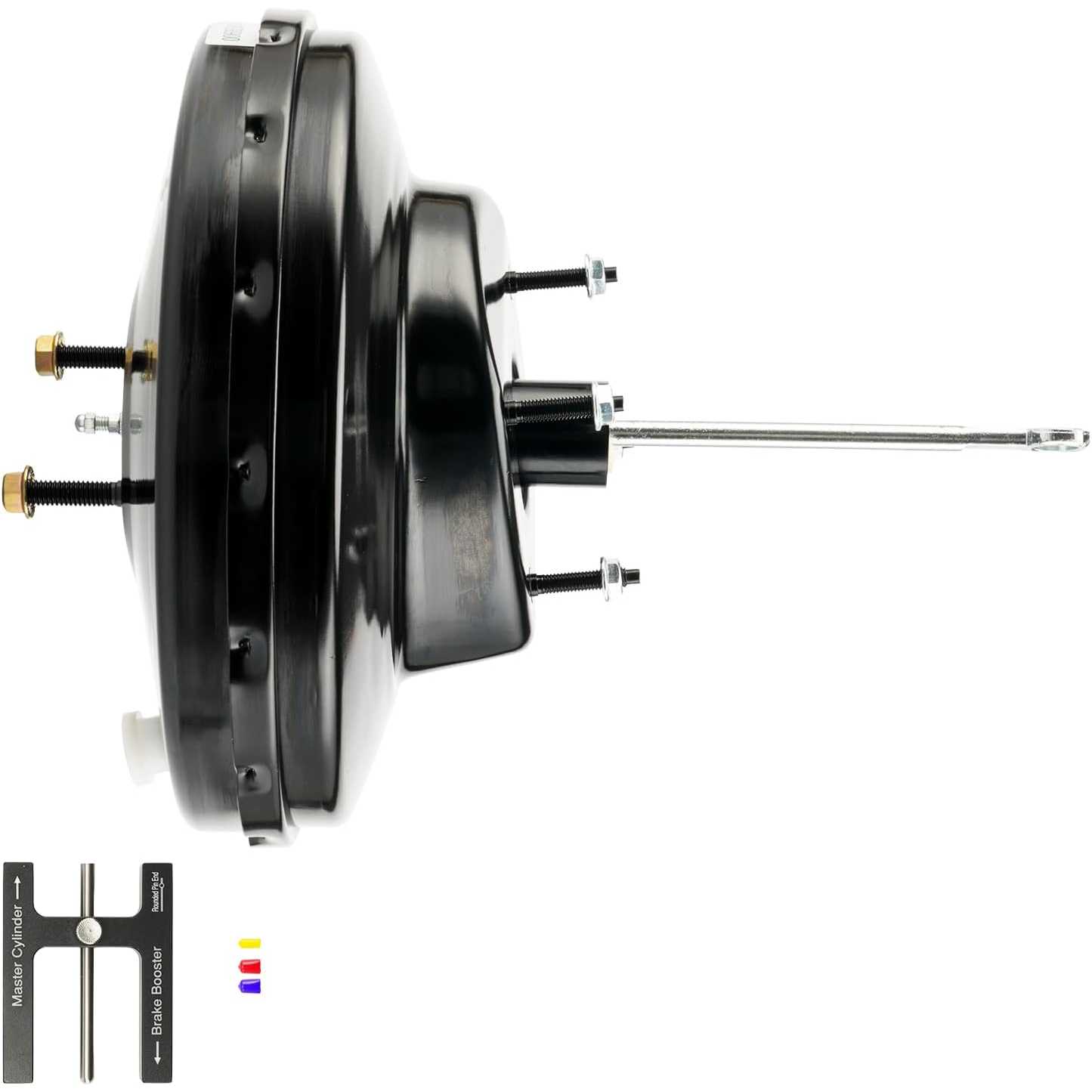

Vacuum Brake Booster

Push Rod Adjustment Tool Included

Responsive Braking Assist

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
28ISBEB0417US

Specifications

Brand
PHILTOP
Booster Type
Vacuum

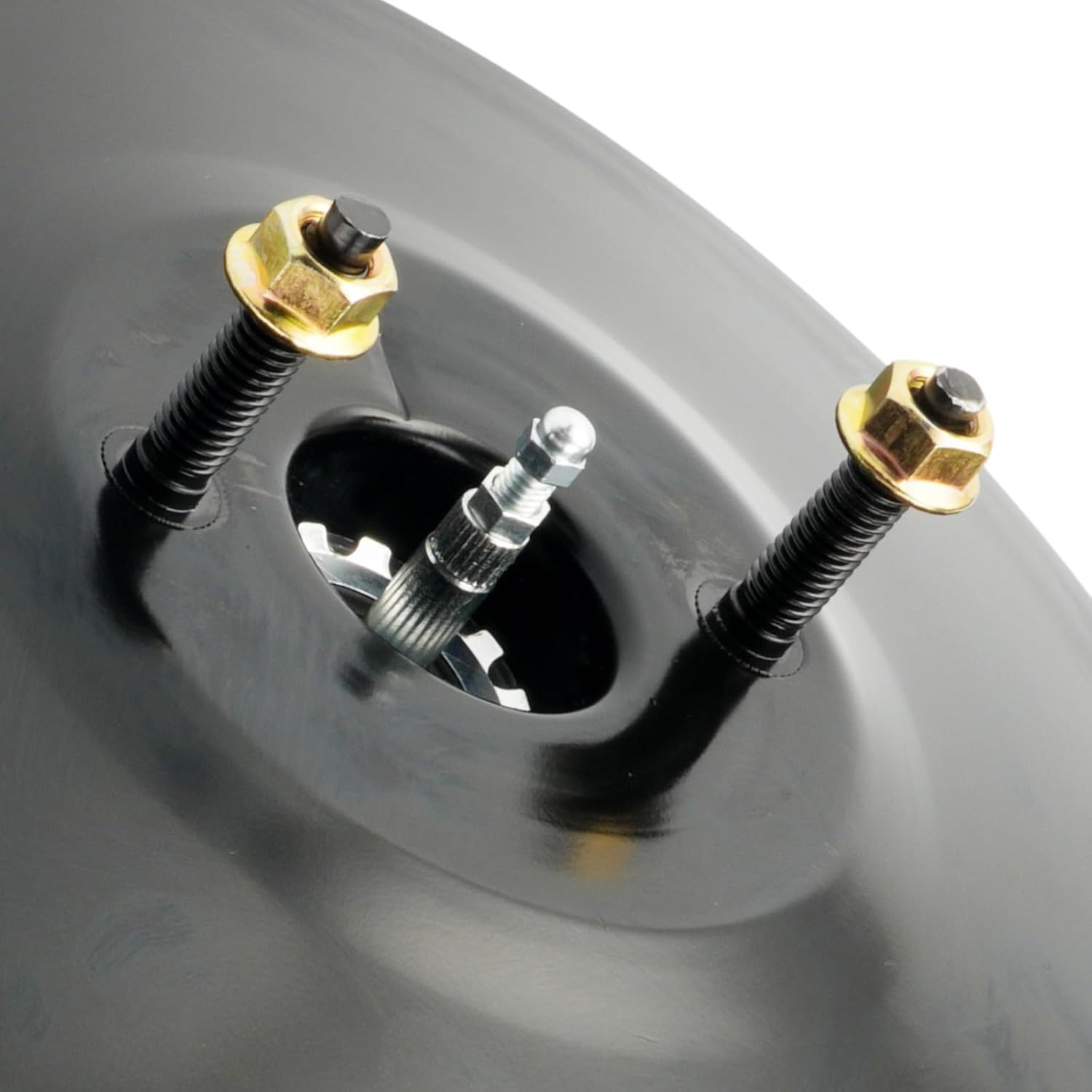

Master Cylinder Stud Thread Size
3/8x16
Diaphragm Diameter
11.46 in
Diaphragm Type
Single
Housing Diameter
11.67 in
Housing Material
Steel
Warranty Period
2-Year
OE Number
F65Z2005AA,F85Z2005AA
Part Number
5474225

Highlights

  • [Part Numbers]: 5474225, F65Z2005AA, F85Z2005AA, 54742258, BBK11010
  • [Fitment]: Compatible for Ford 1997-1999 F-150 (rear-brake: Drum)
  • [Specification]: ①Brake Booster Diaphragm Style: Single, ②Diaphragm Diameter: 291.08(MM)/11.46(IN), ③Master Cylinder Stud Thread Size: 3/8x16, ④Stud Thread Size: 5/16x18, ⑤Material: Steel, ⑥Master Cylinder Included: no
  • [High Quality]: Manufactured to OE standards and fully tested for fit, corrosion resistance, and durability to ensure consistent braking performance and long-term reliability
  • [Worry-Free protection]:Covered by a 1-year unlimited-mileage protection, this brake booster is designed for reliable performance. If you receive a damaged part, experience a fitment issue, or encounter any defect, our support team will help you with a quick and hassle-free resolution

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1997 - 19991997 - 19991997 - 19991997 - 19981997 - 19981997 - 19991997 - 19991997 - 19991997 - 19981997 - 19981997 - 1998
MakeFordFordFordFordFordFordFordFordFordFordFord
ModelF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150
TrimBaseBaseBaseLariatLariatXLXLXLXLTXLTXLT
Engine4.2L V64.6L V85.4L V84.6L V85.4L V84.2L V64.6L V85.4L V84.2L V64.6L V85.4L V8
Note
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder

How to Use the Push Rod Adjustment Tool?

Installation Manual Download

User manual (PDF)
Download
  • Step-1: Measure the Master Cylinder Depth: Place the tool against the master cylinder mounting surface. Extend the center gauge pin until it touches the bottom of the master cylinder piston recess, then lock the setting.
  • Step-2: Check the Booster Push Rod: Without changing the tool setting, place it against the brake booster mounting surface and compare the gauge position with the push rod tip.
  • Step-3: Verify the Clearance: The push rod must match the clearance specified in the vehicle service manual:
    • Too short: excessive pedal travel and reduced braking response.
    • Too long: constant pressure on the master cylinder, brake drag or overheating.
  • Step-4: Adjust Only When Required: Adjust the push rod only if the vehicle service manual permits it. Tighten the locknut and measure again after adjustment.
  • Step-5: Confirm Proper Fit: The master cylinder must sit flush against the booster without force. The push rod must not preload the master cylinder piston.

Important

  • Do not estimate the push rod length by eye.
  • Do not change the factory setting unless measurement confirms adjustment is required.
  • Use the vehicle manufacturer’s specified clearance; the correct value varies by vehicle.
  • Never force the master cylinder onto the booster to overcome incorrect push rod length.
  • Recheck the measurement after every adjustment.
