1997-2001 GMC Jimmy 4.3L V6 | Vacuum Brake Booster w/Push Rod Adjustment Tool | OE#8180298710/5474822 - PHILTOP

1997-2001 GMC Jimmy 4.3L V6 | Vacuum Brake Booster w/Push Rod Adjustment Tool | OE#8180298710/5474822 - PHILTOP

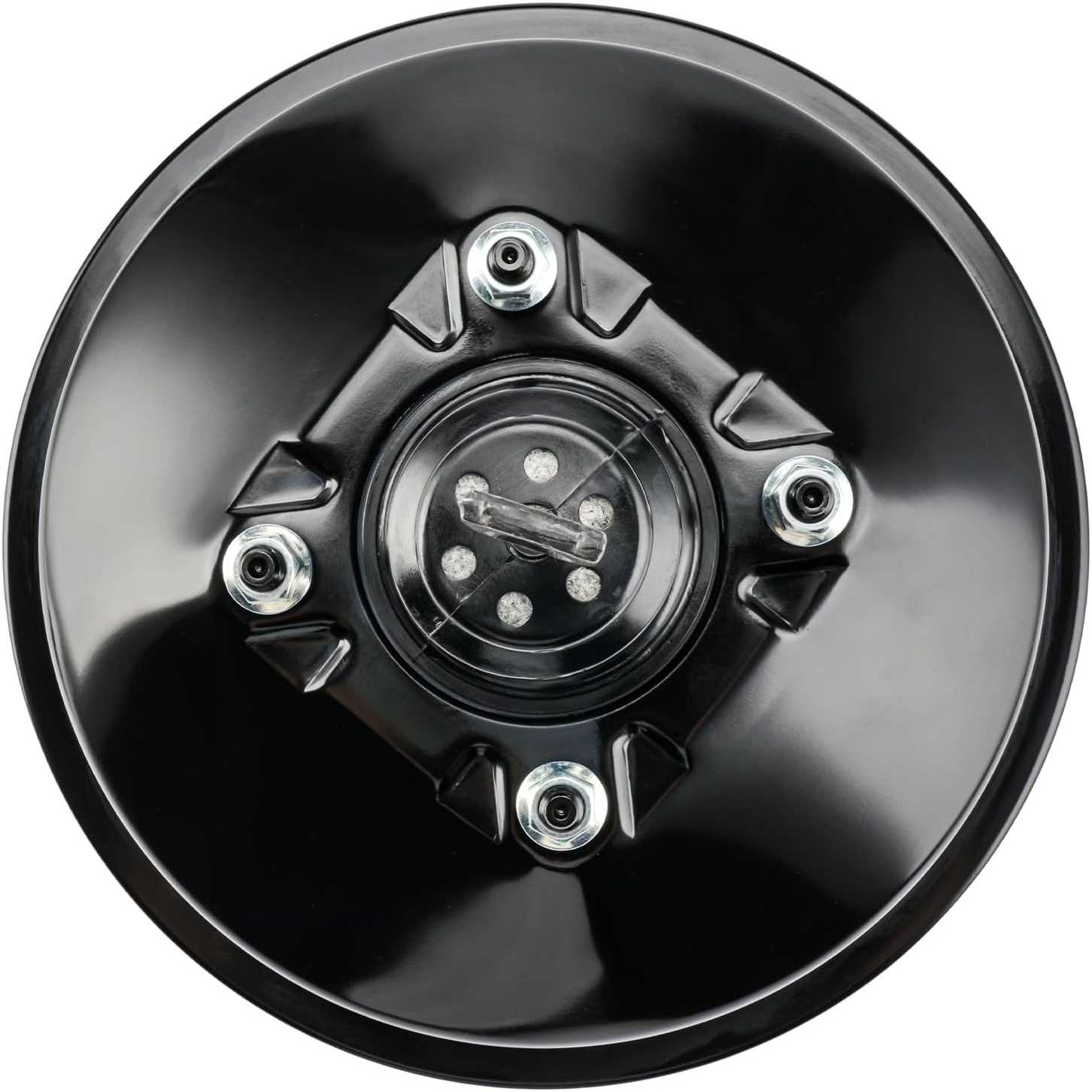

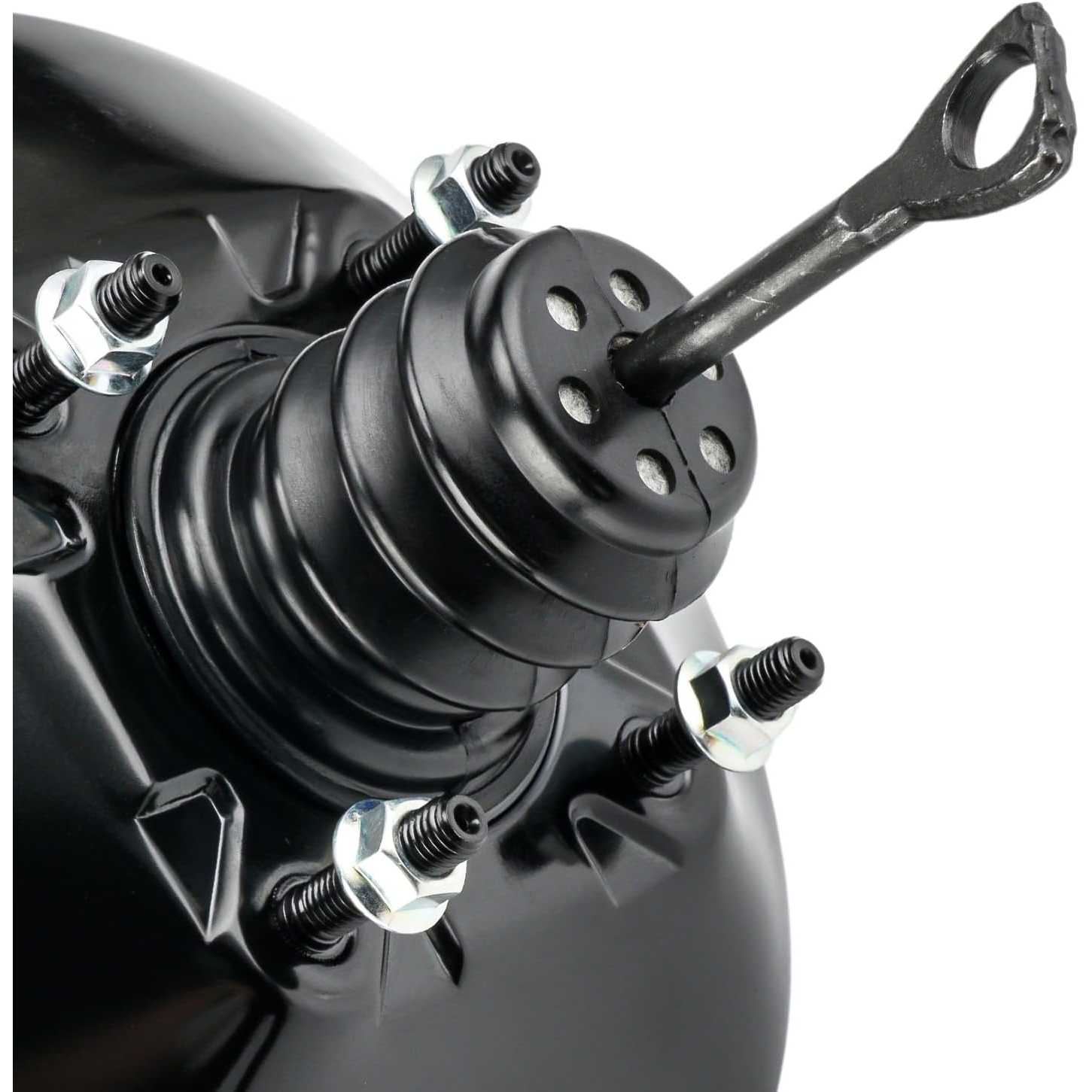

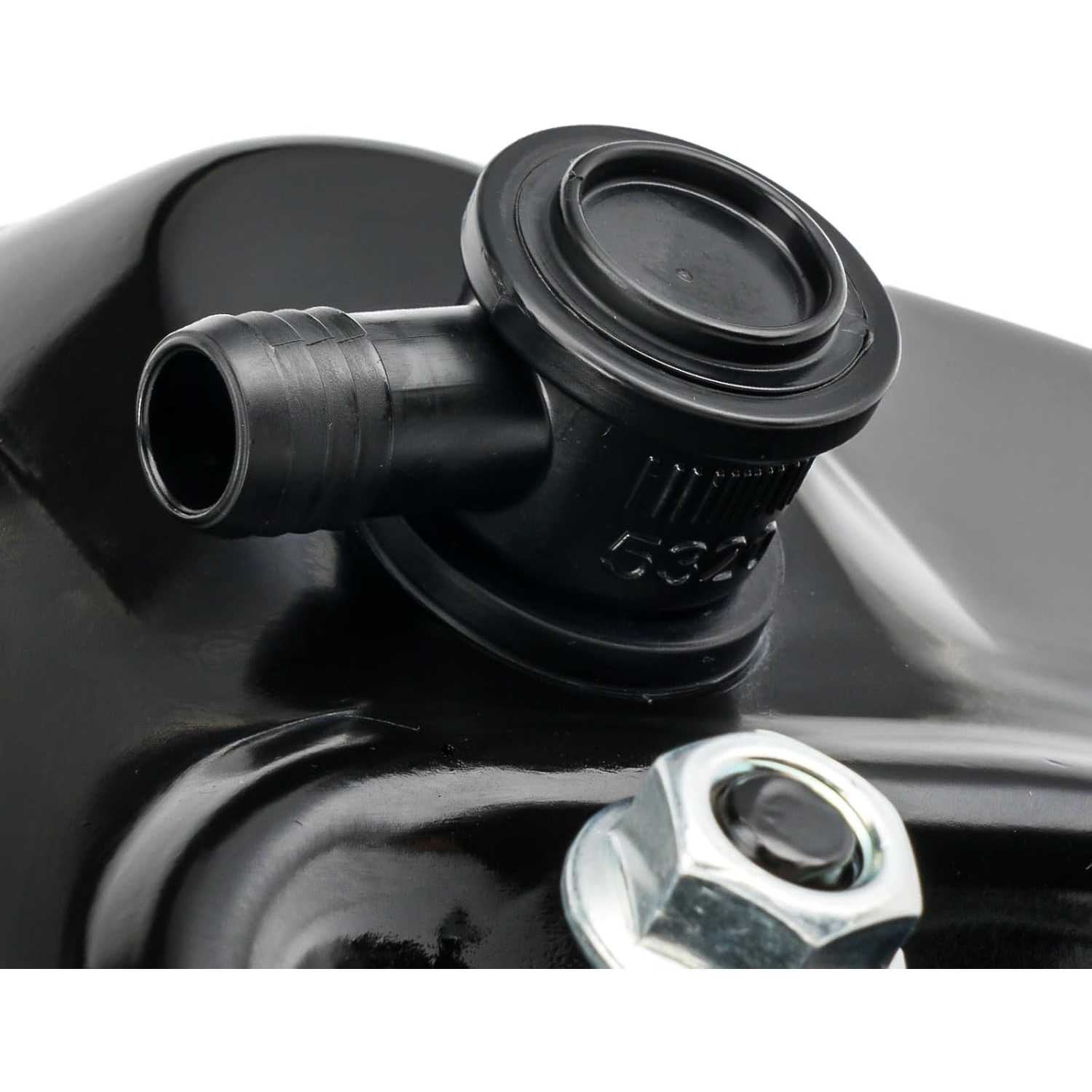

Vacuum Brake Booster

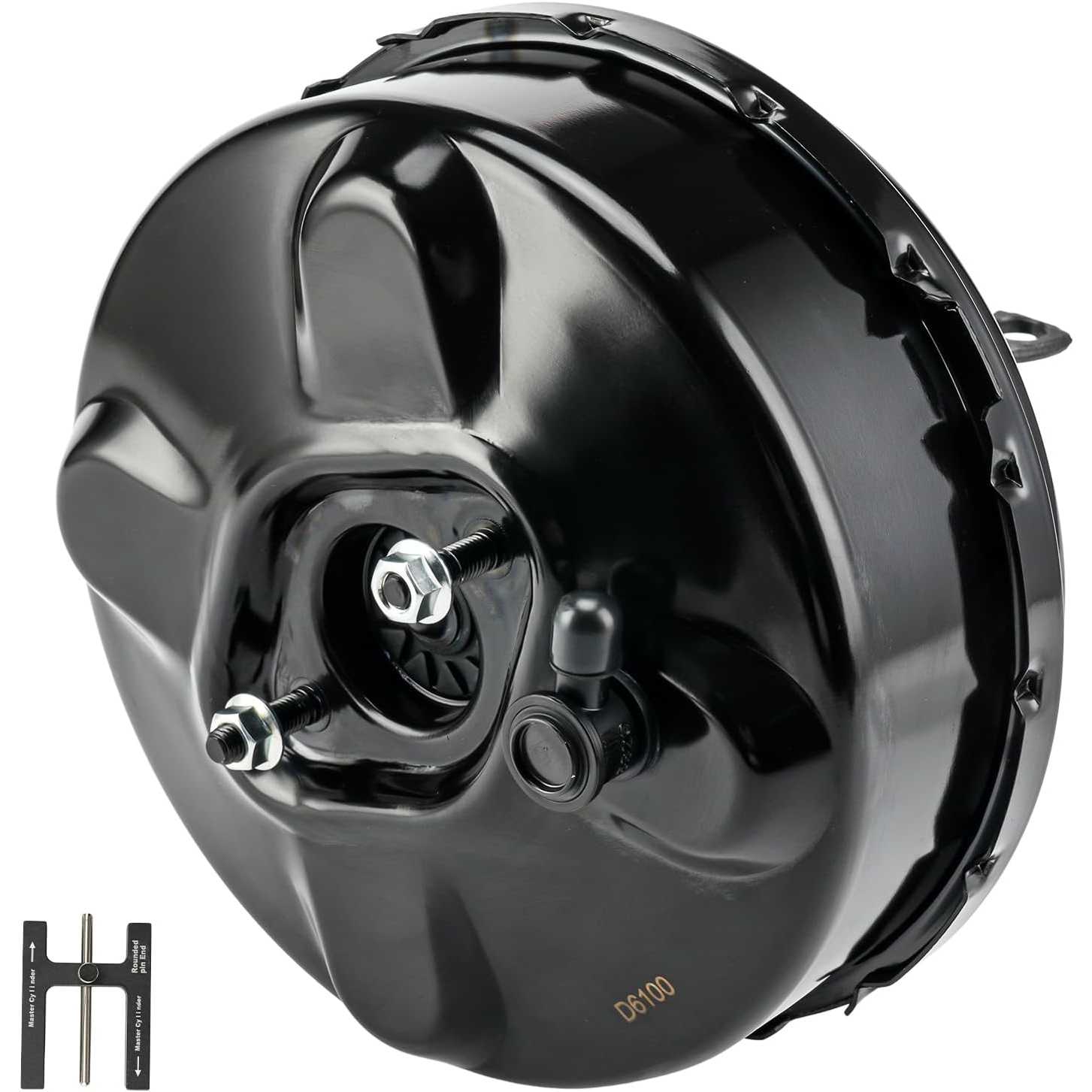

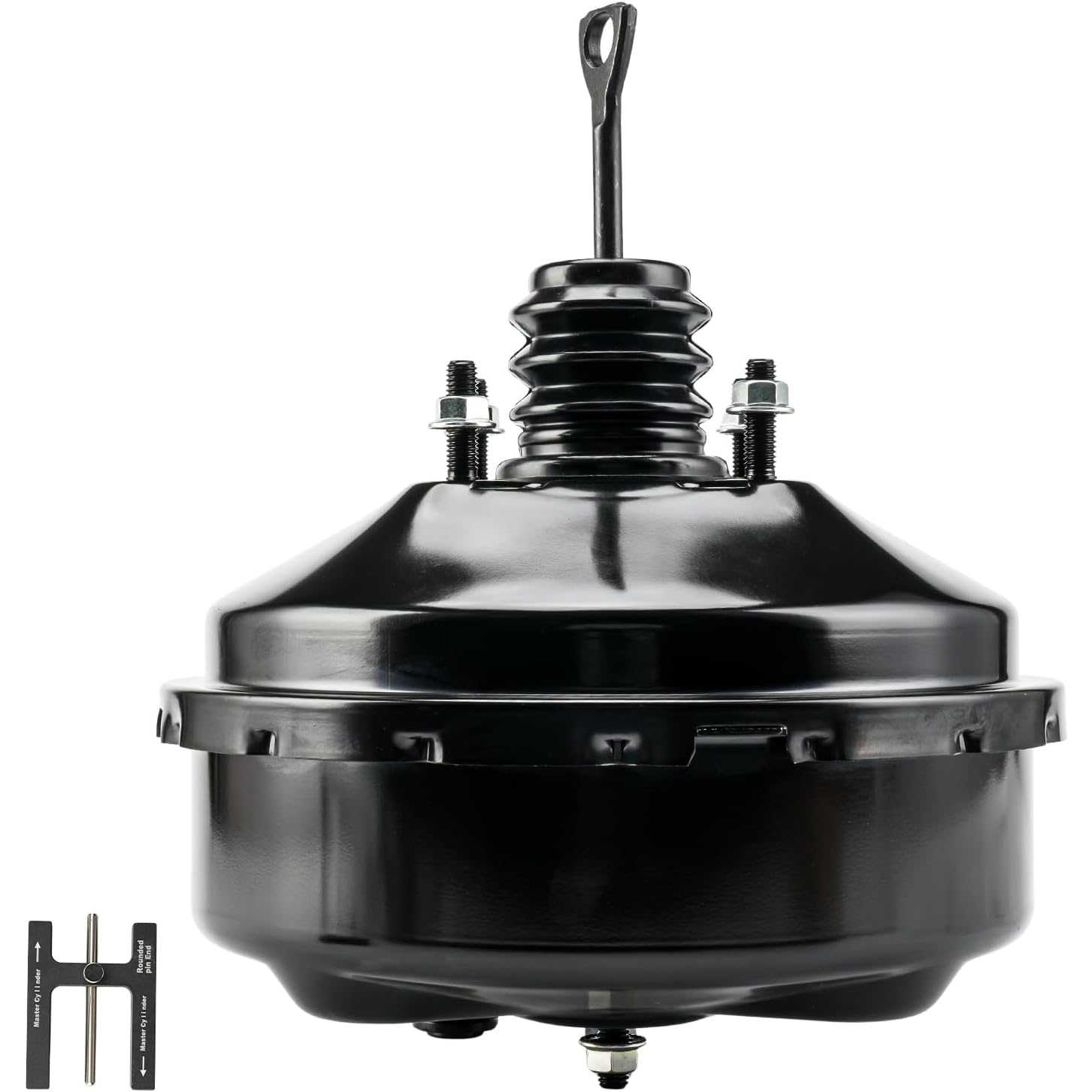

Push Rod Adjustment Tool Included

Responsive Braking Assist

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
14ISBEB1687US

Specifications

Brand
PHILTOP
Booster Type
Vacuum

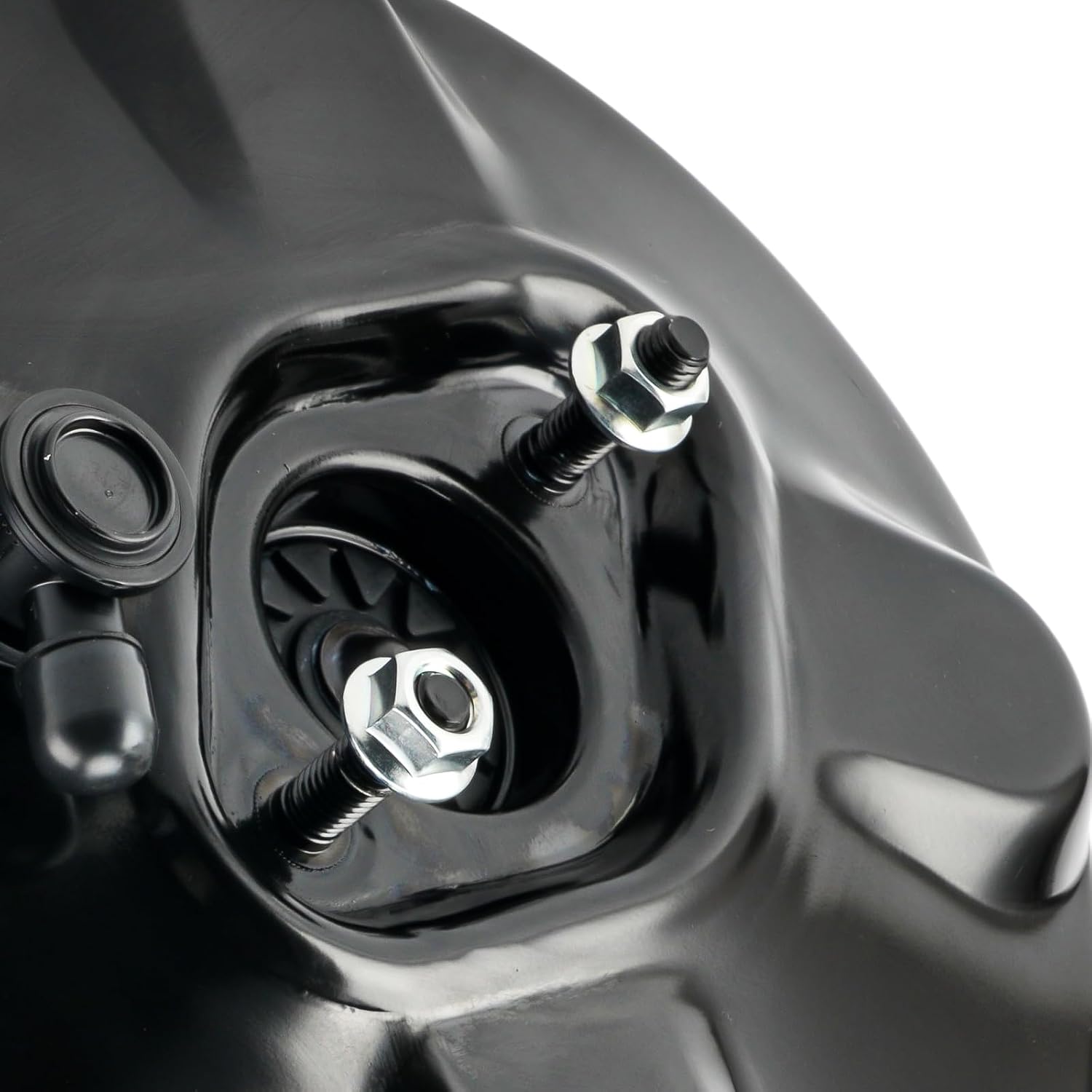

Master Cylinder Stud Thread Size
M10x1.5
Diaphragm Diameter
10.915 in
Diaphragm Type
Dual
Housing Diameter
11.055 in
Housing Material
Steel
Warranty Period
2-Year
OE Number
8180298710
Part Number
5474822

Highlights

  • [Part Numbers]: 5474822, 8180298710. Our brake booster serves as a seamless replacement for original equipment, ensuring a precise fit for exceptional performance
  • [Fitment]: Compatible for Chevrolet 1998 S10 GAS,1999-2004 S10,1998-2005 Blazer , for GMC 1998-2004 Sonoma,1997-2005 Jimmy (rear-brake: Disc, with Brake Code JC1) , Oldsmobile 1998-2001 Bravada , Isuzu 1998-2000 Hombre
  • [Specification]: ①Brake Booster Diaphragm Style: Dual, ②Diaphragm Diameter: 10.915(IN)/277.24(MM), ③Master Cylinder Stud Thread Size: M10x1.5, ④Stud Thread Size: M10x1.5, ⑤Material: Steel, ⑥Master Cylinder Included: no
  • [High Quality]: Manufactured to OE standards and fully tested for fit, corrosion resistance, and durability to ensure consistent braking performance and long-term reliability
  • [Worry-Free protection]: Covered by a 1-year unlimited-mileage protection, this brake booster is designed for reliable performance. If you receive a damaged part, experience a fitment issue, or encounter any defect, our support team will help you with a quick and hassle-free resolution

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1998 - 199920051998 - 20041998 - 20011999 - 20012001 - 20052003 - 20051999 - 20001998 - 20031998 - 20031998 - 20031998 - 200419981999 - 20031999 - 20031998 - 20032002 - 20042000 - 20011998 - 200019971998 - 1999200119971998 - 200119971998 - 200119971998 - 20011998 - 20031998 - 20041998 - 20011998 - 20011998 - 20031998 - 20041998 - 20001998 - 20001998 - 20001998 - 20001998 - 2001
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCIsuzuIsuzuIsuzuIsuzuOldsmobile
ModelBlazerBlazerBlazerBlazerBlazerBlazerBlazerS10S10S10S10S10S10S10S10S10S10JimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmySonomaSonomaSonomaSonomaSonomaSonomaHombreHombreHombreHombreBravada
TrimBaseBaseLSLTTrailblazerXtremeZR2BaseBaseBaseLSLSSSXtremeXtremeZR2ZR5Diamond EditionEnvoySLSLSLSLESLESLSSLSSLTSLTSLSLSLESLESLSSLSSSXSXSBase
Engine4.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V6-2.2L L44.3L V62.2L L44.3L V64.3L V62.2L L44.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V62.2L L44.3L V62.2L L44.3L V62.2L L44.3L V62.2L L44.3L V62.2L L44.3L V64.3L V6
Note
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
with Brake Code JC1;without Master Cylinder
without Master Cylinder
without Master Cylinder
with Brake Code JC1;without Master Cylinder
without Master Cylinder
with Brake Code JC1;without Master Cylinder
without Master Cylinder
with Brake Code JC1;without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder
without Master Cylinder

How to Use the Push Rod Adjustment Tool?

Installation Manual Download

User manual (PDF)
Download
  • Step-1: Measure the Master Cylinder Depth: Place the tool against the master cylinder mounting surface. Extend the center gauge pin until it touches the bottom of the master cylinder piston recess, then lock the setting.
  • Step-2: Check the Booster Push Rod: Without changing the tool setting, place it against the brake booster mounting surface and compare the gauge position with the push rod tip.
  • Step-3: Verify the Clearance: The push rod must match the clearance specified in the vehicle service manual:
    • Too short: excessive pedal travel and reduced braking response.
    • Too long: constant pressure on the master cylinder, brake drag or overheating.
  • Step-4: Adjust Only When Required: Adjust the push rod only if the vehicle service manual permits it. Tighten the locknut and measure again after adjustment.
  • Step-5: Confirm Proper Fit: The master cylinder must sit flush against the booster without force. The push rod must not preload the master cylinder piston.

Important

  • Do not estimate the push rod length by eye.
  • Do not change the factory setting unless measurement confirms adjustment is required.
  • Use the vehicle manufacturer’s specified clearance; the correct value varies by vehicle.
  • Never force the master cylinder onto the booster to overcome incorrect push rod length.
  • Recheck the measurement after every adjustment.

Product Description

12

Reviews

4.7/5

Based on 9 reviews

578%
411%
311%
20%
10%

Gardener Bob

10/14/2026

Verified buyer

PHILTOP 54-74822 Brake Booster was competitively priced, arrived in a timely manner and was a good fit in my son's 2001 GMC Jimmy SLS. It came with an adjusting tool that we did not need to use. We did order a separate gasket to seal the connection to the firewall.

gerry s.

10/09/2026

Verified buyer

perfect fix
