2006-2023 Dodge Charger 2.7L/3.5L/5.7L | 5x115mm 71.5 mm Center Bore M14x1.5 Thread Wheel Hub Accessory | 9063WSA491HUS - PHILTO

2006-2023 Dodge Charger 2.7L/3.5L/5.7L | 5x115mm 71.5 mm Center Bore M14x1.5 Thread Wheel Hub Accessory | 9063WSA491HUS - PHILTO

Durable

6061T6

12.9-Grade Bolts

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
33ISWSA4917US

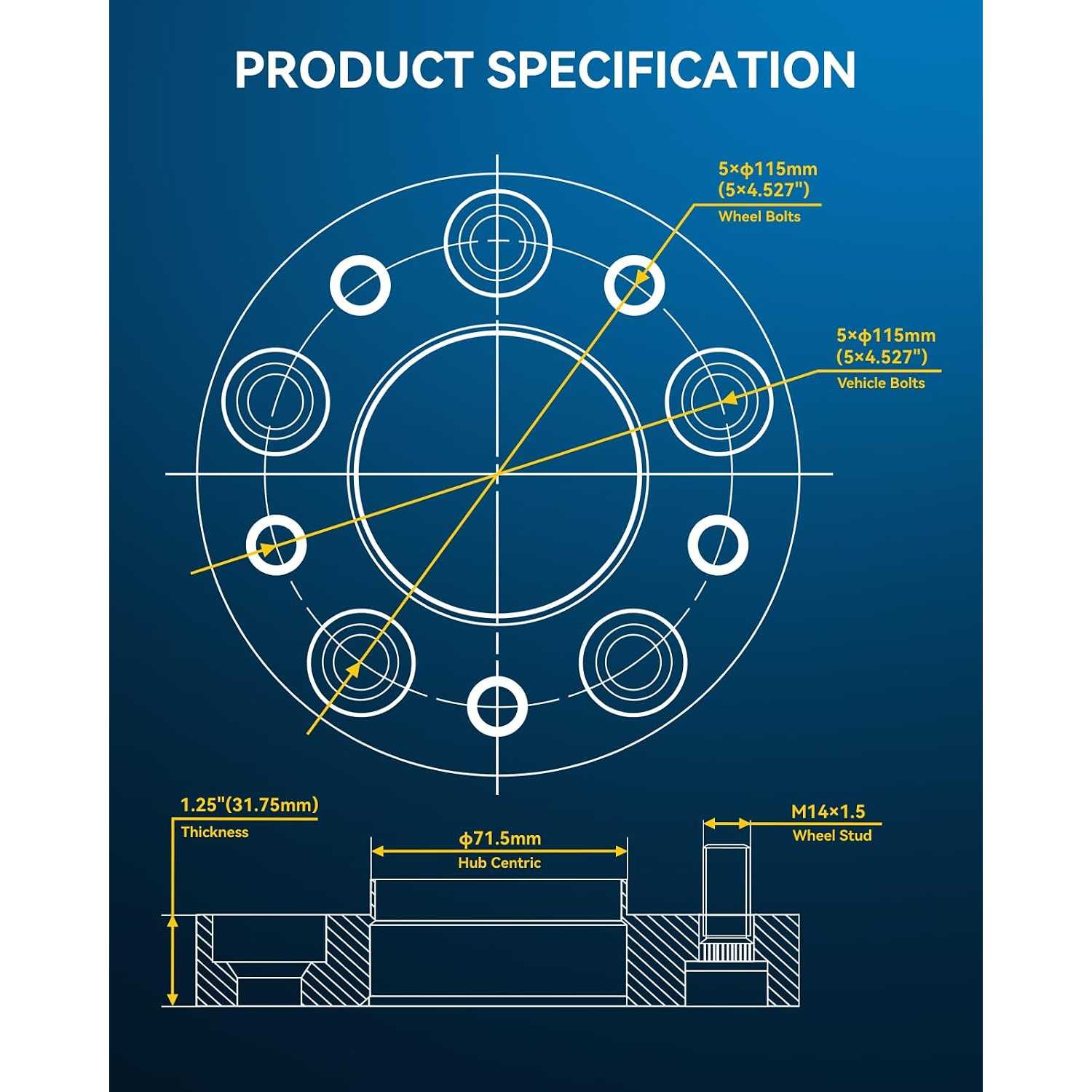

Specifications

Brand
PHILTOP
Bolt Pattern
5x115mm
Wheel Bolt Pattern
5x115mm
Vehicle Bolt Pattern
5x115mm
Thread Size
M14x1.5
Center Bore
71.5
Hub-Centric Lip
Yes
Thickness
1.25inch
Outside Diameter
150
Inside Diameter
2.81 in/71.5 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included
4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
85-90 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • ☑(Spacers Parameter)- Vehicle = Wheels Bolt Pattern Must Be 5x115mm | Threaded Studs/Nuts: M14x1.5 | Thickness: 1.25 inch | Center Bore with lip: 71.5mm | Recommended torque: 85-90 ft/lbs | Bolt Grade: 12.9 | Package includes: 4 pcs spacers. We recommend that you use professional tools for measurement (such as PCD rulers), or refer to the vehicle owner's manual
  • ☑(Fitment) - 5x115mm wheel spacers all for: 2006-2023 Dodge Charger, 2008-2023 Challenger, 2005-2008 Magnum, 2005-2023 Chrysler 300, rear for: 2015-2016 Chrysler 300, 2012-2014 Dodge Charger
  • ☑(Not Easy to Break)- PHILTOP 1.25 inch Wheel Spacers are made of lightweight anodized 6061-T6 aluminum by Forged Manufacturing Methods, compared with other Casting Spacers, high duty and more durable. The bolts(SGS Test Approved) are higher hardness and against rust. CNC automatic processing, enhance the hardness and corrosion resistance of the material.The above can effectively prevent bolt breakage
  • ☑(Advantage) - 31.8mm Wheel Spacers provide extra width for the wheel track to bring an aggressive appearance, and with the improvement of traction, the vehicle's anti-roll performance and handling comfort have been greatly improved
  • ☑(Warm Reminder): Better to use some glue on the spacers, alignment recommended after installation, re-torque the nuts after some 25-50 miles. NOTE: Please use the "Philtop comfirmed fit" tool again to verify if it is compatible with your vehicle before purchasing the wheel spacers

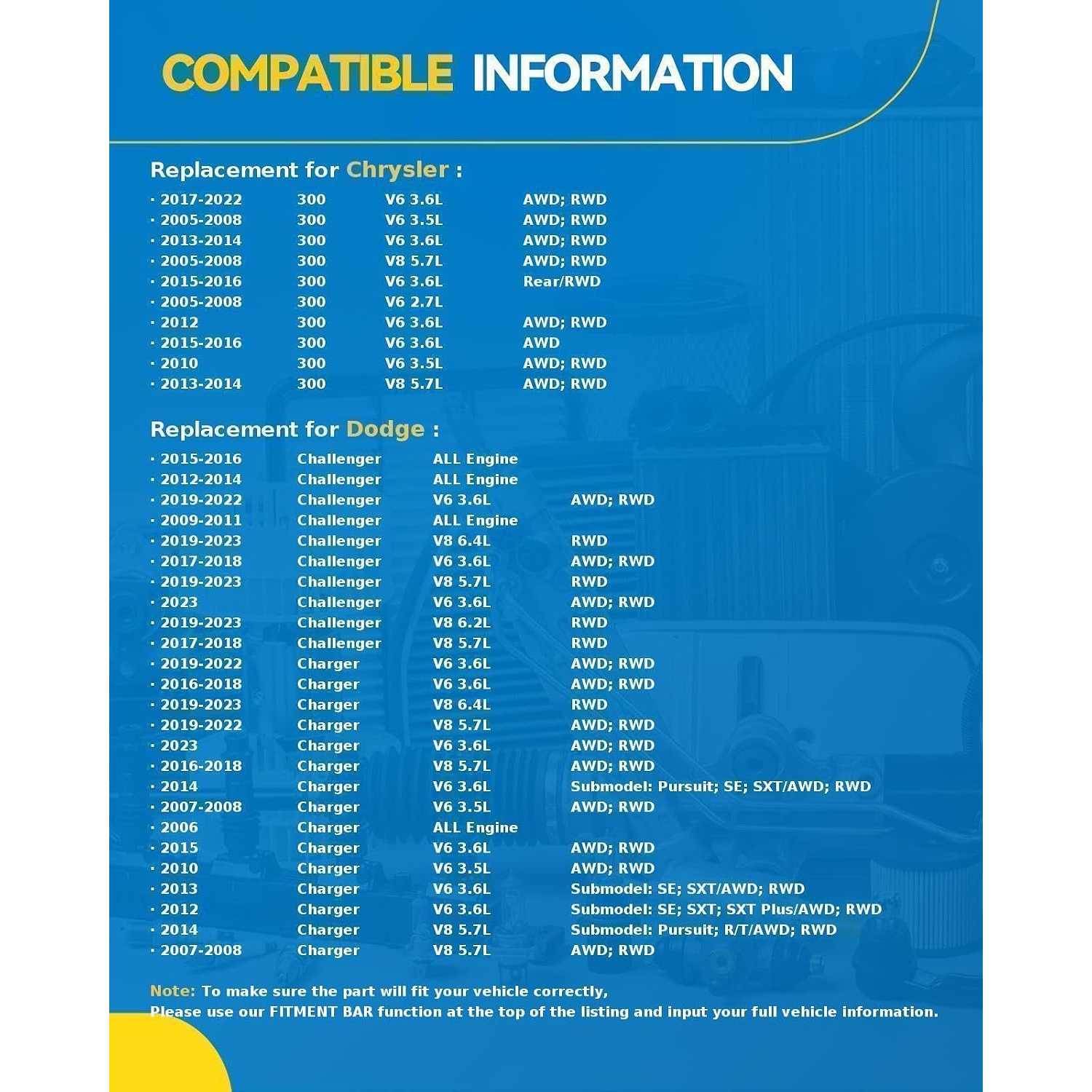

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 2007201120122013 - 20142013 - 20142015 - 20172005 - 200820092010 - 201120122013 - 20142015 - 202020232013 - 201420122013 - 20142015 - 20172015 - 20172005 - 200820092010200820092005 - 200820092010201120122015 - 2020201020122013 - 20142015 - 20222023201020122013 - 20142015 - 2022202320122013 - 20142013200920102005 - 2008200920102018 - 202220232018 - 2022202320162017 - 20182019 - 20232009 - 20112012 - 20142015 - 20162017 - 20182019 - 20232017 - 2018201920122015 - 2016201620162017 - 20182019 - 202320212019 - 2023201620142009 - 201020112015 - 20162017 - 2018201820232015 - 20162017 - 20182019 - 202220232019 - 202220232019 - 2022202320182019 - 2022202320222020 - 202320082009 - 201020112012 - 20142012 - 20142015 - 20162017 - 20182019 - 202320122015 - 20162017 - 201820152017 - 20182017 - 2018202120062007200620072017 - 20182017 - 2018200620182019 - 2023201820062007 - 200820092010201120122013 - 201420152016 - 20182019 - 202320062007 - 200820092010 - 201120122013 - 201420152016 - 20182019 - 202320062007 - 200820092010 - 201120122013 - 201420152016 - 20182019 - 20232017 - 20182015201620152016 - 20182007 - 20082009201020062007 - 200820092010201120122013 - 201420152016 - 2017200820092010 - 20112012201320152016 - 201820152016 - 20182019 - 20202021 - 202320232020 - 20232023202220062007 - 20082009201020122013 - 201420062007 - 20082009201020122013 - 201420152016 - 20182019 - 20232012201820182019 - 202320202022 - 20232005 - 20082005 - 20082007 - 20082006 - 20082005 - 20082005
MakeChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodge
Model300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300ChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerMagnumMagnumMagnumMagnumMagnumMagnum
TrimBaseBaseBaseBaseCCCCCCCCCC LuxuryC LuxuryC LuxuryC PlatinumC PlatinumC SRT8C SRT8C SRT8LXLXLimitedLimitedLimitedLimitedLimitedLimitedSSSSSSSSSSSRT8SRT8SRT8 CoreSignature SeriesTouringTouringTouringTouringTouringTouringTouring LTouring L392 Hemi Scat Pack ShakerGTGTR/TR/TR/TR/TR/TR/T 392R/T 392R/T ClassicR/T PlusR/T Plus ShakerR/T Scat PackR/T Scat PackR/T Scat PackR/T Scat Pack Shaker WidebodyR/T Scat Pack WidebodyR/T ShakerRallye RedlineSESESRT 392SRT 392SRT DemonSRT Demon 170SRT HellcatSRT HellcatSRT HellcatSRT Hellcat JailbreakSRT Hellcat RedeyeSRT Hellcat Redeye JailbreakSRT Hellcat Redeye WidebodySRT Hellcat Redeye Widebody JailbreakSRT Hellcat WidebodySRT Hellcat WidebodySRT Hellcat Widebody JailbreakSRT JailbreakSRT Super StockSRT8SRT8SRT8SRT8SXTSXTSXTSXTSXT PlusSXT PlusSXT PlusScat PackT/AT/A 392T/A 392 WidebodyBaseBaseBaseBaseDaytonaDaytona 392Daytona R/TGTGTGT PlusPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitR/TR/TR/TR/TR/TR/TR/TR/TR/TR/T 392R/T Road & TrackR/T Road & TrackR/T Scat PackR/T Scat PackSESESESESESESESESESESESESESESESESESRT 392SRT 392SRT HellcatSRT HellcatSRT HellcatSRT Hellcat Redeye WidebodySRT Hellcat Redeye Widebody JailbreakSRT Hellcat WidebodySRT Hellcat Widebody JailbreakSRT JailbreakSRT8SRT8SRT8SRT8SRT8SRT8SXTSXTSXTSXTSXTSXTSXTSXTSXTSXT PlusSXT PlusSXT Plus LeatherScat PackScat Pack 392 WidebodyScat Pack WidebodyR/TSESESRT8SXTSXT Special Edition
Engine2.7L V63.6L V63.6L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V85.7L V86.4L V83.6L V65.7L V85.7L V83.6L V65.7L V86.1L V86.1L V86.1L V82.7L V62.7L V63.5L V63.5L V63.5L V63.6L V63.6L V63.6L V63.5L V63.6L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V86.4L V86.4L V86.4L V83.5L V62.7L V63.5L V63.5L V63.5L V63.6L V63.6L V63.6L V63.6L V66.4L V83.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V86.4L V86.4L V85.7L V85.7L V85.7L V86.4L V86.4L V86.4L V86.4L V86.4L V85.7L V83.6L V63.5L V63.6L V66.4L V86.4L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.1L V86.1L V86.4L V86.4L V83.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V66.4L V85.7L V86.4L V86.4L V82.7L V62.7L V63.5L V63.5L V65.7L V86.4L V85.7L V83.6L V63.6L V63.6L V63.5L V63.5L V63.5L V63.5L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V86.4L V85.7L V85.7L V86.4L V86.4L V82.7L V62.7L V62.7L V63.5L V63.5L V63.5L V63.5L V63.6L V63.6L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V86.4L V86.4L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.1L V86.1L V86.1L V86.1L V86.4L V86.4L V83.5L V63.5L V63.5L V63.5L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V66.4L V86.4L V86.4L V85.7L V82.7L V63.5L V66.1L V83.5L V63.5L V6
Note
AWD;Front;Rear
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
Except Performance Brakes;Rear
AWD;Front
AWD;Front;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
AWD;Front
Front;Rear
Except Performance Brakes;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
AWD;Front
AWD;Front
AWD;Front;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
Except Performance Brakes;Front;RWD;Rear
AWD;Front;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
AWD;Front;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
AWD;Front
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
AWD;Front
Front;Rear
Except Performance Brakes;Front;RWD;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
AWD;Front
Front;Rear
Except Performance Brakes;Front;RWD;Rear;with Performance Brakes
Except Performance Brakes;Rear
Except Performance Brakes;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
Except Performance Brakes;Front;RWD;Rear
AWD;Front;Rear
AWD;Except Performance Brakes;Front;Performance Brakes;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with Performance Brakes
Except Performance Brakes;Front;RWD;Rear
AWD;Front
Front;Rear
AWD;Front
Front;Rear
Front;Rear
AWD;Front
with 4 Piston Caliper
Front;Rear
Rear
Front;Rear
AWD;Front
with 4 Piston Caliper
AWD;Front
with 4 Piston Caliper
Rear
Front;Rear
Front;Rear
Front;Rear
AWD;Front
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
Front;Rear
Rear
Front;Rear
Front;Rear
Front;Rear
AWD;Front
AWD;Front
with 4 Piston Caliper
Front;Rear
AWD;Front
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
AWD;Front
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
Front
Front;Rear
Front;Rear
Rear
Rear
Front;Rear
AWD;Front
with 4 Piston Caliper
Rear
Front;Rear
AWD;Front
Front;Rear
AWD;Front
AWD;Front
with 4 Piston Caliper
Front;Rear
Front;RWD;Rear
Front;Rear
Front;RWD;Rear
AWD;Front
AWD;Front
Front;Rear
AWD;Front
with 4 Piston Caliper
AWD;Front
Front;Rear
Front;RWD;Rear
AWD;Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
Front; RWD;Rear;Front;Rear
Front;Rear;Front;Rear
Rear
AWD;Front;Rear
AWD;Front;with 4 Bolt Flange
AWD;Front
with 4 Piston Caliper
Front;Rear
Front;RWD;Rear
AWD;Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
Front; RWD;Rear;Front;Rear
Rear
AWD;Front;Rear
AWD;Front;with 4 Bolt Flange
AWD;Front
with 4 Piston Caliper
Front;Rear
Front;RWD;Rear
AWD;Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
Front; RWD;Rear;Front;Rear
Rear
AWD;Front;Rear
AWD;Front;with 4 Bolt Flange
AWD;Front
with 4 Piston Caliper
AWD;Front
AWD;Front;with 4 Bolt Flange
AWD;Front
AWD;Front;with 4 Bolt Flange
AWD;Front
Front;RWD;Rear
AWD;Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
Front; RWD;Rear;Front;Rear
Front;Rear
Front;RWD;Rear
AWD;Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
Front; RWD;Rear;Front;Rear
Front;Rear;Front;Rear
Rear
AWD;Front;Rear
AWD;Front;with 4 Bolt Flange
AWD;Front
Front;RWD;Rear
AWD;Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
Front; RWD;Rear;Front;Rear
Rear
AWD;Front;Rear
AWD;Front;with 4 Bolt Flange
AWD;Front
AWD;Front;with 4 Bolt Flange
AWD;Front
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
Front;Rear
Front;RWD;Rear
AWD;Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
Front;Rear;Front;Rear
Rear
AWD;Front;Rear
Front;Rear
Front;RWD;Rear
AWD;Except Performance Brakes;Except Performance Package;Front;Performance Package;Rear;with 27 Spline Shaft;with 32 Spline Shaft;with 4 Bolt Flange;with Performance Brakes
Front; RWD;Rear;Front;Rear
Rear
AWD;Front;Rear
AWD;Front;with 4 Bolt Flange
AWD;Front
with 4 Piston Caliper
Rear
AWD;Front
AWD;Front
with 4 Piston Caliper
with 4 Piston Caliper
with 4 Piston Caliper
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear
AWD;Front;Rear

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel SpacerWheel Spacer

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

Rob_HomeGarage_308

04/30/2026

Got these in just a couple days, which was awesome. Everything was packed up tight and secure. I called with a question about fitment and the rep was super knowledgeable and friendly.

Lisa_CivicDriver_991

06/21/2026

These spacers arrived super fast, way quicker than I expected. The packaging was solid too, no damage at all. I had a quick question and customer service was on it right away, super helpful folks.

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
