2021-2024 Ford Bronco Sport 2.0L/1.5L | 5x4.25" 63.4mm Center Bore M12x1.5 Thread Wheel Hub Accessory | 2336WSA582BUS - PHILTOP

2021-2024 Ford Bronco Sport 2.0L/1.5L | 5x4.25" 63.4mm Center Bore M12x1.5 Thread Wheel Hub Accessory | 2336WSA582BUS - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
95ISWSA5827US

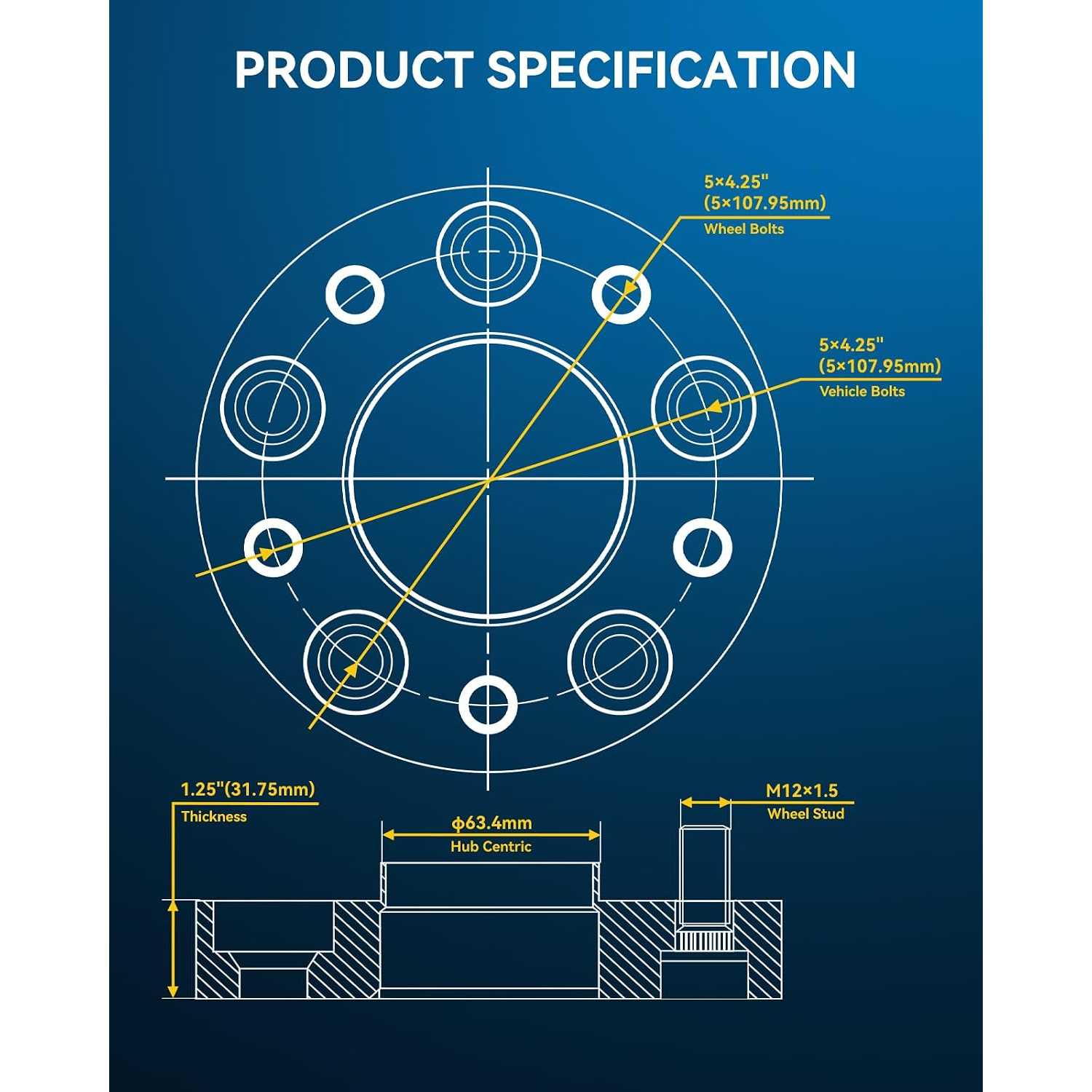

Specifications

Brand
PHILTOP
Bolt Pattern
5x4.25"
Wheel Bolt Pattern
5x4.25"
Vehicle Bolt Pattern
5x4.25"
Thread Size
M12x1.5
Center Bore
63.4
Hub-Centric Lip
Yes
Thickness
1.25inch
Outside Diameter
150
Inside Diameter
2.5 in/63.4 mm
Lug Patterns
5
Type
Wheel Spacers
Items Included
4x Hub-Centric Wheel Spacers,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • ☑(Spacers Parameter)Vehicle Bolt Pattern = Wheels Bolt Pattern Must Be 5x4.25 | Threaded Studs/Nuts: M12x1.5 | Thickness: 1.25 inch | Center Bore with lip: 63.4mm | Recommended torque: 70-80 ft/lbs | Bolt grade: 12.9 | Package includes: 4 pcs spacers

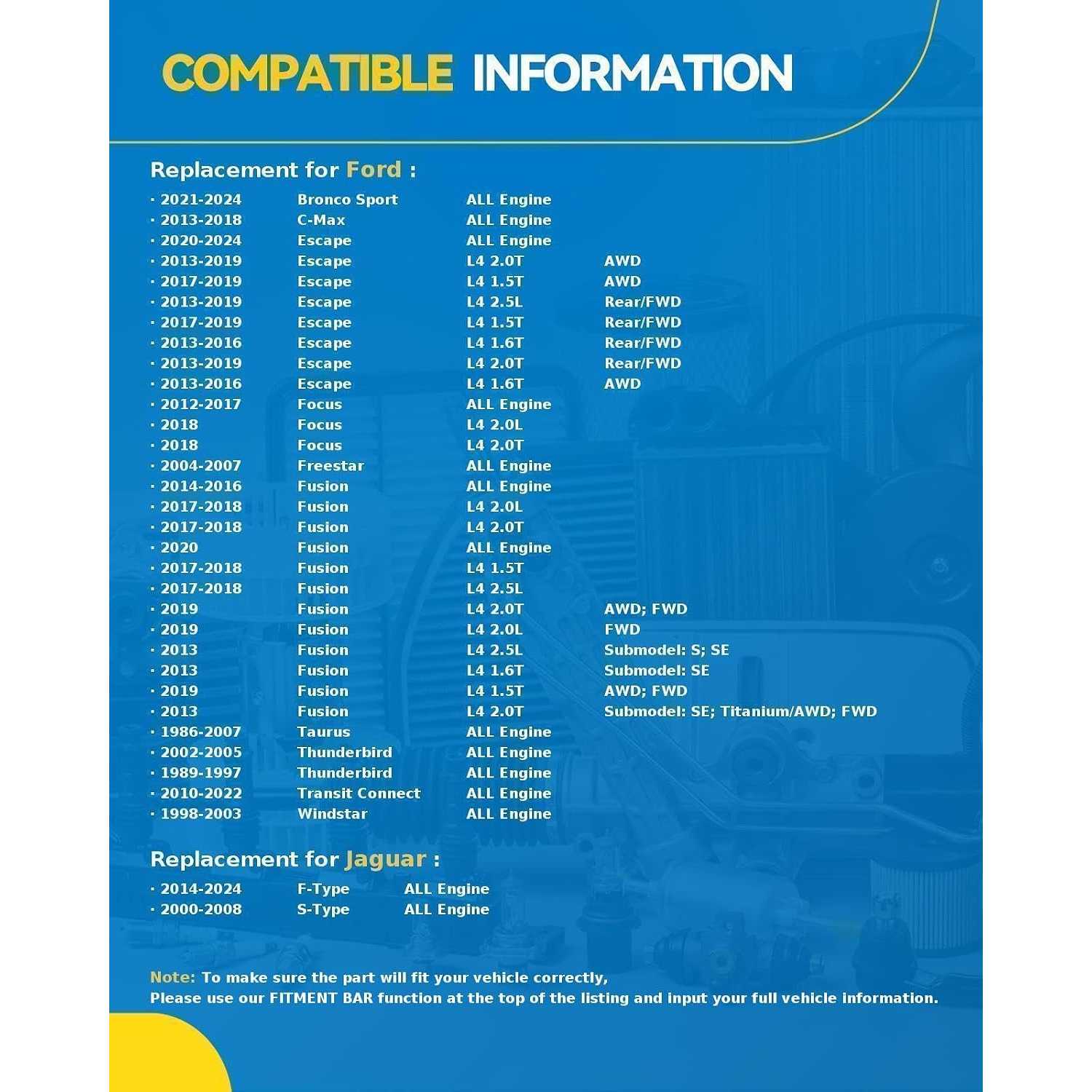

  • ☑(Fitment) - 5x4.25 Wheel spacers 1.25" all for: 2021-2024 Ford Bronco Sport, 2013-2018 C-Max, 2020-2024 Escape, 2012-2018 Focus, 2004-2007 Freestar, 2014-2020 Fusion, 1986-2007 Taurus, 1989-1997,2002-2005 Thunderbird, 2010-2022 Transit Connect, 1995-2003 Windstar, 1988-2002 Lincoln Continental, 2020-2024 Corsair, 2000-2006 LS, 2014-2020 MKZ, 2014-2024 Jaguar F-Type, 2000-2008 S-Type, front for: 2013 Ford Fusion, 2013 Lincoln MKZ, rear for: 2013-2019 Ford Escape, 2015-2019 Lincoln MKC
  • ☑(Not Easy to Break)- PHILTOP 5x4.25 1.25" wheel spacers are made of lightweight anodized 6061-T6 aluminum by Forged Manufacturing Methods, compared with other Casting Spacers, high duty and more durable. The bolts(SGS Test Approved) are higher hardness and against rust. CNC automatic processing, enhance the hardness and corrosion resistance of the material.The above can effectively prevent bolt breakage
  • ☑(Advantage) - 1.25 inch wheel spacers provide extra width for the wheel track to bring an aggressive appearance, and with the improvement of traction, the vehicle's anti-roll performance and handling comfort have been greatly improved
  • ☑(Warm Reminder): Better to use some glue on the spacers, alignment recommended after installation, re-torque the nuts after some 25-50 miles. NOTE: Please use the "Philtop comfirmed fit" tool again to verify if it is compatible with your vehicle before purchasing the wheel spacers

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2021 - 20242021 - 20232021 - 2024202120242023 - 202420232021 - 202420172013 - 201620172013 - 20182013 - 20162017 - 20182023 - 2024202320232023 - 20242023 - 20242023 - 20242020 - 20222013 - 20192020 - 20222017 - 20192013 - 20162013 - 20192015 - 20162021 - 20222020 - 202220202020 - 20222018 - 2019201320132018 - 20192020 - 20222021 - 20222020 - 20222023 - 20242023 - 20242023 - 20242023 - 20242023 - 20242023 - 202420172014 - 20162013 - 20192020 - 20222020 - 20222020 - 20222012 - 201720182016 - 20182012 - 20182015 - 20182012 - 201820122017 - 20182013 - 20182012 - 20182004 - 20072004 - 20072004 - 20052004 - 200720072004 - 20072004 - 20052017 - 20182013 - 20182013 - 20202017 - 20182017 - 201820132014 - 20202014 - 20182014 - 20202013201420132014 - 202020132014 - 20202013 - 20202019 - 2020201920192019 - 20202017 - 201920132014 - 20202013 - 20202019 - 20202019 - 20201996 - 19971986 - 19891990 - 19911986 - 19891990 - 19951996 - 19971988 - 19891990 - 19951986 - 198919901986 - 19891990 - 199219911986 - 19891990 - 19951996 - 20041988 - 19891990 - 19951986 - 198819951998 - 200719951998200020032000 - 20072000 - 200419891990 - 19951993 - 19951996 - 1999200020051989 - 19922002 - 20051991 - 199220031989 - 19971994 - 19971991 - 1993200220041989 - 19952011 - 201220142019 - 20222014 - 20162017 - 20182014 - 20162010 - 20132019 - 20222014 - 20162017 - 20222014 - 20162010 - 20132019 - 20222014 - 20162017 - 20222011 - 20131998 - 19991995 - 19961997 - 20001995 - 199619971998 - 20031995 - 19961997 - 19981995 - 1996199719981995 - 199619971998 - 200319982000 - 20031999 - 20001999 - 20032001 - 20021999 - 20001999 - 200320182018 - 20212014 - 20202022 - 20242017202020202021201720162015 - 20242018 - 20212022 - 20242014 - 20172017 - 20202014 - 20152000 - 20082000 - 20022003 - 20042006 - 20082003 - 20082005200520062005 - 200920062004 - 20092002 - 20052002 - 2008200520062006200520192017 - 2019201720192018 - 201920182017 - 20192017 - 20182017 - 20192017 - 201820202017 - 20192017 - 201820202018 - 201920192013 - 20142013 - 201420192013 - 20142017 - 2018201720102011 - 2012202020092018 - 201920152018201220152017 - 20202016 - 20182010 - 201120092017 - 20202016 - 20182021 - 20242017 - 20182016 - 20182021 - 20232016 - 20202021 - 2023201520182019 - 20202018 - 202020092010 - 20152010 - 20152013 - 20152010 - 20122010 - 20112013 - 20192012 - 20132010 - 20192010 - 201320132016 - 20192010 - 20192010 - 2013201920192004 - 20092005 - 20092004 - 20092014 - 20172014 - 20172018 - 20192007 - 20092010 - 201520142007 - 20092010 - 20152008 - 20092012 - 20152014199619881989 - 19941998 - 200219951991 - 199419881989 - 199419951995 - 19972020 - 20242021 - 20222021 - 20242020 - 20242020 - 202220052000 - 20042000 - 20042001 - 20032001 - 2003200520052005 - 200620052015201920152015 - 20192015 - 20192016 - 20182016 - 20192016 - 20192016 - 20192016 - 201820132014 - 20162019 - 202020132014 - 20162015 - 20182017 - 20182015 - 20162015 - 20182013 - 201620192017 - 20182017 - 20182017 - 201820202017 - 201820202017 - 20182020201920192019201920192017 - 20182017 - 20182017 - 20181992199219961993 - 19951997 - 19981995 - 19981989 - 19921991 - 19921989 - 19901993 - 19971994 - 19971991 - 1993200420052005 - 20072004 - 2005199619861986 - 19891990 - 19951996 - 20051988 - 19891990 - 19951986 - 19891990 - 19951996 - 200320051988 - 19891990 - 199519982000 - 2004199520052008 - 20132008 - 20132006 - 20132006 - 20102004200420042005 - 200920112010 - 2011200420052006 - 20102005 - 200920112010 - 20112005
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnLincolnMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvo
ModelBronco SportBronco SportBronco SportBronco SportBronco SportBronco SportBronco SportBronco SportC-MaxC-MaxC-MaxC-MaxC-MaxC-MaxEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFreestarFreestarFreestarFreestarFreestarFreestarFreestarFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionPolice Responder HybridSSV Plug-In HybridTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurusThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdThunderbirdTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectTransit ConnectWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarWindstarF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeF-TypeS-TypeS-TypeS-TypeS-TypeS-TypeS-TypeS-TypeS-TypeSuper V8Super V8Vanden PlasX-TypeX-TypeX-TypeX-TypeX-TypeX-TypeXEXEXEXEXEXEXEXEXEXEXEXEXEXEXEXEXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFXFRXJXJXJXJXJXJXJXJXJXJXJXJXJXJ8XJ8XJRXJRXJRXJR575XKXKXKXKRXKRXKRXKR-SXKR-SContinentalContinentalContinentalContinentalContinentalContinentalContinentalContinentalContinentalContinentalCorsairCorsairCorsairCorsairCorsairLSLSLSLSLSLSLSLSLSMKCMKCMKCMKCMKCMKCMKCMKCMKCMKCMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMKZMark VIIMark VIIMark VIIIMark VIIIMark VIIIMark VIIICougarCougarCougarCougarCougarCougarMontereyMontereyMontereyMontereySableSableSableSableSableSableSableSableSableSableSableSableSableSableSableSableSableC30C30C70S40S40S40S40S40S40S40S40S40V50V50V50V50V50
TrimBadlandsBaseBig BendFirst EditionFree WheelingHeritage EditionHeritage Limited EditionOuter BanksEnergi SEEnergi SELEnergi TitaniumHybrid SEHybrid SELHybrid TitaniumActiveActive HybridBasePlatinumPlatinum HybridPlug-In HybridSSSESESESESESE HybridSE Plug-In HybridSE Sport HybridSELSELSELSELSELSELSEL HybridSEL Plug-In HybridST-LineST-Line EliteST-Line Elite HybridST-Line HybridST-Line SelectST-Line Select HybridTitaniumTitaniumTitaniumTitaniumTitanium HybridTitanium Plug-In HybridElectricElectricRSSSESESELSELSTTitaniumBaseLimitedSSESESELSESEnergi PlatinumEnergi SEEnergi TitaniumPlatinumPlatinum HybridSSS HybridSESESESESESESESE HybridSELSELSELSEL HybridSportTitaniumTitaniumTitanium HybridBaseBaseGGLGLGLGLGLGLGLLLLLLLXLXLXLXLXMT5SESESESE ComfortSE ComfortSE ComfortSELSESSHOSHOSHOSHOSVG50th Anniversary EditionBaseBaseBaseJames Bond EditionLXLXLXNeiman MarcusPacific Coast RoadsterSuper CoupeElectricTitaniumTitaniumTitaniumTitaniumXLXLXLXLXLXLTXLTXLTXLTXLTXLT Premium3.0LBaseBaseBaseBaseBaseGLGLGLGLGLLXLXLXLimitedLimitedSESESE SportSELSEL400 SportBaseBaseBaseBritish Design EditionCheckered FlagCheckered FlagFirst EditionPremiumProject 7RR-DynamicR-DynamicSSVRV8 SBaseBaseBaseBaseRSportSportVDP EditionBasePortfolioBaseBaseBasePremiumSportVDP EditionVanden Plas300 SportBaseFirst EditionLandmark EditionPortfolioPortfolioPremiumPremiumPrestigePrestigeR-Dynamic SR-SportR-SportSSSV Project 83.0L3.0L AWD300 SportBaseBaseBaseBaseBaseCheckered FlagLuxuryPortfolioPortfolioPortfolioPortfolioPremiumPremiumPremiumPremiumPremium LuxuryPrestigePrestigeR-Dynamic SER-SportR-SportSSSESportSportbrake First EditionSportbrake PrestigeSportbrake SSuperchargedSuperchargedBaseBaseBaseLL PortfolioL PortfolioL SuperchargedL SupersportL UltimateR-SportSuperchargedSupersportXJ50XJ50BaseLBaseBaseLBaseBaseBaseTouringBaseBasePortfolioBaseGTAnniversaryBaseBaseBaseDiamond AnniversaryExecutiveSignatureSignatureSignatureSpinnaker EditionBaseBaseGrand TouringReserveReserveAppearanceBaseBaseLSELSELuxuryPremiumSportUltimateBaseBaseBaseBlack LabelBlack LabelPremiereReserveReserveSelectSelectBaseBaseBaseBaseBaseBlack LabelBlack LabelBlack LabelBlack Label HybridHybridHybridPremierePremiere HybridReserveReserveReserveReserveReserve HybridReserve HybridReserve IReserve I HybridReserve IIReserve IIReserve II HybridSelectSelectSelect HybridBill BlassLSCAnniversaryBaseBaseLSCLSLSXR-7XR-7XR-7XR-7BaseConvenienceLuxuryPremierGGSGSGSGSGSGSLSLSLSLSLSLSLS PremiumLS PremiumLTSPlatinum EditionT5T5 R-DesignT52.4iBaseLSET5T5T5T5 R-Designii2.4iT5T5T5 R-Designi
Engine2.0L L41.5L L31.5L L32.0L L41.5L L31.5L L32.0L L41.5L L32.0L L42.0L L42.0L L42.0L L42.0L L42.0L L41.5L L32.5L L41.5L L32.0L L42.5L L42.5L L41.5L L32.5L L41.5L L31.5L L41.6L L42.0L L42.5L L42.5L L42.5L L42.5L L41.5L L31.5L L41.6L L42.0L L42.0L L42.0L L42.5L L42.5L L41.5L L32.0L L42.5L L42.5L L42.0L L42.5L L41.5L L41.6L L42.0L L42.0L L42.5L L42.5L L4--2.3L L42.0L L41.0L L32.0L L42.0L L42.0L L42.0L L42.0L L43.9L V64.2L V63.9L V63.9L V64.2L V64.2L V63.9L V62.0L L42.0L L42.0L L42.0L L42.0L L42.5L L42.5L L42.0L L41.5L L41.6L L41.6L L42.0L L42.0L L42.5L L42.5L L42.0L L41.5L L42.0L L42.5L L42.0L L42.7L V62.0L L42.0L L42.0L L42.0L L42.0L L43.0L V62.5L L42.5L L43.0L V63.0L V63.0L V63.8L V63.8L V62.5L L42.5L L43.0L V63.0L V63.8L V63.0L V63.0L V63.0L V63.8L V63.8L V62.5L L43.0L V63.0L V63.8L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.2L V63.4L V83.0L V63.9L V83.8L V63.9L V85.0L V83.9L V83.8L V64.6L V85.0L V83.9L V83.9L V83.8L V6-1.6L L42.0L L42.5L L42.5L L41.6L L42.0L L42.0L L42.5L L42.5L L41.6L L42.0L L42.0L L42.5L L42.5L L42.0L L43.0L V63.0L V63.0L V63.8L V63.8L V63.8L V63.0L V63.0L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.0L V63.8L V63.8L V63.0L V63.8L V63.0L V62.0L L43.0L V65.0L V83.0L V62.0L L43.0L V62.0L L43.0L V65.0L V85.0L V83.0L V65.0L V83.0L V65.0L V85.0L V83.0L V64.0L V84.2L V84.2L V84.2L V83.0L V64.2L V84.2L V84.2L V84.2L V84.2L V82.5L V63.0L V63.0L V63.0L V63.0L V63.0L V62.0L L42.0L L43.0L V62.0L L42.0L L43.0L V62.0L L43.0L V62.0L L43.0L V62.0L L42.0L L43.0L V62.0L L43.0L V65.0L V83.0L V63.0L V62.0L L42.0L L42.0L L43.0L V64.2L V85.0L V82.0L L44.2L V82.0L L43.0L V63.0L V65.0L V82.0L L42.0L L43.0L V65.0L V84.2L V82.0L L43.0L V62.0L L42.0L L43.0L V62.0L L43.0L V62.0L L43.0L V63.0L V62.0L L43.0L V64.2L V85.0L V85.0L V83.0L V65.0L V85.0L V83.0L V65.0L V85.0L V85.0L V85.0L V83.0L V65.0L V85.0L V83.0L V65.0L V84.2L V84.2L V84.2L V85.0L V85.0L V85.0L V84.2L V85.0L V85.0L V84.2L V85.0L V84.2L V85.0L V85.0L V84.6L V83.8L V63.8L V64.6L V84.6L V83.8L V63.8L V63.8L V64.6L V84.6L V82.0L L42.3L L42.5L L42.0L L42.3L L43.0L V63.0L V63.9L V83.0L V63.9L V83.0L V63.0L V63.9L V83.9L V82.0L L42.0L L42.3L L42.0L L42.3L L42.0L L42.0L L42.3L L42.0L L42.3L L42.0L L42.0L L42.0L L43.7L V63.7L V62.0L L43.0L V63.7L V62.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L43.0L V63.0L V62.0L L42.0L L42.0L L42.0L L42.0L L43.0L V62.0L L42.0L L43.0L V62.0L L45.0L V85.0L V84.6L V84.6L V84.6L V84.6L V83.8L V65.0L V83.8L V63.8L V64.6L V85.0L V84.2L V64.2L V64.2L V64.2L V63.0L V62.5L L43.0L V63.0L V63.0L V63.8L V63.8L V63.0L V63.0L V63.0L V63.0L V63.8L V63.8L V63.0L V63.0L V63.0L V63.0L V62.5L L52.5L L52.5L L52.4L L51.9L L41.9L L42.5L L52.5L L52.5L L52.5L L52.4L L52.4L L52.4L L52.5L L52.5L L52.5L L52.4L L5
Note--------
without Parking Assist
without Parking Assist
without Parking Assist
without Parking Assist
without Parking Assist
without Parking Assist
-------
without Parking Assist
-
without Parking Assist
without Parking Assist
without Parking Assist
without Parking Assist
----
without Parking Assist
without Parking Assist
without Parking Assist
without Parking Assist
---------
without Parking Assist
without Parking Assist
without Parking Assist
----
/Front
--------------------
/Front
---
/Front
-
/Front
-
/Front
------
/Rear
/Front
------
/Rear
-
/Rear
--
/Rear
-
/Rear
-
/Rear
/Rear
-
/Rear
--
/Rear
-
/Rear
-
/Rear
------
/Rear
/Rear
--
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
-
/Front
-
/Front
-
/Front
--
/Front
-
/Front
--
/Front
---
/Front
-
/Front
/Rear
-
/Front
-
/Front
/Rear
-
/Front
/Rear
------------------------
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
---
/Rear
/Rear
/Rear
/Rear
/Rear
/Rear
----------------
/Front
/Front
-
/Front
--
/Front
/Front
-
/Front
-
/Front
-
/Front
/Front
--
/Front
/Front
--------
/Front
---
/Front
/Front
-
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
---
/Front
/Front
-
/Front
/Front
/Front
/Front
/Front
/Front
----
/Rear
--
/Rear
-
/Rear
-------
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
without Automated Parking System
without Automated Parking System
without Automated Parking System
without Automated Parking System
without Automated Parking System
without Automated Parking System
without Automated Parking System
without Automated Parking System
without Automated Parking System
without Automated Parking System
/Front
--
/Front
-------------------------
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
/Front
-------
/Rear
--
/Rear
-
/Rear
---
/Rear
--
/Rear
-------
/Rear
---
/Rear
------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel SpacerWheel Spacer

Reviews

4.7/5

Based on 6 reviews

567%
433%
30%
20%
10%

Emma_DailyCommute_62

11/14/2025

Installation was a breeze, everything lined up perfectly. Took maybe 30 minutes total. They really make the wheels sit flush with the fenders. Way easier than I anticipated.

DIY_Karen_980

03/18/2026

These look fantastic and give the car a really nice, planted look. They seem very durable and were a great price. Honestly, couldn't ask for more for this kind of upgrade.

FAQS

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
