1997-2001 GMC Jimmy 4.3L V6 | 5x4.75" to 6x5.5" 74mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

1997-2001 GMC Jimmy 4.3L V6 | 5x4.75" to 6x5.5" 74mm Center Bore M12x1.5 Thread Wheel Hub Accessory - PHILTOP

Durable

6061T6

12.9-Grade Bolts

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
29ISWSA5287US

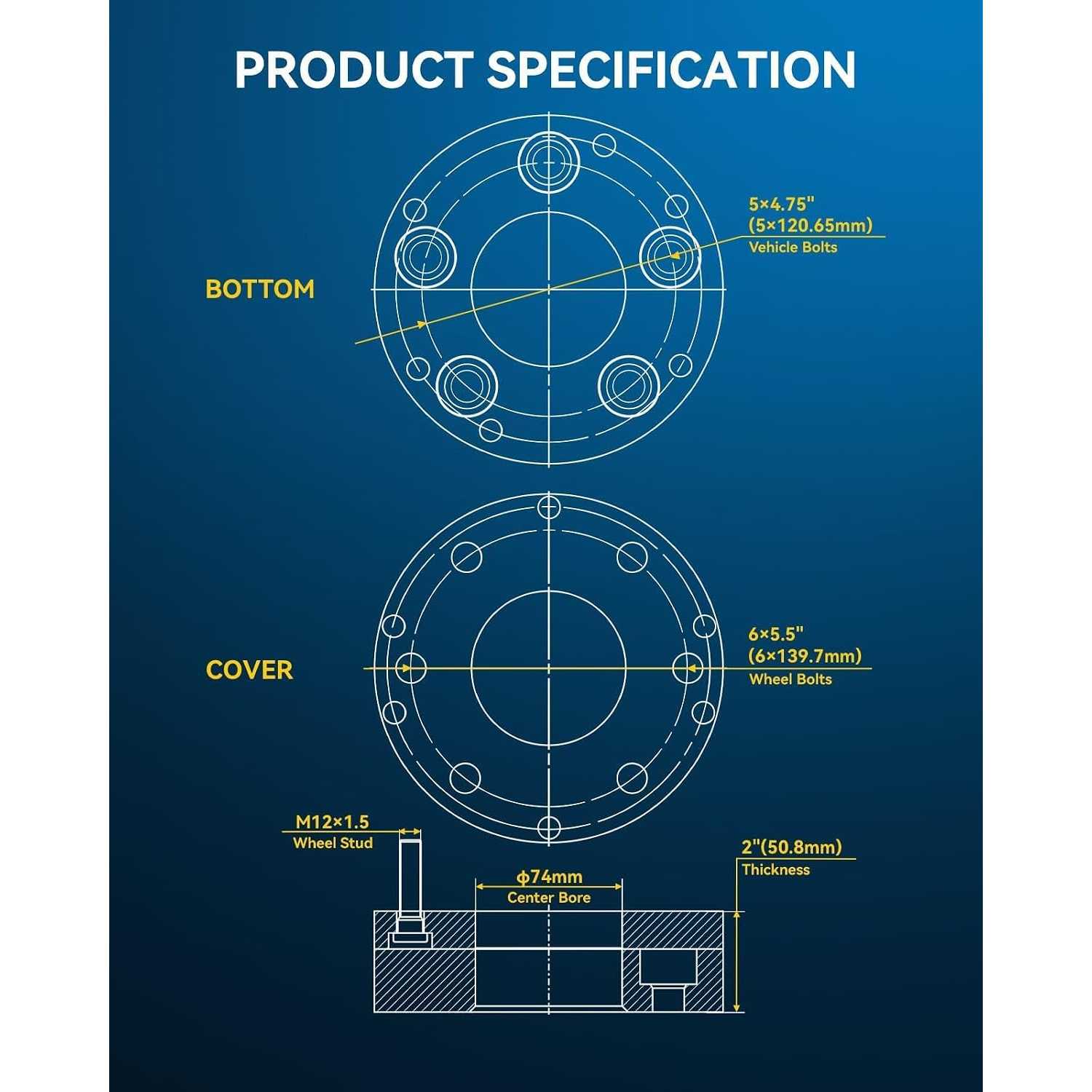

Specifications

Brand
PHILTOP
Bolt Pattern
5x4.75" To 6x5.5"
Wheel Bolt Pattern
6x5.5"
Vehicle Bolt Pattern
5x4.75"
Thread Size
M12x1.5
Center Bore
74
Hub-Centric Lip
No
Thickness
2inch
Note1
Only for 5x4.75" Models with 6x5.5" Wheels,Change Bolt Pattern.
Note2
Not for Original Wheel,Only Work with 6x5.5" Wheel.
Outside Diameter
176
Inside Diameter
2.91 in/74 mm
Type
Wheel Adapter
Items Included
4x Wheel Adapters,Thread Locker,Instruction Manual
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
70-80 lb-ft
Bolt Grade
12.9
Warranty Period
2-Year

Highlights

  • ☑(Fitment) - 5x4.75 to 6x5.5 Wheel adapters 2 inch fit for Avanti: 2001-2004 II
  • ☑(Adapters Parameter)- NOT fit original wheels!! Changes Bolt Pattern | Vehicle bolt pattern Must Be 5x4.75"(5x120.65) | Wheels Must Be 6x5.5"(6x139.7mm) | Threaded Studs/Nuts: M12x1.5 | Thickness: 2 inch(50.8mm)| Center Bore with NO lip:74mm | Recommended torque:70-80 ft/lbs | Package includes: 4 pcs adapters,glue
  • ☑(Not Easy to Break)- PHILTOP 5x4.75 to 6x5.5 2" wheel adapters are made of lightweight anodized 6061-T6 aluminum by Forged Manufacturing Methods, compared with other Casting Spacers, high duty and more durable. The bolts(SGS Test Approved) are higher hardness and against rust. CNC automatic processing, enhance the hardness and corrosion resistance of the material.The above can effectively prevent bolt breakage
  • ☑(Advantage) - 2 inch wheel adapters provide extra width for the wheel track to bring an aggressive appearance, and with the improvement of traction, the vehicle's anti-roll performance and handling comfort have been greatly improved
  • ☑(Upgrade Technology)- Better to use some glue on the adapters, alignment recommended after installation, re-torque the open-end lug nuts after some 50-100miles.Tip: Because our products are universal, if you still have the problem of too long screw during installation, please cut off the excess. NOTE: Please use the "Philtop comfirmed fit" tool again to verify if it is compatible with your vehicle before purchasing the wheel adapters

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1983 - 19851983 - 19841983 - 1984198319851983198319831984 - 19851983 - 19851983 - 19841983 - 198519831983 - 19851980 - 19811984 - 19851981 - 19841980 - 19851979 - 19851982198219821984 - 19851983 - 19841983 - 19851983 - 19851979 - 198019801979 - 19801981 - 1985198119811983198319831981 - 19821982 - 19851979 - 19851980 - 19811981 - 19821982 - 19851979 - 19831980 - 19811981198119811981 - 19821982 - 19851979 - 19851980 - 198119821982 - 19851982 - 198520082008 - 20092008 - 200919881993 - 1995199519961997 - 19981999 - 20002001 - 200219881982 - 19861982 - 198619931985 - 19901987 - 19901987198719891990 - 19921996 - 19971989 - 1992199219921982 - 19861982 - 19871982 - 19871982 - 19871991 - 19921991 - 19981999 - 20002001 - 200219921992198219981999 - 20002001 - 20021988199320132008200320031984 - 19901991 - 19961997 - 20042006 - 20072008 - 20092010 - 20112012 - 2013199619962010 - 20112012 - 20132017 - 20191986199519982014 - 20192001 - 20042015 - 20192006 - 20092010 - 20112012 - 2013201119901991 - 199520092010 - 20112012 - 201320191983 - 198419851983 - 1985198319831983198319841985 - 19881984 - 198819841986 - 19881986 - 19881984 - 198819911991199719981999 - 20001983 - 19851983 - 19841983 - 19851994 - 1996199719981999 - 20031985 - 19901991 - 19931983 - 19901991 - 19931988 - 19901991 - 19931994 - 1996199719981999 - 20031983 - 19851983 - 19841983 - 19851985 - 19901983 - 19901988 - 19901992 - 19931992 - 19931992 - 19931994 - 1996199719981999 - 20031994 - 1996199719981999 - 20041983 - 19851983 - 19841983 - 19851985 - 19891983 - 19891988 - 19891983 - 19851983 - 19841983 - 19851985 - 19901991 - 19921983 - 19901991 - 19921988 - 19901991 - 19921994 - 1996199719981999 - 20032002 - 2004200020011998 - 1999200019971998 - 1999200119971998 - 19992000200119971998 - 19992000200119971998 - 1999200020011982 - 19851983 - 19841984 - 19851985 - 19901982 - 19901988 - 199019871987198319831986 - 198819831986 - 198819881982 - 19851983 - 19841984 - 19851985 - 19901982 - 19901988 - 19901982 - 19851983 - 19841984 - 19851985 - 19901982 - 19901988 - 1990198219821991 - 19931991 - 19931991 - 199319921994 - 199619971998 - 20031994 - 199619971998 - 20041994 - 199619971998 - 20011991 - 19931991 - 19931991 - 199619971998 - 20011994 - 199619971998 - 2003199319931993 - 199619971998 - 20042002 - 20041984 - 198619841984 - 19861984 - 19851984 - 198619841984 - 19861984 - 19851985198519851984 - 19851984 - 19851984 - 19851984 - 198519841984 - 19851984 - 198619861984 - 198619841984 - 198619861984 - 198619841984 - 198619861984 - 198619841982 - 19861982 - 19891990 - 19921993 - 199519951996 - 19981999 - 20011982 - 19921987 - 19881989 - 19921989 - 19951996 - 19981999 - 20011982 - 19841982 - 19861982 - 198619891982 - 19921987 - 19951996 - 19981999 - 200119941989 - 19921989 - 199219891984 - 198619861984 - 198619841984 - 198619861984 - 198619841984 - 198619861984 - 1986198419841985 - 19861984 - 198619841985 - 19861984 - 1986
MakeBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickBuickCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobilePontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiac
ModelRegalRegalRegalRegalRegalRegalRegalRegalRegalRegalRegalRegalRegalRegalRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraRivieraEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoEldoradoXLRXLRXLRCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCamaroCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteCorvetteImpalaImpalaImpalaMalibuMalibuMalibuMalibuMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloS10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10S10JimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyS15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15S15SonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaBravadaCutlass SupremeCutlass SupremeCutlass SupremeCutlass SupremeCutlass SupremeCutlass SupremeCutlass SupremeCutlass SupremeCutlass SupremeCutlass SupremeCutlass SupremeDelta 88Delta 88Delta 88Delta 88Delta 88Delta 88BonnevilleBonnevilleBonnevilleBonnevilleBonnevilleBonnevilleBonnevilleBonnevilleBonnevilleBonnevilleBonnevilleBonnevilleFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdFirebirdGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixParisienneParisienneParisienneParisienneParisienneParisienne
TrimBaseBaseBaseBaseBaseEstate WagonEstate WagonEstate WagonGrand NationalLimitedLimitedLimitedLimitedT-TypeBaseBaseBaseBaseBaseLimited EditionLimited EditionLimited EditionLuxuryLuxuryLuxuryLuxurySSST-TypeT-TypeT-TypeXX Anniversary EditionXX Anniversary EditionXX Anniversary EditionBaseBaseBaseBaseBiarritzBiarritzBiarritzBiarritzBrougham d'EleganceBrougham d'EleganceBrougham d'EleganceCabrioletCabrioletCabrioletCabrioletTouringTouringTouringBasePlatinumVBaseBaseBaseBaseBaseBaseBaseBaseBerlinettaBerlinettaIndianapolis 500 Pace CarIroc-ZIroc-ZLTLTRSRSRSRSRS Heritage EditionRS Heritage EditionSportSportSportZ28Z28Z28Z28Z28Z28 Heritage EditionZ28 Heritage EditionZ28 Indianapolis 500 Pace CarZ28 SSZ28 SSZ28 SS35th Anniversary Edition40th Anniversary Edition427427 Limited Edition Z0650th Anniversary Edition50th Anniversary Edition Pace CarBaseBaseBaseBaseBaseBaseBaseCollector's EditionGrand SportGrand SportGrand SportGrand SportIndianapolis 500 Pace CarIndianapolis 500 Pace CarIndianapolis 500 Pace CarStingrayZ06Z06Z06Z06Z06Z06 CarbonZR-1ZR-1ZR1ZR1ZR1ZR1BaseBaseBaseClassicClassicClassicClassicBaseBaseBaseBaseLSLSSSBajaBajaBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseDurangoDurangoDurangoDurangoDurangoDurangoELELELLSLSLSLSLSLSLSLSSportSportSportSportSportSportTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeZR2ZR2ZR2ZR2ZR5Diamond EditionDiamond EditionEnvoyEnvoySLSLSLSLESLESLESLESLSSLSSLSSLSSLTSLTSLTSLTBaseBaseBaseBaseBaseBaseELELGypsyGypsyGypsyGypsyGypsyGypsyHigh SierraHigh SierraHigh SierraHigh SierraHigh SierraHigh SierraSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra ClassicSierra GrandeSierra GrandeBaseBaseBaseGTSLSLSLSLSLSLSLESLESLESLESLESLESLESLESLSSLSSLSSLSSLSSLSSLSSLSBaseBaseBaseBaseBaseBroughamBroughamBroughamBroughamLSLSLSRoyaleRoyaleRoyale BroughamRoyale BroughamRoyale Brougham LSRoyale Brougham LSBaseBaseBaseBaseBroughamBroughamBroughamBroughamLELELELEBaseBaseBaseBaseBaseBaseBaseBaseBaseFormulaFormulaFormulaFormulaS/ES/ES/ETrans AmTrans AmTrans AmTrans AmTrans AmTrans Am GTTrans Am GTATrans Am GTATrans Am GTA SEBaseBaseBaseBaseBroughamBroughamBroughamBroughamLELELELEBaseBaseBaseBroughamBroughamBrougham
Engine3.8L V64.1L V64.3L V65.7L V85.7L V83.8L V64.1L V65.7L V83.8L V63.8L V64.1L V64.3L V65.7L V83.8L V63.8L V63.8L V64.1L V65.0L V85.7L V84.1L V65.0L V85.7L V83.8L V64.1L V65.0L V85.7L V83.8L V65.0L V85.7L V83.8L V64.1L V65.0L V84.1L V65.0L V85.7L V84.1L V64.1L V85.7L V86.0L V84.1L V64.1L V85.7L V86.0L V84.1L V65.7L V86.0L V84.1L V64.1L V85.7L V86.0L V84.1L V64.1L V85.7L V84.6L V84.6L V84.4L V82.8L V63.4L V63.8L V63.8L V63.8L V63.8L V63.8L V65.0L V82.8L V65.0L V85.7L V85.0L V85.7L V82.8L V65.0L V82.8L V63.1L V63.8L V65.0L V83.1L V65.0L V82.5L L42.8L V65.0L V85.0L V85.0L V85.7L V85.7L V85.7L V85.0L V85.7L V85.0L V85.7L V85.7L V85.7L V85.7L V85.7L V87.0L V87.0L V85.7L V85.7L V85.7L V85.7L V85.7L V86.0L V86.2L V86.2L V86.2L V85.7L V85.7L V86.2L V86.2L V86.2L V85.7L V85.7L V85.7L V86.2L V85.7L V86.2L V87.0L V87.0L V87.0L V87.0L V85.7L V85.7L V86.2L V86.2L V86.2L V86.2L V83.8L V64.3L V65.0L V83.8L V64.3L V65.0L V85.7L V83.8L V64.3L V65.0L V85.7L V84.3L V65.0L V85.0L V82.8L V64.3L V6---1.9L L42.0L L42.2L L42.2L L42.2L L42.2L L42.2L L42.5L L42.5L L42.8L V62.8L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V62.5L L42.8L V64.3L V62.2L L42.2L L42.2L L42.2L L44.3L V64.3L V64.3L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.5L L42.8L V62.8L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V62.5L L42.8L V61.9L L42.0L L42.5L L42.8L V62.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V61.9L L42.0L L42.2L L42.5L L42.8L V64.3L V61.9L L42.8L V62.5L L42.8L V64.3L V64.3L V62.2L L42.2L L42.2L L44.3L V64.3L V64.3L V62.2L L42.2L L42.2L L42.5L L42.8L V64.3L V64.3L V64.3L V62.2L L42.2L L42.2L L42.5L L42.8L V64.3L V64.3L V64.3L V64.2L L63.8L V64.3L V65.0L V85.7L V83.8L V64.3L V65.0L V85.7L V83.8L V65.0L V85.7L V83.8L V65.0L V83.8L V65.0L V83.8L V65.0L V83.8L V64.3L V65.0L V85.7L V83.8L V64.3L V65.0L V85.7L V83.8L V64.3L V65.0L V85.7L V82.5L L42.8L V63.1L V63.4L V63.8L V63.8L V63.8L V65.0L V85.7L V85.0L V85.7L V85.7L V85.7L V82.5L L42.8L V65.0L V83.8L V65.0L V85.7L V85.7L V85.7L V85.7L V85.0L V85.7L V83.8L V63.8L V64.3L V65.0L V85.7L V83.8L V64.3L V65.0L V85.7L V83.8L V64.3L V65.0L V85.7L V83.8L V64.3L V65.0L V83.8L V64.3L V65.0L V8
Note-----------------------------------------------------------
For Front
-
For Front
---------------------
For Front
-----
For Front
--
Front
-----
Front
---
5 stud
-
Front
Front
5 stud
---
Front
-----
5 stud
-
5 stud
-
Front
-
5 stud
----------------
Recommended for Use in Vehicles without ABS
Recommended for Use in Vehicles without ABS
1st Design;2nd Design;4WD;Base Model For;Front;Integral Sensor;Integral Sensor Ring;Rear;Toothed ABS Ring Sensor;Toothed Sensor Ring
4WD;Base Model;For Rear;Front;Front and Rear;Rear
-----
1st Design;2nd Design;4WD;Base Model For;Front;Integral Sensor;Integral Sensor Ring;Rear;Toothed ABS Ring Sensor;Toothed Sensor Ring
4WD;Base Model;For Rear;Front;Front and Rear;Rear
--
Recommended for Use in Vehicles without ABS
-
Recommended for Use in Vehicles without ABS
-
Recommended for Use in Vehicles without ABS
-
1st Design;2nd Design;4WD;Base Model For;Front;Integral Sensor;Integral Sensor Ring;Rear;Toothed ABS Ring Sensor;Toothed Sensor Ring
4WD;Base Model;For Rear;Front;Front and Rear;Rear
-------
Recommended for Use in Vehicles without ABS
Recommended for Use in Vehicles without ABS
Recommended for Use in Vehicles without ABS
-
1st Design;2nd Design;4WD;Base Model For;Front;Integral Sensor;Integral Sensor Ring;Rear;Toothed ABS Ring Sensor;Toothed Sensor Ring
4WD;Base Model;For Rear;Front;Front and Rear;Rear
--
1st Design;2nd Design;4WD;Base Model For;Front;Integral Sensor;Integral Sensor Ring;Rear;Toothed ABS Ring Sensor;Toothed Sensor Ring
4WD;Base Model;For Rear;Front;Front and Rear;Rear
-----------
Recommended for Use in Vehicles without ABS
-
Recommended for Use in Vehicles without ABS
-
Recommended for Use in Vehicles without ABS
-
1st Design;2nd Design;4WD;Base Model For;Front;Integral Sensor;Integral Sensor Ring;Rear;Toothed ABS Ring Sensor;Toothed Sensor Ring
4WD;Base Model;For Rear;Front;Front and Rear;Rear
--
4WD;4WD or AWD;Front
--
4WD;4WD or AWD;Front
2nd Design;Integral Sensor Ring Integral Sensor Ring
--
2nd Design;Integral Sensor Ring Integral Sensor Ring
-
4WD;4WD or AWD;Front
-
2nd Design;Integral Sensor Ring Integral Sensor Ring
-
4WD;4WD or AWD;Front
-
2nd Design;Integral Sensor Ring Integral Sensor Ring
-
4WD;4WD or AWD;Front
----------------------------------
2nd Design;Integral Sensor Ring Integral Sensor Ring
--
2nd Design;Integral Sensor Ring Integral Sensor Ring
--
2nd Design;Integral Sensor Ring Integral Sensor Ring
----
2nd Design;Integral Sensor Ring Integral Sensor Ring
--
2nd Design;Integral Sensor Ring Integral Sensor Ring
----
2nd Design;Integral Sensor Ring Integral Sensor Ring
------------------------------------
For Front
-----
For Front
-------
For Front
-----------------------

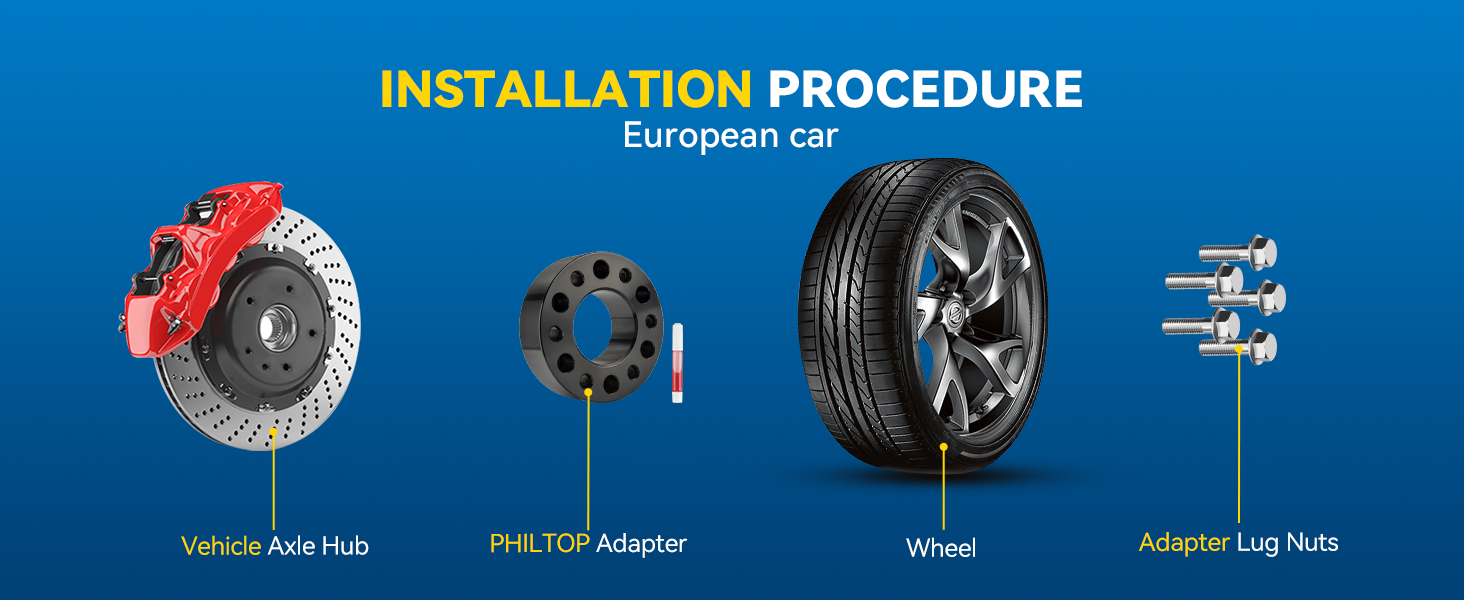

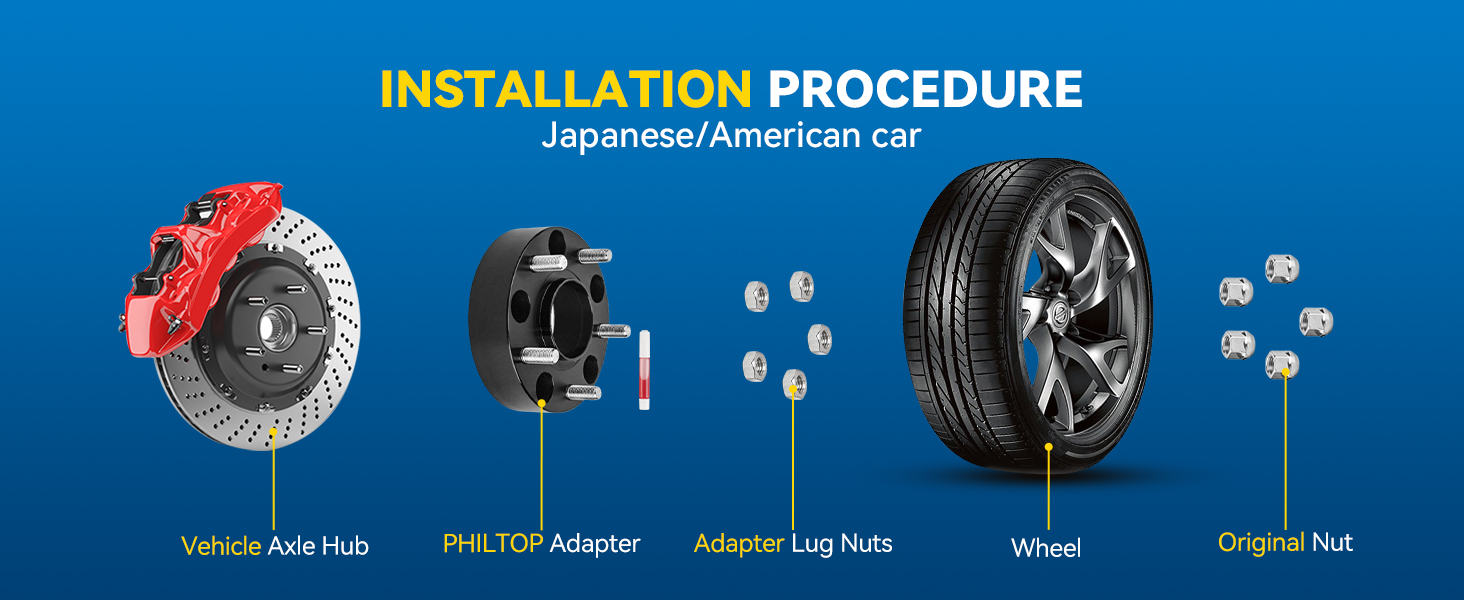

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel SpacerWheel Spacer

Reviews

4.5/5

Based on 6 reviews

567%
417%
317%
20%
10%

Amanda_MomOfThree_486

09/30/2025

These adapters really make my Avanti stand out. The quality is superb for the price, and they give the car a much wider, more aggressive look. Highly recommend.

Jason_Trucks_657

12/06/2025

Installation was surprisingly easy, much simpler than I expected. They fit perfectly and feel very secure. Way better than other adapters I've used in the past.

FAQS

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.
