2007-2018 Jeep Wrangler 3.8L/3.6L/2.0L | 5x5" 71.5mm Center Bore 1/2"x20 Thread Wheel Hub Accessory | 6809WSA2166US - PHILTOP

2007-2018 Jeep Wrangler 3.8L/3.6L/2.0L | 5x5" 71.5mm Center Bore 1/2"x20 Thread Wheel Hub Accessory | 6809WSA2166US - PHILTOP

Durable

6061T6

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
64ISWSA216187US

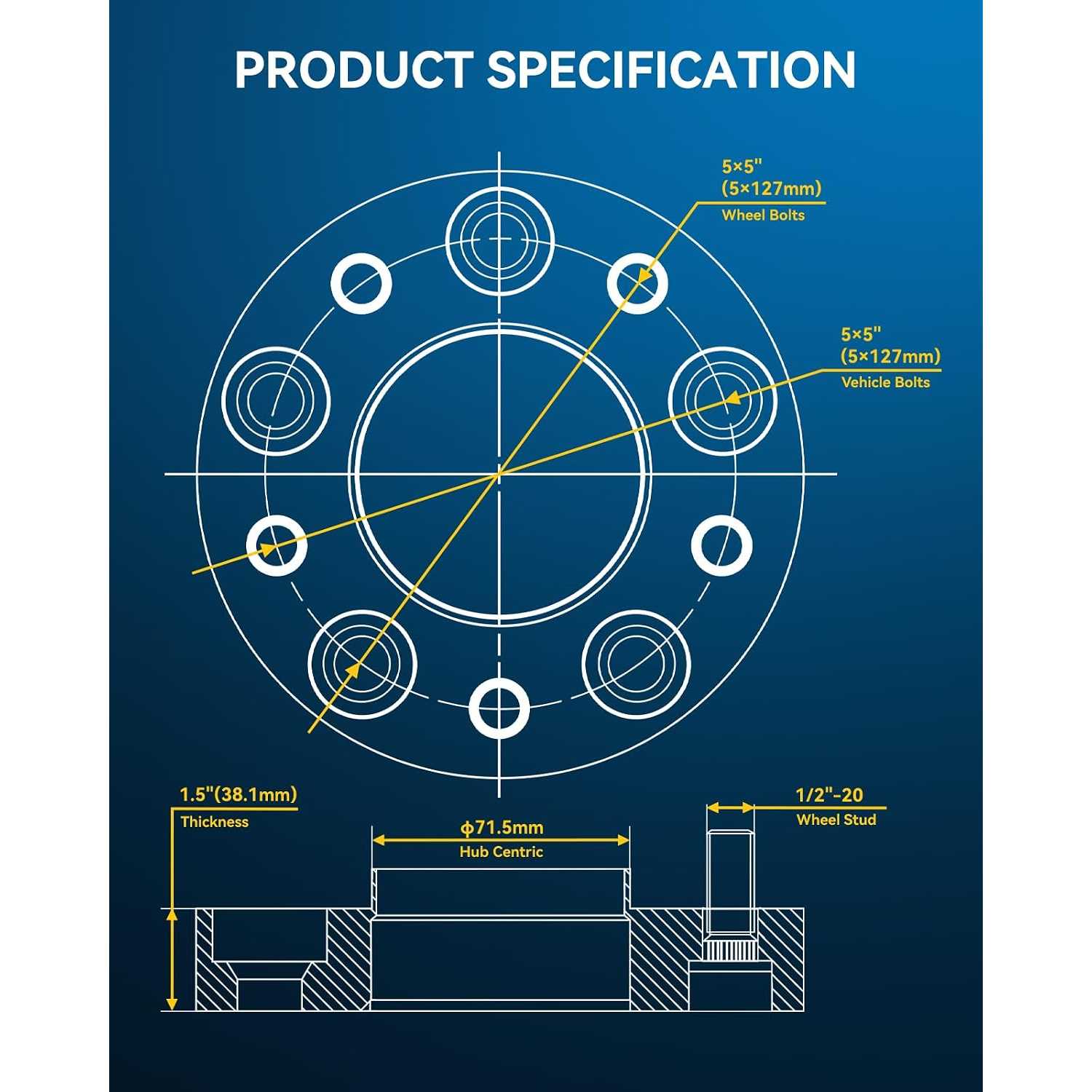

Specifications

Brand
PHILTOP
Bolt Pattern
5x5"
Wheel Bolt Pattern
5x5"
Vehicle Bolt Pattern
5x5"
Thread Size
1/2"x20
Center Bore
71.5
Hub-Centric Lip
Yes
Thickness
1.5inch
Outside Diameter
164
Inside Diameter
2.81 in/71.5 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included
2x Hub-Centric Wheel Spacers
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
75-85 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • (Spacers Parameter): Vehicle Bolt Pattern = Wheels Bolt Pattern Must Be 5x5" | Threaded Studs/Nuts: 1/2"x20 | Thickness: 1.5 inch(38.1mm) | Center Bore with lip: 71.5mm | Recommended Torque: 75-85 ft/lbs
  • (Compatibility) : 5x5" Wheel spacers all for: 2018 Jeep Wrangler, 2005-2010 Grand Cherokee, 2006-2010 Commander, front for: 2007-2017 Jeep Wrangler, 1999-2004 Grand Cherokee, 2018 Wrangler JK, 1991-2002 Chevrolet Astro AWD, 1991-2002 GMC Safari AWD
  • (Not Easy to Break): PHILTOP 1.5 inch wheel spacers are made of lightweight anodized 6061-T6 aluminum by Forged Manufacturing Methods, compared with other Casting Spacers, high duty and more durable. The bolts (SGS Test Approved) are higher hardness and against rust. CNC automatic processing, enhance the hardness and corrosion resistance of the material.The above can effectively prevent bolt breakage
  • (Advantage) : 38.1mm wheel spacers provide extra width for the wheel track to bring an aggressive appearance, and with the improvement of traction, the vehicle's anti-roll performance and handling comfort have been greatly improved
  • (Warm Reminder): Better to use some glue on the spacers, alignment recommended after installation, re-torque the nuts after some 25-50 miles. NOTE: Please use the "Philtop comfirmed fit" tool again to verify if it is compatible with your vehicle before purchasing the wheel spacers

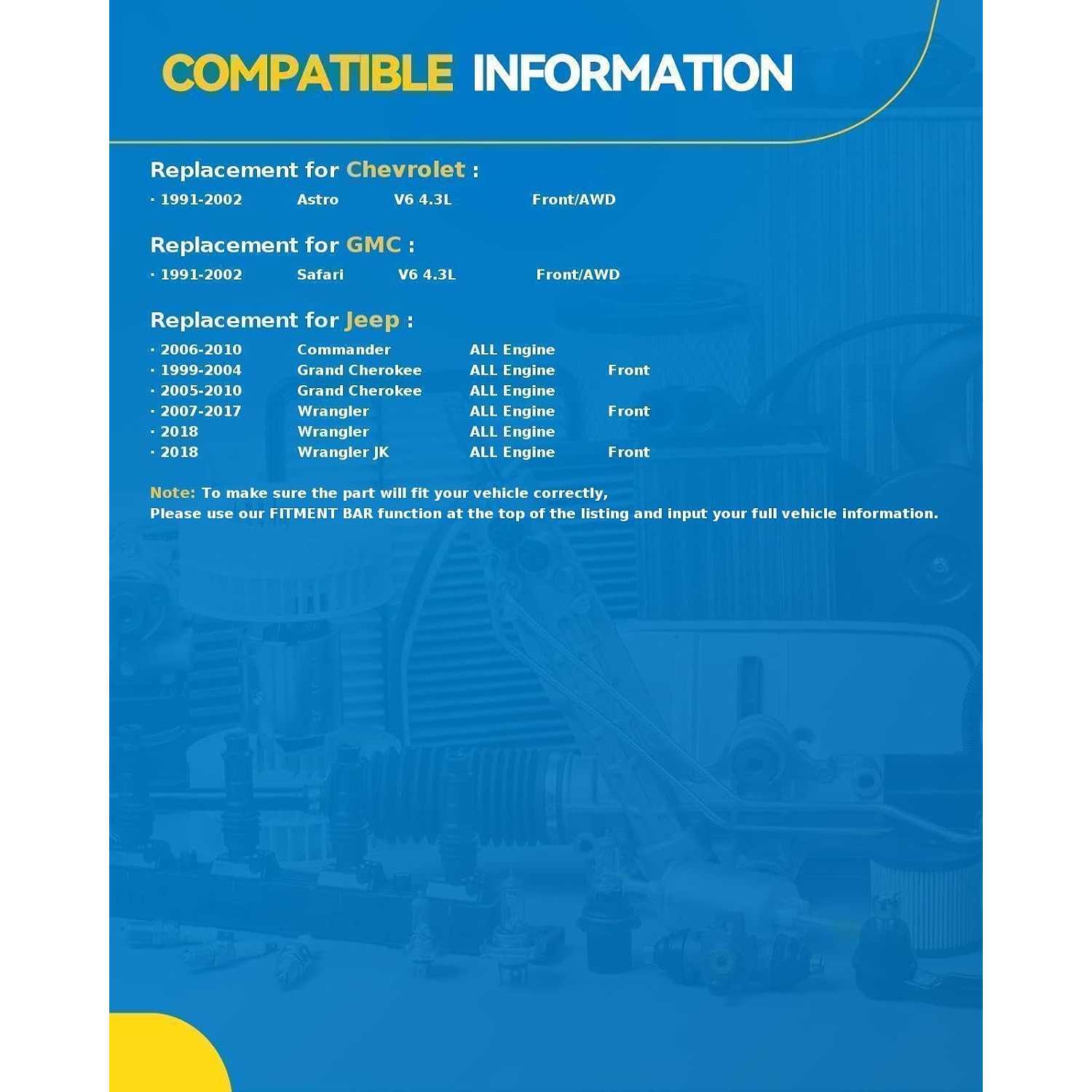

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1991 - 19951996 - 20021991 - 19951991 - 19951996 - 20021991 - 19951996 - 20021991 - 19971995 - 20021991 - 20021991 - 20021994 - 1998200620062006 - 20072006 - 20072006 - 20092006 - 20102007 - 20092007 - 20102007 - 20092010200620062007 - 20092005 - 20101999 - 20041999 - 20042005 - 200920102007 - 20092009 - 20101999 - 20041999 - 20042005 - 20092005 - 20102007 - 20092002 - 20042006 - 20092006 - 201020042004200220022011201620182012 - 201720182007 - 201020112012 - 20172007 - 2010201120182012 - 201720182010201120182016201820112016201820182012 - 201720182007 - 2010201120182012 - 201720182007 - 2010201120182012 - 20172018201020112018201620182007 - 20102007 - 201020182018201820182018201820182018
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelAstroAstroAstroAstroAstroAstroAstroSafariSafariSafariSafariSafariCommanderCommanderCommanderCommanderCommanderCommanderCommanderCommanderCommanderCommanderGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWrangler JKWrangler JKWrangler JKWrangler JKWrangler JKWrangler JKWrangler JKWrangler JK
TrimBaseBaseCLCSLSLTLTBaseSLSLESLTSLX65th Anniversary Edition65th Anniversary EditionBaseBaseLimitedLimitedOverlandSportSportSport65th Anniversary Edition65th Anniversary EditionLaredoLaredoLaredoLaredoLaredoLaredoLimitedLimitedLimitedLimitedLimitedLimitedOverlandOverlandOverlandSRT8Special EditionSpecial EditionSportSport70th Anniversary75th AnniversaryRubiconRubiconRubiconRubiconRubiconSaharaSaharaSaharaSportSportSportSportSportSport SSport SSport SUnlimited 70th AnniversaryUnlimited 75th AnniversaryUnlimited MoabUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited RubiconUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited SaharaUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited SportUnlimited Sport SUnlimited Sport SUnlimited Sport SUnlimited XXRubiconSaharaSportSport SUnlimited RubiconUnlimited SaharaUnlimited SportUnlimited Sport S
Engine4.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V63.7L V64.7L V83.7L V64.7L V84.7L V85.7L V85.7L V83.7L V64.7L V85.7L V83.7L V64.7L V83.0L V63.7L V64.0L L64.7L V84.7L V85.7L V83.0L V63.7L V64.0L L64.7L V84.7L V85.7L V83.0L V64.7L V85.7L V86.1L V84.0L L64.7L V84.0L L64.7L V83.8L V63.6L V62.0L L43.6L V63.6L V63.8L V63.8L V63.6L V63.8L V63.8L V62.0L L43.6L V63.6L V63.8L V63.8L V62.0L L43.6L V63.6L V63.8L V63.6L V63.6L V62.0L L43.6L V63.6L V63.8L V63.8L V62.0L L43.6L V63.6L V63.8L V63.8L V62.0L L43.6L V63.6L V63.8L V63.8L V62.0L L43.6L V63.6L V63.8L V63.8L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V6
Note
(Axle Nut Torque 180 ft. lbs);AWD;Front
(Axle Nut Torque 147 ft. lbs);AWD;Front
(Axle Nut Torque 180 ft. lbs);AWD;Front
(Axle Nut Torque 180 ft. lbs);AWD;Front
(Axle Nut Torque 147 ft. lbs);AWD;Front
(Axle Nut Torque 180 ft. lbs);AWD;Front
(Axle Nut Torque 147 ft. lbs);AWD;Front
AWD;Front
AWD;Front
AWD;Front
AWD;Front
AWD;Front
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
Front;Rear
--
Front;Rear
Front;Rear
Front;Rear
Front;Rear
--
Front;Rear
Front;Rear
Front;Rear
-
Front;Rear
Front;Rear
------
Not fit jk, only fit JL
-
Not fit jk, only fit JL
Front
--
Front
-
Not fit jk, only fit JL
-
Not fit jk, only fit JL
Front
-
Not fit jk, only fit JL
-
Not fit jk, only fit JL
--
Not fit jk, only fit JL
Not fit jk, only fit JL
-
Not fit jk, only fit JL
Front
-
Not fit jk, only fit JL
-
Not fit jk, only fit JL
Front
-
Not fit jk, only fit JL
-
Not fit jk, only fit JL
Front
-
Not fit jk, only fit JL
-
Not fit jk, only fit JL
Front
Front
--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.
  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel SpacerWheel Spacer

Reviews

4.5/5

Based on 6 reviews

567%
417%
317%
20%
10%

CarGuy_John_811

11/24/2025

Bolted right on my Grand Cherokee. Installation was a breeze, no issues at all. Much easier than some other spacers I've dealt with.

Emma_DailyCommute_302

01/26/2026

Arrived ahead of schedule and everything was packed tight. Customer service was friendly and helpful when I called. Really smooth transaction.

FAQS

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
