2012-2018 Ram 1500 3.0L V6/3.6L V6/5.7L V8/4.7L V8/3.7L V6 5x5.5" 77.8mm Center Bore M14x1.5 Thread Wheel Hub Accessory | 9302WS

2012-2018 Ram 1500 3.0L V6/3.6L V6/5.7L V8/4.7L V8/3.7L V6 5x5.5" 77.8mm Center Bore M14x1.5 Thread Wheel Hub Accessory | 9302WS

Durable

6061T6

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
81ISWSA4977US

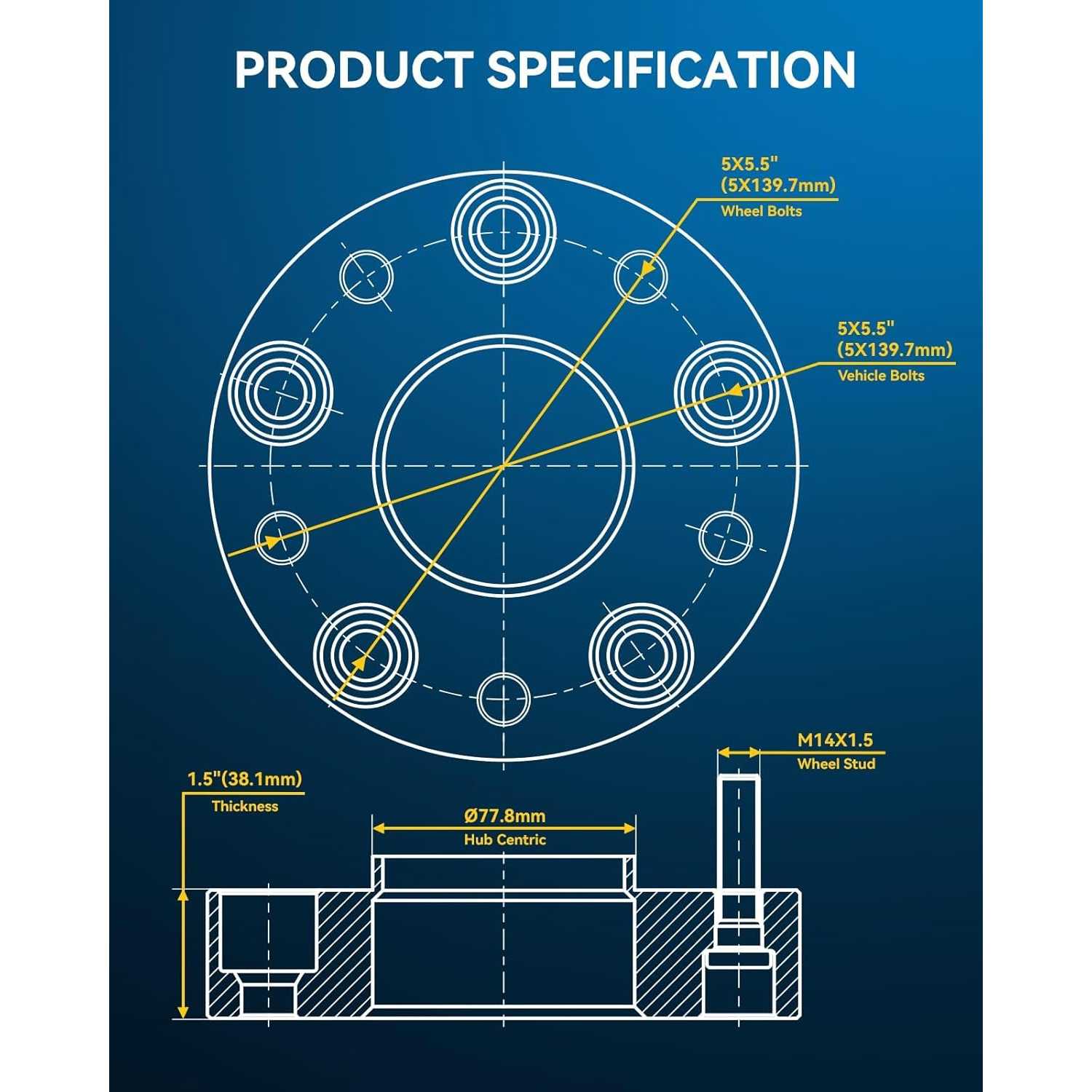

Specifications

Brand
PHILTOP
Bolt Pattern
5x5.5"
Wheel Bolt Pattern
5x5.5"
Vehicle Bolt Pattern
5x5.5"
Thread Size
M14x1.5
Center Bore
77.8
Hub-Centric Lip
Yes
Thickness
1.5inch
Outside Diameter
176
Inside Diameter
3.06 in/77.8 mm
Lug Patterns
5
Type
Wheel Spacer
Items Included
4x Hub-Centric Wheel Spacers
ATV/UTV Compatible
No
Material
6061T6
Manufacturing Process
Forge
Recommended Torque
85-90 lb-ft
Bolt Grade
10.9
Warranty Period
2-Year

Highlights

  • (Spacers Parameter): Vehicle Bolt Pattern = Wheels Bolt Pattern Must Be 5x5.5" | Threaded Studs/Nuts: M14x1.5 | Thickness: 1.5 inch (38.1mm) | Center Bore with lip: 77.8mm | Recommended Torque: 85-90 ft/lbs
  • (Compatibility) : 5x5.5" Wheel Spacers all for: 2023-2024 Ram 1500 Classic, front for: 2012-2018 Ram 1500, 2019-2022 1500 Classic, 2000-2001 Dodge Ram 1500 4WD

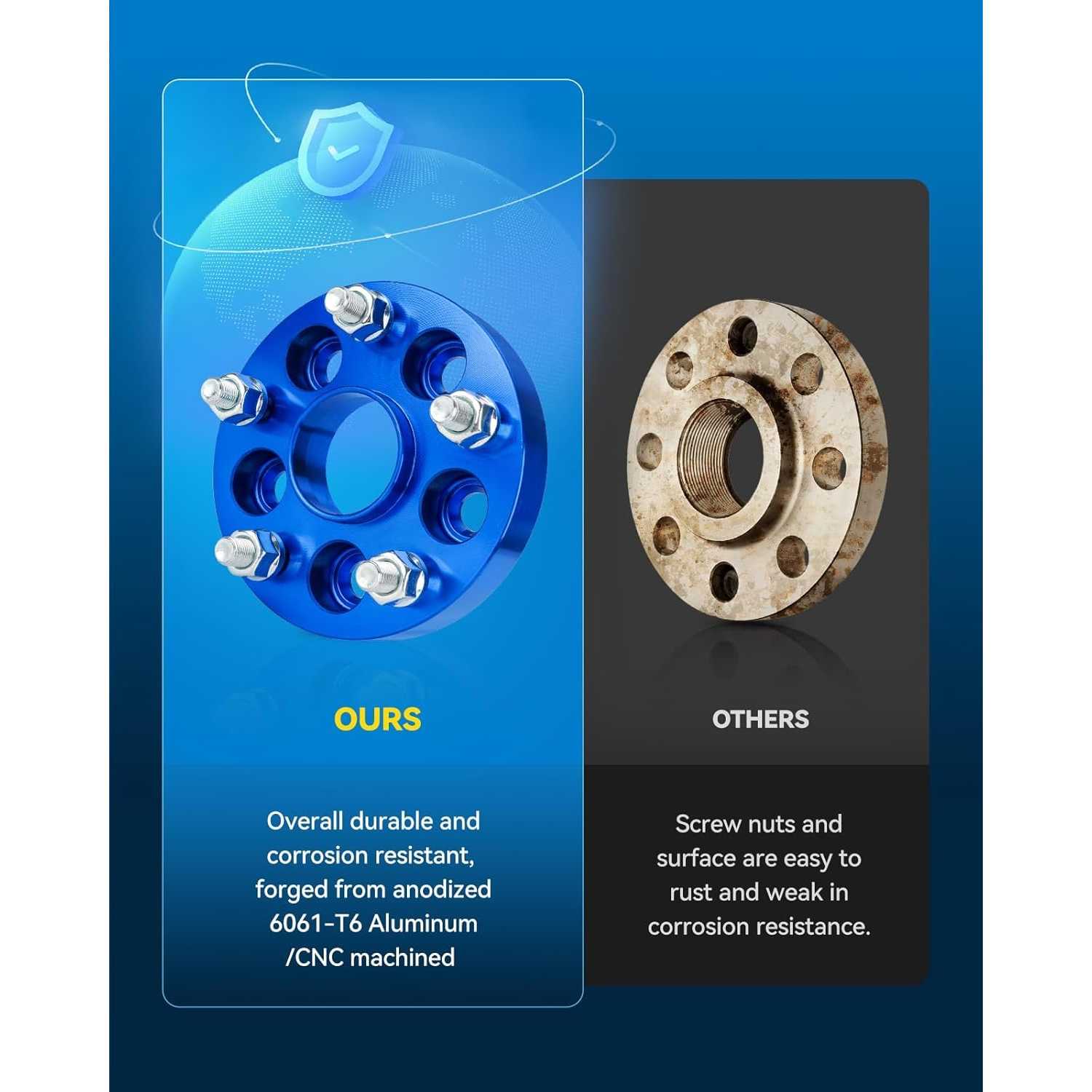

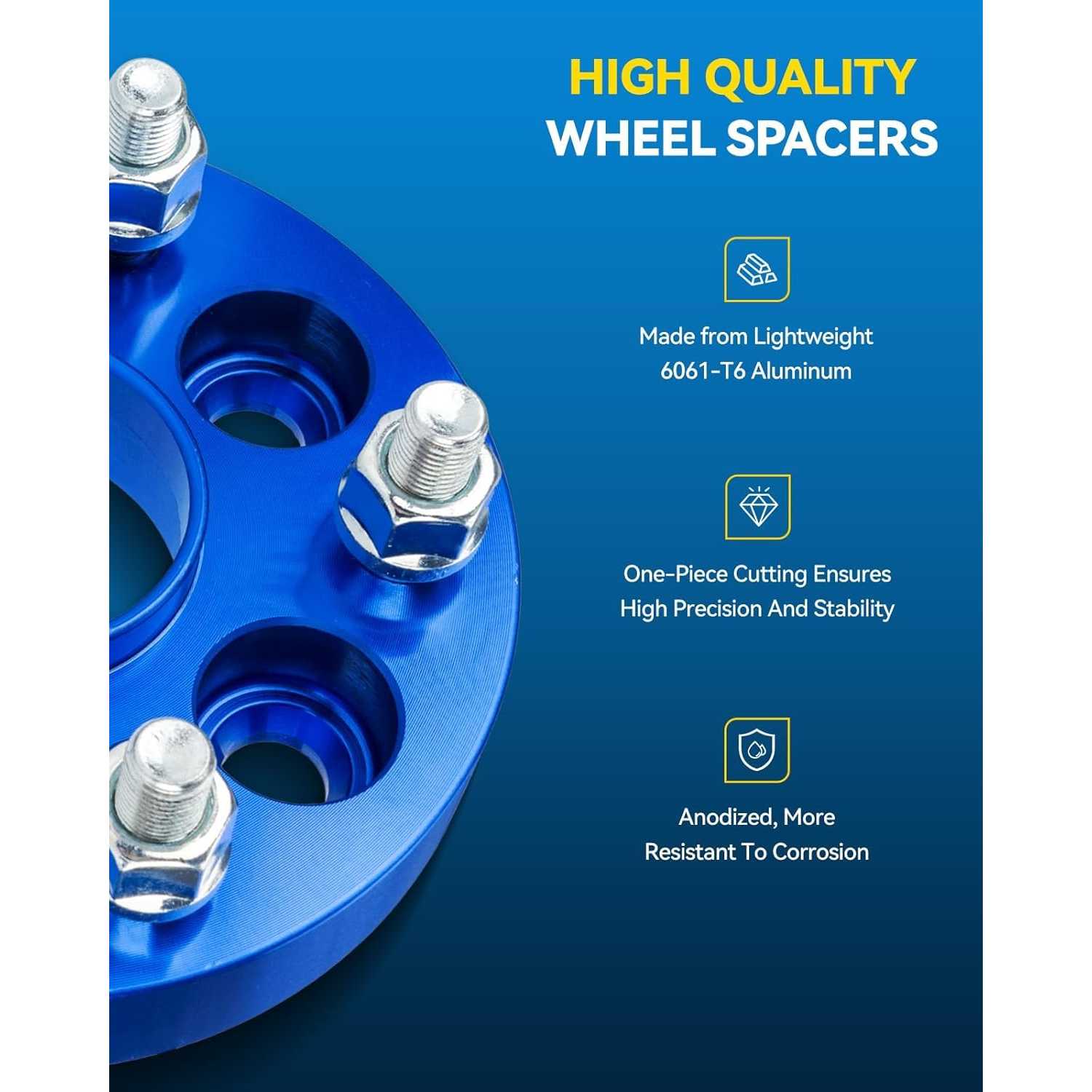

  • (Not Easy to Break): PHILTOP 1.5 inch Wheel Spacers are made of lightweight anodized 6061-T6 aluminum by Forged Manufacturing Methods, compared with other Casting Spacers, high duty and more durable. The bolts (SGS Test Approved) are higher hardness and against rust. CNC automatic processing, enhance the hardness and corrosion resistance of the material.The above can effectively prevent bolt breakage
  • (Advantage) : 38.1 mm Wheel Spacers provide extra width for the wheel track to bring an aggressive appearance, and with the improvement of traction, the vehicle's anti-roll performance and handling comfort have been greatly improved

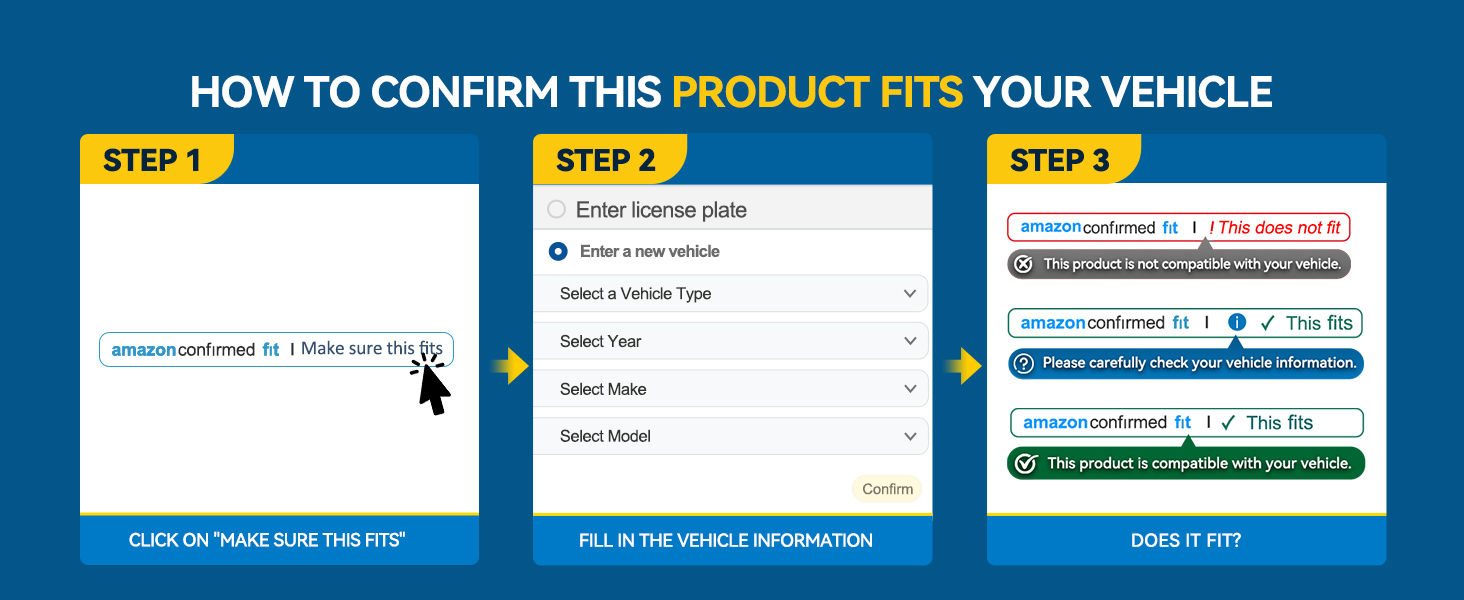

  • (Warm Reminder): Better to use some glue on the spacers, alignment recommended after installation, re-torque the lug nuts after some 25-50 miles. NOTE: Please use the "Philtop comfirmed fit" tool again to verify if it is compatible with your vehicle before purchasing the wheel spacers

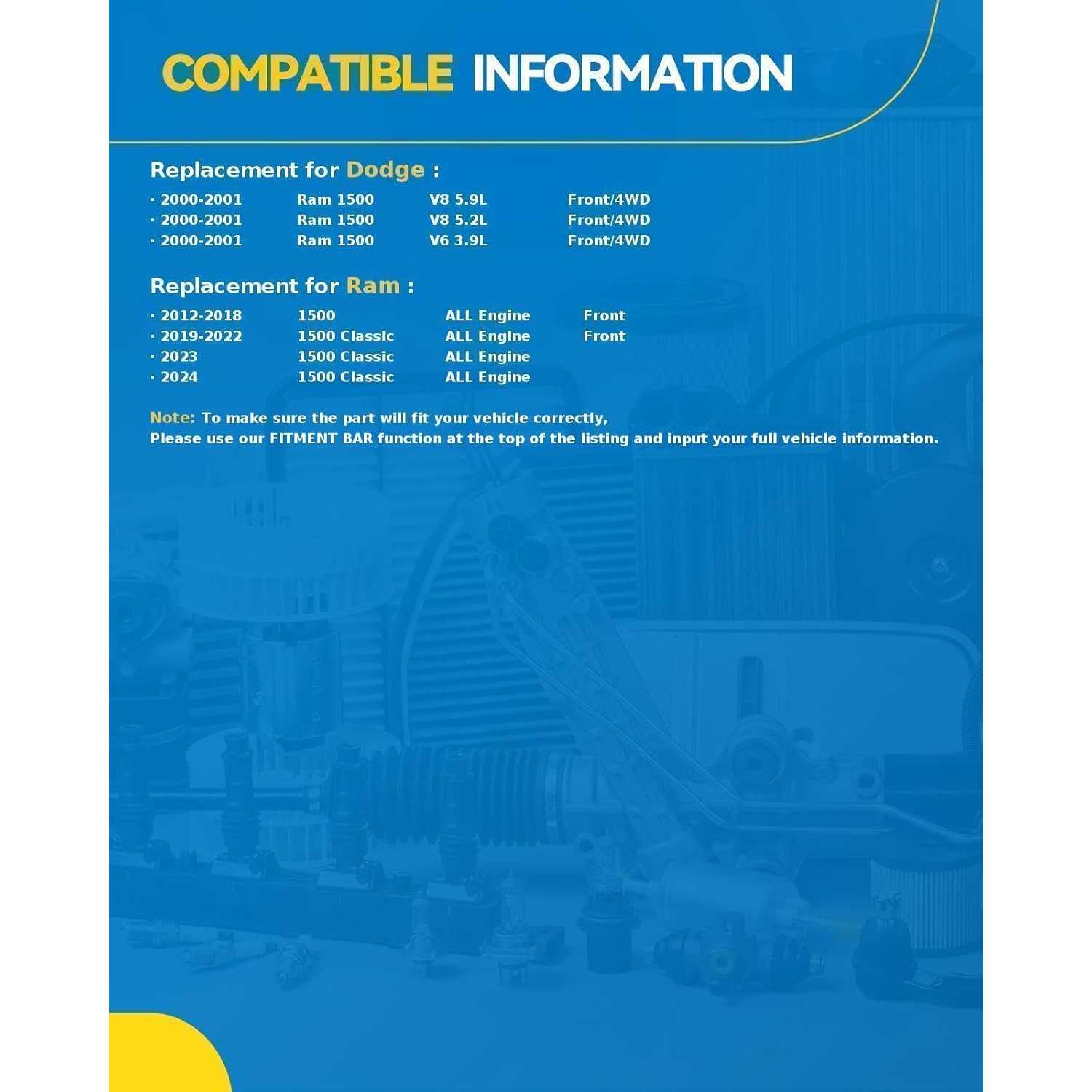

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2000 - 20012000 - 20012000 - 2001200120012000 - 20012000 - 20012000 - 20012000 - 20012000 - 20012000 - 20012014 - 20182014 - 20182012 - 20182014 - 20182012 - 20182016 - 20182013 - 201620142014 - 20182014 - 20182012 - 20182014 - 20152014 - 20152014 - 20182012 - 20182015 - 20182015 - 20182014 - 20182014 - 20182014 - 20182014 - 20162013 - 201620122012 - 201620132015 - 20182015 - 20182014 - 20182013 - 20182012 - 20132012 - 20182012201220122014 - 201820182017 - 20182012 - 20182014 - 20182013 - 20182012 - 20132012 - 20182012201920192019 - 20222019 - 202220192019201920192019 - 20222019 - 20222019 - 202320192019 - 202320242019 - 202320242019 - 202320242019 - 20232024
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRam
ModelRam 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500150015001500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic1500 Classic
TrimLaramieLaramieLaramieSLTSLTSTSTSTSportSportSportBig HornBig HornBig HornExpressExpressHFEHFEHFELaramieLaramieLaramieLaramie LimitedLaramie LimitedLaramie LonghornLaramie LonghornLimitedLimitedLone StarLone StarLone StarOutdoorsmanOutdoorsmanOutdoorsmanOutdoorsmanR/TRebelRebelSLTSLTSLTSLTSTSTSTSpecial ServiceSportSportSportTradesmanTradesmanTradesmanTradesmanTradesman HDBig HornBig HornExpressExpressLaramieLone StarLone StarSLTSLTSLTSpecial ServiceTradesmanTradesmanTradesmanTradesmanTradesmanWarlockWarlockWarlockWarlock
Engine3.9L V65.2L V85.9L V85.2L V85.9L V83.9L V65.2L V85.9L V83.9L V65.2L V85.9L V83.0L V63.6L V65.7L V83.6L V65.7L V83.0L V63.6L V65.7L V83.0L V63.6L V65.7L V83.0L V65.7L V83.0L V65.7L V83.0L V65.7L V83.0L V63.6L V65.7L V83.0L V63.6L V64.7L V85.7L V85.7L V83.6L V65.7L V83.0L V63.6L V64.7L V85.7L V83.7L V64.7L V85.7L V85.7L V83.0L V63.6L V65.7L V83.0L V63.6L V64.7L V85.7L V85.7L V83.6L V65.7L V83.6L V65.7L V83.0L V63.6L V65.7L V83.0L V63.6L V65.7L V85.7L V83.0L V63.6L V63.6L V65.7L V85.7L V83.6L V63.6L V65.7L V85.7L V8
Note
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
4-Wheel ABS (ABS Sensors on all 4 Wheels);4WD;Front
--------------------------------------------------------
5 stud
-
5 stud
-
5 stud
-
5 stud

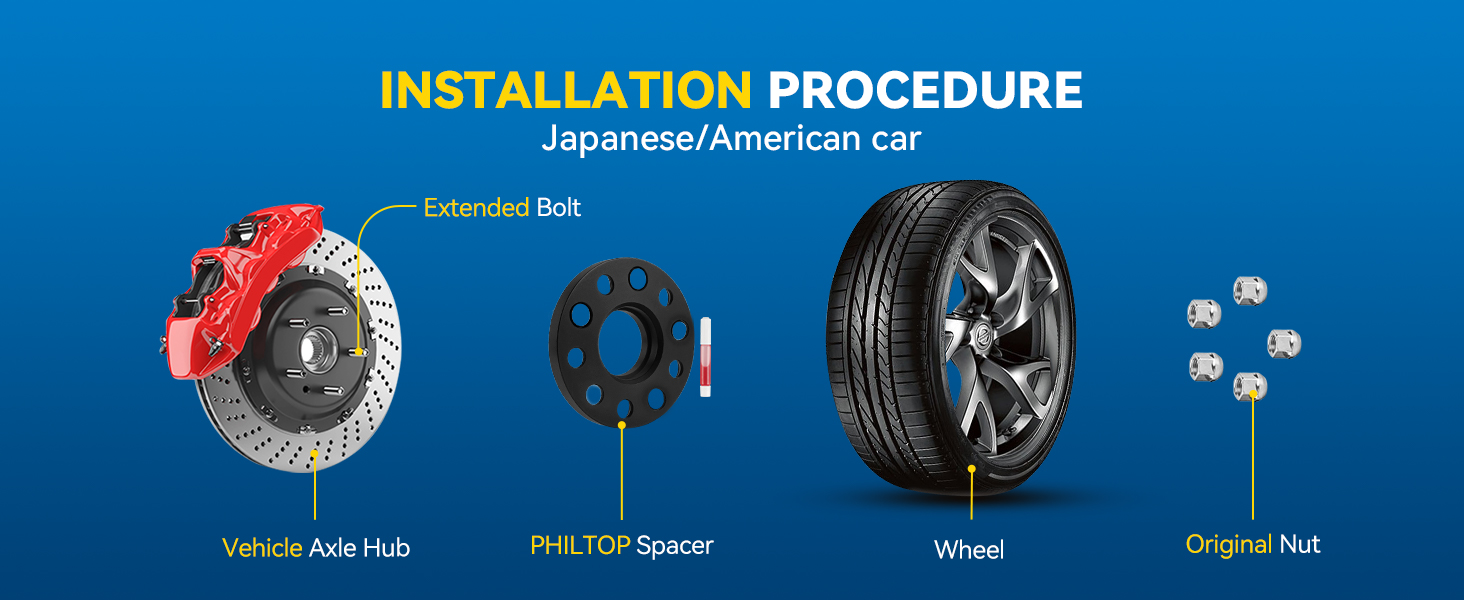

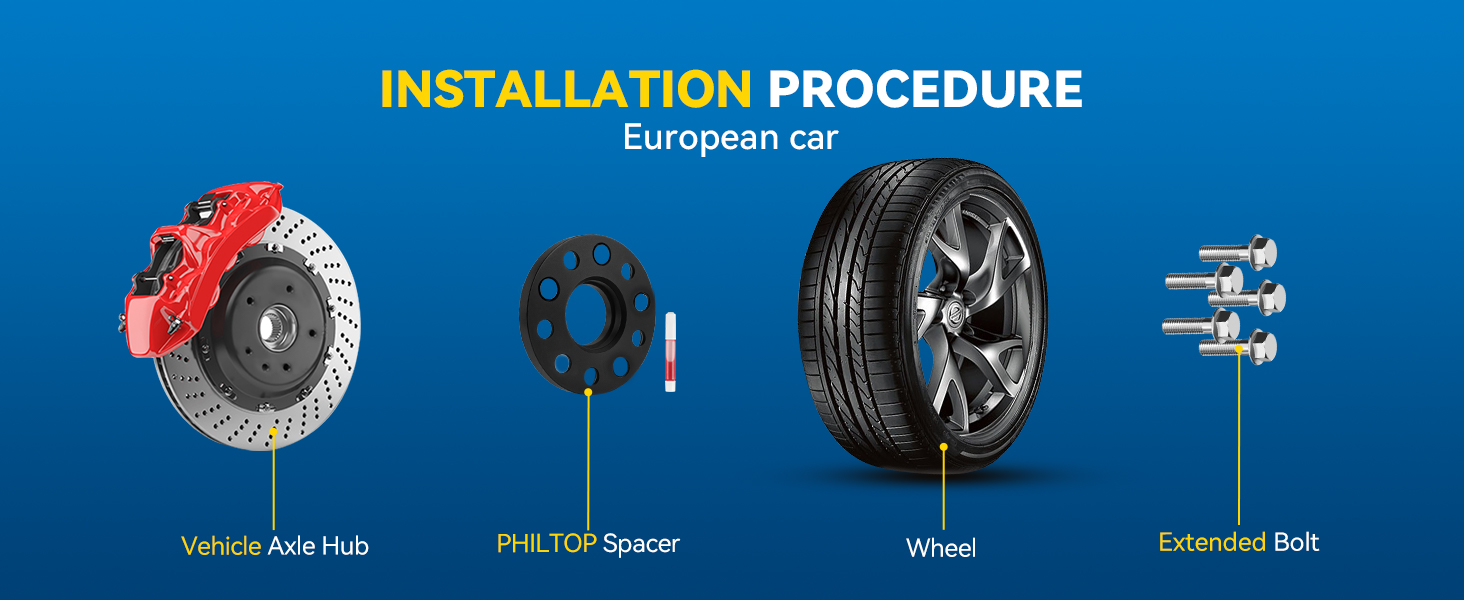

How to Install?

Installation Manual Download

User manual (PDF)
Download

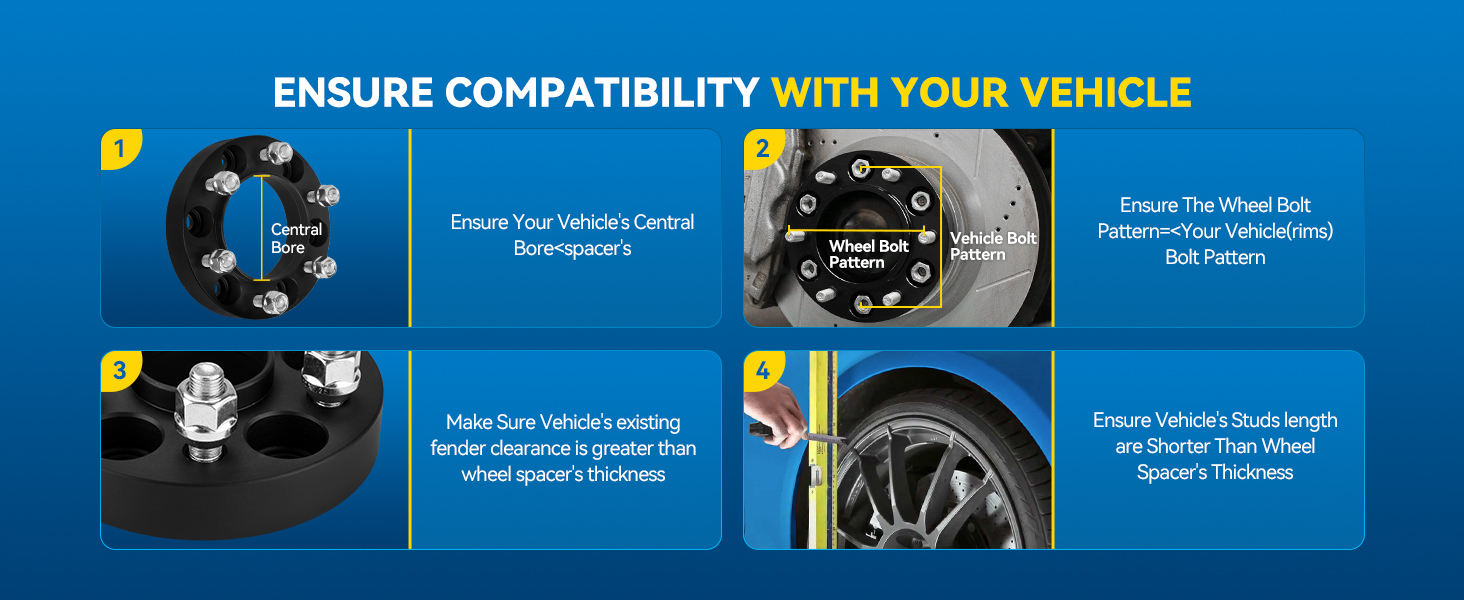

Checks Before Installation

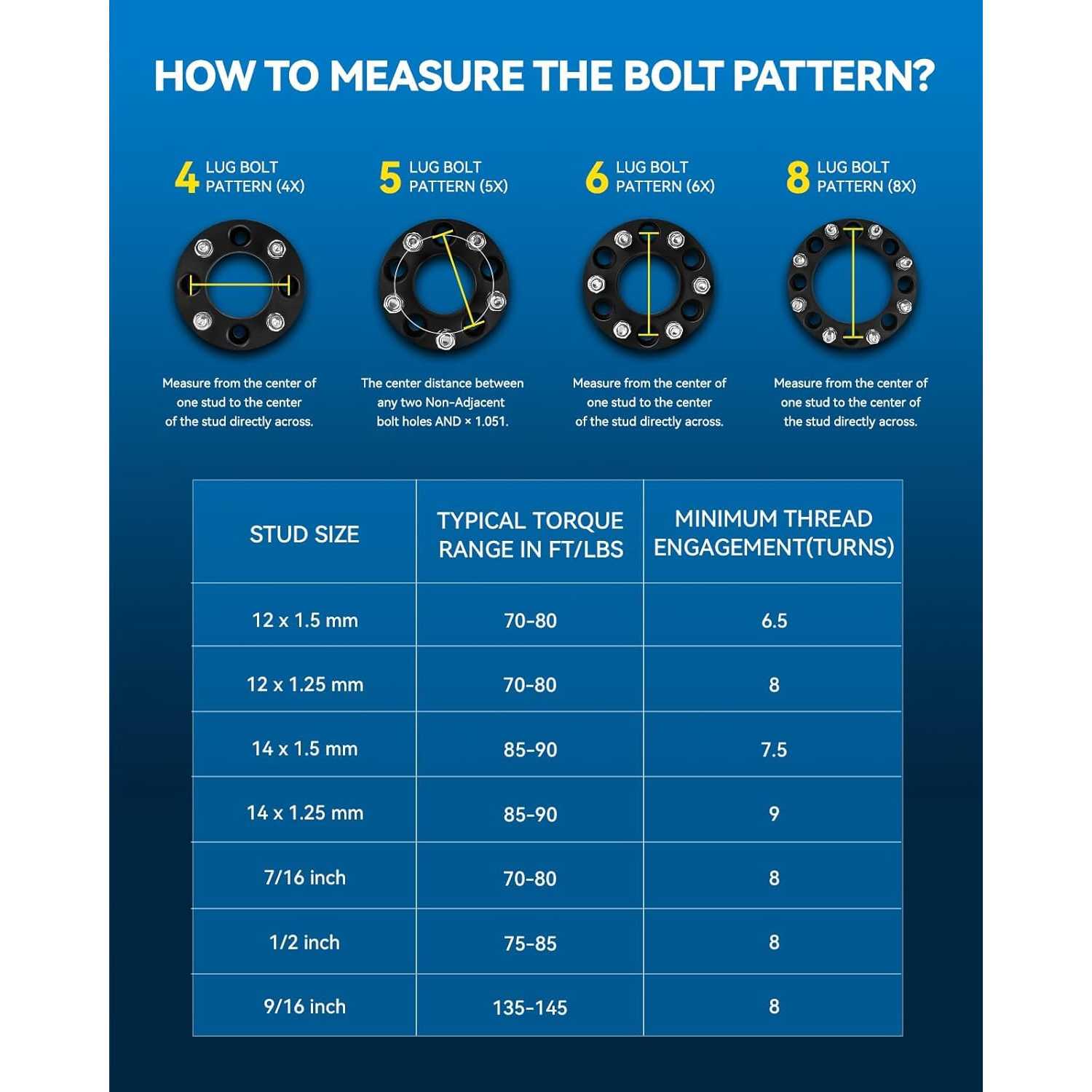

  • Measure and confirm the bolt pattern, center bore, thread size and spacer thickness before purchasing.
  • Check the stock stud length. Extended studs may be required if the original studs are too short.
  • Confirm adequate wheel-to-fender clearance.
  • Test-fit the spacer. It must sit completely flush against the hub or brake rotor with no gap.

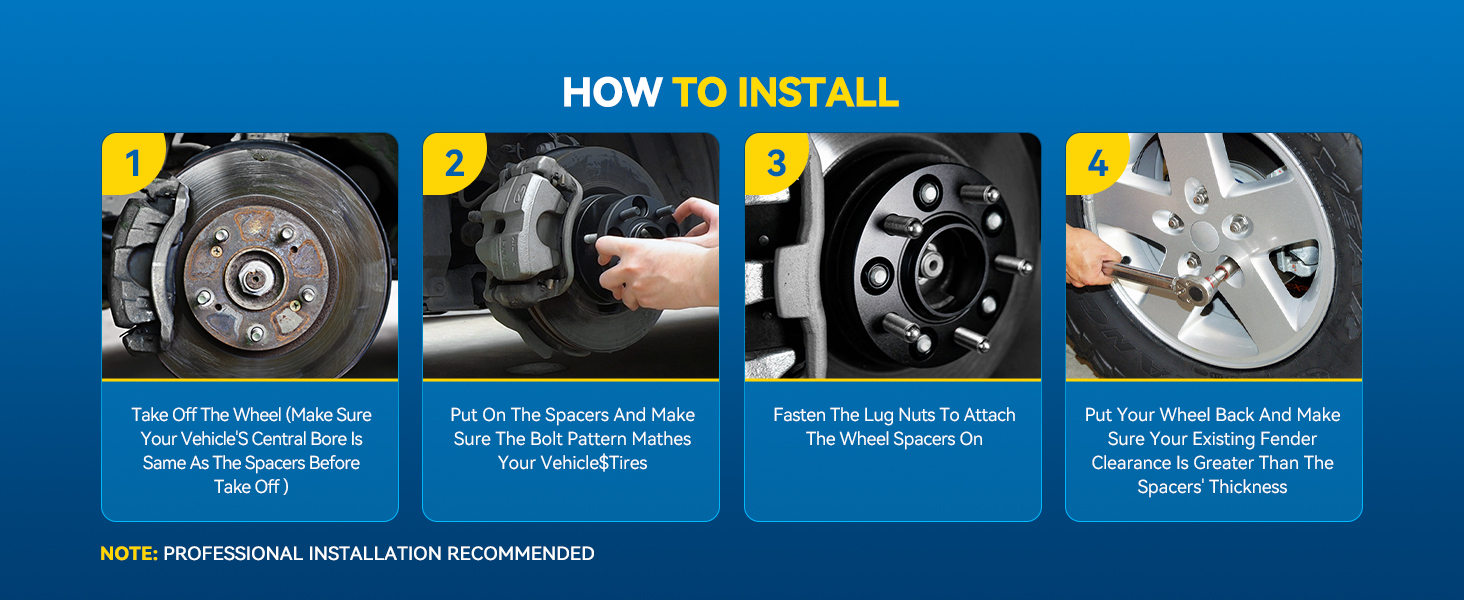

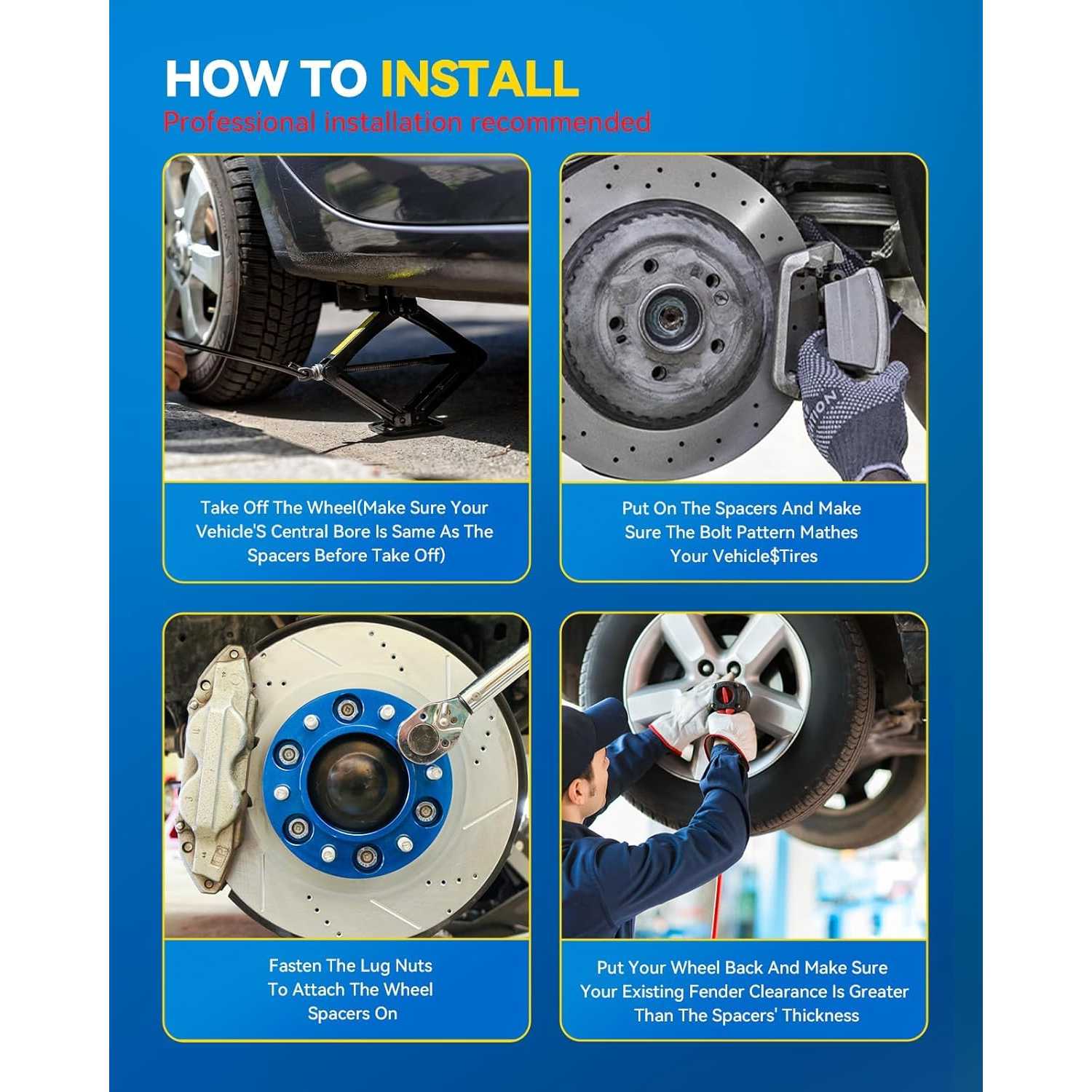

Installation Steps

  • Step-1: Clean the Mounting Surfaces:Remove all rust, dirt, oil and grease from the hub, studs and mounting surfaces.
  • Step-2: Install the Inner Plate:Position the inner plate flush against the hub. Install the open-end lug nuts with the tapered ends facing the spacer.

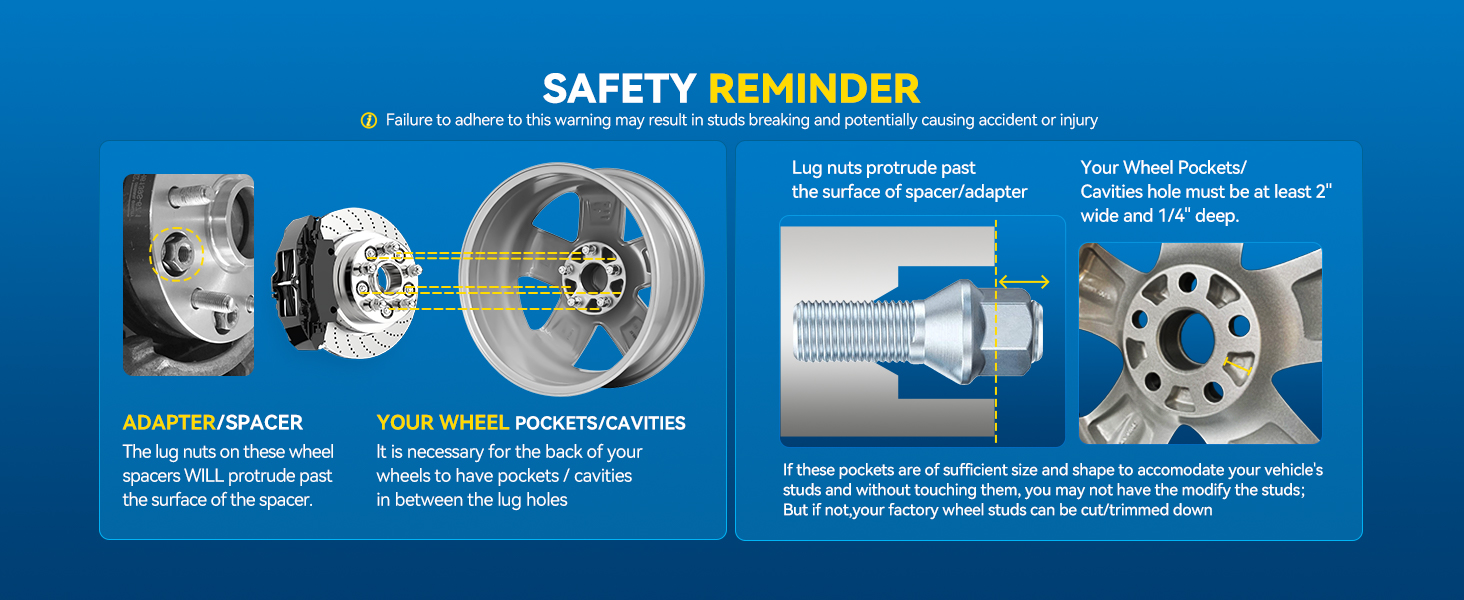

  • Step-3: Check Stud Clearance:Make sure the nuts sit flush inside the inner plate. If the stock studs interfere with the adapter or wheel, shorten or replace them as required.
  • Step-4: Install the Outer Plate:Apply thread locker to the first 5–6 threads of the connecting bolts. Install the outer plate and torque the bolts to 50–55 ft-lb (68–75 N·m).
  • Step-5: Install the Wheel:Start all lug nuts by hand and tighten them evenly in a crisscross pattern with a torque wrench. Do not use an impact wrench.

After Installation

  • Confirm that the spacer, adapter and wheel sit completely flush with no gaps or interference.
  • Check that all fasteners are secure and the wheel rotates freely.
  • Recheck the adapter nuts and bolts after the first 50–100 miles.
  • Recheck and retorque every 3,000–5,000 miles.

Product Video

Product Description

Wheel SpacerWheel Spacer

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

Emma_DailyCommute_334

04/17/2026

Got here super fast and were well protected in the box. Had a quick question about installation and the support team was awesome, answered me right away. Really happy with the whole process.

Steve_DIYer_982

02/05/2026

These spacers look great and give my Ram a much better stance. The build quality feels solid, and they were a fantastic price. Definitely a worthwhile upgrade for the look and feel of the truck.

FAQS

Definitely. By widening your vehicle’s track, PHILTOP spacers enhance stability and handling. A wider stance reduces body roll, improves tire grip, and helps your car corner more confidently.

Yes. PHILTOP products are made from high-quality materials and are manufactured to strict standards. When installed correctly by a professional and following the instructions, PHILTOP wheel spacers provide reliable and safe performance.

Choosing PHILTOP means choosing quality and peace of mind. Low-quality spacers can compromise safety, but PHILTOP products are engineered for durability and performance. Don’t compromise—trust PHILTOP for safe and high-performing wheel upgrades.
