2011-2019 Ford Explorer 2.0L/2.3L/3.5L | Pressurized w/Cap Coolant Reservoir | 603364 - PHILTOP

2011-2019 Ford Explorer 2.0L/2.3L/3.5L | Pressurized w/Cap Coolant Reservoir | 603364 - PHILTOP

Spring Loaded Twist

Pressurized

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
73ISEPT1067US

Specifications

Brand
PHILTOP
Cap Pressure Rating
16 PSI
Cap Type

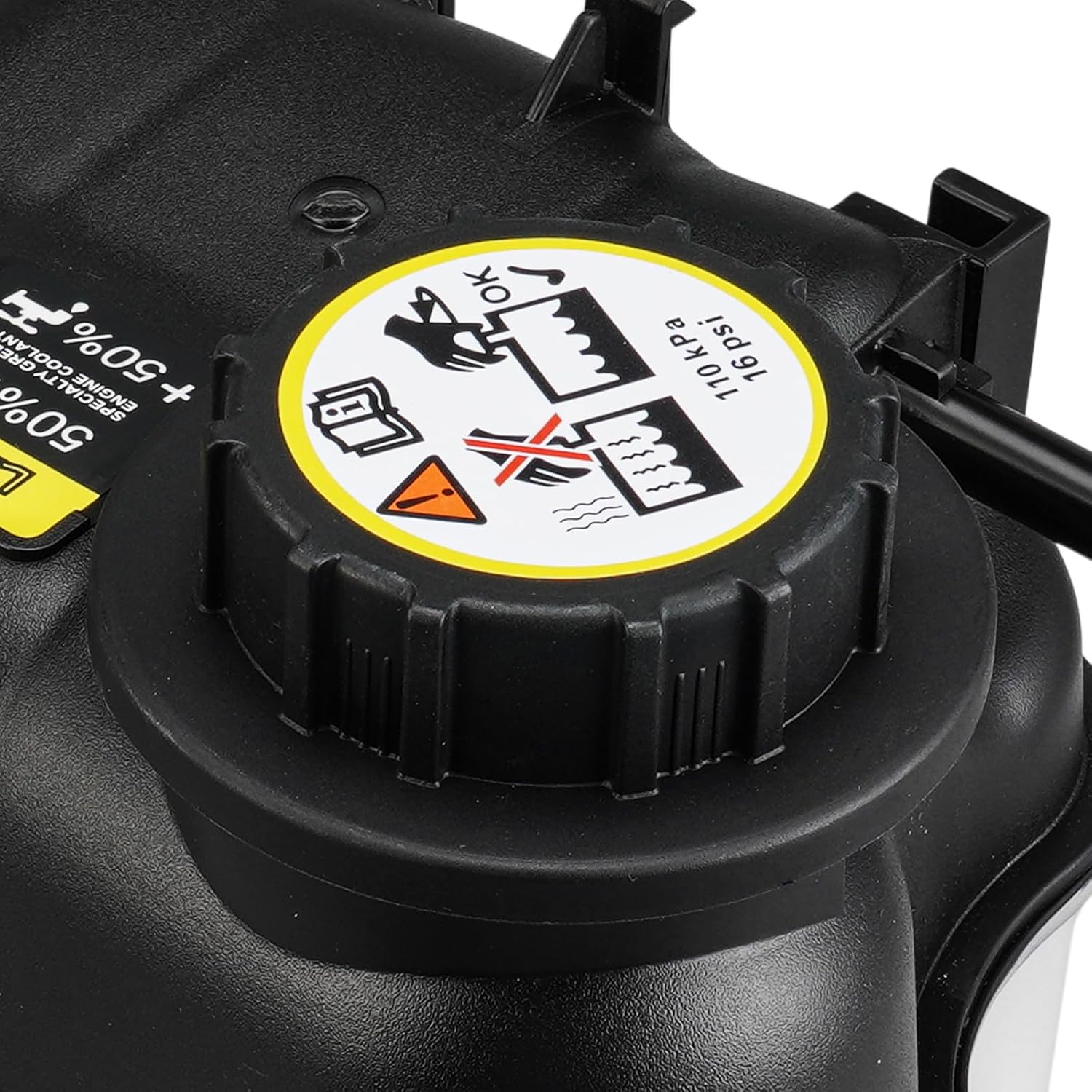

Spring Loaded Twist
Items Included
1x Coolant Reservoir with Cap - 603364
Material
Plastic
Pressurized
Yes
Cap Included
Yes
Clamps Included
No
Hose Included
No
Level Sensor Included
No
Warranty Period
2-Year
Part Number
603364

Highlights

  • Direct OE Replacement: Replaces OE# 603364, 9C3Z8101B, AG1Z8A080C, 8G1Z8A080A, AG1Z8A080A. This coolant overflow tank with cap is designed to meet OEM specifications, ensuring exact fit and seamless replacement for your vehicle. Factory-matched connections for hassle-free installation.
  • Vehicle Fitment for Coolant Expansion Tank: Compatible with Ford Explorer 2011-2019, Ford Taurus 2008-2019, Ford Police Interceptor Utility 2013-2019. Please use Philtop's vehicle fitment tool to confirm compatibility with your specific vehicle application. Check year, make, model and engine size before ordering.
  • Meeting Replacement Needs: Coolant tank reservoir crack, warp, or leak over time due to heat cycles and pressure. PHILTOP reservoir is precision-molded to replace worn, damaged or degraded original units, restoring proper coolant circulation and preventing overheating. Direct bolt-on replacement — no modification needed.
  • Premium Material: This engine coolant reservoir is constructed from plastic, rated at 16 PS for superior heat and pressure resistance. UV-stabilized and corrosion-resistant to withstand harsh engine bay conditions. Thermally cycled and pressure-tested to ensure long-lasting durability and leak-free performance.
  • Quality Assurance: We stand behind every product. If you encounter any fitment, installation, or quality issues, contact us immediately. Our technical support team will provide a prompt and satisfactory solution. Trust PHILTOP for reliable coolant reservoir components.

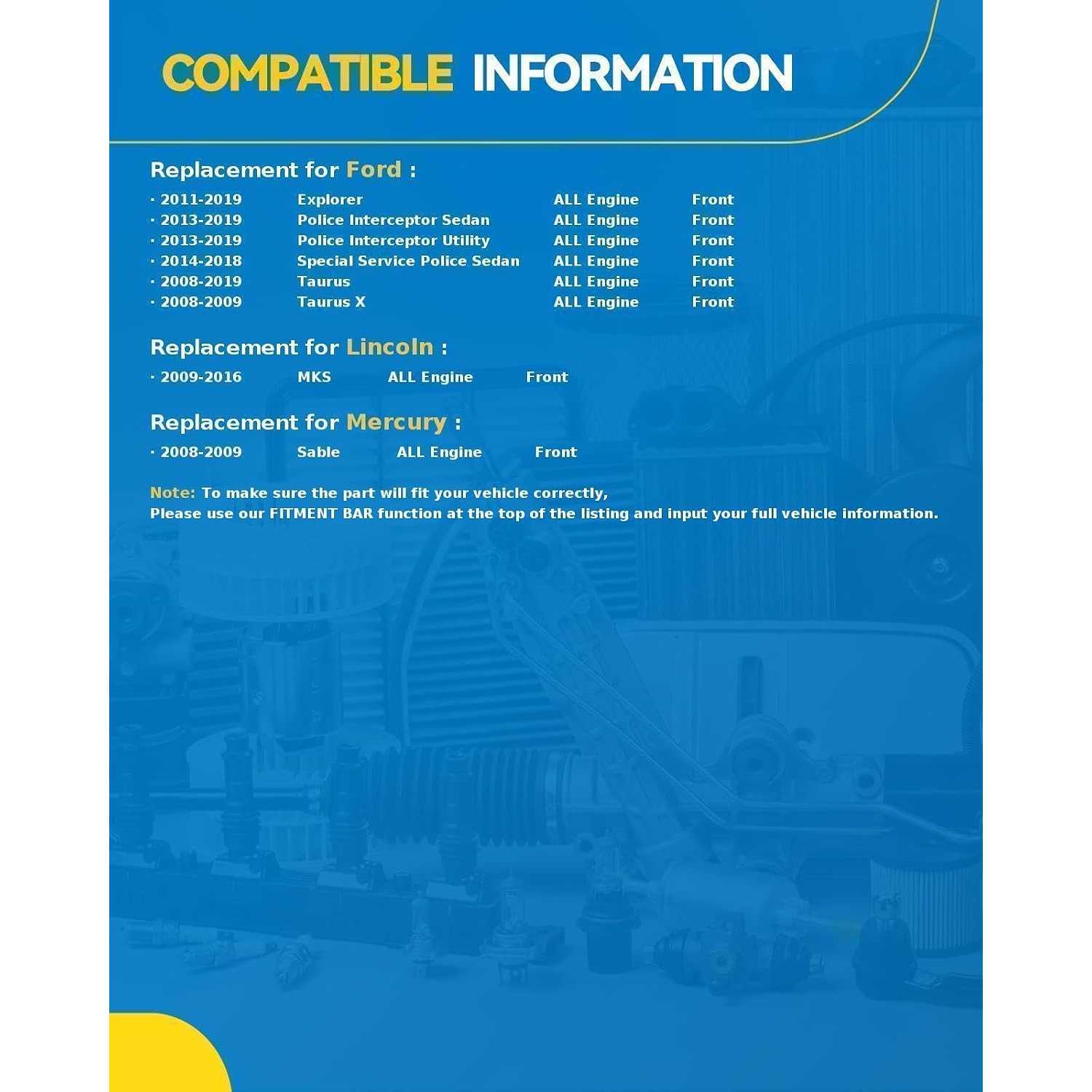

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20152016 - 20192011 - 20192012 - 20152016 - 20192011 - 20192016 - 20192013 - 20192012 - 20152016 - 20192011 - 20192013 - 20192013 - 20192014 - 20192013 - 20192014 - 20182013 - 20172008 - 20192013 - 20172009 - 20192013 - 20172008 - 20192010 - 20192008 - 20092008 - 20092008 - 20092009 - 20162010 - 20162008 - 20092008 - 2009
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnMercuryMercury
ModelExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerPolice Interceptor SedanPolice Interceptor SedanPolice Interceptor UtilityPolice Interceptor UtilitySpecial Service Police SedanTaurusTaurusTaurusTaurusTaurusTaurusTaurusTaurus XTaurus XTaurus XMKSMKSSableSable
TrimBaseBaseBaseLimitedLimitedLimitedPlatinumSportXLTXLTXLTBaseBaseBaseBaseBaseLimitedLimitedSESESELSELSHOEddie BauerLimitedSELBaseEcoBoostBasePremier
Engine2.0L L42.3L L43.5L V62.0L L42.3L L43.5L V63.5L V63.5L V62.0L L42.3L L43.5L V63.5L V63.7L V63.5L V63.7L V62.0L L42.0L L43.5L V62.0L L43.5L V62.0L L43.5L V63.5L V63.5L V63.5L V63.5L V63.7L V63.5L V63.5L V63.5L V6
Note------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the new tank, hose connections, cap and level sensor match the original.
  • Install only when the engine is completely cold. Never open a hot cooling system.
  • Prepare coolant matching the vehicle’s original specification and color.
  • Inspect the cap, hoses and clamps. Replace cracked, hardened or aged hoses before installation.

Installation Steps

  • Step-1: Remove the Coolant:Remove the coolant from the old tank or carefully disconnect the lower hose and collect the coolant.
  • Step-2: Disconnect the Tank:Release the clamps, gently twist off the hoses and disconnect the level-sensor plug. Do not pry the hoses with a screwdriver.
  • Step-3: Install the New Tank:Align the mounting tabs and hand-start the bolts before tightening. Do not use power tools on the plastic tank.
  • Step-4: Secure the Connections:Push each hose fully past the raised bead and secure its clamp. Do not overtighten clamps, as excessive force may crack the plastic neck. Firmly pull and move each hose by hand to confirm it cannot loosen.
  • Step-5: Refill the Coolant:Add coolant matching the original specification and color until the level is between MIN and MAX. Do not overfill.
  • Step-6: Bleed as Required:Bleed the cooling system after installing a non-pressurized tank. A pressurized expansion tank generally does not require separate bleeding, unless the vehicle manufacturer specifies otherwise.

After Installation

  • Confirm the cap is fully seated and all hoses, clamps and bolts are secure.
  • Start the engine and inspect every connection for leaks.
  • Allow the engine to reach operating temperature and monitor the coolant temperature.
  • After the engine cools completely, recheck the coolant level and adjust it between MIN and MAX.
  • Clean spilled coolant immediately and keep it away from children and pets.
