Brushless Motor

Control Module Included

2200 rpm

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
94ISCFK4737US

Specifications

Brand
PHILTOP

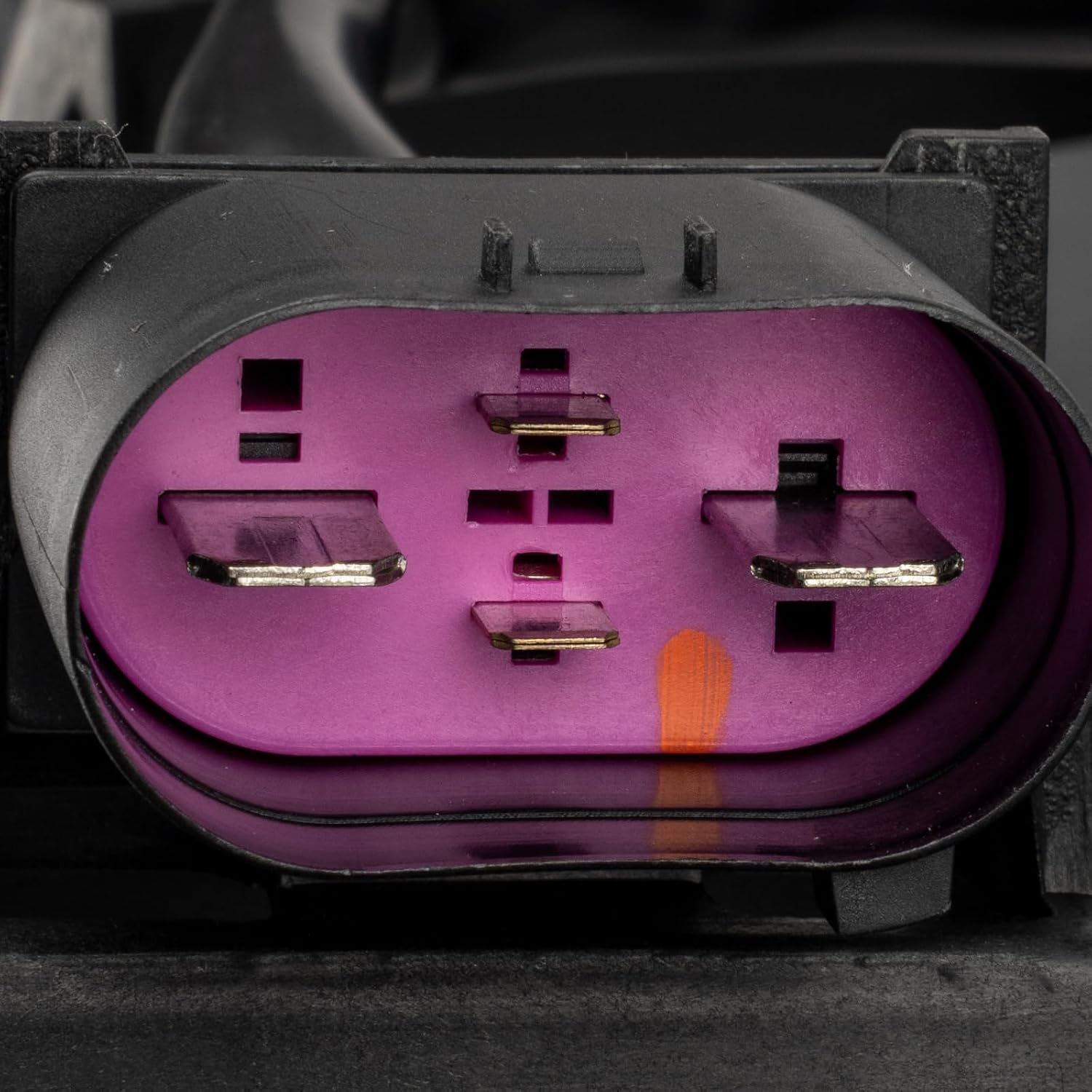

Power Connector Type
4-Pin
Maximum Speed
2200 rpm
Motor Type
Brushless
Control Module Included
Yes
Voltage
13.5 V
Material
Plastic and Copper
Items Included
1x Engine Radiator Cooling Fan - 624520
Cooling Method
Air
Warranty Period
2-Year
Part Number
624520

Highlights

  • #14,176 in Automotive (See Top 100 in Automotive)
  • #10 in Automotive Replacement Engine Fans
  • [Vehicle Fitment] This engine cooling fan is compatible with [Jeep] 2017 Compass 2.4L Sport, 2017-2022 Compass Limited/Trailhawk, 2018-2022 Compass Sport/Altitude, 2019-2020 Compass High Altitude, 2021-2022 Compass Red/Upland/80th Anniversary. Select your exact Year/Make/Model and click "Confirm" to ensure perfect compatibility
  • [OEM Replacement] This radiator fan replaces OEM part numbers 624520, CH3115193, 68249185AD, CH3115193P, CH3115193N, CH3115193DSC, CH3115193D, CH3115193C. Motor type: Brushless; Control module: Includes; Voltage: 13.5V; Wattage: 340W; Maximum Rotational: 2200 rpm; Material: Plastic + Copper + Iron; Power Connector Type: 4 Pin
  • [Superior Performance] This engine radiator cooling fan assembly features a high-performance motor that delivers excellent cooling, improves engine efficiency, and provides stable and powerful airflow for your daily driving and air conditioning loads
  • [Quiet and Durable] Balanced fan blades and a tested motor design help reduce vibration and operating noise. This cooling fan assembly all components are made of high-quality, corrosion-resistant, and high-temperature-resistant materials, ensuring stable and durable heat dissipation in various environments
  • [Easy Installation] Our engine fans are manufactured to original equipment manufacturer (OEM) standards, using the same materials and components as the original, and passed multiple professional tests, it perfectly replaces original parts, requiring no modifications and allowing for easy installation. We offer a two-year quality guarantee and comprehensive after-sales support. Please contact us anytime if you have any questions

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20212019 - 20222019 - 202020222017 - 202220222017 - 202220222017 - 20222017 - 20222019
MakeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassCompass
Trim80th AnniversaryAltitudeHigh AltitudeHigh AltitudeLatitudeLatitude LuxLimitedRedSportTrailhawkUpland
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note-----------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Match the part number, mounting points, connectors, and fan dimensions.
  • Inspect the assembly: Check blades, shroud, and connector pins for damage.
  • Check related circuits: Inspect fuses, relays, wiring, and power supply before replacing the fan.

Installation Steps

  • STEP 1 — Park securely, let the engine cool, and disconnect the negative battery cable according to the vehicle’s service procedure. The fan may start automatically when connected.
  • STEP 2 — Unplug the electrical connectors and release the wiring harness from its clips.
  • STEP 3 — Support the fan assembly, remove its fasteners, and carefully lift it out without damaging the radiator.
  • STEP 4 — Position the new assembly and tighten fasteners to vehicle specifications.
  • STEP 5 — Secure the wiring away from blades and hot surfaces, then fully lock the connectors.
  • STEP 6 — With power still disconnected, check that the blades rotate freely without contacting the radiator or shroud.

After Installation

  • Reconnect the battery and warm the engine to operating temperature.
  • Verify fan operation and speed response, including operation with the A/C on, as specified for the vehicle.
  • Check for unusual noise, vibration, or warning lights.
  • Confirm normal engine temperature during a short test drive.

Product Description

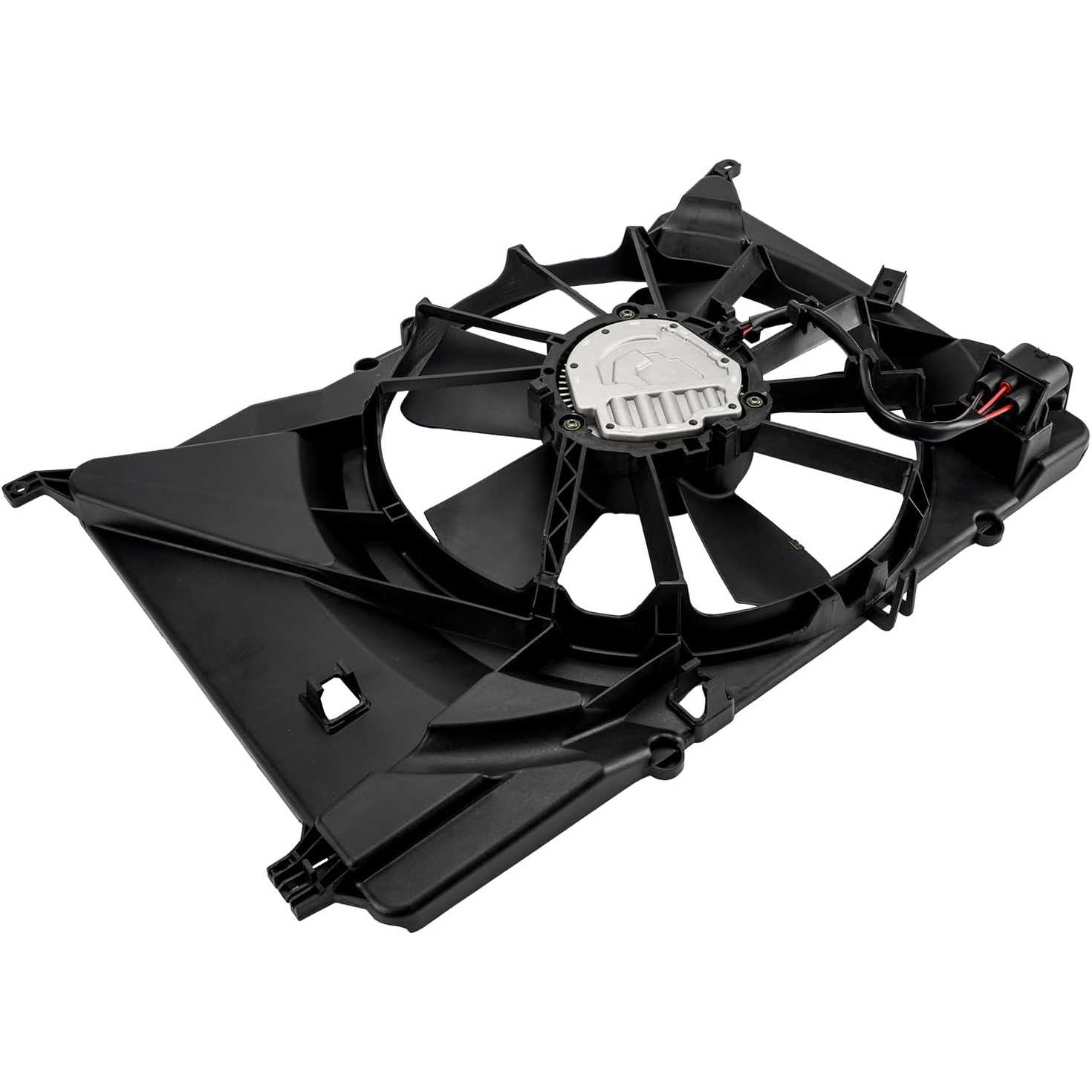

Engine Radiator Cooling Fan AssemblyEngine Cooling Radiator Fan Assembly

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

CarGuy_John_876

04/03/2026

Got this fan assembly in just a couple of days, which was awesome. It was well-protected in transit. Customer service was really helpful when I reached out. Thumbs up!

Rob_HomeGarage_66

03/27/2026

The fan arrived quickly and was packaged nicely. I had a question about installation, and customer service was super helpful and responsive. Works perfectly on my Compass.

FAQS

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.

Unused products may be eligible for return according to the Philtop return policy. Please keep the product and packaging in their original condition and contact us before sending it back.

Confirm that the wiring is secure, the blades rotate freely, and the fan does not contact nearby parts. Verify fan operation under the appropriate vehicle conditions.
