2003-2007 Nissan Murano 3.5L V6 | New A/C Compressor | OE#926005Z010/68465 - PHILTOP

2003-2007 Nissan Murano 3.5L V6 | New A/C Compressor | OE#926005Z010/68465 - PHILTOP

PAG

DKS17D

R134a

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
75ISACC4807US

Specifications

Brand
PHILTOP
Oil Type
Pag 46
Compressor Type
DKS17D
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R134a
Pulley Groove Count
6
Items Included
1x A/C Compressors & Clutches - 68465,1x Manual
Material
Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
4.69 in/119.13 mm
Mounting Distance
0.08 in/2 mm
Maximum Working Pressure
22 bar
Warranty Period
2-Year
OE Number
926005Z010,926005Z01A,926005Z01B,92600CA01C,926005Z000,92000CA01C,92000CA010,92600CA01A,92600CA010,92600CA01B,2011281
Part Number
68465,638779,10000649,6512329,0610154,813111,140683NEW,4715011,98909,5512329,2011567AM,700708,10000662,TEM275528,2011281R,140683C,140683NC,97909,4715022,2011567,140682,140683,C1861,7512480,2022045,140214

Highlights

  • Ensures Fast Refrigeration And Defogging: ①Oil Type:PAG 46;②R-efrigerant Type:R134a;③Pulley Grooves: 6;④Pulley Diameter:4.69 inch ;⑤Compressor type:DKS17D;⑥Pulley type:Multi-Groove Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • Widely Compatible: PHILTOP AC Compressor with Clutch Compatible withMurano 2003-2007, Quest 2004-2009.Please confirm your vehicle details and old part number before ordering.
  • Guaranteed Compatibility : Replaces OEM part numbers:6512329,5512329,4715011,2011567AM,700708,0610154,97909,7512329,2011567,10000662,140682,140683,CO10863JC,0610163,926005Z000,813111,TEM275528,2011281R,140683C,140683NC,92000CA01C,92000CA010,7512221,92600CA01A,92600CA010,92600CA01B,926005Z010,926005Z01A,926005Z01B,68465,2011281,638779,10000649,275528,4715022,92600CA01C,98909,140683NEW,610154,C1861,7512480,2022045,140214,CO10863V,208344,11168465
  • STRONG COOLING FUNCTION: The auto ac compressor can provide sufficient pressure, which increases power force and decreases engine load. It dramatically improves the cooling function: features as high and stable efficiency, safety, and reliability
  • LOW NOISE & LOW FUEL CONSUMPTION: AC compressor works excellent and has low noise with a better experience. With a lower load factor, low power will be input when driving at high speed, which increases fuel economy and makes operation smoothly

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20072003 - 20072003 - 20072005 - 20092004 - 20092004 - 20092004 - 2009
MakeNissanNissanNissanNissanNissanNissanNissan
ModelMuranoMuranoMuranoQuestQuestQuestQuest
TrimSSESLBaseSSESL
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor
w/ DKS17D Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

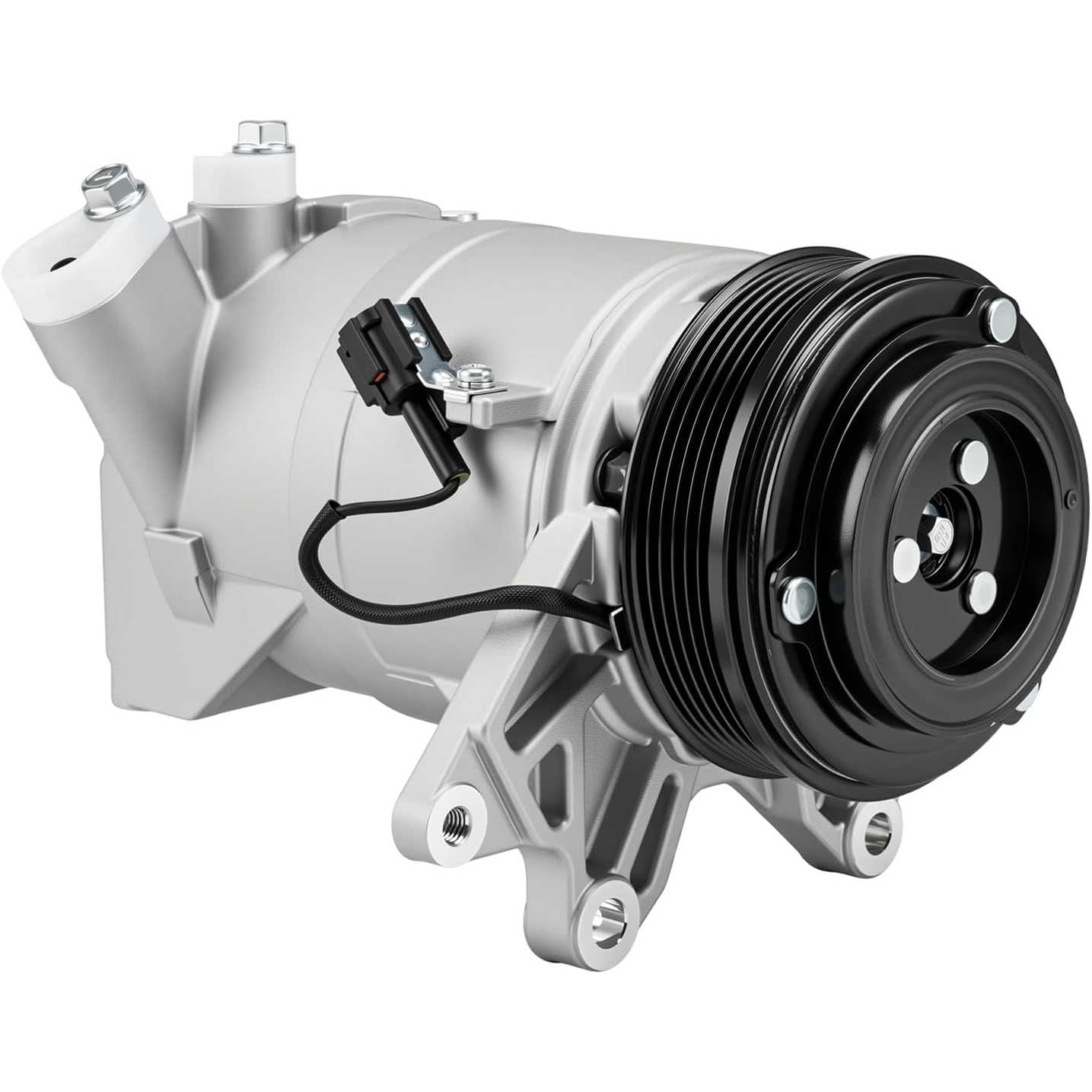

PHILTOP AC CompressorAC Compressor

Reviews

4.3/5

Based on 4 reviews

550%
425%
325%
20%
10%

Steve_DIYer_588

06/26/2026

Looks exactly like the original, and the price was a steal. My AC is blowing ice cold again, and I couldn't be happier with the value. Highly recommend.

Tom_Handy_364

03/02/2026

This compressor was a perfect fit and installation was smoother than I expected. It's running strong and quiet, a definite upgrade from my old one. Very satisfied.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Warranty coverage and duration may vary by product. For specific warranty period details by product category, please refer to our Warranty & Returns Policy page. Damage related to incorrect fitment, installation or other vehicle problems may require further review.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
