2007-2012 Audi A8 Quattro 4.2L V8 | 7SEU17C New A/C Compressor | OE#4F0260805L/98392 - PHILTOP

2007-2012 Audi A8 Quattro 4.2L V8 | 7SEU17C New A/C Compressor | OE#4F0260805L/98392 - PHILTOP

PAG

7SEU17C

R134a

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
63ISACC5697US

Specifications

Brand
PHILTOP
Oil Type
Pag 46
Compressor Type
7SEU17C
Belt Type
No Belt
Refrigerant Type
R134a
Items Included
1x A/C Compressors & Clutches - 98392,1x Manual
Material
Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
3 Tangent One On Rear Head
Maximum Working Pressure
20 bar
Warranty Period
2-Year
OE Number
4F0260805L,4E0260805AS,4F0260805AD,4E0260805Q,4F0260805AH,4E0260805AM,8K0260805H,420260805A,8E0260805AE,4Z7260805F,4F0260805E,4Z7260805E,4Z7260805D,8K0260805B,4H0260805G
Part Number
98392,140401NEW,6512759,648382,89418,C2113,2021181AM

Highlights

  • Ensures Fast Refrigeration And Defogging: ①Oil Type:PAG 46;②R-efrigerant Type:R134a;③Pulley Grooves: /;④Pulley Diameter:/ inch ;⑤Compressor type:7SEU17C;⑥Pulley type:No Belt;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • Widely Compatible: PHILTOP AC Compressor with Clutch Compatible withA6 Quattro 2006-2007, 2005, 2008-2011 4.2L, A8 Quattro 2008, 2010-2012, 2007, 2009 4.2L, S5 2008-2009, 2010-2012 4.2L, S4 2004-2009, R8 2008-2012, 2014-2015, Q7 2007-2010 4.2L, RS5 2013-2015, S8 2007-2009, 2013-2014, RS4 2007-2008, S6 2007-2011, A6 2006-2007, Touareg 2008-2009 4.2L, Allroad Quattro 2004-2005 4.2L.Please confirm your vehicle details and old part number before ordering.
  • Guaranteed Compatibility : Replaces OEM part numbers:140401NEW,89418,4H0260805G,4F0260805F,4F0260805D,6512759,4F0260805L,4E0260805AS,4F0260805AD,4E0260805Q,648382,4F0260805AH,98392,4E0260805AM,8K0260805H,420260805A,8E0260805AE,4Z7260805F,4F0260805E,4Z7260805E,4Z7260805D,8K0260805B,2021181AM,2021783AM,C2113,2021181R.Verify your vehicle info using the Philtop compatibility checker.
  • Fully Tested & Easy Installation: The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor.
  • Low Noise & Low Fuel Consumption: AC compressor works excellent and has low noise with a better experience. With a lower load factor, low power will be input when driving at high speed, which increases fuel economy and makes operation smoothly.

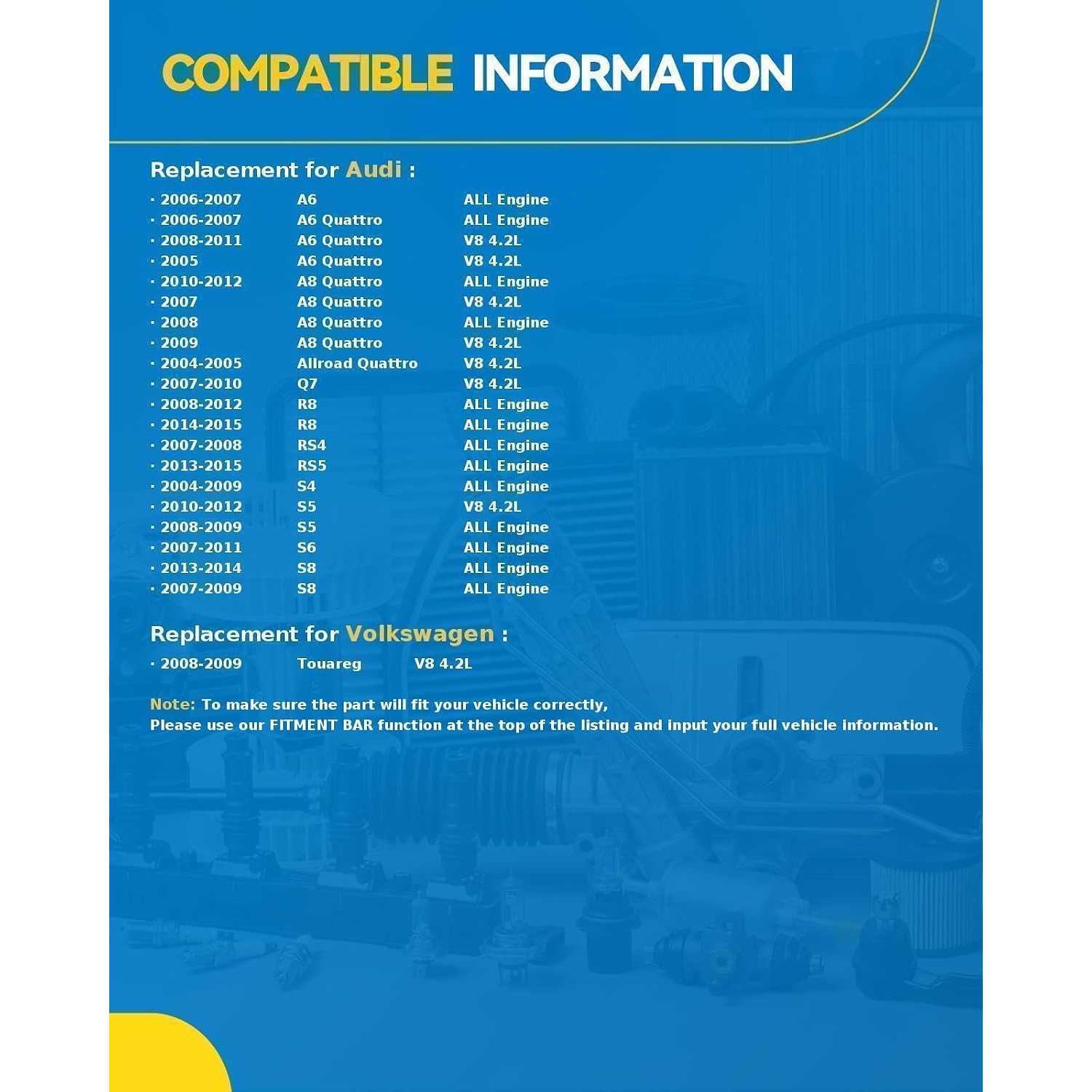

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2006 - 20072006 - 20072006 - 200720052006 - 20112007 - 20122007 - 2012200820122004 - 200520072007 - 200920102008 - 20122014 - 20152009 - 20122014 - 2015201220122014 - 20152011 - 20122014 - 20152011 - 20122014 - 20152007 - 200820082013 - 20152014 - 20152004 - 20082004 - 20082004 - 20092008 - 20122007 - 20112013 - 20142007 - 20092008 - 2009
MakeAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiVolkswagen
ModelA6A6 QuattroA6 QuattroA6 QuattroA6 QuattroA8 QuattroA8 QuattroA8 QuattroA8 QuattroAllroad QuattroQ7Q7Q7R8R8R8R8R8R8R8R8R8R8R8RS4RS4RS5RS5S4S4S4S5S6S8S8Touareg
TrimBaseAvantBaseBaseBaseBaseLLL W12BaseBasePremiumPrestigeBaseBaseBaseBaseGTGT SpyderPlusSpyderSpyderSpyderSpyderBaseCabrioletBaseCabrioletAvantBaseCabrioletBaseBaseBaseBaseBase
Engine3.2L V63.2L V63.2L V64.2L V84.2L V84.2L V84.2L V86.0L W126.3L W124.2L V84.2L V84.2L V84.2L V84.2L V84.2L V85.2L V105.2L V105.2L V105.2L V105.2L V104.2L V84.2L V85.2L V105.2L V104.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V85.2L V104.0L V85.2L V104.2L V8
Note
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor;New w/ Clutch
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor;New w/ Clutch
w/ 7SEU17C Compressor
w/ 7SEU17C Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

PHILTOP AC CompressorAC Compressor

Reviews

4.4/5

Based on 5 reviews

560%
420%
320%
20%
10%

Mike from Texas_72

11/13/2025

Arrived super fast and was packaged with care. I had a question about the install and customer service was on point. Really pleased with the speed and support.

Rob_HomeGarage_457

04/14/2026

This compressor was a perfect fit and went in without any major headaches. It's performing great so far. A much better deal than I expected.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.
