2006 BMW 325i/330i 3.0L | A/C Condenser w/Receiver Drier | OE#64504270545/73443 - PHILTOP

2006 BMW 325i/330i 3.0L | A/C Condenser w/Receiver Drier | OE#64504270545/73443 - PHILTOP

Receiver Drier Included

Leak-Tested

Precision Fit

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
71ISEWL1627US

Specifications

Brand
PHILTOP
Refrigerant Type
R134A
Receiver Drier Included
Yes
Outlet Type
Block Fitting
Inlet Type
Block Fitting
Items Included
1x A/C Condenser - 7-3443
Material
Aluminum Alloy
Manufacturing Process
Machined
Quantity
1
Color
Silver
Warranty Period
2-Year
OE Number
64504270545,64539229022,64536930040,64509169791,64539206297,64539206300,64509169772,64536930038,6930038
Part Number
73443,40200,4770783,313443,2462188,3443C,KLI3443,SBC3443,BES3443,35743,6561,1040458,PC3443P,203443,670800093,3443AM,NC3443A

Highlights

  • Specifications & Compatibility: ①Built-in Receiver Dryer: Yes; ②Core Length (IN): 23.63; ③ Core Width (IN): 15.52; ④ Core Thickness (IN): 0.62; ⑤R-efrigerant Type: R134A; ⑥Fitting Type: Block Fitting; ⑦PHILTOP AC Condenser Replacement Compatible with 328i 2012-2013 3.0L, 2007-2011, 328i xDrive 2009-2013, X1 2012, 2013-2015 2.0T, 325i 2006, 128i 2008-2013, 328xi 2007-2008, M3 2008-2013, 330i 2006, 325xi 2006, 330Ci 2006, 330xi 2006, 325Ci 2006, Z4 2009-2011 3.0L, 135is 2013. Please Confirmed PhiltopConfirmedFit Before Ordering
  • Meet OE Standard: Manufacturer PartNumber 64539229022, 64504270545, 64536930040, 64509169791, 73443, 64539206297, 64539206300, 64509169772, 40200, KLI3443, 64536930038, 6930038, SBC3443, 4770783, BES3443, 313443, 35743, 6561, 1040458, PC3443P, 203443, 3443C, 2462188, 670800093, 3443AM, NC3443A
  • EFFICIENT COOLING CAPACITY: Using light and thin aluminum tubes to maximize heat transfer without compromising strength. The air conditioner condenser can cool the air inside the car quickly, even in hot environments. This improves your comfort in the car, especially in summer and hot weather
  • STURDY CONSTRUCTION: Our automobile air conditioning condenser employs cutting-edge technology, capable of rapidly and effectively reducing the temperature inside the vehicle. It is crafted with high-quality materials and meticulous craftsmanship, possessing excellent durability and reliable performance, ensuring long-term stability in operation
  • FUNCTION: The A/C condenser is the hot side of an air conditioning system, liquefying the steam refrigerant while dissipating heat. If there is a bad noise and the cooling performance of the vehicle is simply reduced, or a leak in your condenser unit, then you should replace the air conditioning condenser unit. (Make sure you drain the refrigerant before replacing the condenser unit)

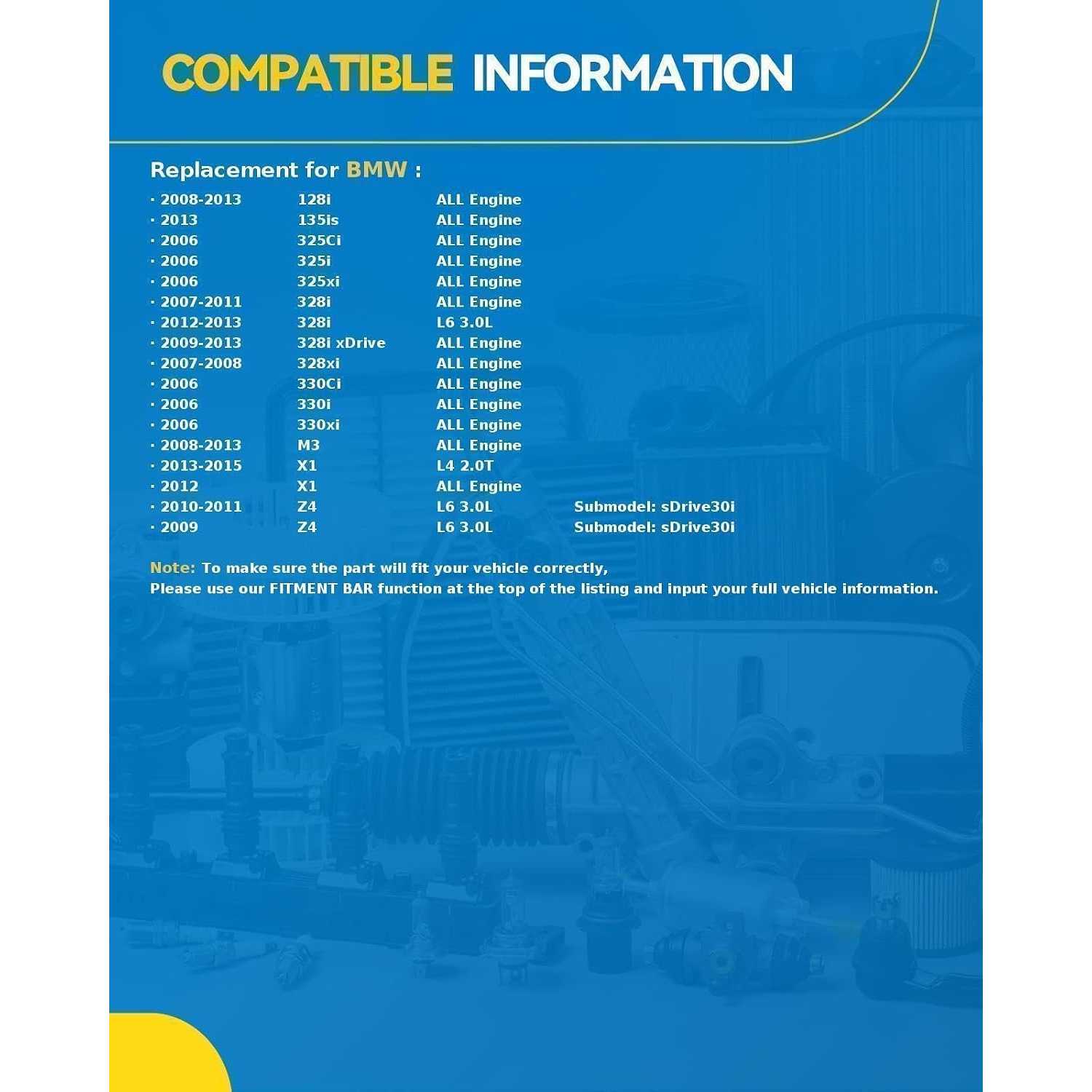

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 201320132006200620062007 - 201320132009 - 20132007 - 20082006200620062008 - 20132013 - 20152012 - 201520092010 - 2011
MakeBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMW
Model128i135is325Ci325i325xi328i328i xDrive328i xDrive328xi330Ci330i330xiM3X1X1Z4Z4
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBasesDrive28ixDrive28isDrive30isDrive30i
Engine3.0L L63.0L L62.5L L63.0L L63.0L L63.0L L62.0L L43.0L L63.0L L63.0L L63.0L L63.0L L64.0L V82.0L L42.0L L43.0L L63.0L L6
Note
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
with Receiver Drier
From 02/2009;with Receiver Drier
with Receiver Drier

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the condenser matches the vehicle, refrigerant type, inlet and outlet fittings, mounting holes and receiver-drier configuration.
  • Inspect the condenser for bent fins, cracked tubes or shipping damage.
  • Confirm whether the vehicle uses R134a or R1234yf. These refrigerants are not interchangeable.
  • Have a qualified technician recover the refrigerant before disconnecting any A/C line.
  • Keep all refrigerant lines sealed to prevent moisture and dirt from entering the system.

Installation Steps

  • Step-1: Recover the refrigerant with approved equipment and disconnect the negative battery cable.
  • Step-2: Disconnect the refrigerant lines and cap every opening immediately.
  • Step-3: Remove the cooling fan, shroud and condenser mounting bolts as required.
  • Step-4: Remove the old condenser without damaging the radiator or refrigerant lines.
  • Step-5: Replace all opened refrigerant-line O-rings with new ones. Never reuse old O-rings.
  • Step-6: Replace the receiver drier or desiccant whenever required. If it is integrated into the condenser, install a condenser with a new receiver drier.
  • Step-7: Lightly lubricate new O-rings with the correct PAG oil, then hand-start the refrigerant fittings.
  • Step-8: Tighten all fittings and mounting bolts to specification. Reinstall the fan, shroud and electrical connections.
  • Step-9: Evacuate the system and perform a vacuum-hold test before charging.

After Installation

  • Charge the exact refrigerant type and specified amount listed by the vehicle manufacturer. Add only the specified type and amount of PAG oil.
  • Do not charge the system based only on pressure readings.
  • Check all fittings for refrigerant or oil leakage.
  • Run the A/C at maximum cooling and verify high-side and low-side pressures.
  • Confirm the cooling fan operates and the vent temperature drops normally.
  • Check that condenser airflow is unobstructed and no warning lights are present.

Product Description

CondenserCondenser

Reviews

4.7/5

Based on 7 reviews

571%
429%
30%
20%
10%

Rob_HomeGarage_851

10/24/2025

Looks and feels like a quality part, very impressed for the price. My AC is working great, so it was a fantastic deal. Highly recommend if you need a replacement.

Brad_AutoParts_613

03/14/2026

Install was pretty easy, everything lined up great. Definitely a lot cheaper than the OEM part, and I'm not noticing any difference in performance. Good buy.
