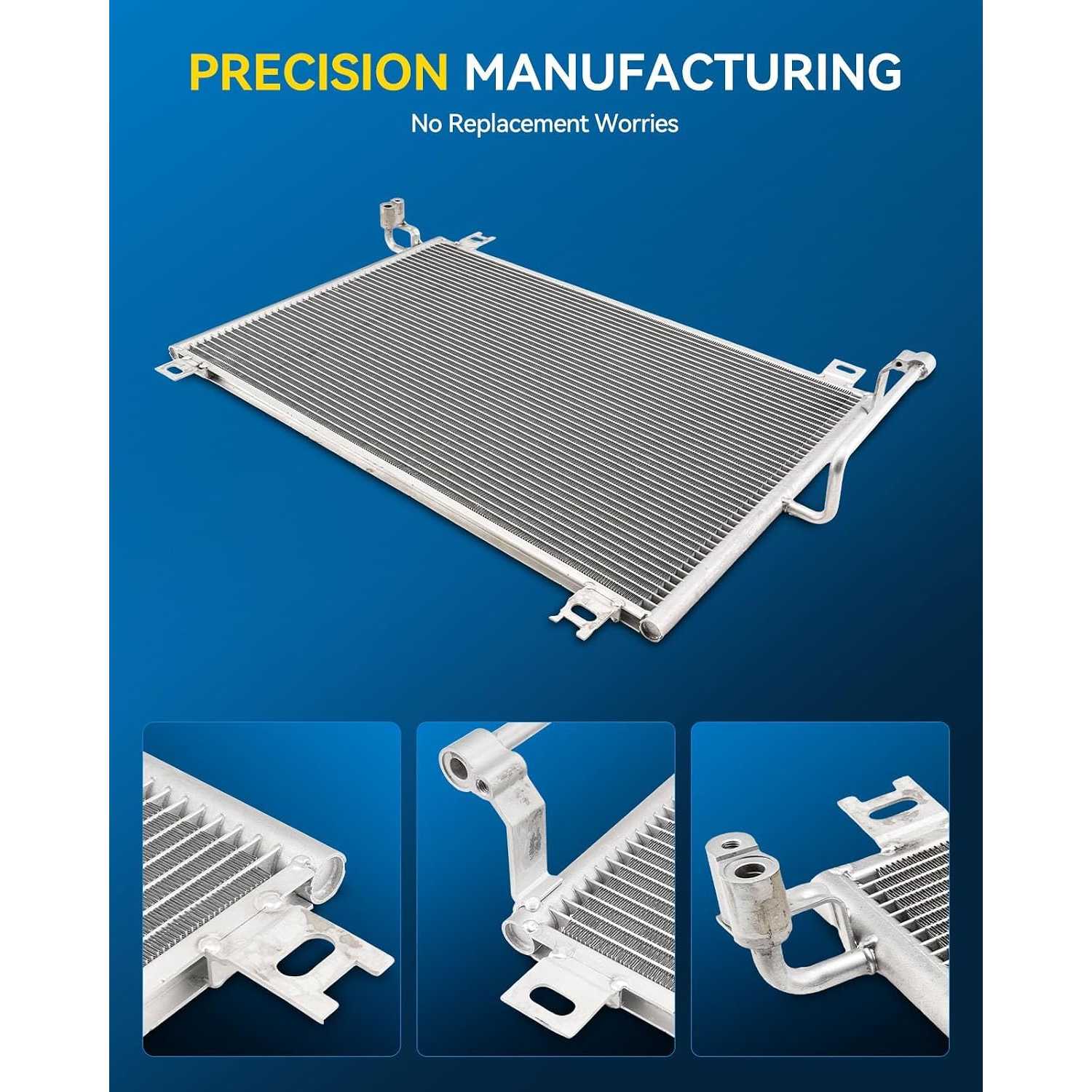

2002-2009 Chevrolet Trailblazer 4.2L L6/5.3L V8/6.0L V8 | A/C Condenser | OE#89019255/73054 - PHILTOP

2002-2009 Chevrolet Trailblazer 4.2L L6/5.3L V8/6.0L V8 | A/C Condenser | OE#89019255/73054 - PHILTOP

Leak-Tested

Precision Fit

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
52ISEWL3097US

Specifications

Brand
PHILTOP
Refrigerant Type
R134A
Receiver Drier Included
No
Outlet Type
Block Fitting
Inlet Type
Block Fitting
Items Included
1x A/C Condenser - 73054
Material
Aluminum Alloy
Manufacturing Process
Machined
Quantity
1
Color
Silver
Warranty Period
2-Year
OE Number
89019255,8890192550,89019055,52495585,8103714320,8524955850,10371432,15162214,8158776440,8890225560,8890190550,89022556,15877644
Part Number
73054,3054C,2433128,40040,4770832,313054,2319,1040265,KLI3054,AC3054,SBC3054,1562695,640298,93054,203054U,C6107B,203054,P40265,PC3054P,80312,BES3054,670800574,AC40265,3054AM,NC3054B,350138,814123

Highlights

  • Specifications & Compatibility: ①Built-in Receiver Dryer: No; ②Core Length (IN): 26.91; ③ Core Width (IN): 17.08; ④ Core Thickness (IN): 0.7; ⑤R-efrigerant Type: R134A; ⑥Fitting Type: Block Fitting; ⑦PHILTOP AC Condenser Replacement Compatible with Trailblazer 2002-2009, Envoy 2002-2009, Trailblazer EXT 2002-2006, Envoy XL 2002-2006, Rainier 2004-2007 4.2L, Envoy XUV 2004-2005, Bravada 2002-2004, Ascender 2007-2008, 2003-2006 4.2L, 9-7x 2005-2009 4.2L. Please Confirmed PhiltopConfirmedFit Before Ordering
  • Meet OE Standard: Manufacturer PartNumber 313054,89019255,KLI3054,BES3054,3054C,8524955850,AC3054,SBC3054,1562695,640298,93054,203054U,C6107B,203054,8890192550,73054,40040,89019055,52495585,P40265,2319,2433128,4770832,1040265,PC3054P,10371432,80312,8103714320,15877644,15162214,89022556,8890190550,8890225560,8158776440,670800574,AC40265,3054AM,NC3054B,350138,814123
  • EFFICIENT COOLING CAPACITY: Using light and thin aluminum tubes to maximize heat transfer without compromising strength. The air conditioner condenser can cool the air inside the car quickly, even in hot environments. This improves your comfort in the car, especially in summer and hot weather
  • STURDY CONSTRUCTION: Our automobile air conditioning condenser employs cutting-edge technology, capable of rapidly and effectively reducing the temperature inside the vehicle. It is crafted with high-quality materials and meticulous craftsmanship, possessing excellent durability and reliable performance, ensuring long-term stability in operation
  • FUNCTION: The A/C condenser is the hot side of an air conditioning system, liquefying the steam refrigerant while dissipating heat. If there is a bad noise and the cooling performance of the vehicle is simply reduced, or a leak in your condenser unit, then you should replace the air conditioning condenser unit. (Make sure you drain the refrigerant before replacing the condenser unit)

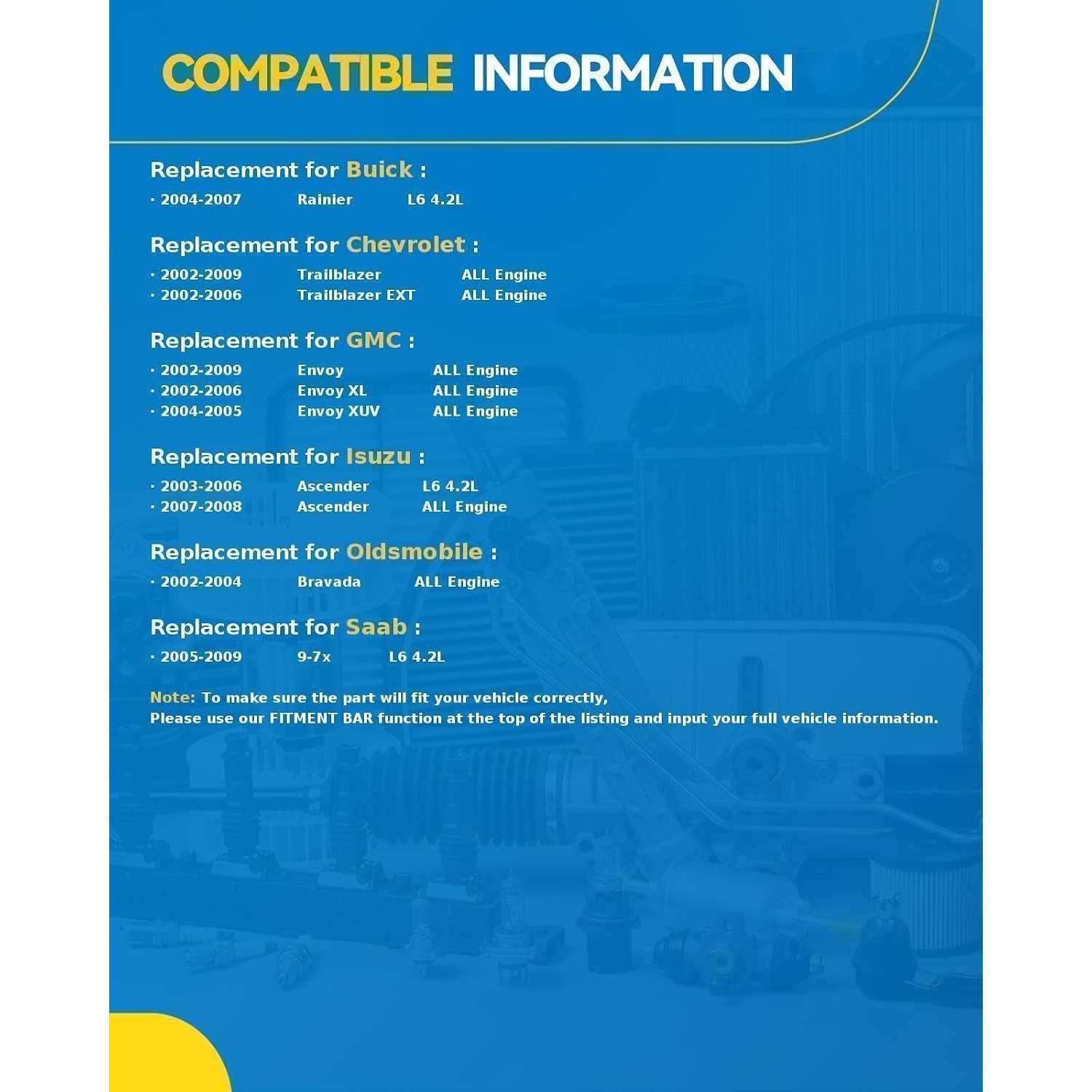

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20072004 - 2005200820082002 - 20072006 - 20072002 - 20092006 - 20082002 - 20032002 - 20042006 - 20092003 - 20062003 - 20062002 - 20062003 - 20062002 - 20042003 - 20042005 - 20092002 - 20092002 - 20092005 - 20062002 - 20062003 - 20052002 - 20062003 - 20052004 - 20052004 - 20052004 - 20052004 - 2005200320062003 - 200620032004 - 20052007 - 20082002 - 20042006 - 20092005
MakeBuickBuickChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuOldsmobileSaabSaab
ModelRainierRainierTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazer EXTTrailblazer EXTTrailblazer EXTTrailblazer EXTTrailblazer EXTTrailblazer EXTEnvoyEnvoyEnvoyEnvoy XLEnvoy XLEnvoy XLEnvoy XLEnvoy XLEnvoy XUVEnvoy XUVEnvoy XUVEnvoy XUVAscenderAscenderAscenderAscenderAscenderAscenderBravada9-7x9-7x
TrimCXLCXL PlusBaseBaseLSLSLTLTLTZNorth FaceSSLSLSLTLTNorth FaceNorth FaceDenaliSLESLTDenaliSLESLESLTSLTSLESLESLTSLTBaseBaseLSLimitedSSBase4.2iLinear
Engine4.2L L64.2L L64.2L L65.3L V84.2L L65.3L V84.2L L65.3L V84.2L L64.2L L66.0L V84.2L L65.3L V84.2L L65.3L V84.2L L65.3L V85.3L V84.2L L64.2L L65.3L V84.2L L65.3L V84.2L L65.3L V84.2L L65.3L V84.2L L65.3L V84.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L6
Note
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier
Inlet Driver Side and Outlet Passenger Side;with Block Type Fittings;without Receiver Drier

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the condenser matches the vehicle, refrigerant type, inlet and outlet fittings, mounting holes and receiver-drier configuration.
  • Inspect the condenser for bent fins, cracked tubes or shipping damage.
  • Confirm whether the vehicle uses R134a or R1234yf. These refrigerants are not interchangeable.
  • Have a qualified technician recover the refrigerant before disconnecting any A/C line.
  • Keep all refrigerant lines sealed to prevent moisture and dirt from entering the system.

Installation Steps

  • Step-1: Recover the refrigerant with approved equipment and disconnect the negative battery cable.
  • Step-2: Disconnect the refrigerant lines and cap every opening immediately.
  • Step-3: Remove the cooling fan, shroud and condenser mounting bolts as required.
  • Step-4: Remove the old condenser without damaging the radiator or refrigerant lines.
  • Step-5: Replace all opened refrigerant-line O-rings with new ones. Never reuse old O-rings.
  • Step-6: Replace the receiver drier or desiccant whenever required. If it is integrated into the condenser, install a condenser with a new receiver drier.
  • Step-7: Lightly lubricate new O-rings with the correct PAG oil, then hand-start the refrigerant fittings.
  • Step-8: Tighten all fittings and mounting bolts to specification. Reinstall the fan, shroud and electrical connections.
  • Step-9: Evacuate the system and perform a vacuum-hold test before charging.

After Installation

  • Charge the exact refrigerant type and specified amount listed by the vehicle manufacturer. Add only the specified type and amount of PAG oil.
  • Do not charge the system based only on pressure readings.
  • Check all fittings for refrigerant or oil leakage.
  • Run the A/C at maximum cooling and verify high-side and low-side pressures.
  • Confirm the cooling fan operates and the vent temperature drops normally.
  • Check that condenser airflow is unobstructed and no warning lights are present.

Product Description

CondenserCondenser

Reviews

5.0/5

Based on 5 reviews

5100%
40%
30%
20%
10%

Byrd

06/07/2026

Verified buyer

Packaged well. Easy install. Mounting brackets are made from solid aluminum. More durable than OEM with added supports for AC lines.

Byrd

06/07/2026

Verified buyer

Packaged well. Easy install. Mounting brackets are made from solid aluminum. More durable than OEM with added supports for AC lines.
