Reliable Sealing

Efficient Cooling

High-Temperature Resistant

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
65ISEWP0077US

Specifications

Brand
PHILTOP
Water Pump Drive Type
Serpentine Belt
Pulley Included
No
Gasket or Seal Included
Yes
Housing Material
Aluminum
Fan Clutch Included
No
Hub Height
2.17 in/55.00 mm
Impeller Material
Steel
Impeller Rotation
Reverse
Impeller Vane Quantity
6
Includes Back Housing
No
Mounting Hole Quantity
5
Thermostat Included
No
Items Included

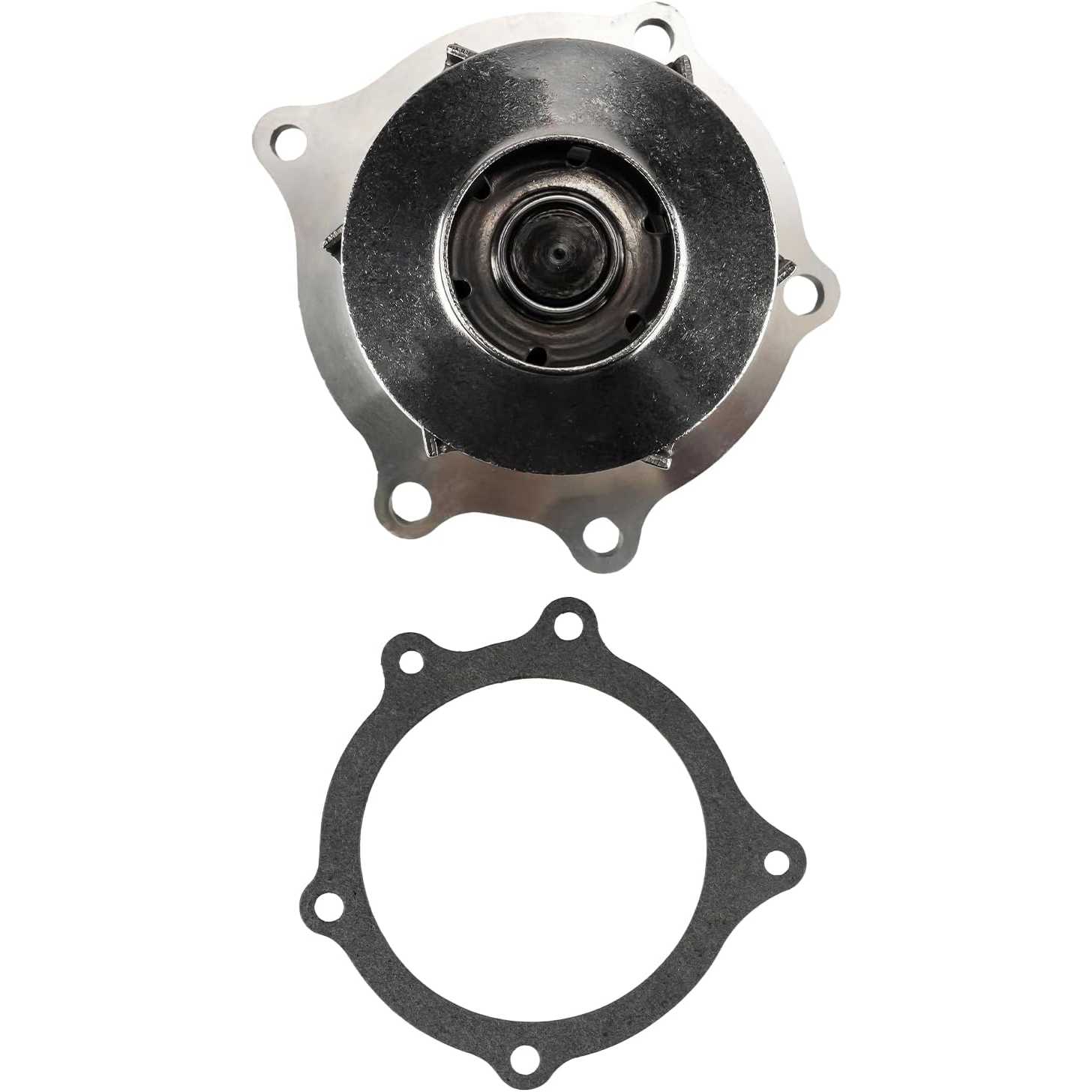

1x Water Pump - AW5097
Quantity
1
Warranty Period
2-Year
OE Number
24576956,12582431,12620226,24576952,8245769520,8126202260,89036357
Part Number
AW5097,1307700,41122,WP9234,US5097,W9234M,1312396,T1231,19234,941122,A9234DLG,QPW89,NP1804,AVC9234

Highlights

  • Water Pump Specifications: ① Housing Material: Aluminum; ②Impeller Material: Steel; ③ Pulley Included: No; ④Gasket / Seal Included: Yes; ⑤ Impeller Vane Quantity: 6; ⑥Mounting Hole Quantity: 5; ⑦Water Pump Drive Type: Serpentine Belt
  • Vehicle Fitment: Water pump compatible with 2002-2005 Trailblazer, 2004-2008 Colorado, Canyon, 2007-2009 Trailblazer 4.2L, 2005-2009 Envoy 4.2L, 9-7x 4.2L, 2002-2004 Envoy, Bravada, 2006-2007 H3, 2009-2012 Colorado 3.7L, Canyon 3.7L, 2009-2010, 2012 Colorado 2.9L, 2004-2007 Rainier 4.2L, 2003-2006 Ascender 4.2L, 2009-2010 H3 3.7L, H3T 3.7L, 2010-2012 Canyon 2.9L, 2007-2008 i-290, Ascender, i-370, 2006 i-280, i-350
  • Replace OE Number: 41122, AW5097, 1307700, US5097, W9234M, WP9234, 12582431, 24576956, 8126202260, 12620226, 24576952, 8245769520, 89036357, 1312396, A9234DLG, 941122, 19234, T1231, QPW89, NP1804, AVC9234, 2678691, P5097, CP5097, A307700, MBA095097, NP015097, 160097107, 1463856, 100588, HYT11118C, AWP9234, 511817, 1WP5097, NP5417, DP965, 21097, 251635, 01463856, NP5443, 58588, 181638, NP9283, NP5097, PWP9234, 20330, 1AMWP00062, 555097, WP3138, 96166, 54307700, 111118, 5513311, G7700, 252822
  • Premium Quality: This brand-new engine water pump is built to last. It features a high-strength pulley and advanced sealing for quiet, wear-resistant operation. It undergoes multiple factory sealing tests, effectively preventing coolant leakage. Manufactured in an IATF 16960 certified facility, it guarantees easy installation and dependable performance
  • Warm Tips: Please check whether the water pump is compatible with your vehicle before purchasing .Offers 2 year / 20,011 miles service. If you have any questions about automotive water pump, you can feel free to contact us.

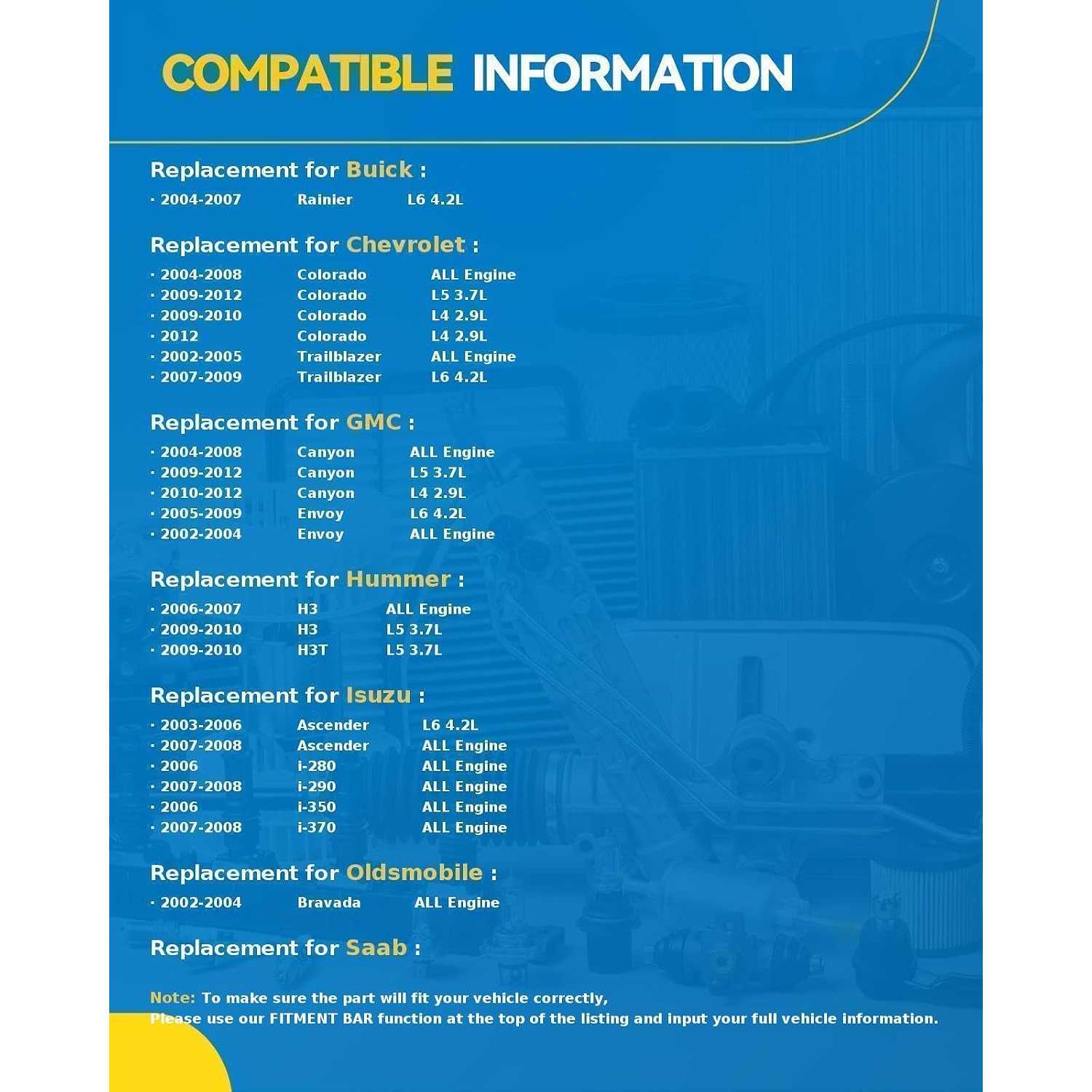

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20072004 - 200520042004200420062007 - 200820042007 - 200820062007 - 201220062007 - 20122004 - 20052004 - 20052004 - 20052004 - 200520062007 - 201220062007 - 20122004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 200520082002 - 20072002 - 20092002 - 20032002 - 20042003 - 20062002 - 20062002 - 2004200420062007 - 20082004200420062007 - 2012200420062007 - 20122008 - 2009201220062007 - 201220062007 - 201220062007 - 20122004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052004 - 20052002 - 20092002 - 20092002 - 20062002 - 20062004 - 20052004 - 20052008 - 200920062007 - 20102008 - 20092007 - 20092009 - 2010200320062003 - 200620032004 - 20052007 - 2008200620072007 - 200820062007 - 20082002 - 20042006 - 20092005
MakeBuickBuickChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCHummerHummerHummerHummerHummerHummerIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuIsuzuOldsmobileSaabSaab
ModelRainierRainierColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoColoradoTrailblazerTrailblazerTrailblazerTrailblazerTrailblazerTrailblazer EXTTrailblazer EXTTrailblazer EXTCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonCanyonEnvoyEnvoyEnvoy XLEnvoy XLEnvoy XUVEnvoy XUVH3H3H3H3H3H3TAscenderAscenderAscenderAscenderAscenderAscenderi-280i-290i-290i-350i-370Bravada9-7x9-7x
TrimCXLCXL PlusBaseBaseLSLSLSLSLSLTLTLTLTSportSportSport LSSport LSWTWTWTWTZ71Z71Z71 LSZ71 LSZ85Z85Z85 LSZ85 LSBaseLSLTLTZNorth FaceLSLTNorth FaceSLSLSLSLSLESLESLESLESLESLESLTSLTSLTSLTWTWTWTWTZ71 FleetZ71 FleetZ71 SLZ71 SLZ71 SLEZ71 SLEZ85 SLZ85 SLZ85 SLEZ85 SLESLESLTSLESLTSLESLTAdventureBaseBaseLuxuryXBaseBaseBaseLSLimitedSSBaseLSSBaseLSBase4.2iLinear
Engine4.2L L64.2L L62.8L L43.5L L52.8L L42.8L L42.9L L43.5L L53.7L L52.8L L42.9L L43.5L L53.7L L52.8L L43.5L L52.8L L43.5L L52.8L L42.9L L43.5L L53.7L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L54.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L64.2L L62.8L L42.8L L42.9L L43.5L L52.8L L42.8L L42.9L L43.5L L53.5L L53.7L L52.9L L42.9L L43.5L L53.7L L52.8L L42.9L L43.5L L53.7L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L52.8L L43.5L L54.2L L64.2L L64.2L L64.2L L64.2L L64.2L L63.7L L53.5L L53.7L L53.7L L53.7L L53.7L L54.2L L64.2L L64.2L L64.2L L64.2L L64.2L L62.8L L42.9L L42.9L L43.5L L53.7L L54.2L L64.2L L64.2L L6
Note-------------------------------------------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm vehicle fitment and compare the new pump with the original.
  • Inspect the pump, impeller, pulley, hoses, thermostat and drive belt for damage or wear.
  • Allow the engine to cool completely, disconnect the negative battery cable and drain the coolant safely.
  • Clean and inspect the mounting surface for corrosion, cracks or deformation.

Installation Steps

  • Step-1: Remove any covers, accessories, drive belt and pulley blocking access to the pump.
  • Step-2: Record the positions of different-length bolts, then remove the old pump.
  • Step-3: Thoroughly clean the mounting surface without scratching it.
  • Step-4: Always install a new gasket or sealing ring. Never reuse the old seal.
  • Step-5: Position the new pump, hand-start the bolts and tighten them gradually in a crisscross pattern to the specified torque.
  • Step-6: Reinstall the pulley, belt and removed components, then refill with the specified coolant.
  • Step-7: Bleed trapped air from the cooling system according to the vehicle service manual.

After Installation

  • Check all bolts, hose clamps, seals and belt alignment.
  • Start the engine and inspect for coolant leaks or abnormal pump noise.
  • Confirm the coolant temperature remains normal and the vehicle does not overheat.
  • Recheck the coolant level after the engine cools and top up if necessary.

Product Description

PHILTOP Engine Water Pump KitPHILTOP Engine Water Pump Kit

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Tom_Handy_906

05/07/2026

Installation wasn't a big struggle, which was a relief. It's a solid alternative to more expensive brands, and I'm happy with how it's working.

Jason_Trucks_613

05/18/2026

Came pretty quickly, which was appreciated. The box was a little beat up, but the part was fine. Instructions were a bit unclear though.

FAQS

No FAQs have been added for this product yet.
