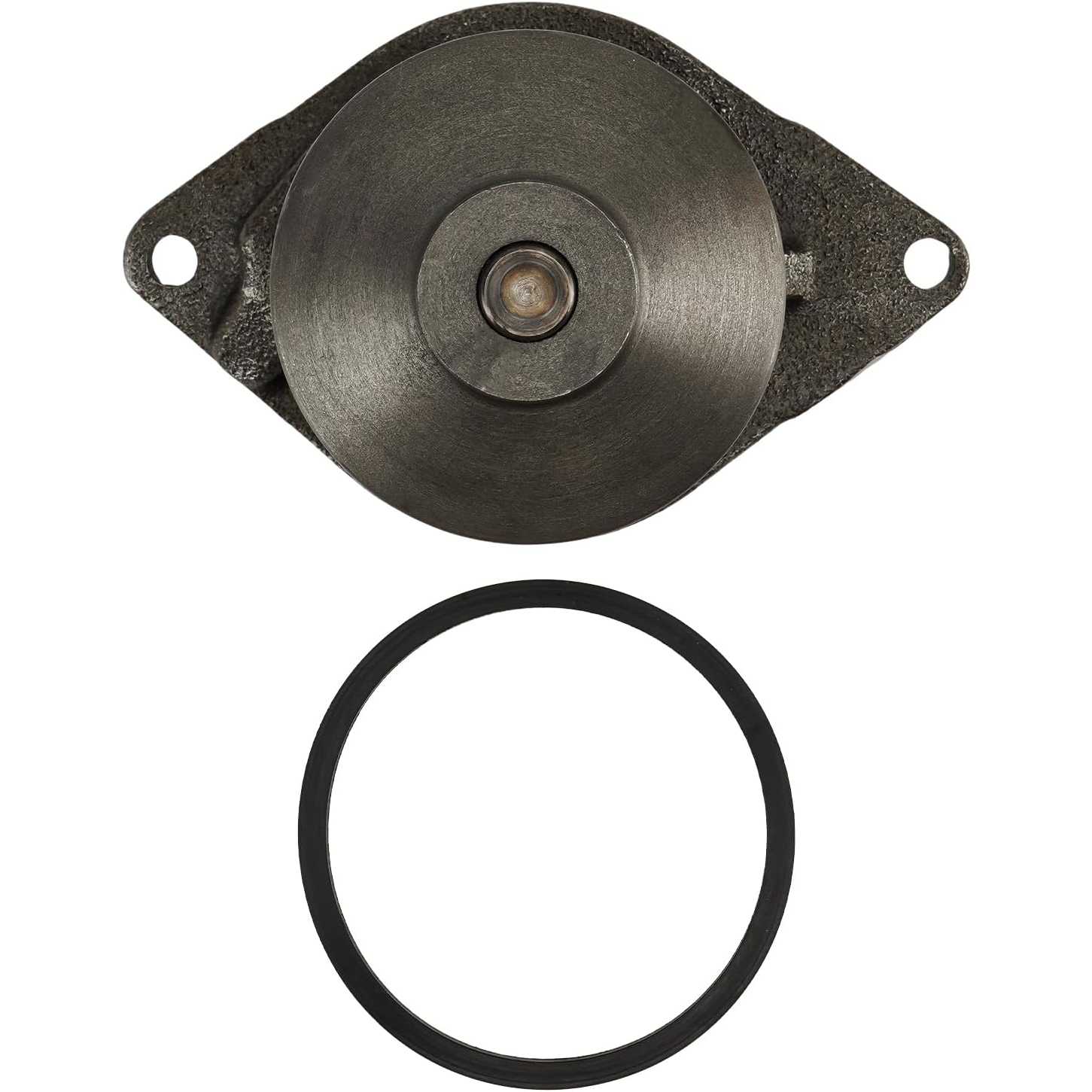

1991 Dodge D350 5.9L | Cast Iron Water Pump | OE#5003665AA/AW7145 - PHILTOP

1991 Dodge D350 5.9L | Cast Iron Water Pump | OE#5003665AA/AW7145 - PHILTOP

Reliable Sealing

Efficient Cooling

High-Temperature Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
98ISEWP0097US

Specifications

Brand
PHILTOP
Water Pump Drive Type
Accessory Belt
Pulley Included
Yes
Gasket or Seal Included
Yes
Housing Material
Cast Iron
Fan Clutch Included
No
Hub Height
3.94 in/99.95 mm
Impeller Material
Steel
Impeller Rotation
Reverse
Impeller Vane Quantity
5
Includes Back Housing
No
Mounting Hole Quantity
2
Pulley Outside Diameter
3.46 in/87.88 mm
Thermostat Included
No
Items Included
1x Water Pump - AW7145
Quantity
1
Warranty Period
2-Year
OE Number
5003665AA,3924141,12494067,192710,233810C,3285410,4429404,12493953,R4723690,4886589,68461455AA,F3HZ8501ARM,R5003665AA,4723690,BF5X8501A,5003665AB,R5086959AA,R4429404,R5086959AB
Part Number
AW7145,41181,WP726,W726M,1203072,3283602,3928396,3920311,2063,6075,3283803,QPW27,2726,GWCR38A,3802971NX,P912,7063X,T2212,941181,FP2262

Highlights

  • Water Pump Specifications: ① Housing Material: HT200; ②Impeller Material: Steel; ③ Pulley Included: Yes; ④Gasket / Seal Included: Yes; ⑤ Impeller Vane Quantity: 5; ⑥Mounting Hole Quantity: 2; ⑦Water Pump Drive Type: Accessory Belt
  • Vehicle Fitment: Water pump compatible with 1991 D350 5.9T
  • Replace OE Number: WP726, 41181, AW7145, W726M, 1203072, 3924141, 5003665AA, 12494067, 192710, 233810C, R4723690, 4886589, 12493953, 4723690, BF5X8501A, F3HZ8501ARM, R5003665AA, 68461455AA, 5003665AB, R5086959AA, R4429404, 4429404, R5086959AB, 3285410, 6075, QPW27, 2063, GWCR38A, 2726, 3802971NX, P912, 3283803, 7063X, T2212, 941181, FP2262, 3283602, 3920311, 3928396, T7091280, RFWP726, 117042, RW6075, 140080, 23145, ELGWP7145, WP7123, 557123, 41178, 01462530, RW6075X, PWP726, 5531411, AW2097, 58513, 217042, 1WP7123, 557145, 1963072, 1WP7145, 18602, BWP726, 2TD121005, RW6075RX, AW7123, 3286277RX, ELGWP7123
  • Replace OE Number: NP1619, 20108, 3286277, 3802970, 3920312, 3928395, 4089731, CR3072, DP1000, 3802358, CP7145, 3802971, 3913432, 6736611202, 3286275RX, 4089142, 252204, 58629, 552097, 3802348, 511850, 3802004, 3903749, 181109, 58598, AR77471, 58375, 97083, 3286275, US7145N, 941178, CP7123, 5010964AA
  • Premium Quality: This brand-new engine water pump is built to last. It features a high-strength pulley and advanced sealing for quiet, wear-resistant operation. It undergoes multiple factory sealing tests, effectively preventing coolant leakage. Manufactured in an IATF 16949 certified facility, it guarantees easy installation and dependable performance. Please check whether the water pump is compatible with your vehicle before purchasing

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1991
MakeDodge
ModelD350
TrimBase
Engine5.9L L6
Note-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm vehicle fitment and compare the new pump with the original.
  • Inspect the pump, impeller, pulley, hoses, thermostat and drive belt for damage or wear.
  • Allow the engine to cool completely, disconnect the negative battery cable and drain the coolant safely.
  • Clean and inspect the mounting surface for corrosion, cracks or deformation.

Installation Steps

  • Step-1: Remove any covers, accessories, drive belt and pulley blocking access to the pump.
  • Step-2: Record the positions of different-length bolts, then remove the old pump.
  • Step-3: Thoroughly clean the mounting surface without scratching it.
  • Step-4: Always install a new gasket or sealing ring. Never reuse the old seal.
  • Step-5: Position the new pump, hand-start the bolts and tighten them gradually in a crisscross pattern to the specified torque.
  • Step-6: Reinstall the pulley, belt and removed components, then refill with the specified coolant.
  • Step-7: Bleed trapped air from the cooling system according to the vehicle service manual.

After Installation

  • Check all bolts, hose clamps, seals and belt alignment.
  • Start the engine and inspect for coolant leaks or abnormal pump noise.
  • Confirm the coolant temperature remains normal and the vehicle does not overheat.
  • Recheck the coolant level after the engine cools and top up if necessary.

Product Description

PHILTOP Engine Water Pump KitPHILTOP Engine Water Pump Kit

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Amanda_MomOfThree_160

11/24/2025

Installation was a breeze, much easier than I thought it would be. Fit perfectly on my truck and seems to be working great. Definitely a good value compared to the dealership part.

Nancy_FirstCar_513

06/28/2026

Super happy with how fast this arrived. It was packaged up real nice, no damage at all. Customer service was great too when I called with a quick question, very friendly and knowledgeable.

FAQS

No FAQs have been added for this product yet.
