2002-2009 Toyota Camry 2.4L L4 | Front Passenger Side CV Axle Shaft | 665247HD - PHILTOP

2002-2009 Toyota Camry 2.4L L4 | Front Passenger Side CV Axle Shaft | 665247HD - PHILTOP

Front Right

Built to Last

4.8

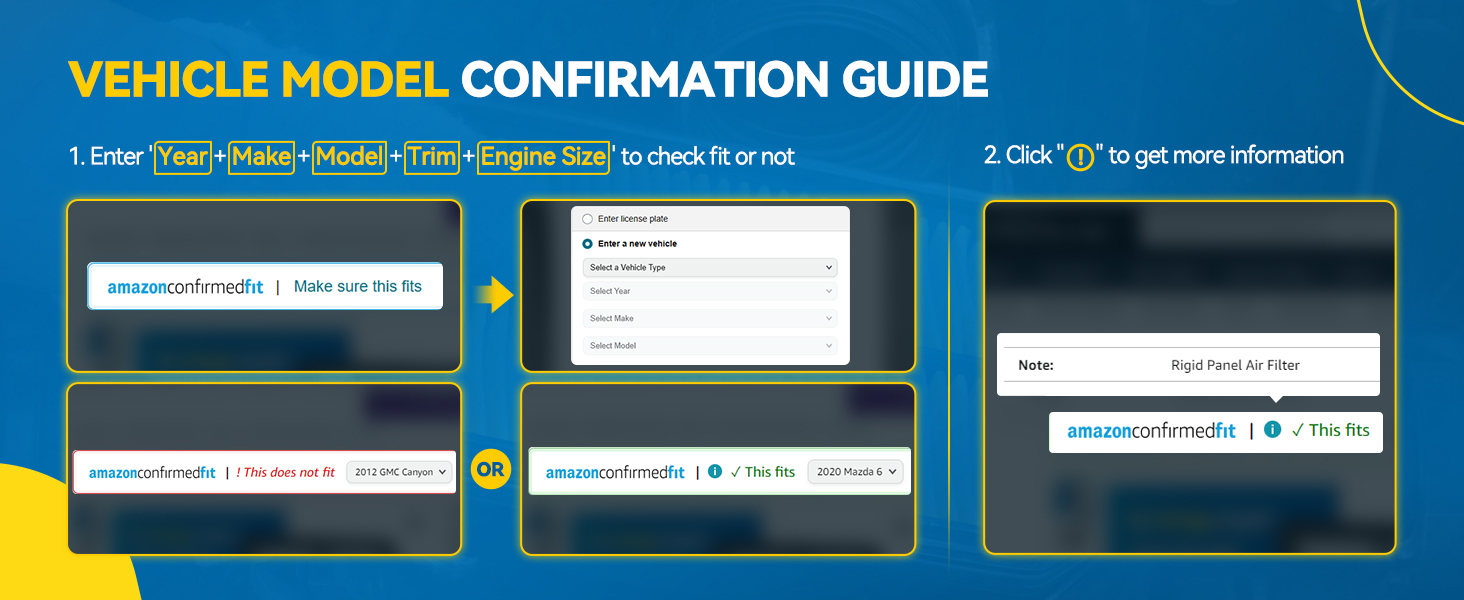

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
17ISSHA6047US

Specifications

Brand
PHILTOP
Position
Front Right
ABS Ring Included
Yes
Quantity
1
Input Shaft Spline Count
24
Output Shaft Spline Count
26
Items Included
1x Front Right Cv Axle Shaft - 66-5247HD
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
665247HD

Highlights

  • Fitment: CV Axle Front Right for Toyota Camry 2002-2009, Toyota Highlander 2001-2005, Toyota Solara 2004-2008.
  • Reference Number: 434100W061, NCV69578,Compatible with Toyota,APCVA021, 66-5247HD, 4341006580, 4341006231,4341006221, 665247HD, 4341006570, 4341006460.
  • Reliably: Enjoy a smoother, more reliable ride with our high-quality CV axles. The high quality materials and excellent performance of our half shafts provide reliable support for your vehicle!

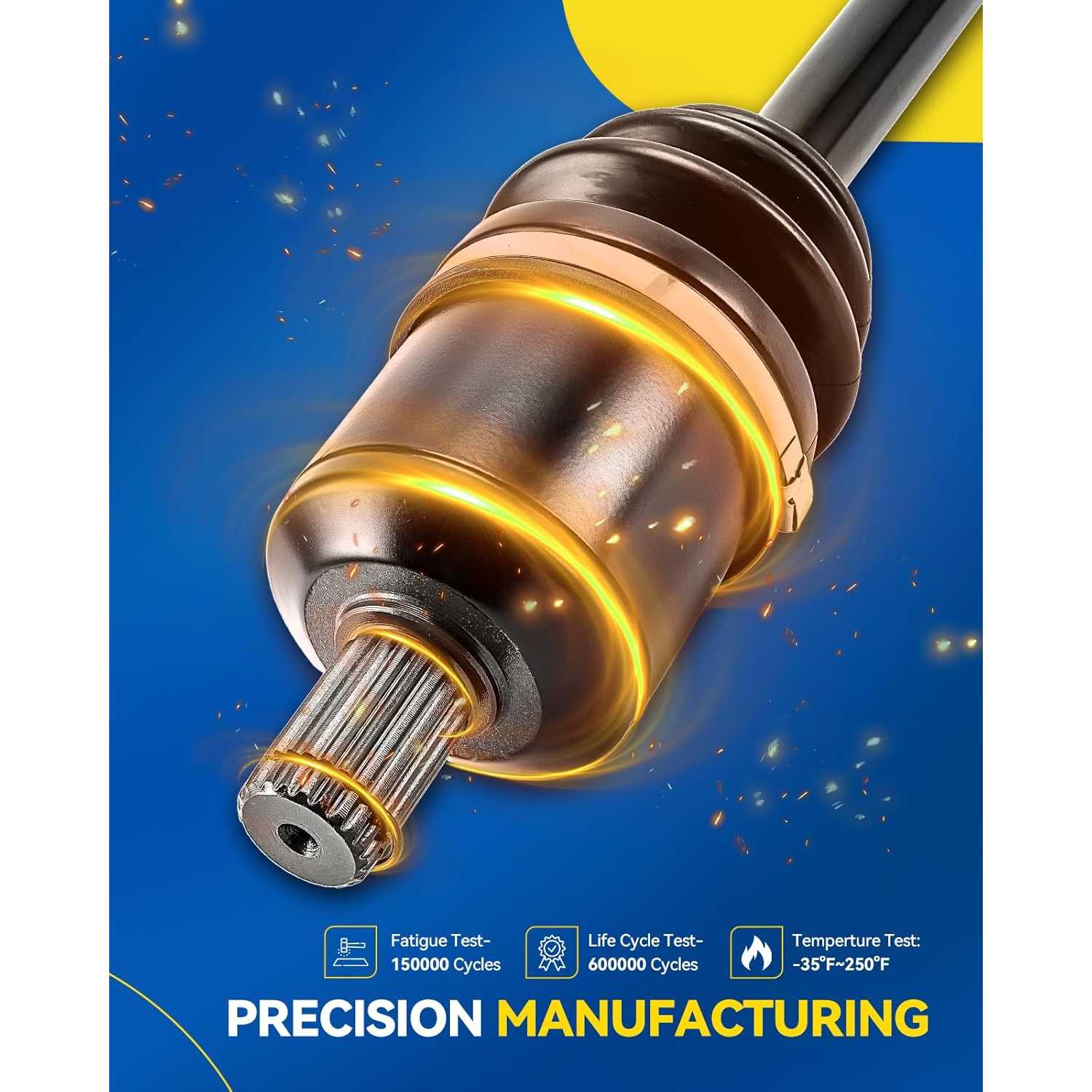

  • High Quality: Half shafts are 100% ground to improve ball path and surface finish and extend product life.CV shafts are normalised to ensure stability in subsequent machining.
  • Function: Half shafts for equal speed power transmission and wheel steering through pendulum angle.CV axles are designed in strict accordance with OE standards, with 100% inspection of key mating dimensions.

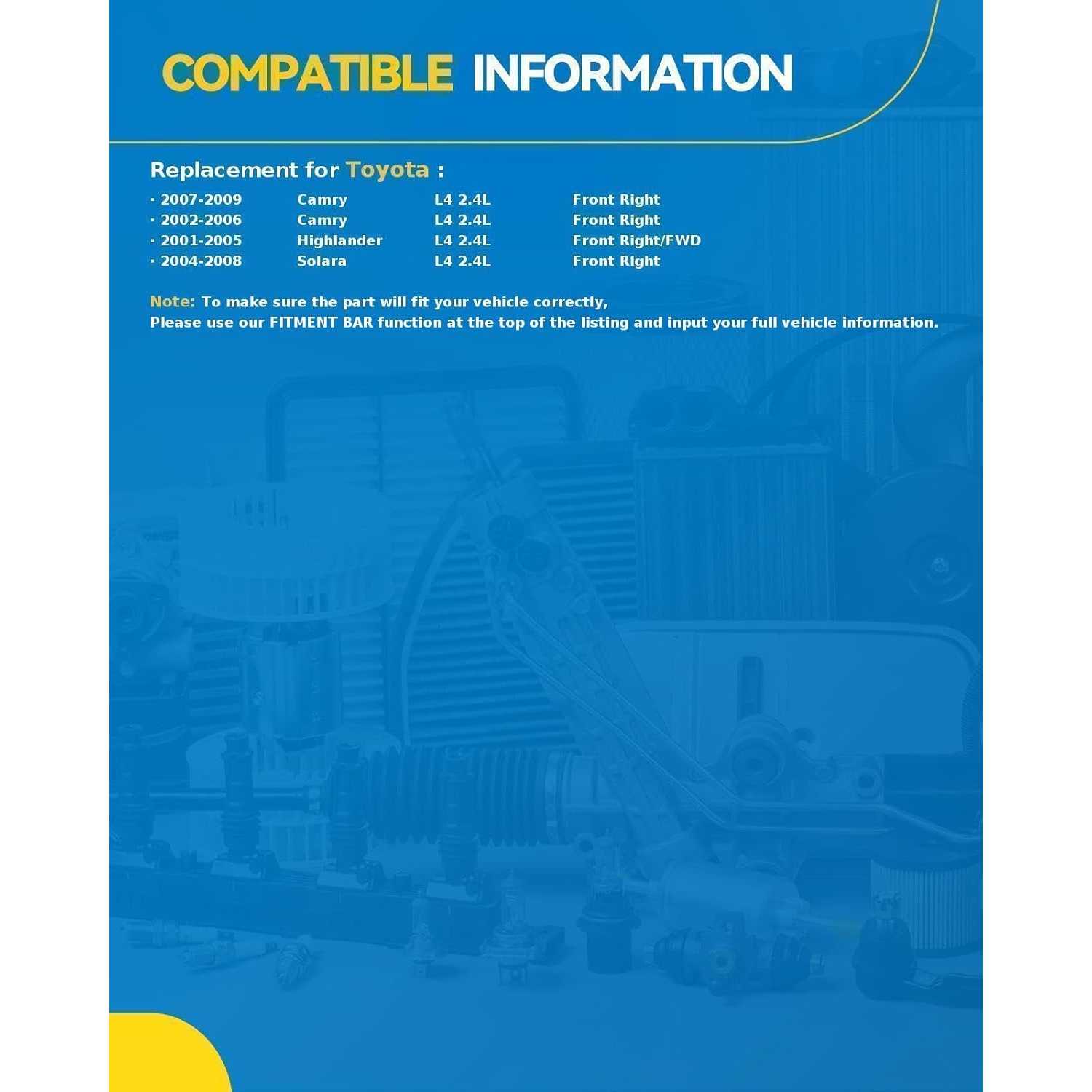

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 200620092007 - 20082002 - 20092002 - 20092002 - 20092001 - 20052004 - 200820062004 - 20062007 - 2008
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelCamryCamryCamryCamryCamryCamryHighlanderSolaraSolaraSolaraSolara
TrimBaseBaseCELESEXLEBaseSESE SportSLESport
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note-----------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Brad_AutoParts_480

03/10/2026

Installation was surprisingly straightforward, much easier than I expected. It's a perfect fit, and the ride quality is way up there compared to other aftermarket options I've seen.

Emma_DailyCommute_195

12/30/2025

Looks good, feels solid. You can tell it's a well-made part. For the price, this is a steal. My Highlander feels brand new again.

FAQS

No FAQs have been added for this product yet.
