2004-2009 Cadillac CTS 2.8L V6/3.6L V6 | Tensioner | OE#12577652/38418 - PHILTOP

2004-2009 Cadillac CTS 2.8L V6/3.6L V6 | Tensioner | OE#12577652/38418 - PHILTOP

Quiet Operation

Slip Resistant

Corrosion & Heat-Resistant Housing

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
28ISETB2507US

Specifications

Brand
PHILTOP
Pulley Included
Yes
Belt Included
No
Belt Type
V-Ribbed
Contact Surface
Smooth/Backside
Pulley Outer Diameter
2.76 in
Items Included
1x Engine Timing Belt Tensioner - 38418
Quantity
1
Warranty Period
2-Year
OE Number
12577652
Part Number
38418

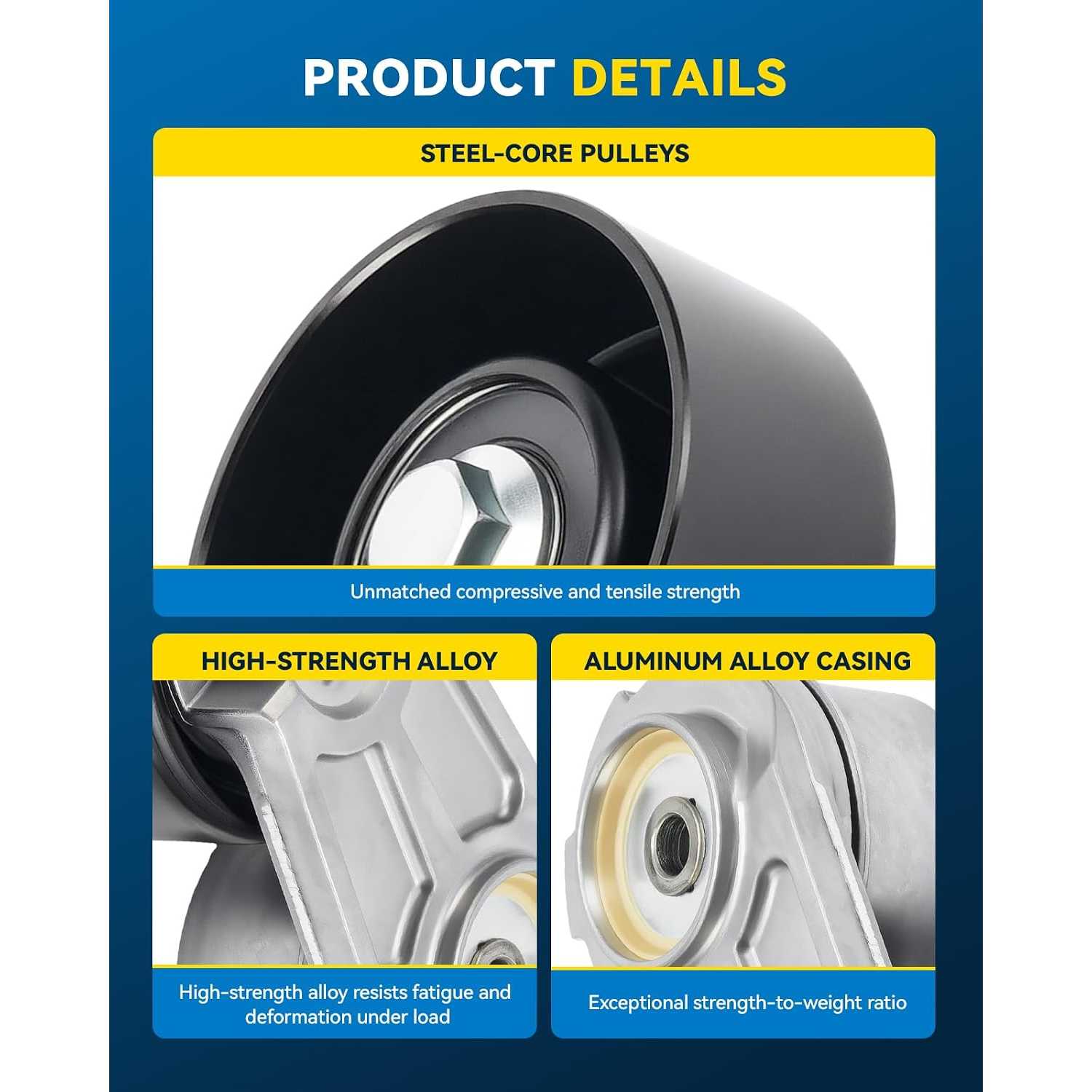

Highlights

  • [Fitment]: PHILTOP Belt Tensioner with Pulley Replacement For ① Cadillac CTS 2008, 2004-2007, 2009 3.6L, 2005-2007 2.8L, SRX 2004-2009 3.6L, STS 2011, 2005-2010 3.6L
  • [OE Reference Number]: 12577652, 12577655, 38418, 38419, 999689A, 19186932, 305387, 89387, Manufactured using the same or improved technology and quality materials as the original equipment manufacturer (OEM) components to ensure a factory match
  • [Labyrinth Seal Protection]: PHILTOP automatic drive belt tensioner assembly with pulley adopts labyrinth seal to protect internal components, meeting or exceeding the service life requirements of the original manufacturer
  • [Long service life]: The damping system tested hundreds of times absorbs extreme vibration to improve the life of the tensioner as well as belts and accessories
  • [Strong stability]: Torsion round spring design used in PHILTOP tensioner provides reliable and stable tension

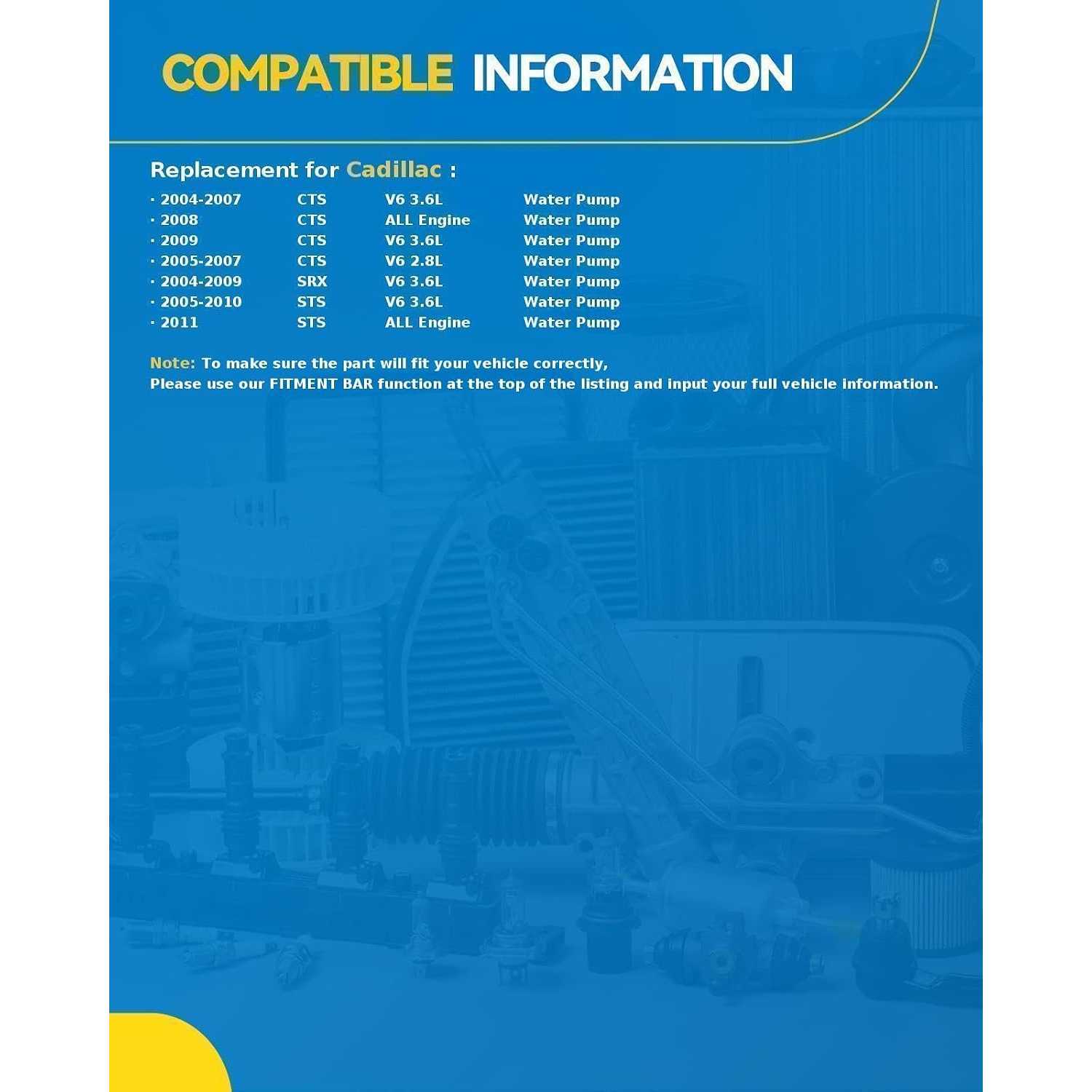

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20072004 - 20092004 - 20092005 - 20112008 - 2009
MakeCadillacCadillacCadillacCadillacCadillac
ModelCTSCTSSRXSTSSTS
TrimBaseBaseBaseBasePlatinum
Engine2.8L V63.6L V63.6L V63.6L V63.6L V6
Note-----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the engine application, mounting holes, pulley size, groove count and tensioner-arm direction.
  • Inspect the pulleys for binding, looseness or abnormal bearing noise.
  • Check the tensioner arm for smooth movement, sufficient damping and fluid leakage.
  • Inspect the belt for cracks, glazing, frayed edges, contamination or stretching. Replace an aged or worn belt at the same time.
  • Disconnect the negative battery cable before installation.

Installation Steps

  • Step-1: Photograph or record the belt-routing path before removing the belt.
  • Step-2: Use a suitable breaker bar or long-handled tool to slowly release the tensioner. Do not pry against the tensioner arm.
  • Step-3: Remove the belt and tensioner, then clean the mounting surface.
  • Step-4: Position the new tensioner and tighten its mounting bolts to specification.
  • Step-5: Route the belt according to the recorded path and ensure every rib is fully seated in the pulley grooves.
  • Step-6: Slowly release the tensioner and recheck the complete belt path.

After Installation

  • Confirm the tensioner bolts are secure and the belt is correctly seated.
  • Start the engine and observe the belt tracking and tensioner movement.
  • Check for belt slipping, jumping, lateral movement or abnormal noise.
  • Confirm the alternator and all belt-driven accessories operate normally.

Product Description

1belt tensioner
