2007-2011 Honda Civic 1.8L L4 | Tensioner | OE#31170RWK005/39077 - PHILTOP

2007-2011 Honda Civic 1.8L L4 | Tensioner | OE#31170RWK005/39077 - PHILTOP

Quiet Operation

Slip Resistant

Corrosion & Heat-Resistant Housing

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
65ISETB2617US

Specifications

Brand
PHILTOP
Pulley Included
Yes
Belt Included
No
Belt Type
V-Ribbed
Contact Surface
Smooth/Backside
Pulley Outer Diameter
2.76 in
Items Included
1x Engine Timing Belt Tensioner - 39077
Quantity
1
Warranty Period
2-Year
OE Number
31170RWK005,31170RWK025,31170RWK015
Part Number
39077

Highlights

  • [Fitment]: PHILTOP Belt Tensioner with Pulley Replacement For ① Honda Civic 2007-2011 1.8L
  • [OE Reference Number]: 31170R70A01, 31170RWK005, 31170RWK025, 31170RWK015, 39077, 31170R0A015, 31170R0A005, 31170RWK035, 31170RNAA02, 31170RZPG01, 31170RZPG03, 31170RZPG02, 31170RWK045, 31170RZPAG01, 31170RWKA005, Manufactured using the same or improved technology and quality materials as the original equipment manufacturer (OEM) components to ensure a factory match

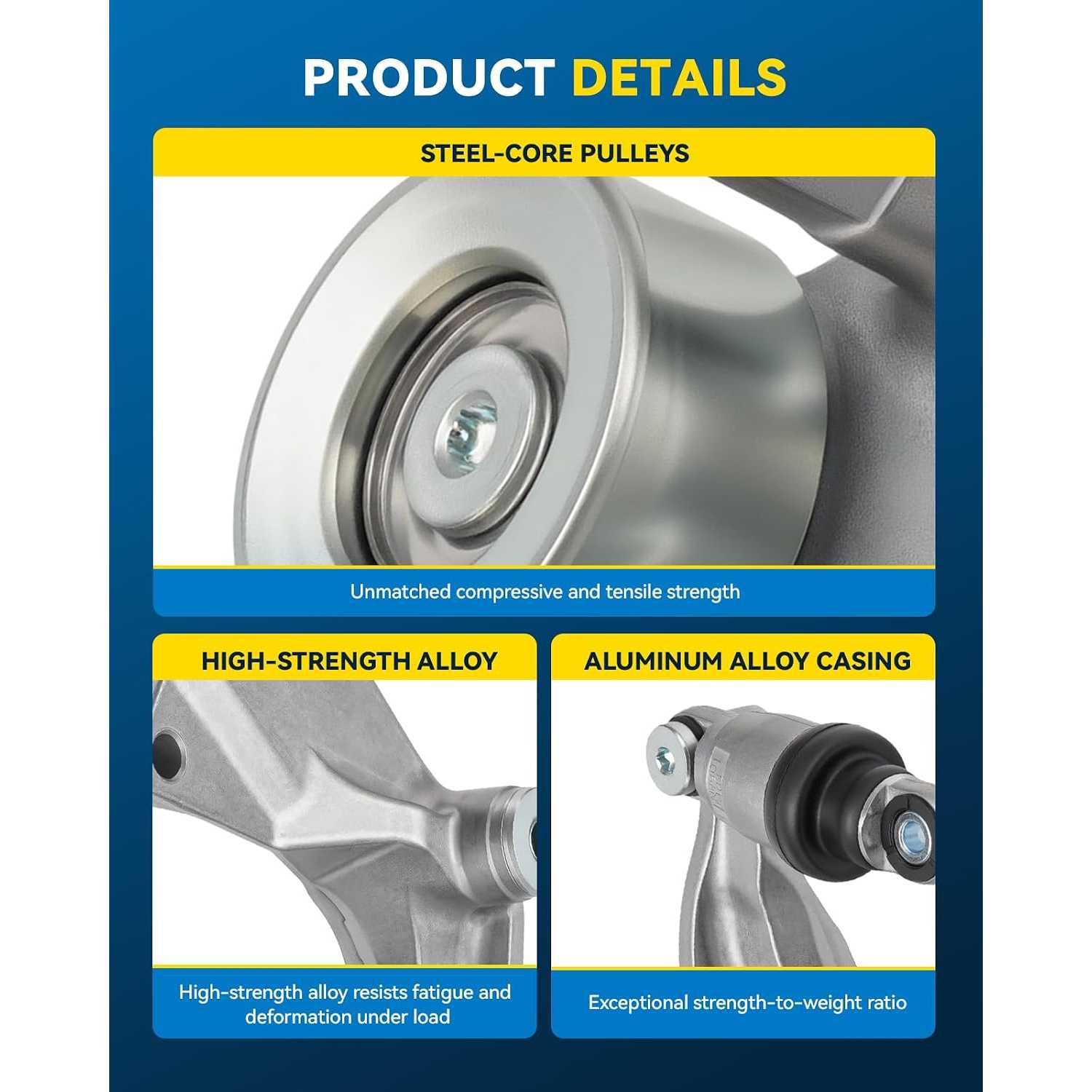

  • [Labyrinth Seal Protection]: PHILTOP automatic drive belt tensioner assembly with pulley adopts labyrinth seal to protect internal components, meeting or exceeding the service life requirements of the original manufacturer
  • [Long service life]: The damping system tested hundreds of times absorbs extreme vibration to improve the life of the tensioner as well as belts and accessories
  • [Strong stability]: Torsion round spring design used in PHILTOP tensioner provides reliable and stable tension

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20112007 - 20112009 - 20112007 - 20112007 - 20112009 - 2011
MakeHondaHondaHondaHondaHondaHonda
ModelCivicCivicCivicCivicCivicCivic
TrimDXEXEX-LGXLXLX-S
Engine1.8L L41.8L L41.8L L41.8L L41.8L L41.8L L4
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the engine application, mounting holes, pulley size, groove count and tensioner-arm direction.
  • Inspect the pulleys for binding, looseness or abnormal bearing noise.
  • Check the tensioner arm for smooth movement, sufficient damping and fluid leakage.
  • Inspect the belt for cracks, glazing, frayed edges, contamination or stretching. Replace an aged or worn belt at the same time.
  • Disconnect the negative battery cable before installation.

Installation Steps

  • Step-1: Photograph or record the belt-routing path before removing the belt.
  • Step-2: Use a suitable breaker bar or long-handled tool to slowly release the tensioner. Do not pry against the tensioner arm.
  • Step-3: Remove the belt and tensioner, then clean the mounting surface.
  • Step-4: Position the new tensioner and tighten its mounting bolts to specification.
  • Step-5: Route the belt according to the recorded path and ensure every rib is fully seated in the pulley grooves.
  • Step-6: Slowly release the tensioner and recheck the complete belt path.

After Installation

  • Confirm the tensioner bolts are secure and the belt is correctly seated.
  • Start the engine and observe the belt tracking and tensioner movement.
  • Check for belt slipping, jumping, lateral movement or abnormal noise.
  • Confirm the alternator and all belt-driven accessories operate normally.

Product Description

1belt tensioner

Reviews

4.3/5

Based on 4 reviews

550%
425%
325%
20%
10%

Steve_DIYer_942

01/10/2026

Installed this on my Civic and it was a breeze. Way simpler than the last one I replaced from a different brand. Fitment was spot on, no wrestling required.

SarahDrives_804

03/30/2026

Nice clean look to this part, feels really sturdy. Definitely a great deal for the quality you get. My Civic is running smooth as silk now.

FAQS

No FAQs have been added for this product yet.
