2012-2017 Toyota Camry 2.5L L4 | Tensioner w/Belt | 90K39106 - PHILTOP

2012-2017 Toyota Camry 2.5L L4 | Tensioner w/Belt | 90K39106 - PHILTOP

Belt Included

Quiet Operation

Slip Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
47ISETB3167US

Specifications

Brand
PHILTOP
Pulley Included
No
Belt Included
Yes
Belt Type
V-Ribbed
Contact Surface
Smooth/Backside
Pulley Outer Diameter
2.76 in
Items Included
1x Engine Timing Belt Tensioner - 90K39106
Quantity
1
Warranty Period
2-Year
Part Number
90K39106

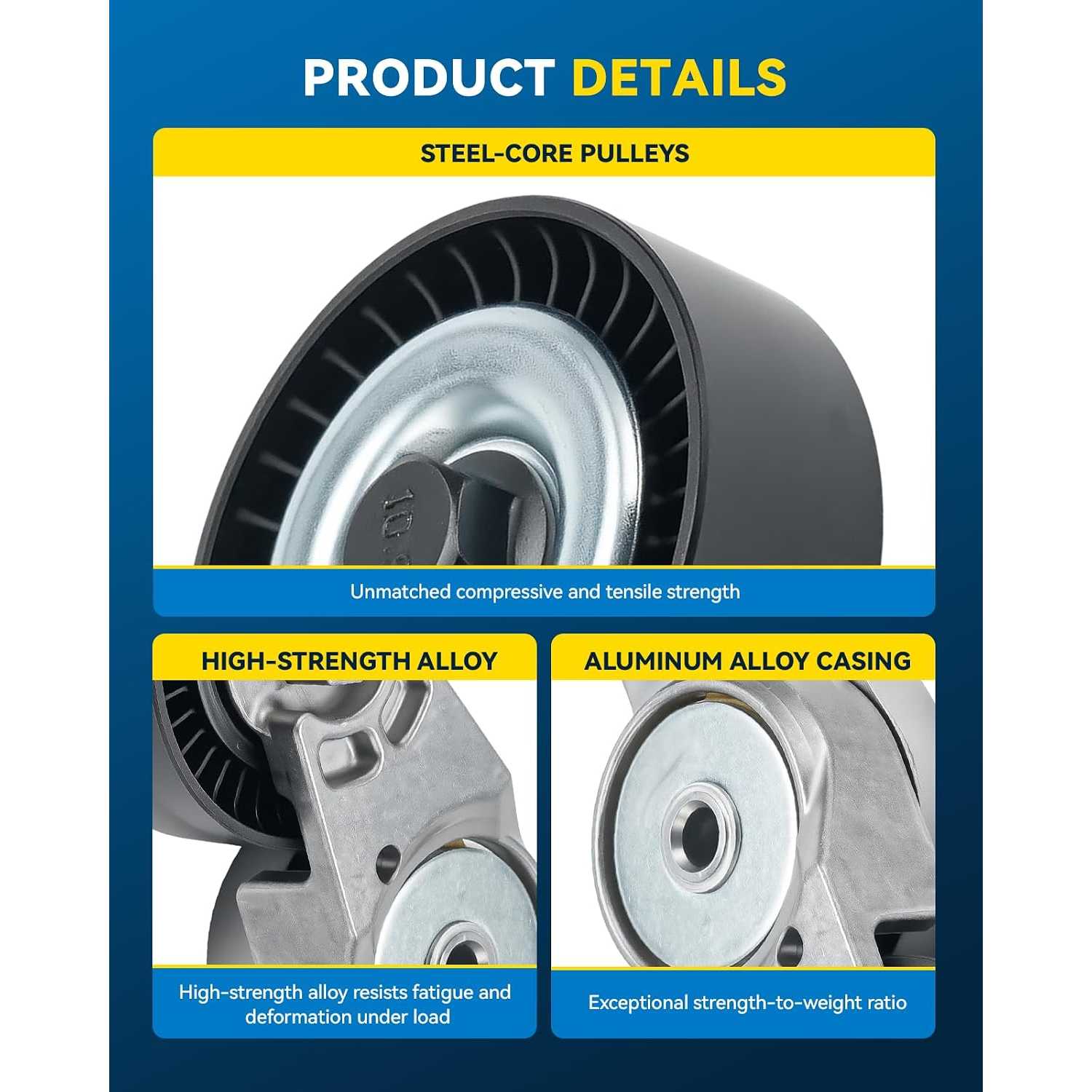

Highlights

  • [Fitment]: PHILTOP Belt Tensioner with Pulley Replacement For ① Toyota RAV4 2015, 2009-2014, 2016-2018 2.5L, Camry 2012-2017 2.5L, Scion tC 2011-2016
  • [OE Reference Number]: 90K39106, Manufactured using the same or improved technology and quality materials as the original equipment manufacturer (OEM) components to ensure a factory match
  • [Labyrinth Seal Protection]: PHILTOP automatic drive belt tensioner assembly with pulley adopts labyrinth seal to protect internal components, meeting or exceeding the service life requirements of the original manufacturer
  • [Long service life]: The damping system tested hundreds of times absorbs extreme vibration to improve the life of the tensioner as well as belts and accessories
  • [Strong stability]: Torsion round spring design used in PHILTOP tensioner provides reliable and stable tension

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20162012 - 20142012 - 20172012 - 2017201420162012 - 20172015 - 201720182009 - 20122013 - 20182009 - 20182017 - 20182016 - 20182009 - 20122013 - 2018
MakeScionToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModeltCCamryCamryCamryCamryCamryCamryCamryRAV4RAV4RAV4RAV4RAV4RAV4RAV4RAV4
TrimBaseLLESESE SportSpecial EditionXLEXSEAdventureBaseLELimitedPlatinumSESportXLE
Engine2.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L4
Note----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the engine application, mounting holes, pulley size, groove count and tensioner-arm direction.
  • Inspect the pulleys for binding, looseness or abnormal bearing noise.
  • Check the tensioner arm for smooth movement, sufficient damping and fluid leakage.
  • Inspect the belt for cracks, glazing, frayed edges, contamination or stretching. Replace an aged or worn belt at the same time.
  • Disconnect the negative battery cable before installation.

Installation Steps

  • Step-1: Photograph or record the belt-routing path before removing the belt.
  • Step-2: Use a suitable breaker bar or long-handled tool to slowly release the tensioner. Do not pry against the tensioner arm.
  • Step-3: Remove the belt and tensioner, then clean the mounting surface.
  • Step-4: Position the new tensioner and tighten its mounting bolts to specification.
  • Step-5: Route the belt according to the recorded path and ensure every rib is fully seated in the pulley grooves.
  • Step-6: Slowly release the tensioner and recheck the complete belt path.

After Installation

  • Confirm the tensioner bolts are secure and the belt is correctly seated.
  • Start the engine and observe the belt tracking and tensioner movement.
  • Check for belt slipping, jumping, lateral movement or abnormal noise.
  • Confirm the alternator and all belt-driven accessories operate normally.

Product Description

1belt tensioner
