2011-2016 Ford F-250 Super Duty 6.7L V8 | Tensioner | OE#BC3Z6B209B/39153 - PHILTOP

2011-2016 Ford F-250 Super Duty 6.7L V8 | Tensioner | OE#BC3Z6B209B/39153 - PHILTOP

Quiet Operation

Slip Resistant

Corrosion & Heat-Resistant Housing

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
30ISETB2697US

Specifications

Brand
PHILTOP
Pulley Included
Yes
Belt Included
No
Belt Type
V-Ribbed
Contact Surface
Smooth/Backside
Pulley Outer Diameter
3.01 in
Items Included
1x Engine Timing Belt Tensioner - 39153
Quantity
1
Warranty Period
2-Year
OE Number
BC3Z6B209B,BC3Z6B209A,BC3Q6B209AC,BC3Q6B209AD,BC3Q6B209AB
Part Number
39153

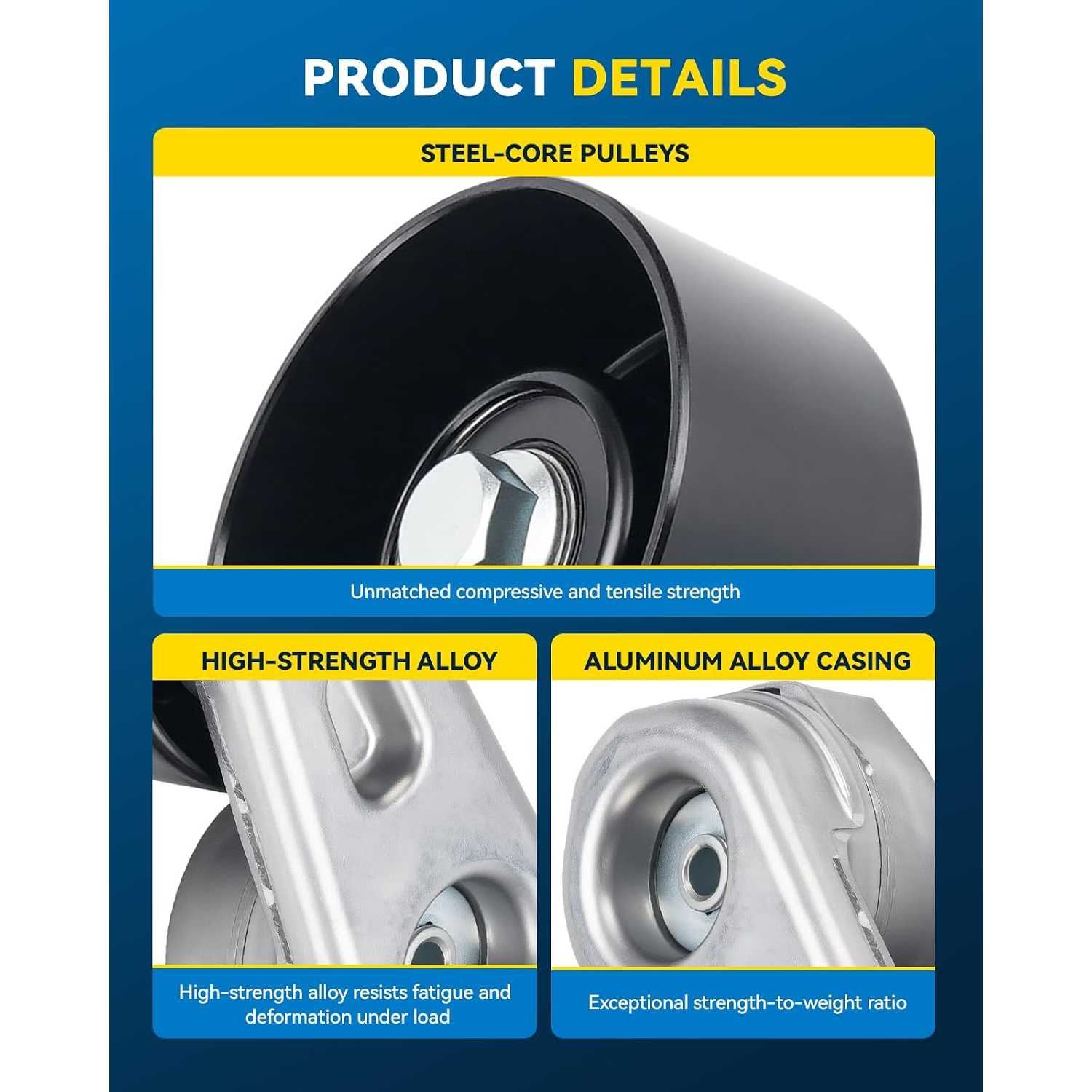

Highlights

  • [Fitment]: PHILTOP Belt Tensioner with Pulley Replacement For ① Ford 2011-2016 F-250/F-350/F-450/F-550 Super Duty 6.7L
  • [OE Reference Number]: BC3Z6B209B, 39153, BC3Z6B209A, BC3Q6B209AC, BC3Q6B209AD, BC3Q6B209AB, BT131, 49466, BT98, 4068, 88878461, Manufactured using the same or improved technology and quality materials as the original equipment manufacturer (OEM) components to ensure a factory match
  • [Labyrinth Seal Protection]: PHILTOP automatic drive belt tensioner assembly with pulley adopts labyrinth seal to protect internal components, meeting or exceeding the service life requirements of the original manufacturer
  • [Long service life]: The damping system tested hundreds of times absorbs extreme vibration to improve the life of the tensioner as well as belts and accessories
  • [Strong stability]: Torsion round spring design used in PHILTOP tensioner provides reliable and stable tension

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20162011 - 20162013 - 20162011 - 20162011 - 20162011 - 20162011 - 20162013 - 20162011 - 20162011 - 20162011 - 20162011 - 20162013 - 20162011 - 20162011 - 20162011 - 20162011 - 20162011 - 2016
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-450 Super DutyF-450 Super DutyF-450 Super DutyF-450 Super DutyF-450 Super DutyF-550 Super DutyF-550 Super DutyF-550 Super Duty
TrimKing RanchLariatPlatinumXLXLTKing RanchLariatPlatinumXLXLTKing RanchLariatPlatinumXLXLTLariatXLXLT
Engine6.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V86.7L V8
Note------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the engine application, mounting holes, pulley size, groove count and tensioner-arm direction.
  • Inspect the pulleys for binding, looseness or abnormal bearing noise.
  • Check the tensioner arm for smooth movement, sufficient damping and fluid leakage.
  • Inspect the belt for cracks, glazing, frayed edges, contamination or stretching. Replace an aged or worn belt at the same time.
  • Disconnect the negative battery cable before installation.

Installation Steps

  • Step-1: Photograph or record the belt-routing path before removing the belt.
  • Step-2: Use a suitable breaker bar or long-handled tool to slowly release the tensioner. Do not pry against the tensioner arm.
  • Step-3: Remove the belt and tensioner, then clean the mounting surface.
  • Step-4: Position the new tensioner and tighten its mounting bolts to specification.
  • Step-5: Route the belt according to the recorded path and ensure every rib is fully seated in the pulley grooves.
  • Step-6: Slowly release the tensioner and recheck the complete belt path.

After Installation

  • Confirm the tensioner bolts are secure and the belt is correctly seated.
  • Start the engine and observe the belt tracking and tensioner movement.
  • Check for belt slipping, jumping, lateral movement or abnormal noise.
  • Confirm the alternator and all belt-driven accessories operate normally.

Product Description

1belt tensioner

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Joe Driggers SR

10/03/2026

Verified buyer

Good

Emma_DailyCommute_648

06/25/2026

Installation was surprisingly simple on my F-550. Had it done in no time, and it's way better than the clunky old one. It's a perfect fit.

FAQS

No FAQs have been added for this product yet.
