2012-2016 Volvo S60 2.5L L5 | Tensioner | OE#31258153/39116 - PHILTOP

2012-2016 Volvo S60 2.5L L5 | Tensioner | OE#31258153/39116 - PHILTOP

Quiet Operation

Slip Resistant

Corrosion & Heat-Resistant Housing

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
42ISETB2637US

Specifications

Brand
PHILTOP
Pulley Included
Yes
Belt Included
No
Belt Type
V-Ribbed
Contact Surface
Smooth/Backside
Pulley Outer Diameter
2.95 in
Items Included
1x Engine Timing Belt Tensioner - 39116
Quantity
1
Warranty Period
2-Year
OE Number
31258153
Part Number
39116

Highlights

  • [Fitment]: PHILTOP Belt Tensioner with Pulley Replacement For ① Volvo S60 2012-2016 2.5T, XC60 2015-2016 2.5T, XC70 2016 2.5T, V60 Cross Country 2015-2016, V60 2015-2016 2.5T, S60 Cross Country 2016
  • [OE Reference Number]: 39116, 31258153, 999845A, 4062, 999845, Manufactured using the same or improved technology and quality materials as the original equipment manufacturer (OEM) components to ensure a factory match
  • [Labyrinth Seal Protection]: PHILTOP automatic drive belt tensioner assembly with pulley adopts labyrinth seal to protect internal components, meeting or exceeding the service life requirements of the original manufacturer
  • [Long service life]: The damping system tested hundreds of times absorbs extreme vibration to improve the life of the tensioner as well as belts and accessories
  • [Strong stability]: Torsion round spring design used in PHILTOP tensioner provides reliable and stable tension

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20162016201620152015 - 20162015201620152015 - 20162015 - 201620152015 - 201620162015 - 201620162016201620162016
MakeVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvoVolvo
ModelS60S60S60S60S60S60S60 Cross CountryV60V60V60V60V60 Cross CountryV60 Cross CountryXC60XC60XC60XC70XC70XC70
TrimT5T5 Inscription PlatinumT5 Inscription PremierT5 PlatinumT5 PremierT5 Premier PlusT5 PlatinumT5T5 PlatinumT5 PremierT5 Premier PlusT5T5 PlatinumT5T5 PlatinumT5 PremierT5T5 PlatinumT5 Premier
Engine2.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L52.5L L5
Note-------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the engine application, mounting holes, pulley size, groove count and tensioner-arm direction.
  • Inspect the pulleys for binding, looseness or abnormal bearing noise.
  • Check the tensioner arm for smooth movement, sufficient damping and fluid leakage.
  • Inspect the belt for cracks, glazing, frayed edges, contamination or stretching. Replace an aged or worn belt at the same time.
  • Disconnect the negative battery cable before installation.

Installation Steps

  • Step-1: Photograph or record the belt-routing path before removing the belt.
  • Step-2: Use a suitable breaker bar or long-handled tool to slowly release the tensioner. Do not pry against the tensioner arm.
  • Step-3: Remove the belt and tensioner, then clean the mounting surface.
  • Step-4: Position the new tensioner and tighten its mounting bolts to specification.
  • Step-5: Route the belt according to the recorded path and ensure every rib is fully seated in the pulley grooves.
  • Step-6: Slowly release the tensioner and recheck the complete belt path.

After Installation

  • Confirm the tensioner bolts are secure and the belt is correctly seated.
  • Start the engine and observe the belt tracking and tensioner movement.
  • Check for belt slipping, jumping, lateral movement or abnormal noise.
  • Confirm the alternator and all belt-driven accessories operate normally.

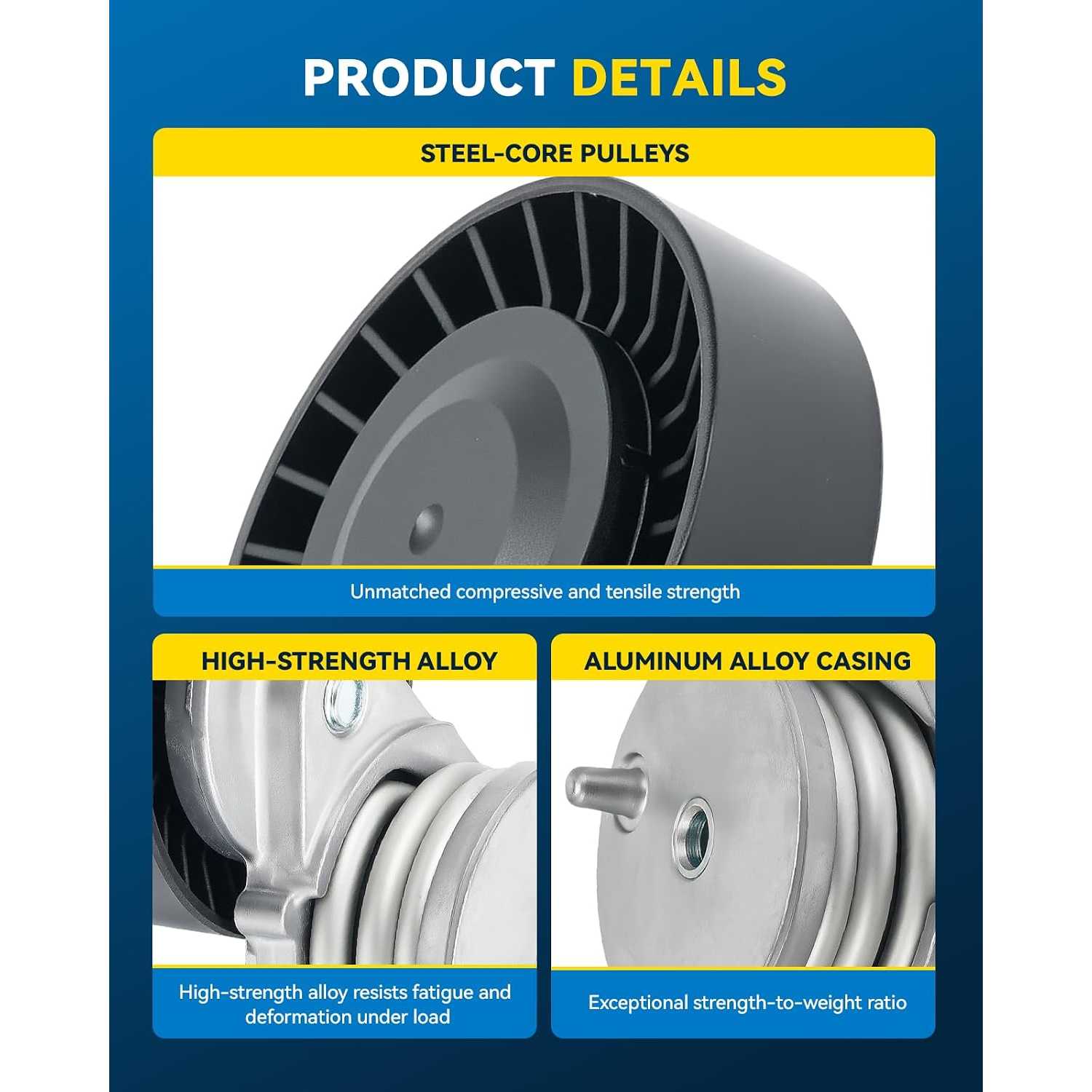

Product Description

1belt tensioner

Reviews

4.8/5

Based on 6 reviews

583%
417%
30%
20%
10%

Jennifer_Auto_76

03/29/2026

Installing this was surprisingly easy, fit perfectly. It's working great and my belt is quiet again. Definitely a good replacement part.

DaveTheMechanic_39

01/11/2026

Installation was simpler than I expected, took about an hour. It fits like a glove and operates smoothly. Much better than wrestling with the old, worn-out tensioner.

FAQS

No FAQs have been added for this product yet.
