2003-2005 Dodge Neon 2.4L / 2001-2010 Chrysler PT Cruiser 2.4L | Tensioner | OE#4668509AE/38176 - PHILTOP

2003-2005 Dodge Neon 2.4L / 2001-2010 Chrysler PT Cruiser 2.4L | Tensioner | OE#4668509AE/38176 - PHILTOP

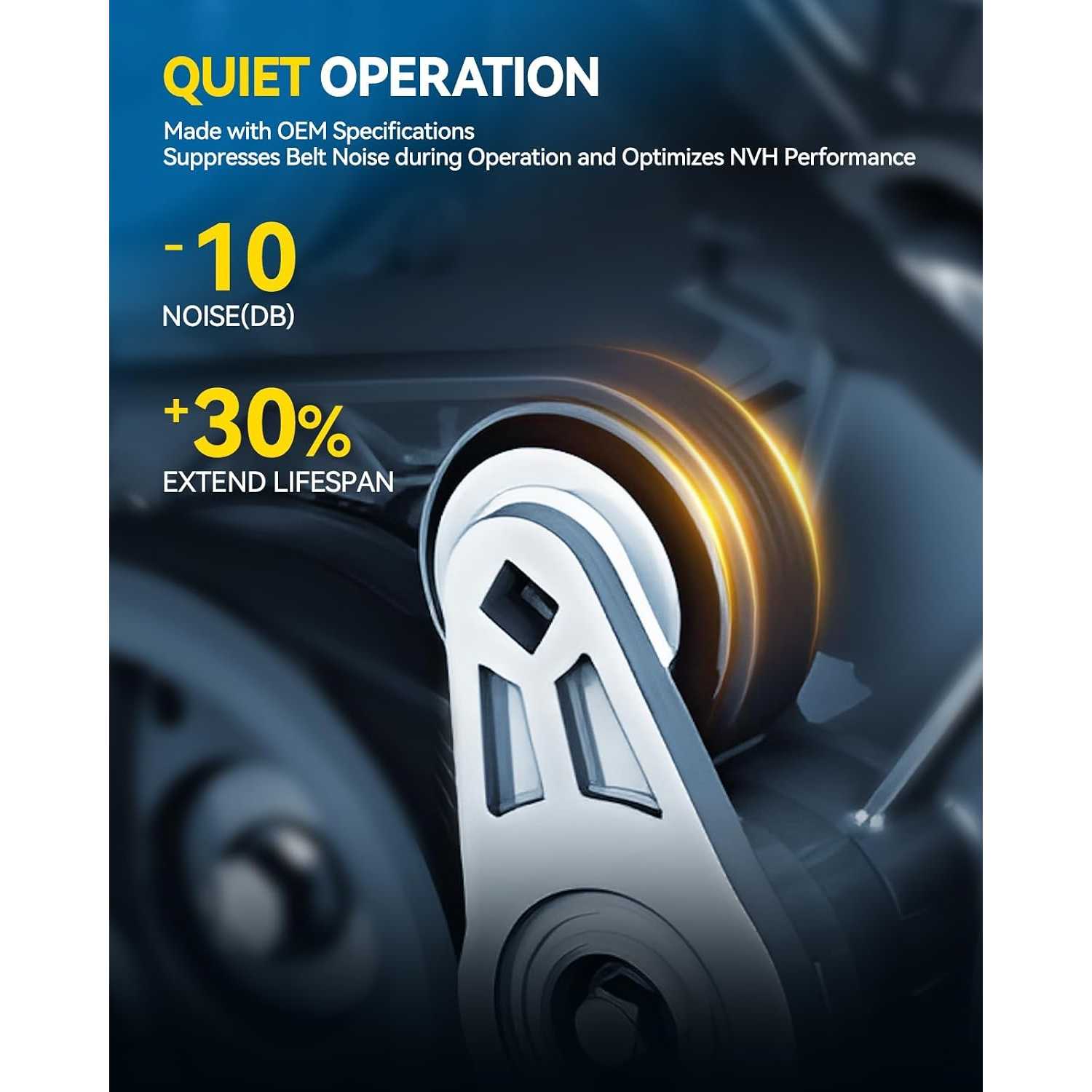

Quiet Operation

Slip Resistant

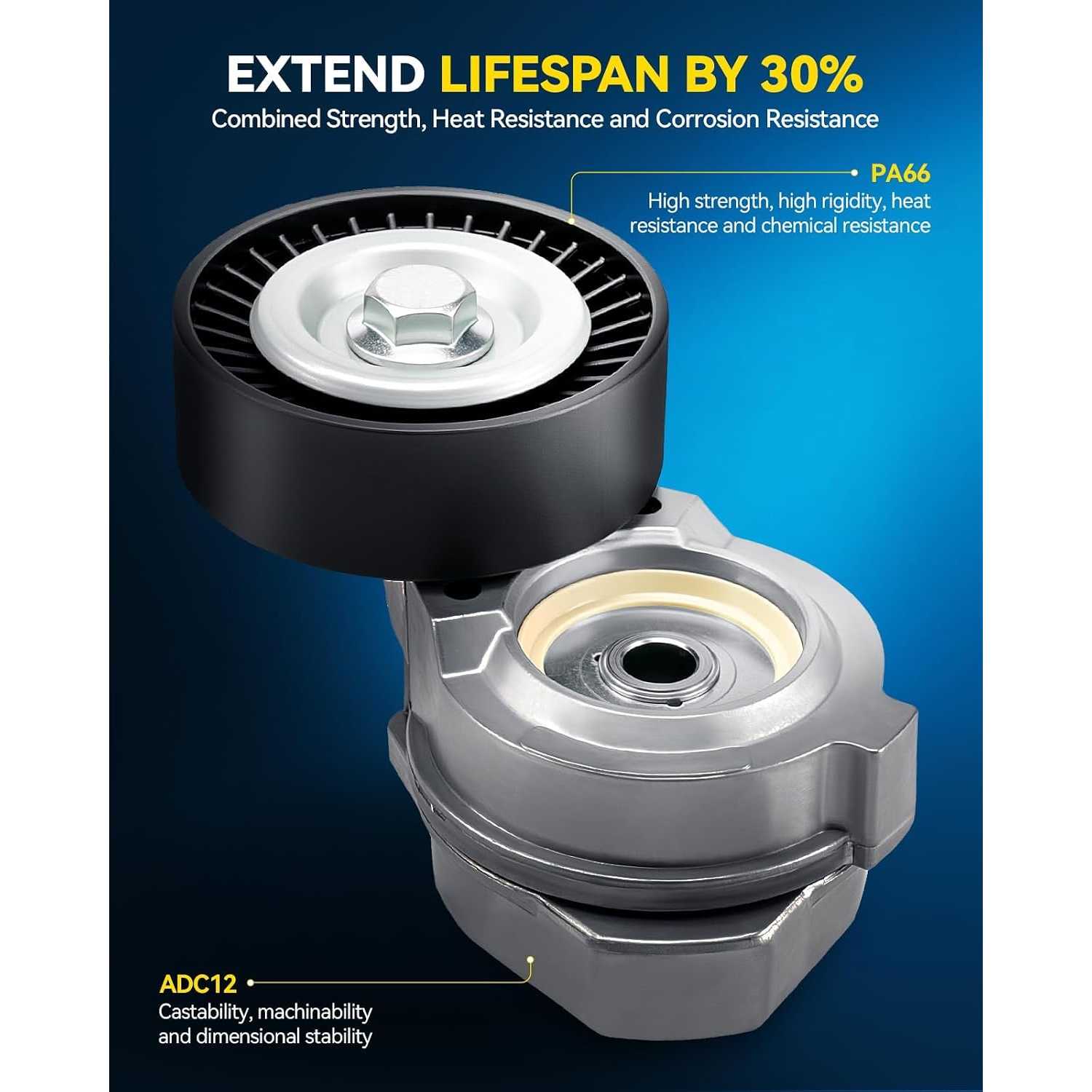

Corrosion & Heat-Resistant Housing

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
62ISETB1957US

Specifications

Brand
PHILTOP
Pulley Included
Yes
Belt Included
No
Belt Type
V-Ribbed
Contact Surface
Smooth/Backside
Pulley Outer Diameter
2.76 in
Items Included
1x Engine Timing Belt Tensioner - 38176
Quantity
1
Warranty Period
2-Year
OE Number
4668509AE,4668509AC,4668509AD,4668509AB
Part Number
38176,89319,49279,305319,5545

Highlights

  • [Fitment]: PHILTOP Belt Tensioner with Pulley Replacement For ① Chrysler PT Cruiser 2001-2010, ② Dodge Neon 2003-2005 2.4T
  • [OE Reference Number]: 4668509AE, 4668509AC, 4668509AD, 38176, 89319, 49279, 4668509AB, 04668509AB, 04668509AC, 04668509AD, 305319, 5545, 04668509AE, Manufactured using the same or improved technology and quality materials as the original equipment manufacturer (OEM) components to ensure a factory match
  • [Labyrinth Seal Protection]: PHILTOP automatic drive belt tensioner assembly with pulley adopts labyrinth seal to protect internal components, meeting or exceeding the service life requirements of the original manufacturer
  • [Long service life]: The damping system tested hundreds of times absorbs extreme vibration to improve the life of the tensioner as well as belts and accessories

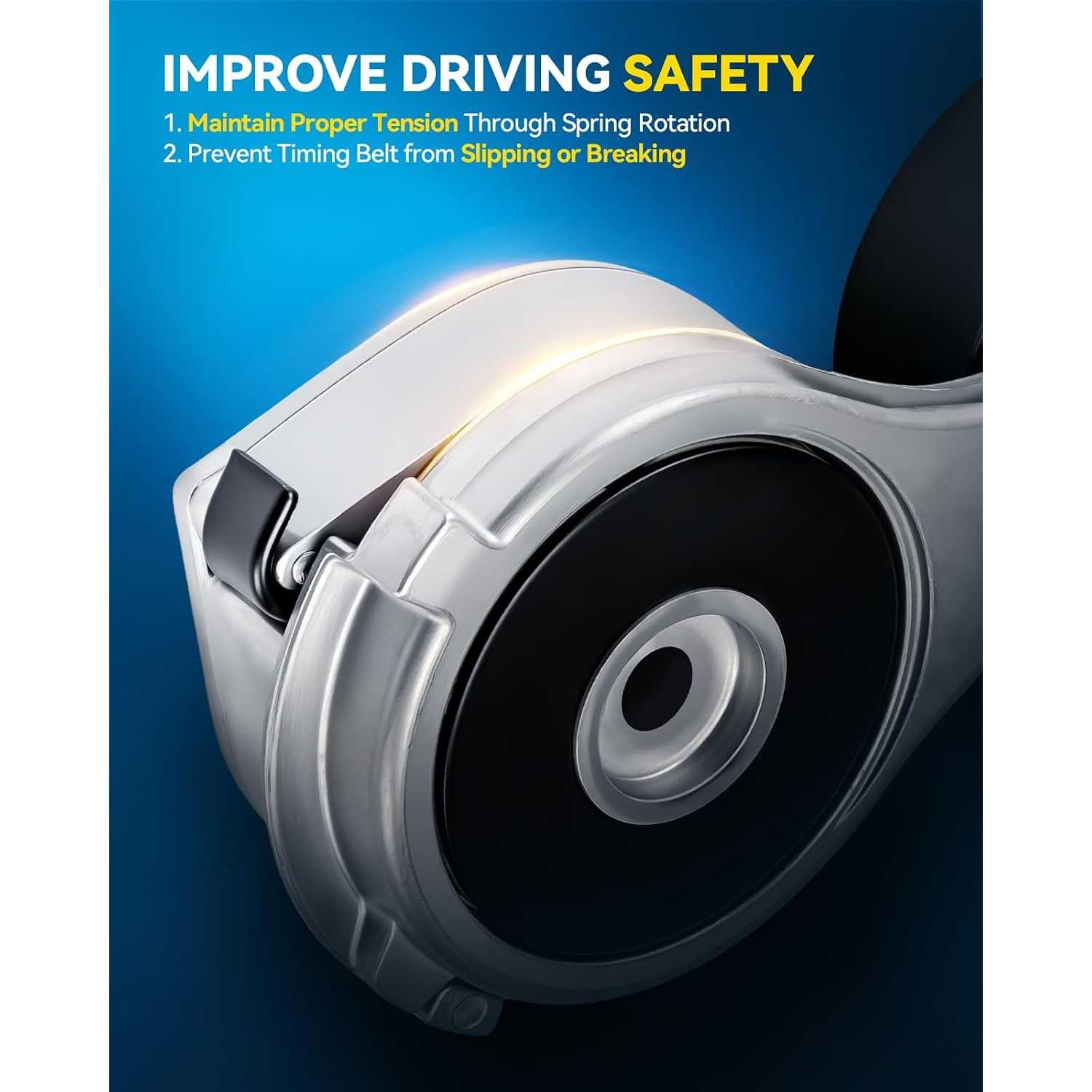

  • [Strong stability]: Torsion round spring design used in PHILTOP tensioner provides reliable and stable tension

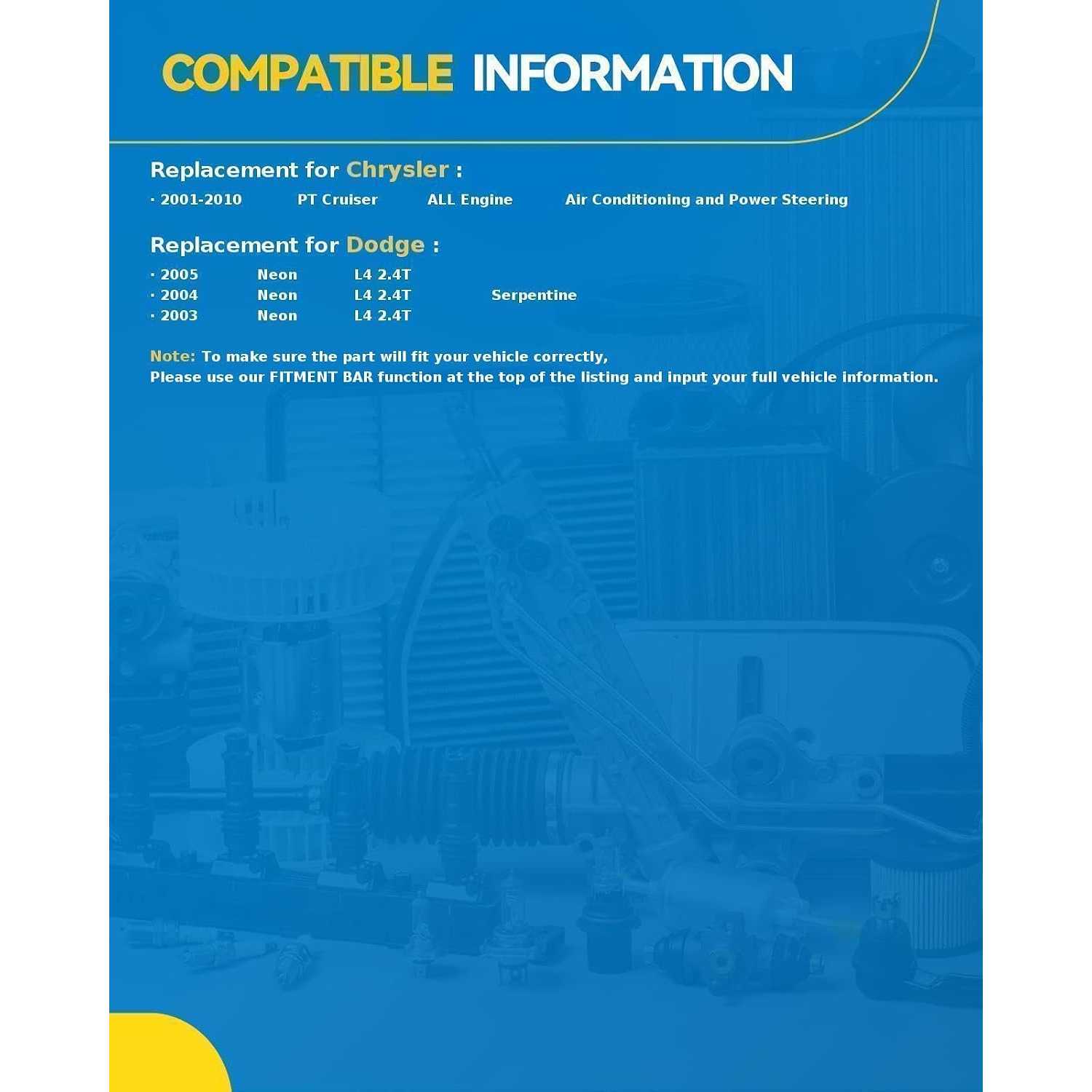

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2001 - 200920102010200220052003 - 20072008 - 20092001 - 20092005 - 20062001 - 20092003 - 2005
MakeChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerDodge
ModelPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserNeon
TrimBaseClassicCouture EditionDreamDream CruiserGTLXLimitedStreet CruiserTouringSRT-4
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note-----------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the engine application, mounting holes, pulley size, groove count and tensioner-arm direction.
  • Inspect the pulleys for binding, looseness or abnormal bearing noise.
  • Check the tensioner arm for smooth movement, sufficient damping and fluid leakage.
  • Inspect the belt for cracks, glazing, frayed edges, contamination or stretching. Replace an aged or worn belt at the same time.
  • Disconnect the negative battery cable before installation.

Installation Steps

  • Step-1: Photograph or record the belt-routing path before removing the belt.
  • Step-2: Use a suitable breaker bar or long-handled tool to slowly release the tensioner. Do not pry against the tensioner arm.
  • Step-3: Remove the belt and tensioner, then clean the mounting surface.
  • Step-4: Position the new tensioner and tighten its mounting bolts to specification.
  • Step-5: Route the belt according to the recorded path and ensure every rib is fully seated in the pulley grooves.
  • Step-6: Slowly release the tensioner and recheck the complete belt path.

After Installation

  • Confirm the tensioner bolts are secure and the belt is correctly seated.
  • Start the engine and observe the belt tracking and tensioner movement.
  • Check for belt slipping, jumping, lateral movement or abnormal noise.
  • Confirm the alternator and all belt-driven accessories operate normally.
