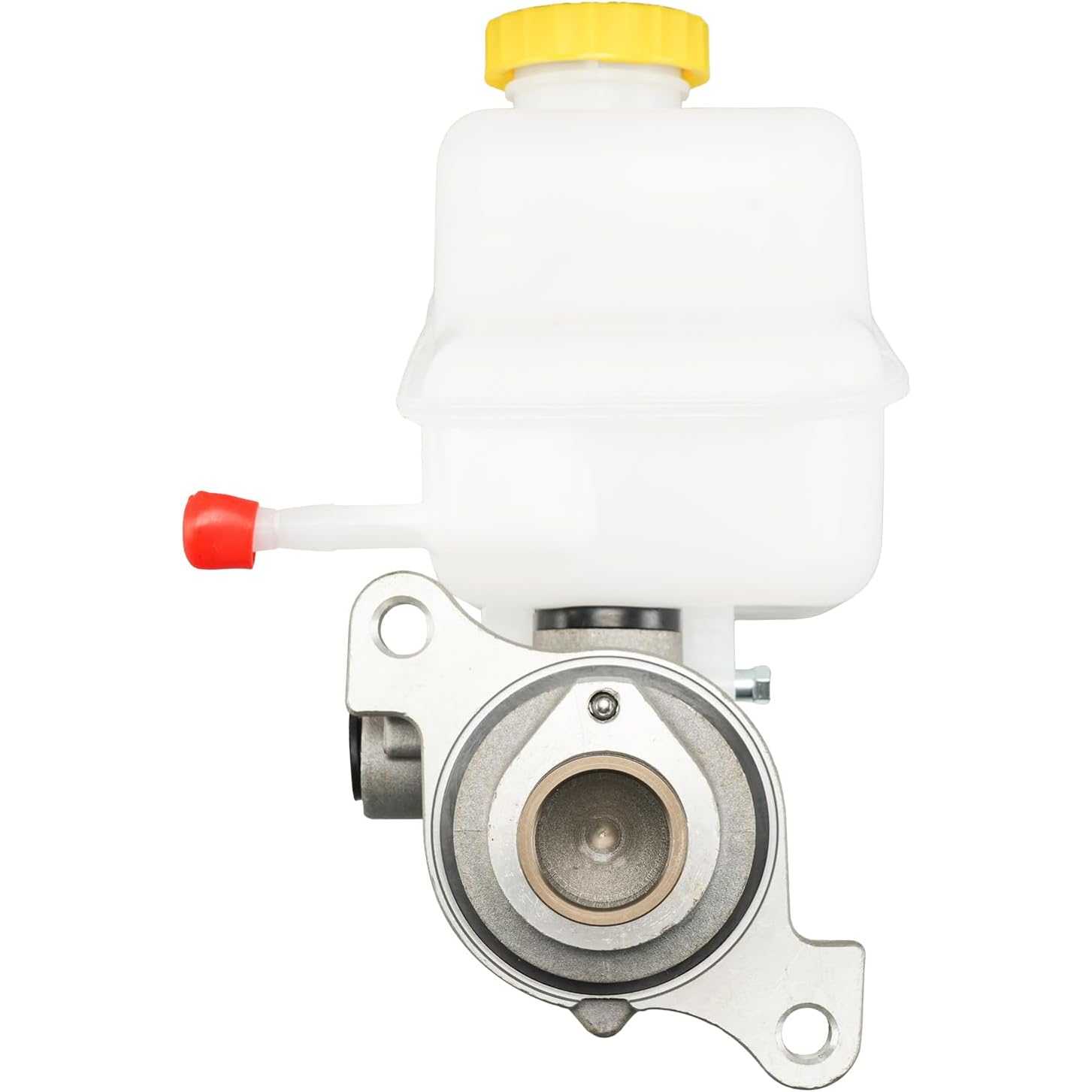

2011-2019 Dodge Challenger 6.4L V8 | Brake Master Cylinder | M630610 - PHILTOP

2011-2019 Dodge Challenger 6.4L V8 | Brake Master Cylinder | M630610 - PHILTOP

Sensor Included

Reservoir Included

Leak-Resistant Seal

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
50ISBMC2127US

Specifications

Brand
PHILTOP
Bore Diameter
1.063 in
Outlet Count
2
Rearward Outlet Size
M14 X 1.5
Reservoir Included
Yes
Secondary Outlet Thread Size
M14 X 1.5
Sensor Included
Yes
Items Included
1x Master Cylinder - M630610
Material
Aluminum
Quantity
1
Warranty Period
2-Year
Part Number
M630610

Highlights

  • [Vehicle Fitment]: PHILTOP Brake Master Cylinder Compatible with Dodge Charger 2011-2019, Chrysler 300 2009-2019, Dodge Challenger 2011-2019, Dodge Charger 2009-2010 3.5L, Dodge Charger 2009-2010 5.7L, Dodge Charger 2009-2010 2.7L, Dodge Charger 2009-2010 6.1L.
  • [Reference Number]: PHILTOP Brake Master Cylinder Assembly Replacement for: M630610,68048551AA,68048551AB.
  • [Precise Replacement]: PHILTOP Brake Master Cylinder Assembly are made entirely of new materials, not remanufactured, to ensure highest quality and safety; cylinder housing is constructed to match the casting material of the original part and ensure similar performance.
  • [Specifications]: ①Condition: New; ②Reservoir Included: Yes; ③Material: Aluminium; ④Master Cylinder Bore Diameter: 1.063(IN); ⑤Number of Outlets: 2; ⑥Rearward Outlet Size: M14 x 1.5; ⑦Sensor Included: Yes.
  • [Note]: Please check the “Philtop Confirmed Fit” bar at the top of this page before buying product to ensure this product works for your vehicle. If the “Philtop Confirmed Fit” bar has an “i” in a blue circle, this product has additional notes. Please hover over the “i” on the bar to see notes before making your purchase.

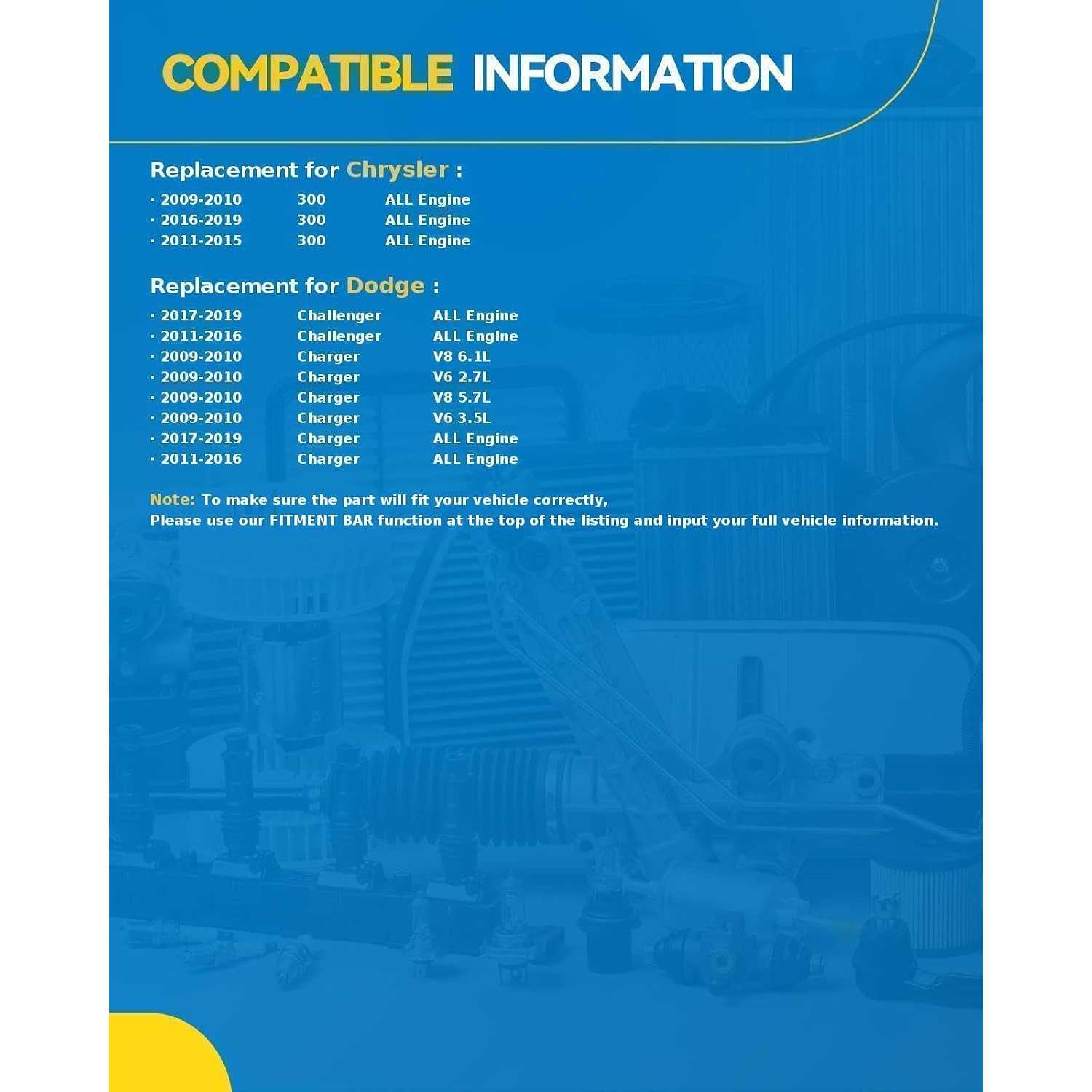

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20142013 - 20152016 - 20172009 - 20102011 - 20152016 - 20192013 - 20142012 - 201420152016 - 201720152016 - 20172009 - 201020092009 - 20102011 - 201220152016 - 201920102012 - 20152016 - 201920102012 - 20152016 - 20192012 - 20142013200920102009 - 20102018 - 20192018 - 201920162017 - 20192011 - 20162017 - 20192017 - 201920122015 - 2016201620162017 - 201920192016201420112015 - 20162017 - 201820182015 - 20162017 - 2019201920192018 - 20192011 - 20142012 - 20162017 - 201920122015 - 20162017 - 201820152017 - 20182017 - 20182017 - 20182017 - 20182018 - 201920182009 - 20102011 - 20162017 - 20192009 - 20102011 - 20162017 - 20192009 - 20102011 - 20162017 - 20192017 - 20182015 - 20162015 - 20162017 - 20182009 - 20102009 - 20102011 - 201620172009 - 20102011 - 20132015 - 20162017 - 20182015 - 20162017 - 20192009 - 20102012 - 20142009 - 20102012 - 20162017 - 20192012201820182019
MakeChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodge
Model300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300ChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerCharger
TrimBaseCCCCCC LuxuryC LuxuryC PlatinumC PlatinumC PlatinumC PlatinumC SRT8LXLimitedLimitedLimitedLimitedSSSSSSSRT8SRT8 CoreSignature SeriesTouringTouringTouringTouring L392 Hemi Scat Pack ShakerGTR/TR/TR/T 392R/T ClassicR/T PlusR/T Plus ShakerR/T Scat PackR/T Scat PackR/T Scat Pack WidebodyR/T ShakerRallye RedlineSESRT 392SRT 392SRT DemonSRT HellcatSRT HellcatSRT Hellcat RedeyeSRT Hellcat Redeye WidebodySRT Hellcat WidebodySRT8SXTSXTSXT PlusSXT PlusSXT PlusScat PackT/AT/A 392DaytonaDaytona 392GTGT PlusPursuitPursuitPursuitPursuitPursuitPursuitR/TR/TR/TR/T 392R/T Road & TrackR/T Scat PackR/T Scat PackSESESESESESESRT 392SRT 392SRT HellcatSRT HellcatSRT8SRT8SXTSXTSXTSXT PlusSXT PlusSXT Plus LeatherScat Pack
Engine3.6L V63.6L V63.6L V65.7L V85.7L V85.7L V83.6L V65.7L V83.6L V63.6L V65.7L V85.7L V86.1L V82.7L V63.5L V63.6L V63.6L V63.6L V63.5L V63.6L V63.6L V65.7L V85.7L V85.7L V86.4L V86.4L V83.5L V62.7L V63.5L V63.6L V63.6L V66.4L V83.6L V65.7L V85.7L V86.4L V85.7L V85.7L V85.7L V86.4L V86.4L V86.4L V85.7L V83.6L V63.6L V66.4L V86.4L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.4L V83.6L V63.6L V63.6L V63.6L V63.6L V66.4L V85.7L V86.4L V85.7L V86.4L V83.6L V63.6L V63.5L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V85.7L V86.4L V85.7L V86.4L V86.4L V82.7L V63.5L V63.6L V63.6L V65.7L V85.7L V86.4L V86.4L V86.2L V86.2L V86.1L V86.4L V83.5L V63.6L V63.6L V63.6L V63.6L V63.6L V66.4L V8
Note
Bore: 1.0625 In.
Bore: 1.0625 In.
-
Bore: 1.0625 In.;Performance Brakes
Bore: 1.0625 In.
-
Bore: 1.0625 In.
Bore: 1.0625 In.
Bore: 1.0625 In.
-
Bore: 1.0625 In.
-
Bore: 1.0625 In.;Performance Brakes
Bore: 1.0625 In.;Performance Brakes
Bore: 1.0625 In.;Performance Brakes
Bore: 1.0625 In.
Bore: 1.0625 In.
-
Bore: 1.0625 In.;Performance Brakes
Bore: 1.0625 In.
-
Bore: 1.0625 In.;Performance Brakes
Bore: 1.0625 In.
-
Bore: 1.0625 In.
Bore: 1.0625 In.
Bore: 1.0625 In.;Performance Brakes
Bore: 1.0625 In.;Performance Brakes
Bore: 1.0625 In.;Performance Brakes
--
Bore: 1.0625 In.
-
Bore: 1.0625 In.
--
Bore: 1.0625 In.
Bore: 1.0625 In.
Bore: 1.0625 In.
Bore: 1.0625 In.
--
Bore: 1.0625 In.
Bore: 1.0625 In.
Bore: 1.0625 In.
Bore: 1.0625 In.
--
Bore: 1.0625 In.
----
Bore: 1.0625 In.
Bore: 1.0625 In.
-
Bore: 1.0625 In.
Bore: 1.0625 In.
-
Bore: 1.0625 In.
------
Bore: 1.0625 In.;Heavy Duty Brakes
Bore: 1.0625 In.
-
Bore: 1.0625 In.;Heavy Duty Brakes
Bore: 1.0625 In.
-
Bore: 1.0625 In.;Heavy Duty Brakes
Bore: 1.0625 In.
--
Bore: 1.0625 In.
Bore: 1.0625 In.
-
Bore: 1.0625 In.;Heavy Duty Brakes
Bore: 1.0625 In.;Heavy Duty Brakes
Bore: 1.0625 In.
-
Bore: 1.0625 In.;Heavy Duty Brakes
Bore: 1.0625 In.
Bore: 1.0625 In.
-
Bore: 1.0625 In.
-
Bore: 1.0625 In.;Heavy Duty Brakes
Bore: 1.0625 In.
Bore: 1.0625 In.;Heavy Duty Brakes
Bore: 1.0625 In.
-
Bore: 1.0625 In.
---

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.

Product Video

Product Description

11

Reviews

4.5/5

Based on 8 reviews

563%
425%
313%
20%
10%

Rob_HomeGarage_357

12/02/2025

Super easy to install, took me about an hour. It's a perfect match for the original and feels very solid. Glad I went with this part instead of paying dealership prices.

DaveTheMechanic_37

11/02/2025

Looks really well-made and fits my Charger perfectly. For the price, it's a steal. My brakes feel much better now. Definitely a good value.
