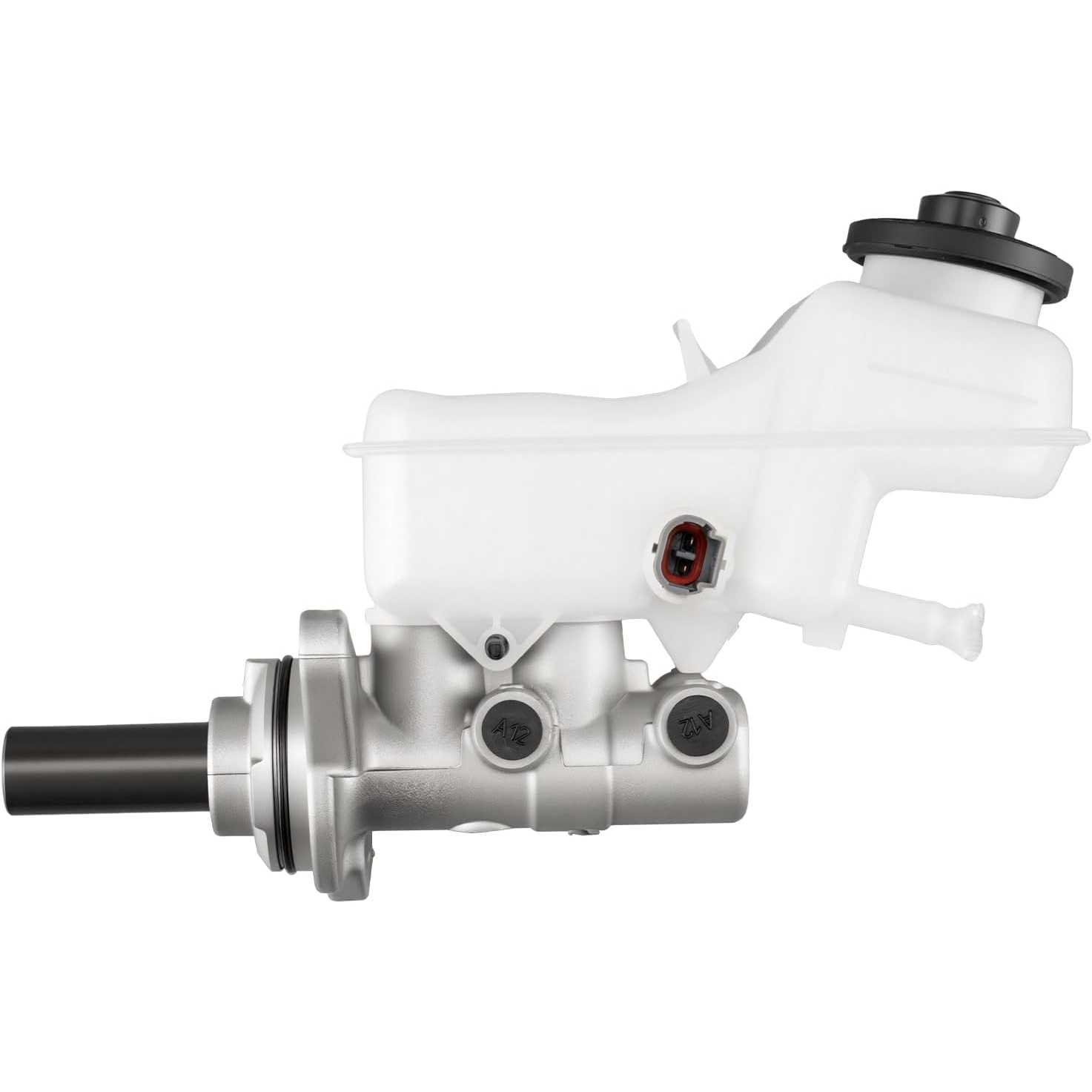

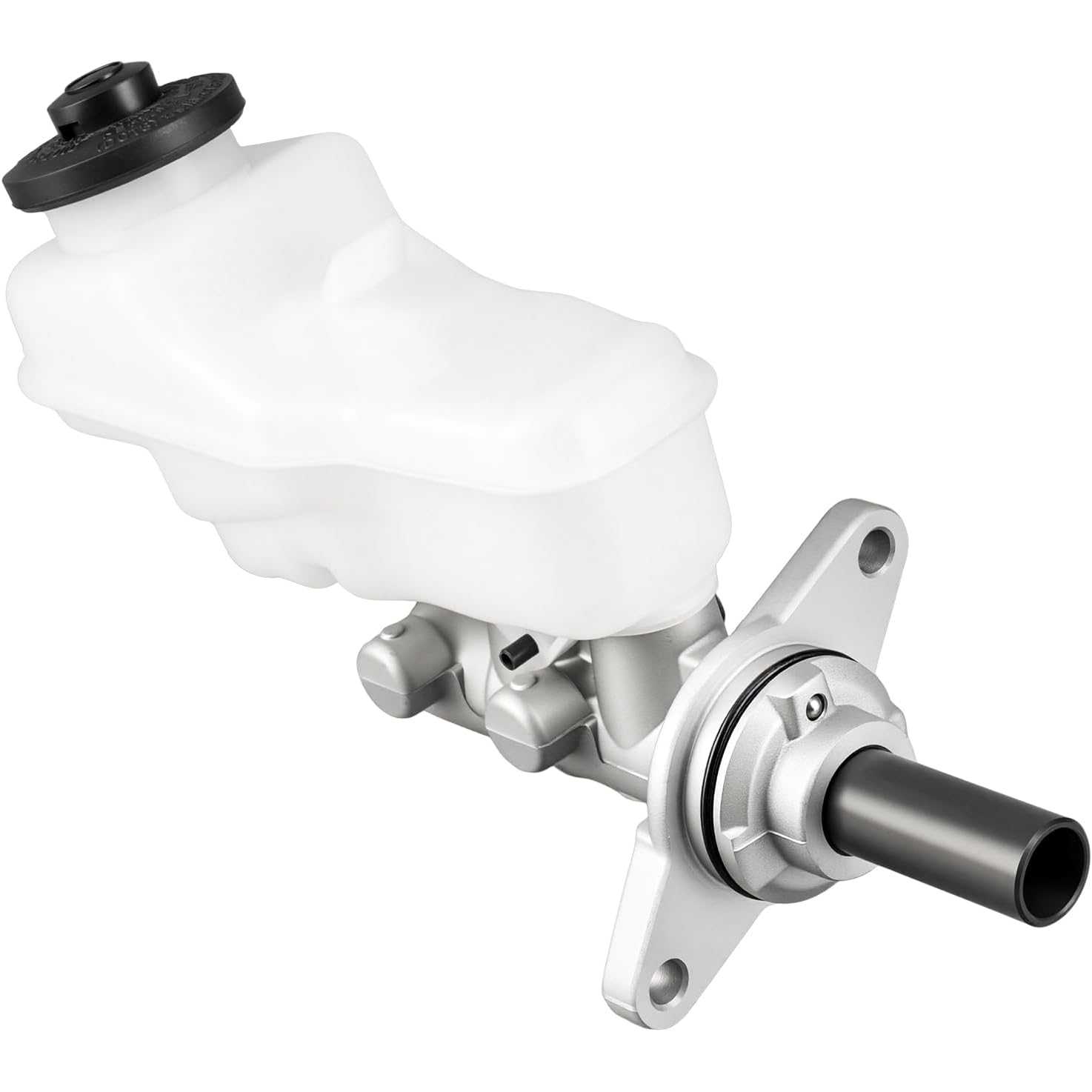

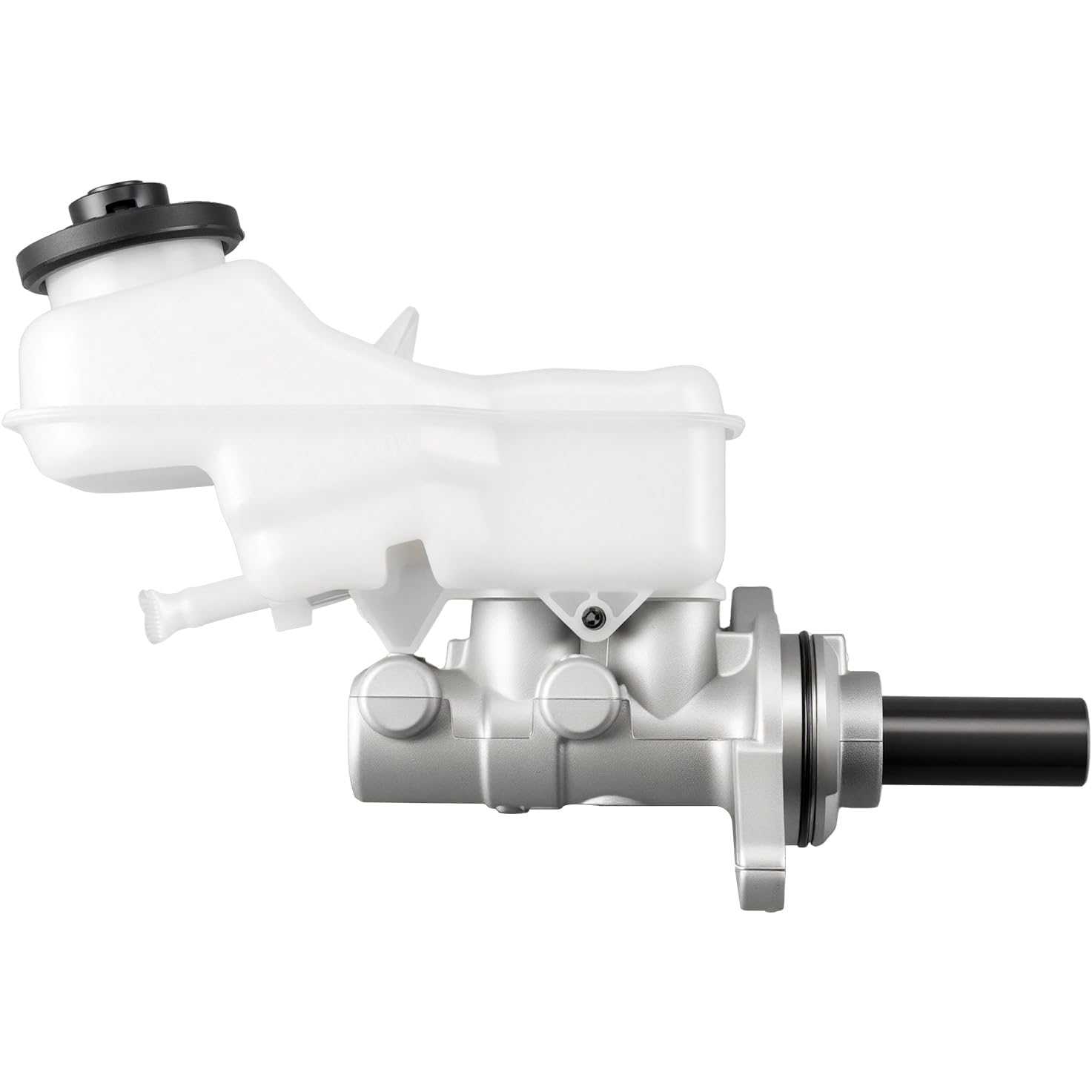

2009-2013 Toyota Corolla 1.8L | Brake Master Cylinder | M630705 - PHILTOP

2009-2013 Toyota Corolla 1.8L | Brake Master Cylinder | M630705 - PHILTOP

Sensor Included

Reservoir Included

Leak-Resistant Seal

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
86ISBMC3767US

Specifications

Brand
PHILTOP

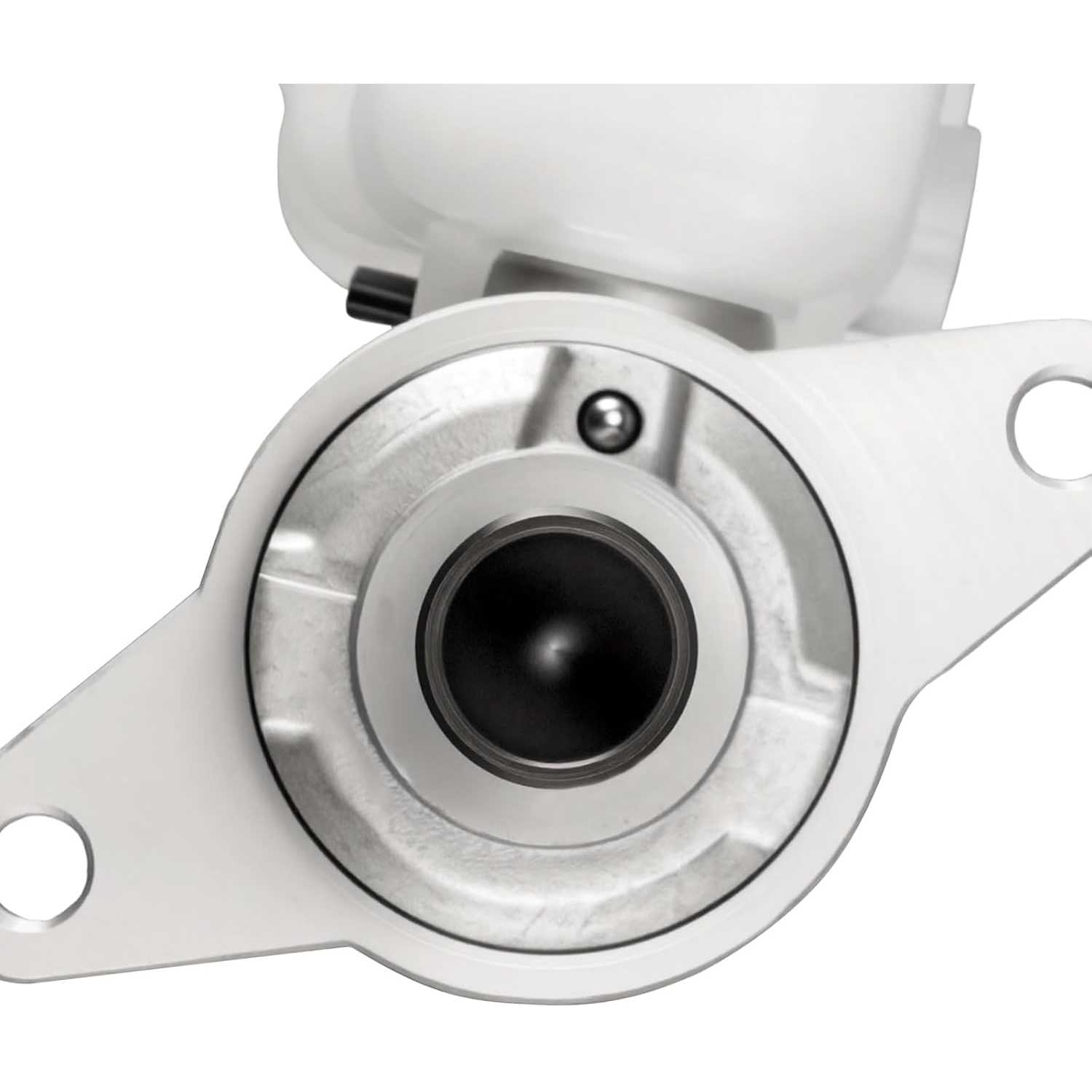

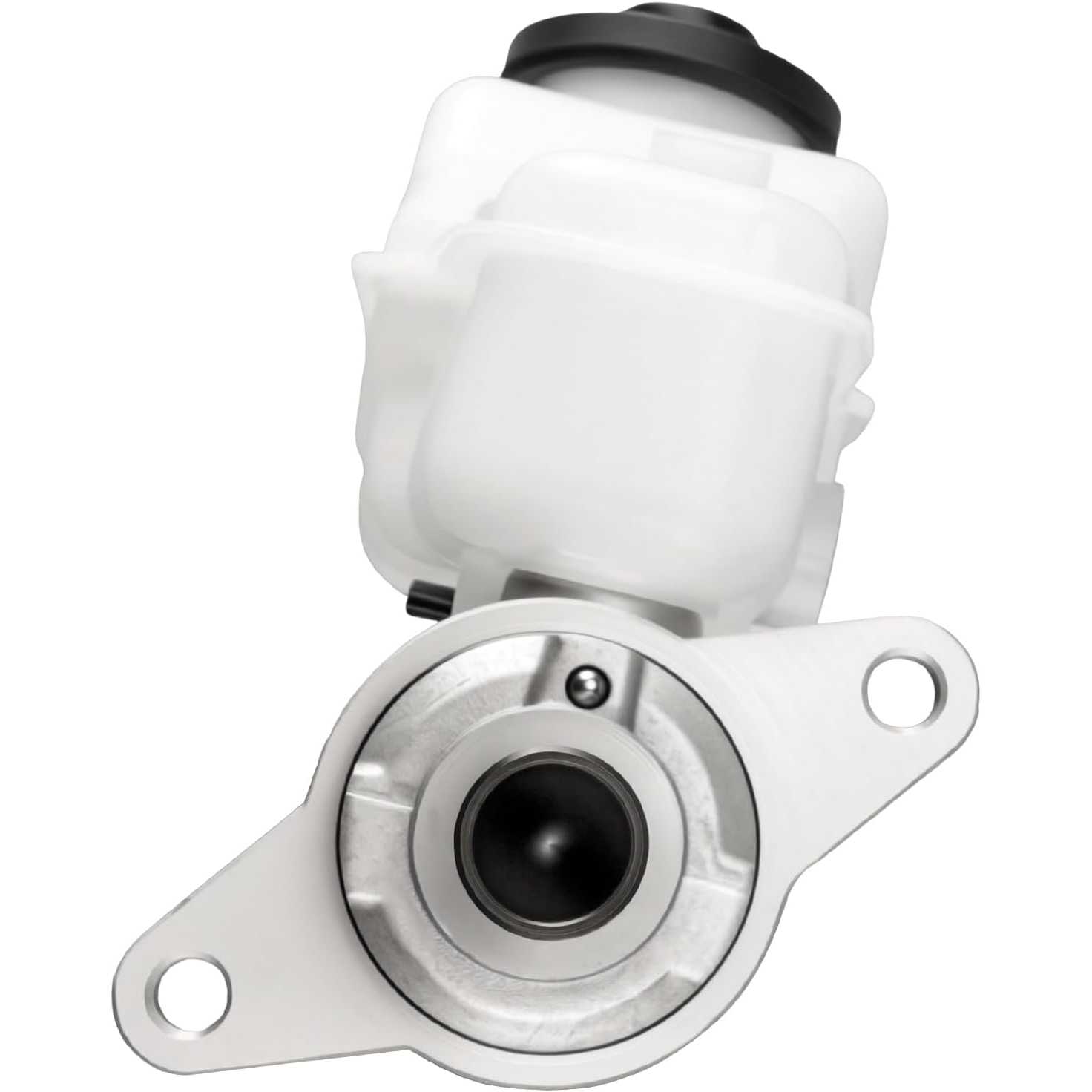

Bore Diameter
0.875 in
Outlet Count
2

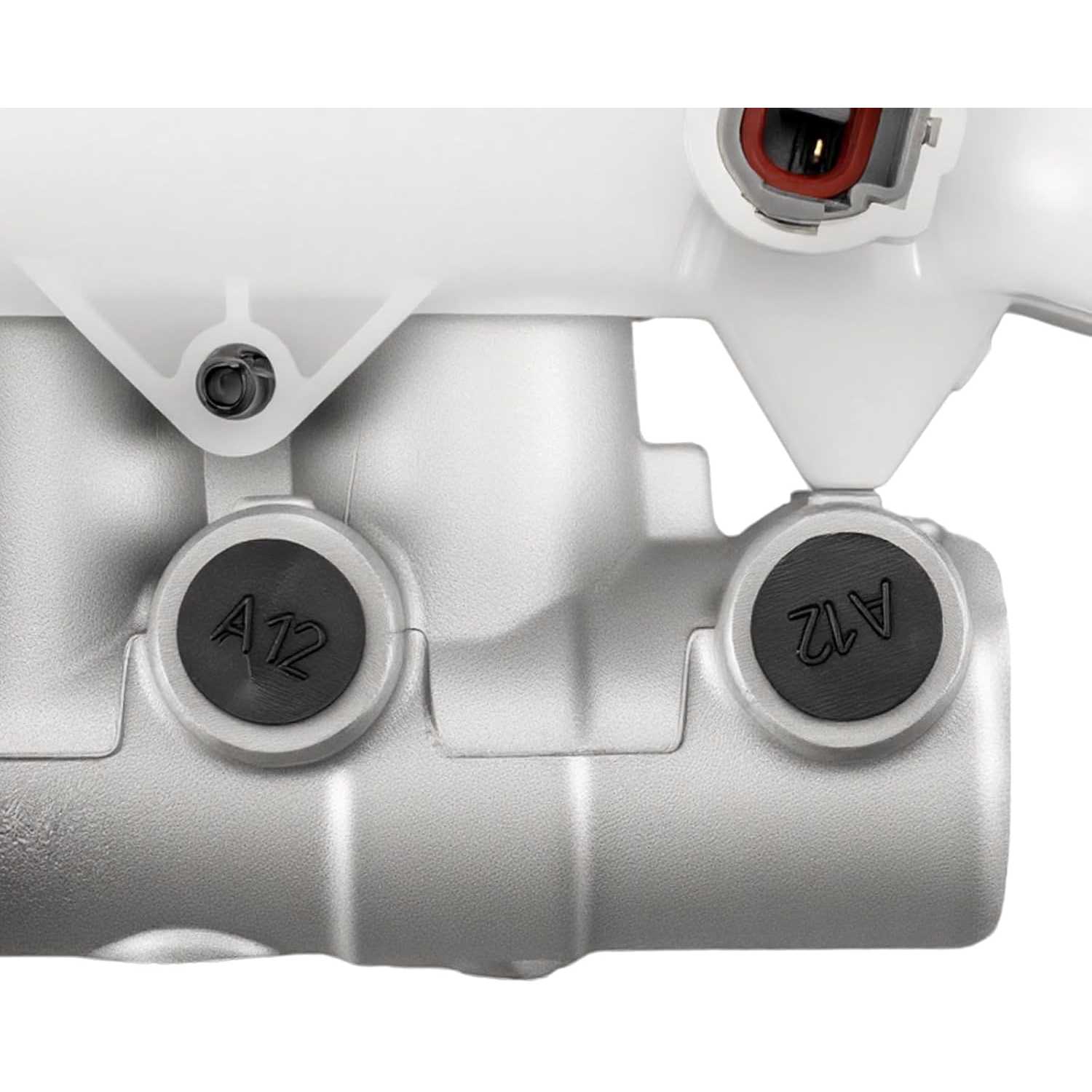

Rearward Outlet Size
M12 X 1.0

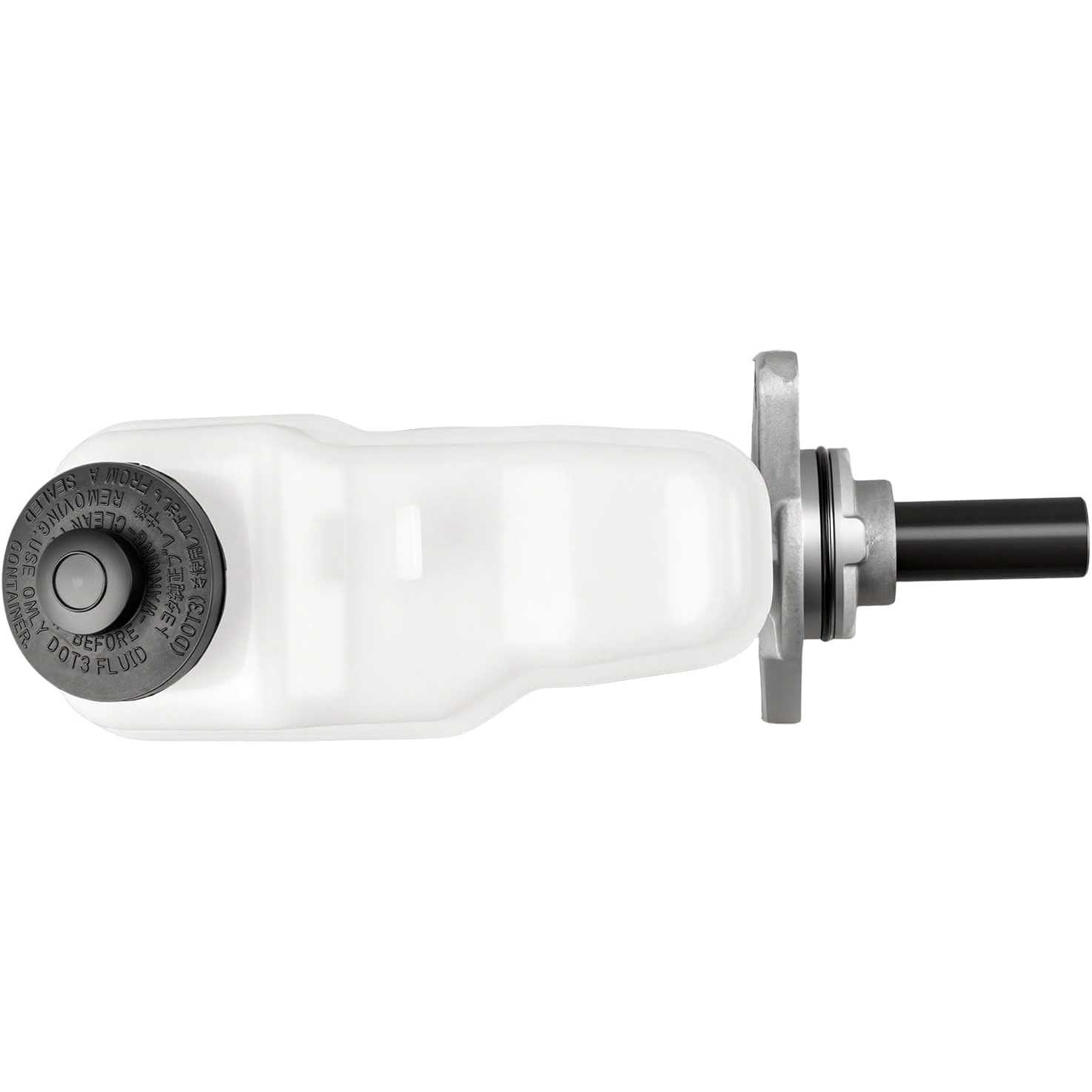

Reservoir Included
Yes
Secondary Outlet Thread Size
M12 X 1.0

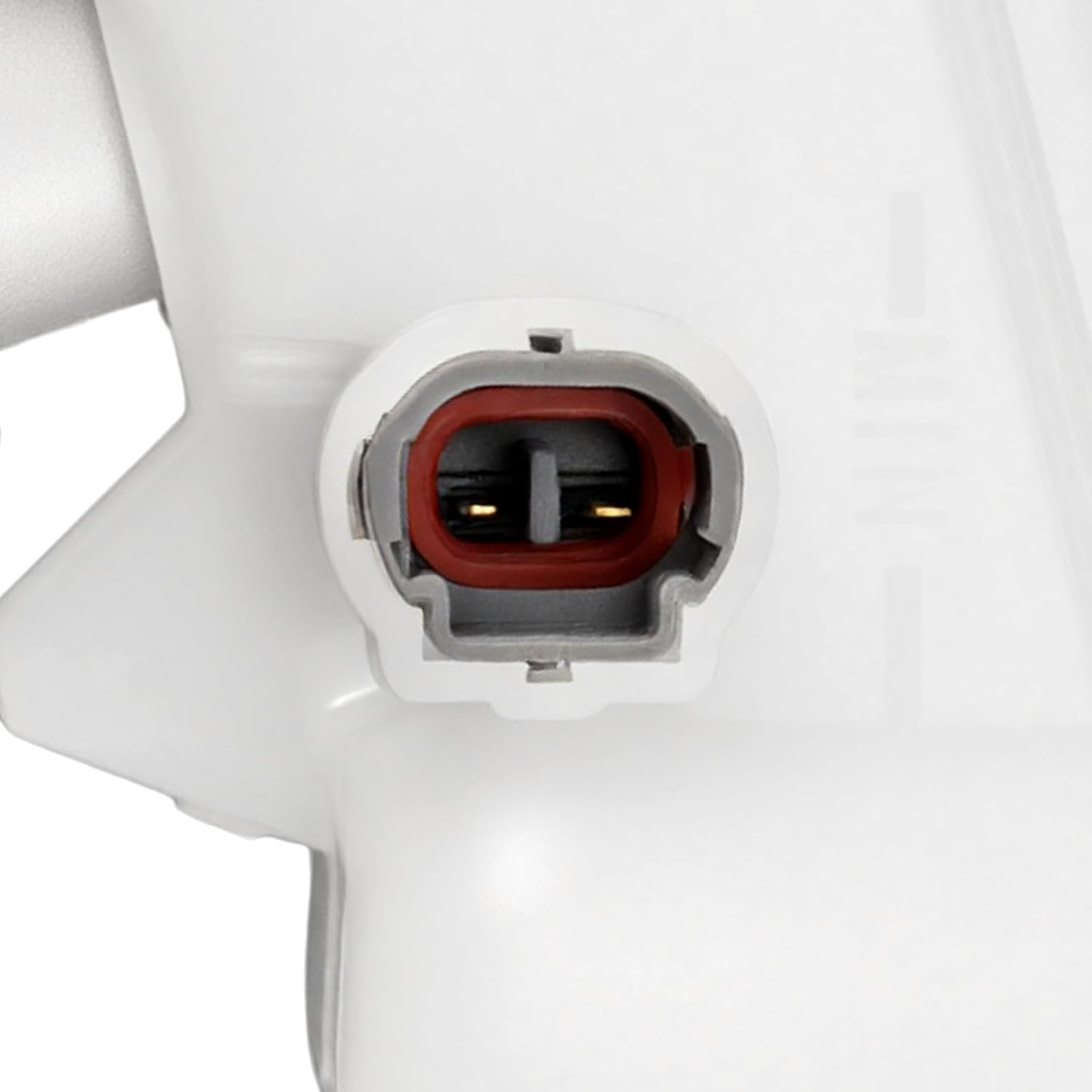

Sensor Included
Yes
Items Included
1x Master Cylinder - M630705
Material
Aluminum
Quantity
1
Warranty Period
2-Year
Part Number
M630705

Highlights

  • PHILTOP Brake Master Cylinder LS06
  • PHILTOP Brake Master Cylinder LS06
  • PHILTOP Brake Master Cylinder LS06
  • PHILTOP Brake Master Cylinder LS06
  • PHILTOP Brake Master Cylinder LS06

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20092010 - 20112012 - 201320092010 - 20112012 - 201320092010 - 20112012 - 2013200920102009201020092011201220132010
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaMatrixMatrixMatrixMatrixMatrix
TrimBaseBaseLLELELESSSXLEXLEXRSXRSBaseBaseBaseBaseS
Engine1.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L42.4L L42.4L L41.8L L41.8L L41.8L L41.8L L42.4L L4
Note
From 01/2009;w/ Vehicle Stability Control
w/ Vehicle Stability Control
-
From 01/2009;w/ Vehicle Stability Control
w/ Vehicle Stability Control
-
From 01/2009;w/ Vehicle Stability Control
w/ Vehicle Stability Control
-
From 01/2009;w/ Vehicle Stability Control
w/ Vehicle Stability Control
From 01/2009;w/ Vehicle Stability Control
w/ Vehicle Stability Control
From 03/2009;w/ Vehicle Stability Control
From 01/2011;w/ Vehicle Stability Control
-
To 07/2013
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.
