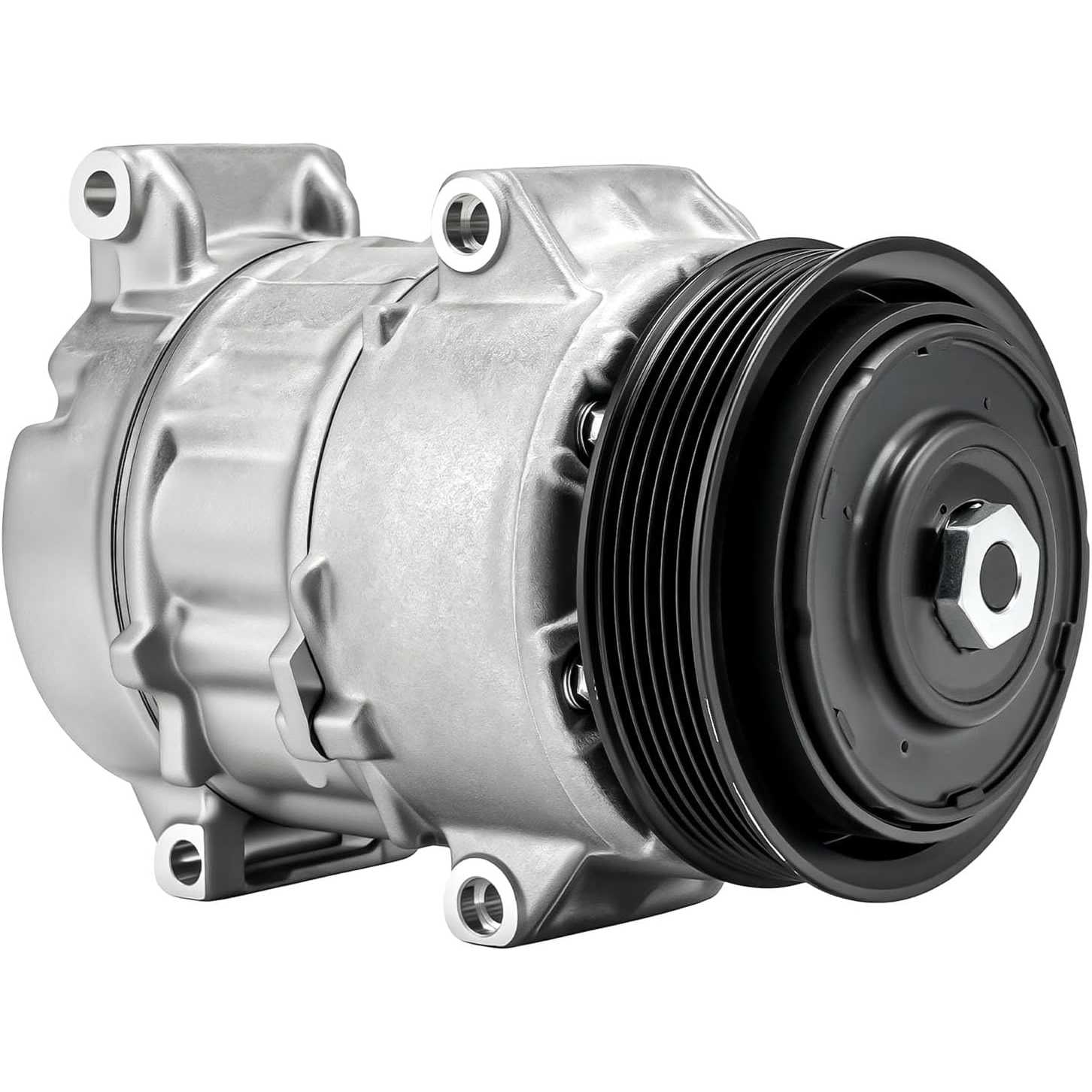

2011-2016 Scion tC 2.5L L4 | New A/C Compressor | OE#8831021150/68325 - PHILTOP

2011-2016 Scion tC 2.5L L4 | New A/C Compressor | OE#8831021150/68325 - PHILTOP

PAG

TSE17C

R134a

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
12ISACC5637US

Specifications

Brand
PHILTOP
Oil Type
Pag 46
Compressor Type
TSE17C
Belt Type
Serpentine
Refrigerant Type
R134a
Pulley Groove Count
6
Items Included
1x A/C Compressors & Clutches - 68325,1x Manual
Material
Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
4.73 in/120.142 mm
Maximum Working Pressure
20 bar
Warranty Period
2-Year
OE Number
8831021150,8831021151
Part Number
68325,648393

Highlights

  • Ensures Fast Refrigeration And Defogging: ①Oil Type:PAG 46;②R-efrigerant Type:R134a;③Pulley Grooves: 6;④Pulley Diameter:4.73 inch ;⑤Compressor type:TSE17C;⑥Pulley type:Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.
  • Widely Compatible: PHILTOP AC Compressor with Clutch Compatible withtC 2011-2016.Please confirm your vehicle details and old part number before ordering.
  • Guaranteed Compatibility : Replaces OEM part numbers:197325,8831021150,8831021151,4711024,68325,648393,1027710,C2743,2022705,T68325.Verify your vehicle info using the Philtop compatibility checker.
  • STRONG COOLING FUNCTION: The auto ac compressor can provide sufficient pressure, which increases power force and decreases engine load. It dramatically improves the cooling function: features as high and stable efficiency, safety, and reliability
  • LOW NOISE & LOW FUEL CONSUMPTION: AC compressor works excellent and has low noise with a better experience. With a lower load factor, low power will be input when driving at high speed, which increases fuel economy and makes operation smoothly

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 2016
MakeScion
ModeltC
TrimBase
Engine2.5L L4
Note
w/ TSE17C Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

PHILTOP AC CompressorAC Compressor

Reviews

4.5/5

Based on 8 reviews

563%
425%
313%
20%
10%

Scott

09/08/2026

Verified buyer

Fit perfect and is working great.

Jennifer_Auto_320

06/10/2026

Looks and feels like a solid, well-made part. The price is fantastic for what you get. My AC is running perfectly, couldn't ask for more.

FAQS

Oil content varies by compressor. Check the product label or instructions before installation and adjust the oil type and quantity according to the vehicle service specification.

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
