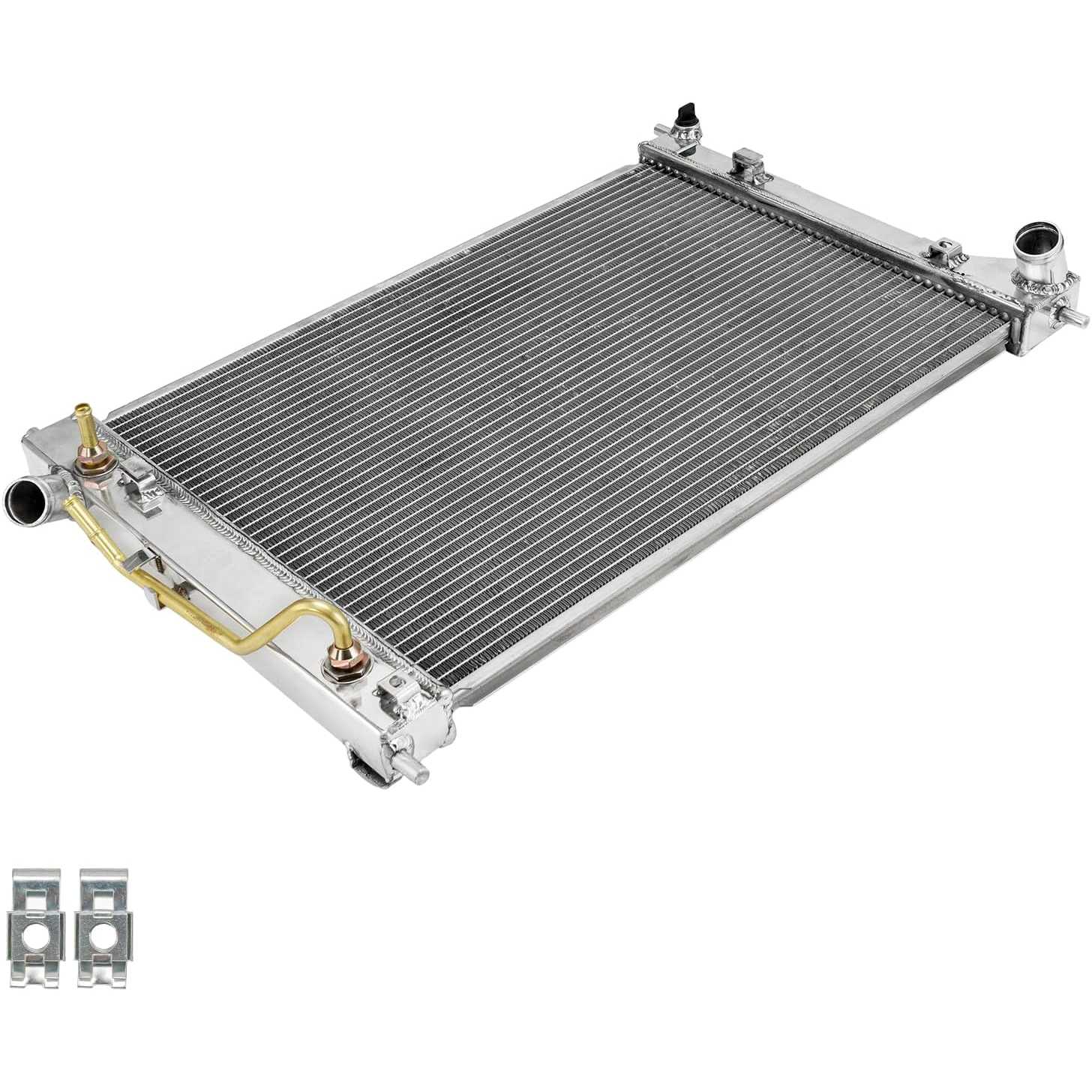

2011-2013 Hyundai Elantra 1.8L | Aluminum 3/4" Radiator | OE#253103X101/CU13333 - PHILTOP

2011-2013 Hyundai Elantra 1.8L | Aluminum 3/4" Radiator | OE#253103X101/CU13333 - PHILTOP

Leak-Resistant

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
35ISRAD2017US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
21-7/8 in
Core Height
15-11/16 in
Radiator Cap Included
No
Inlet Diameter
1-3/8 in
Outlet Diameter
1-3/8 in
Items Included
1x Radiator - CU13333, 1x Instruction Manual
Mounting Type
Top / Bottom Post
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
253103X101,25310A5100,253103X011,25310A5010,253103X151
Part Number
CU13333,2219314,13333C,2219545,4113333,13374C,13374,13385,A13333,8013333,3539,PR13333A,SBR13333,KLI13333,RA13333C,SBR13385,CR13385,CR13333,NR13333A,8013374,0R013333H1CM,BES13333,1981201382,813374,813333

Highlights

  • Vehicle Fitment For: 2013 Elantr-, 2012-2013 Soul, 2011-2012 Elantr- 1.8L, 2013-2015 Elantr- GT, 2014 Forte, 2013 Elantr- Coupe, 2014 Forte Koup 2.0L
  • Reference OE Number :CU13333、253103X101、13374、13385、A13333、25310A5100、253103X011、25310A5010、8013333

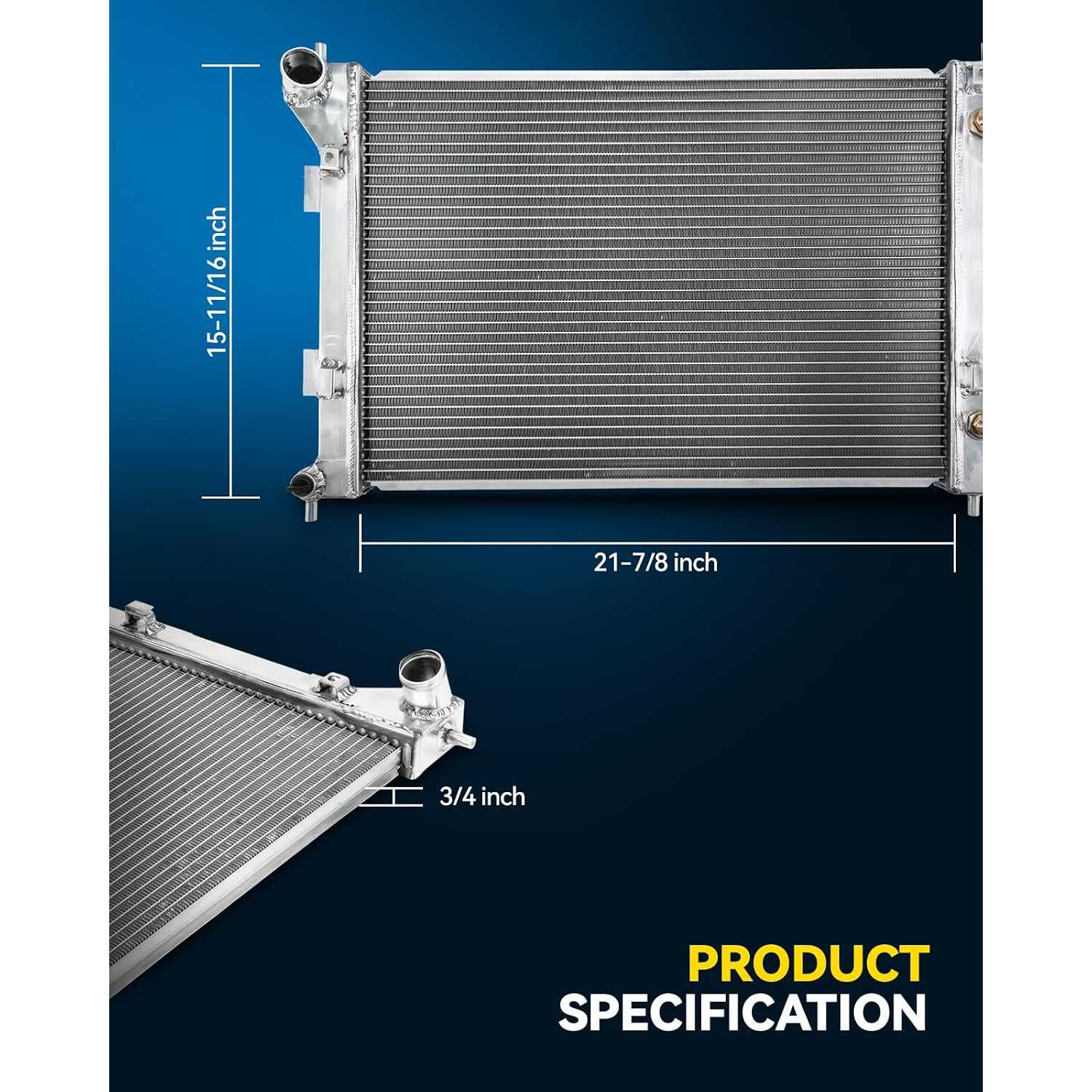

  • Radiator Specification Core Thickness 3/4"Core Width: 21-7/8".Core Height: 15-11/16".Inlet Diameter:1-3/8".Outlet Diameter:1-3/8"(Transmission Oil Cooler Included): YES (Engine Oil Cooler Included): NO (Radiator Flow Type): Cross Flow (row count): 1 (Tank Material): aluminium (Core Material): aluminium
  • High-Efficiency Cooling: Engineered with a high-density aluminum core and multi-layer cooling fins, ensuring optimal heat dissipation and maintaining the engine's ideal operating temperature.
  • IATF16957 Certification: Authoritative certification, quality assurance

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20132011 - 20132013201320132014 - 20152014201420142012 - 20132012 - 20132012 - 2013
MakeHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiKiaKiaKiaKiaKiaKia
ModelElantraElantraElantra CoupeElantra CoupeElantra GTElantra GTForteForteForte KoupSoulSoulSoul
TrimGLSLimitedGSSEBaseBaseEXLXEX!+Base
Engine1.8L L41.8L L41.8L L41.8L L41.8L L42.0L L42.0L L41.8L L42.0L L42.0L L42.0L L41.6L L4
Note
Upward Side Outlet Connection
Upward Side Outlet Connection
Upward Side Outlet Connection
Upward Side Outlet Connection
Upward Side Outlet Connection
Upward Side Outlet Connection
Upward Side Outlet Connection
Upward Side Outlet Connection
Upward Side Outlet Connection
Upward Side Outlet Connection
Upward Side Outlet Connection
Upward Side Outlet Connection

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.
