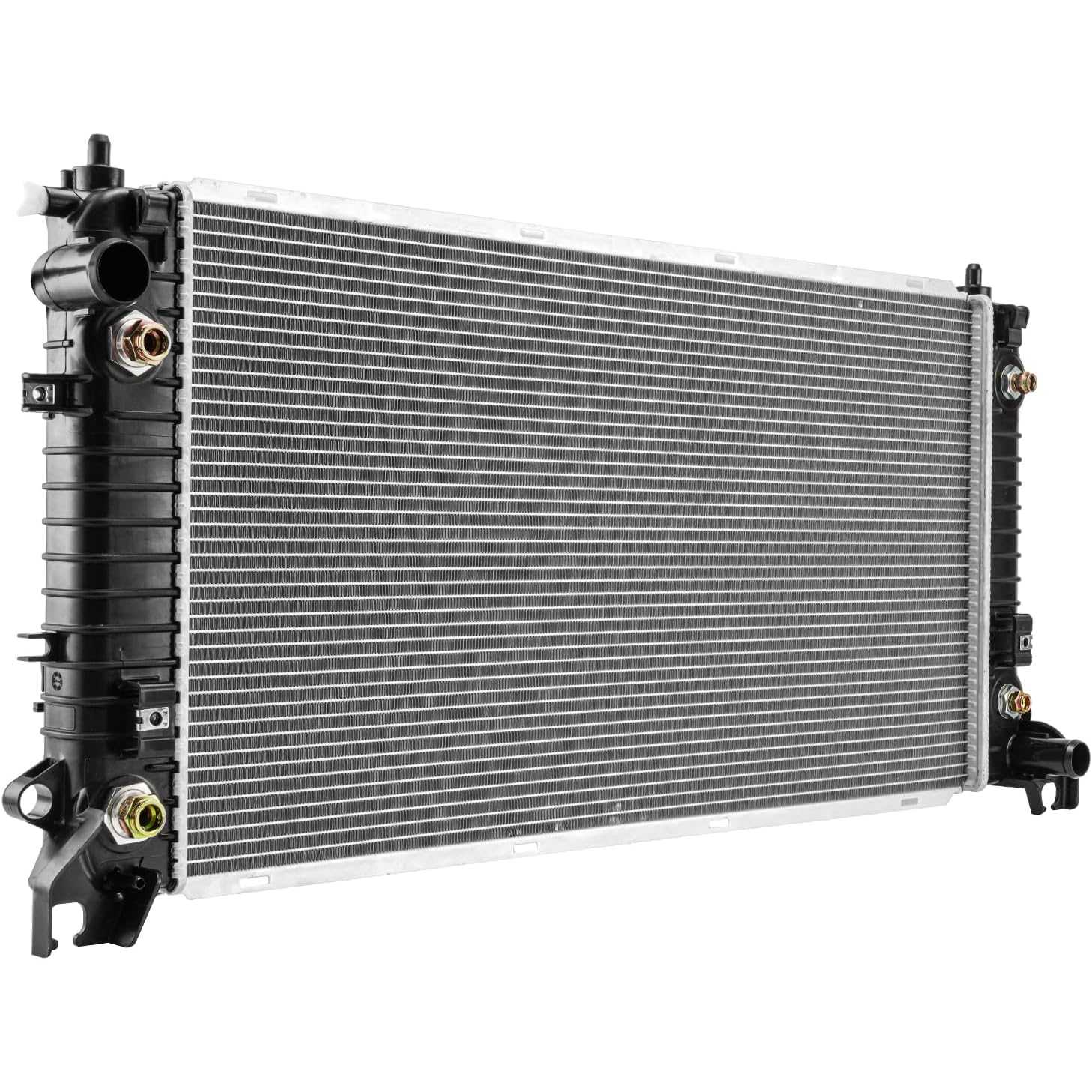

2015-2016 Chevrolet Tahoe 5.3L V8 | Aluminum 1" Radiator | OE#23126397/CU13397 - PHILTOP

2015-2016 Chevrolet Tahoe 5.3L V8 | Aluminum 1" Radiator | OE#23126397/CU13397 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
40ISRAD0487US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
Yes
Core Thickness
1 in
Core Width
16-7/8 in
Core Height
34 in
Radiator Cap Included
No
Inlet Diameter
1-3/8 in
Outlet Diameter
1-9/16 in
Items Included
1x Radiator - CU13397, 1x Instruction Manual
Mounting Type
Top Cradle / Bottom Pin
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
23126397,84207654,23445967,23378655,23126399,23378652,23145553,23378657,84062175,84191916,23445971,23126402,84062174,84207656,23378654,17118615426,23445969,23378658
Part Number
CU13397,4113398,2219453,CU13398,13397,GM3010564,SBR13397,8013398,PR13398A,13724,CR13397,8013397,813398,813397,21831,B13397,B13398,0R013398A2CM,A13397,NR13729A,NR13398A

Highlights

  • Vehicle Specific For: 2014-2016 Silverado 1500 5.3L/6.2L, 2014-2016 Sierra 1500 5.3L/6.2L, 2015-2016 Tahoe, 2015-2016 Suburban, 2015-2016 Yukon 5.3L, 2015 Yukon XL, 2015 Yukon 6.2L, 2015 Escalade 6.2L, 2016 Yukon XL 5.3L, 2015 Escalade ESV 6.2L
  • Radiator Dimension: Core Thickness 1"Core Width: 16-7/8".Core Height: 34".Inlet Diameter:1-3/8".Outlet Diameter:1-9/16"
  • OE For : 84207656,23126397,84207654,23445967,23378654,23378655,2219453,23126399,23378658,17118615426,23378652,23145553,CU13397,GM3010564,23378657,13724
  • IATF16957 Certification: Authoritative certification, quality assurance
  • Package Included: Comes with 1x New Complete Radiator and 1x User Manual. Professional installation would be highly recommended.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015201520152015201520152015201520162014 - 20152014 - 20152015 - 20162014 - 20162014 - 20162014 - 20162015 - 20162014 - 20162015 - 20162015 - 20162015 - 20162015 - 20162015 - 20162015 - 20162015 - 20162015 - 20162014 - 20162014 - 20162014 - 20162014 - 20162014 - 20162014 - 201620152015 - 20162015 - 201620152015 - 20162015 - 2016
MakeCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMC
ModelEscaladeEscaladeEscaladeEscaladeEscalade ESVEscalade ESVEscalade ESVEscalade ESVSilverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500SuburbanSuburbanSuburbanTahoeTahoeTahoeTahoeTahoeSierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500YukonYukonYukonYukon XLYukon XLYukon XL
TrimBaseLuxuryPlatinumPremiumBaseLuxuryPlatinumPremiumCustomHigh CountryHigh CountryLSLTLTZLTZSSVWTLSLTLTZLSLTLTZPPVSSVBaseDenaliDenaliSLESLTSLTDenaliSLESLTDenaliSLESLT
Engine6.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V85.3L V85.3L V86.2L V85.3L V85.3L V85.3L V86.2L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V86.2L V85.3L V85.3L V86.2L V86.2L V85.3L V85.3L V86.2L V85.3L V85.3L V8
Note
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package
1st Design;w/ Max Trailer Package

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.
