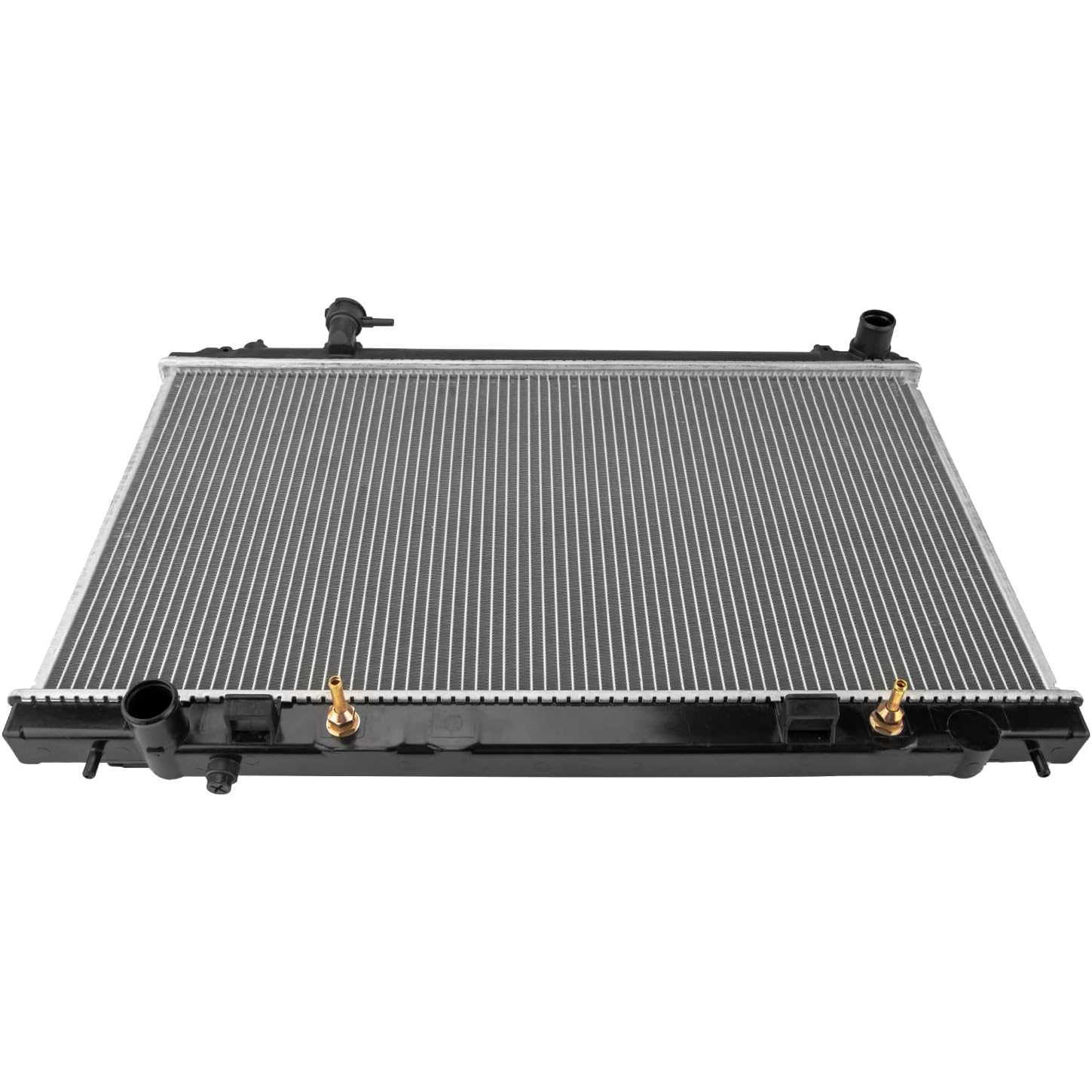

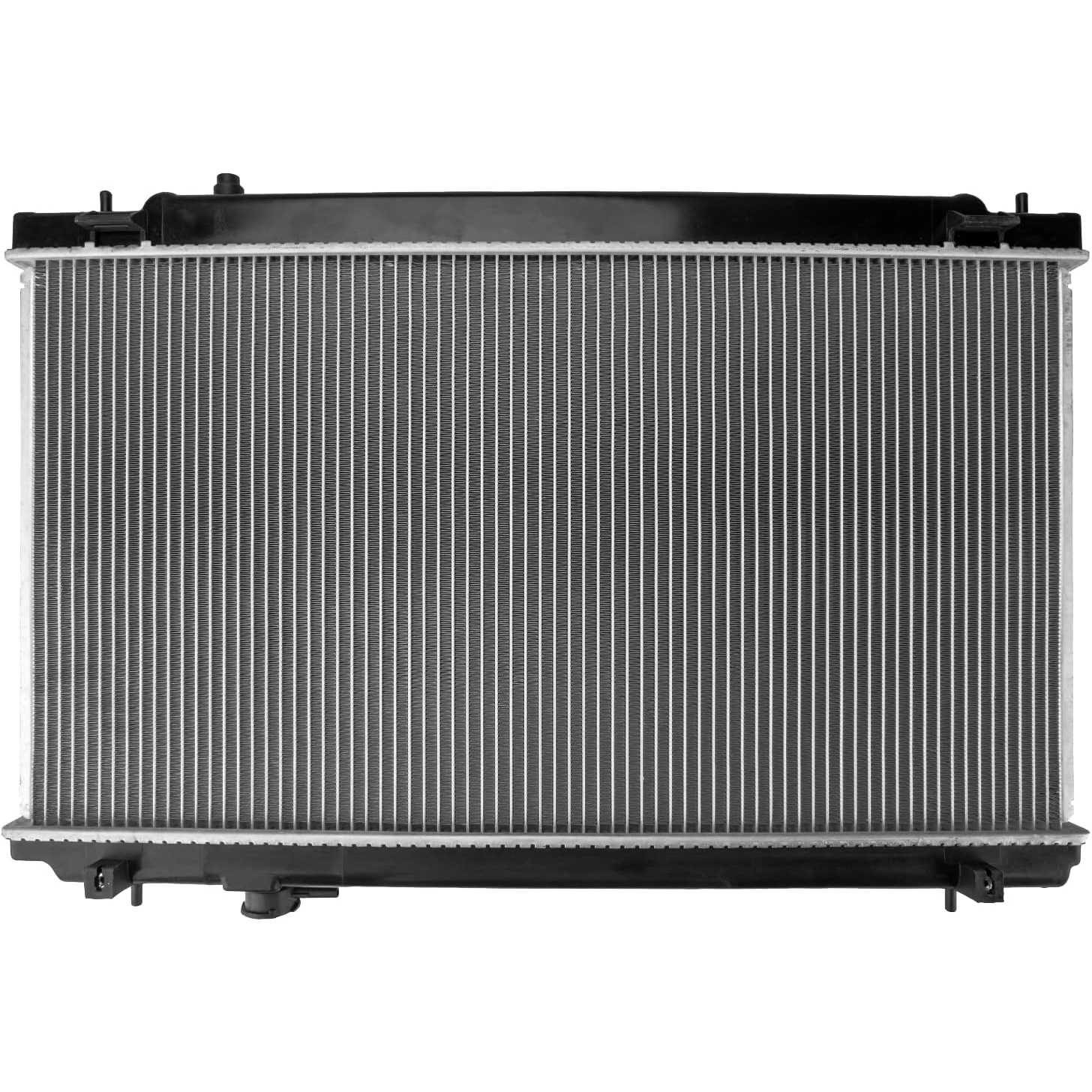

2003-2006 Nissan 350Z 3.5L V6 | Aluminum 3/4" Radiator | OE#21460CD010/CU2576 - PHILTOP

2003-2006 Nissan 350Z 3.5L V6 | Aluminum 3/4" Radiator | OE#21460CD010/CU2576 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
59ISRDT044007US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
28-11/16 in
Core Height
15-15/16 in
Radiator Cap Included
No
Inlet Diameter
1-3/8 in
Outlet Diameter
1-3/8 in
Items Included
1x Radiator - CU2576, 1x Instruction Manual
Mounting Type
Pin
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
21460CD010,21410CD010,2146CD010
Part Number
CU2576,2214404,412576,2576C,412577,2576,2997,2577,8502,432645,CRS2576,PR2576A,REA412576A,KLI2576,KLI2577,SBR2576,REA412577A,CR2576,CR2577,NR2576B,AM2577,0R002576A1CM,1981202051,B2576,BES2576,BES2577,CUC2576,AM2576

Highlights

  • Vehicle Fitment: The complete radiator compatible with 2003-2006 350Z; 2576、2997、21460CD010、CU2576、2577、21410CD010、2214404、8502、432645、CRS2576、PR2576A、REA412576
  • [Specifications] Core Thickness 3/4 in. Core Width 28-11/16 in. Core Height 15-15/16 in. Inlet Diameter 1-3/8 in. Outlet Diameter 1-3/8 in
  • [High Quality Material] PHILTOP radiator housing is made of Aluminum, which can prevent corrosion and is stronger. The tank end interface is made of PA236 plastic to keep the shape of the radiator without deformation. Effectively ensure the service life
  • [Fast Heat Dissipation] The Aluminum water pipe is designed in a flat shape, and the heat sink is corrugated, focusing on heat dissipation performance. The cooling efficiency is at least 35%-215% higher than the radiators in the market. Gaskets and O-rings withstand thermal shock, ensuring durability in extreme cold weather
  • [No Leakage] PHILTOP Radiator Assembly has passed thousands of anti-leakage tests before leaving the factory, refuses to leak water

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20052003 - 20062003 - 20062005 - 20062003 - 20052003 - 20062003 - 2006
MakeNissanNissanNissanNissanNissanNissanNissan
Model350Z350Z350Z350Z350Z350Z350Z
Trim35th Anniversary EditionBaseEnthusiastGrand TouringPerformanceTouringTrack
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

radiatorradiator
