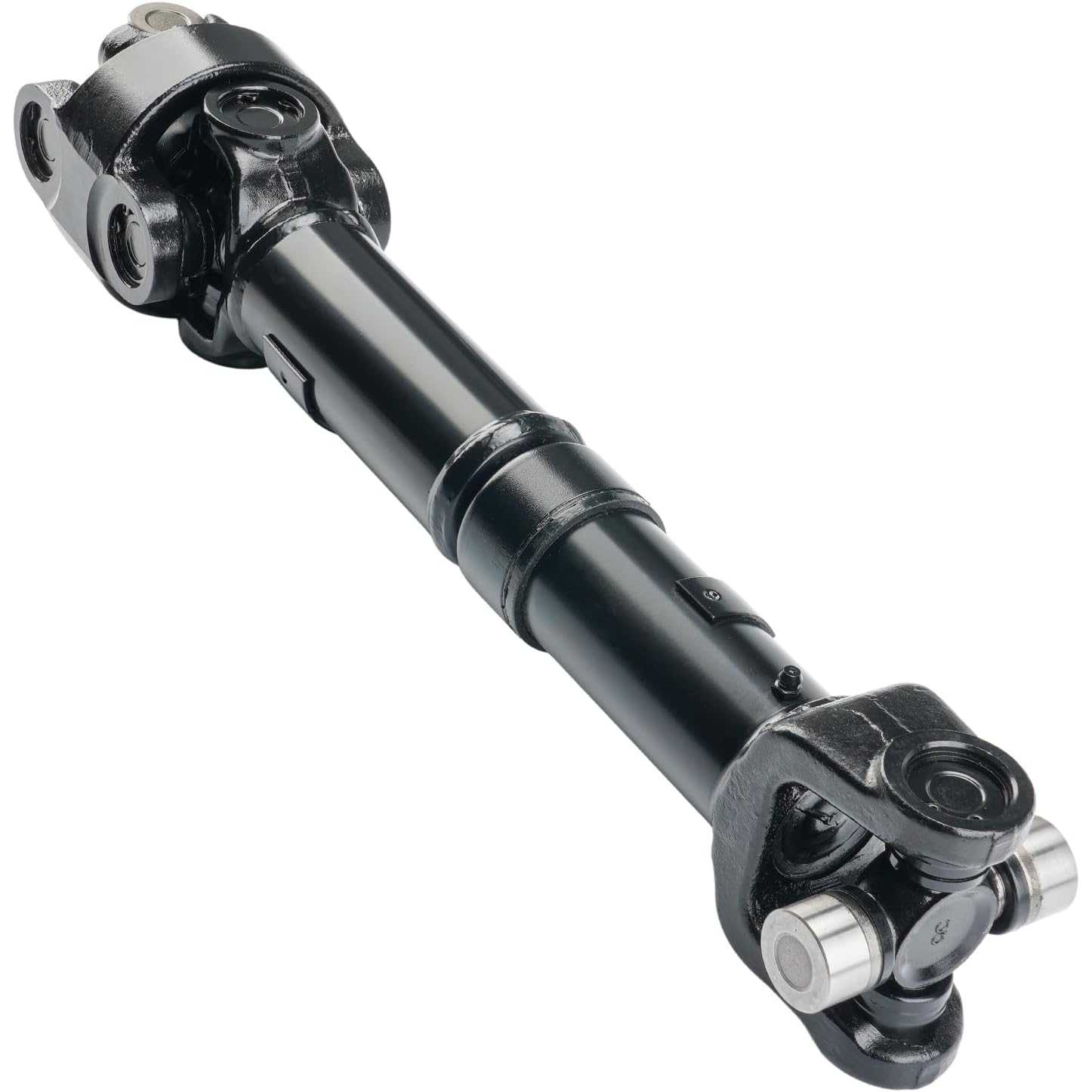

1987-1993 Jeep Wrangler 2.5L L4 | Rear Drive Shaft | 936086 - PHILTOP

1987-1993 Jeep Wrangler 2.5L L4 | Rear Drive Shaft | 936086 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
23ISDSA0217US

Specifications

Brand
PHILTOP
Mounting Type
Flange Mount
Position
Rear
Fully Extended Length
19.53 in/496 mm
Fully Compressed Length
16.77 in/426 mm
Shaft Diameter
Φ51
Items Included
1x Drive Shaft - 936086
Surface Finish
Painted
Two-Piece Design
No
Universal Joint Size
φ27*81.72
Adjustable Length
Yes
Tube Wall Thickness
0.12 in/3 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
936086

Highlights

  • (Vehicle Fitments)Fits for Jeep 1987-1993 Wrangler(4 to 6 In. Lift)
  • (OE Reference)OE Number : 936086,53005401. Use these listed reference numbers when comparing the replacement drive shaft assembly with existing vehicle records, service information, or part identification details. Matching the supplied reference information before purchase can help support accurate catalog review for the intended application and reduce confusion between similar drive shaft assembly listings.
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 19.52 inch; ③Compressed Shaft Length: 16.77 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ51;⑥Shaft Wall Thickness: 0.118 inch; ⑦U-Joint Size: φ27*81.72; ⑧Length is measured end to end across the entire driveshaft
  • (Easy Installation)Precision-fit construction eliminates the need for shimming or re-drilling. Installation is intuitive and fast, saving you valuable shop time. Every detail of the design contributes to a smooth process and lasting installation confidence
  • (Buy with Confidence)PHILTOP's purpose is upgrading your drive – with higher quality components, enhanced safety, and superior comfort. When replacement is due, our OEM-spec shaft elevates your vehicle's performance, ensuring a smoother, more satisfying driving experience every day

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1987 - 19931991 - 19931987 - 19901989 - 19911991 - 19921988 - 19901987 - 19881987 - 19901991 - 199319881991 - 199319881988 - 19911991 - 19931988 - 19901987 - 19881987 - 1988
MakeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWrangler
TrimBaseBaseBaseIslanderIslanderIslanderLaredoLaredoRenegadeSSSSaharaSaharaSaharaSportSport
Engine2.5L L44.0L L64.2L L62.5L L44.0L L64.2L L62.5L L44.2L L64.0L L62.5L L42.5L L44.2L L62.5L L44.0L L64.2L L62.5L L44.2L L6
Note
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift
4 to 6 In. Lift

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly
