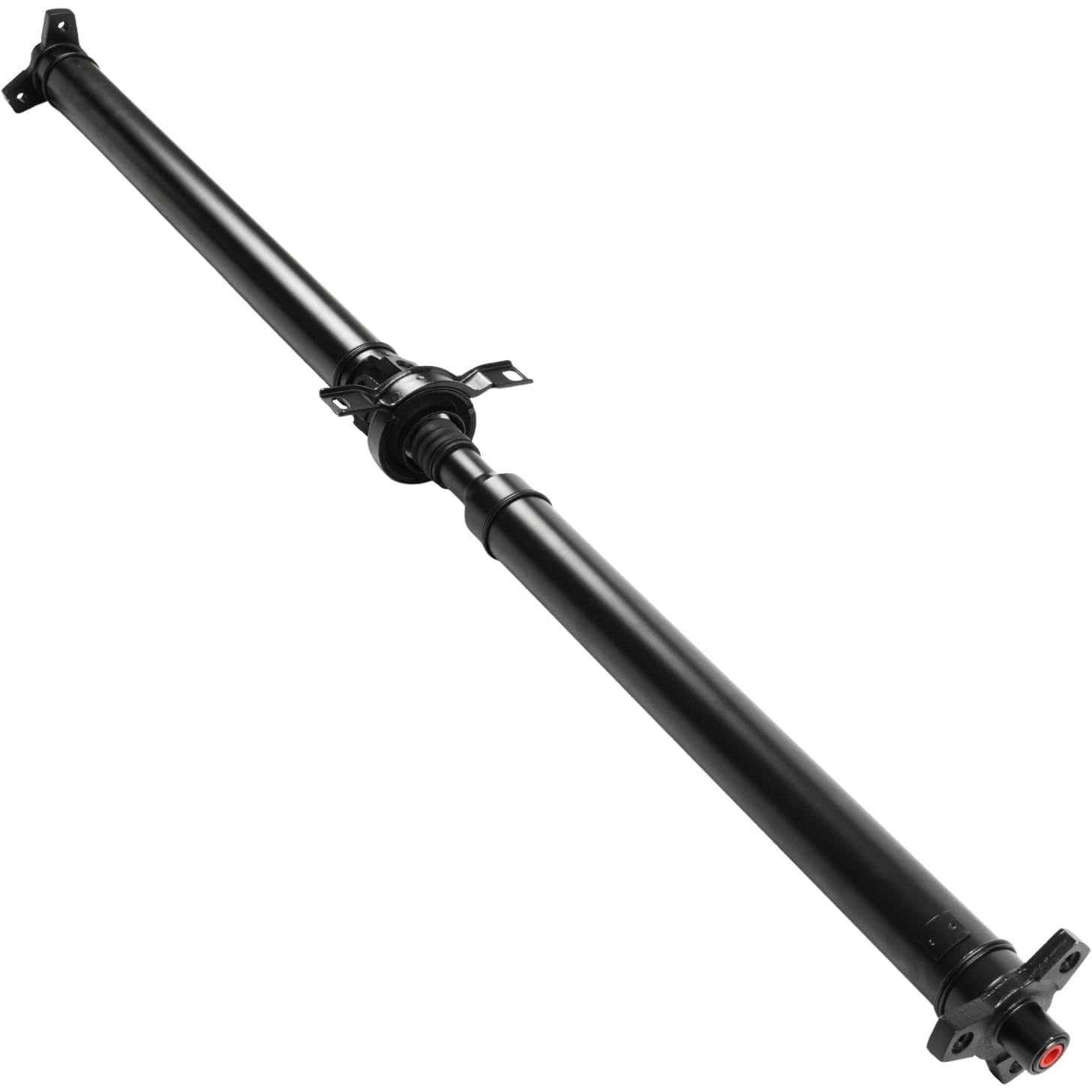

2008-2014 Cadillac CTS 2.0L L4/3.0L V6/3.6L V6 | Rear Drive Shaft | 976938 - PHILTOP

2008-2014 Cadillac CTS 2.0L L4/3.0L V6/3.6L V6 | Rear Drive Shaft | 976938 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
59ISDSA1807US

Specifications

Brand
PHILTOP
Mounting Type
Cv Joint to Cv Joint
Position
Rear
Fully Extended Length
62.78 in/1594.5 mm
Fully Compressed Length
60.41 in/1534.5 mm
Shaft Diameter
Φ63.5
Items Included
1x Drive Shaft - 976938
Surface Finish
Painted
Two-Piece Design
Yes
Adjustable Length
Yes
Tube Wall Thickness
0.08 in/2 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
976938

Highlights

  • (Vehicle Fitments)Designed for Cadillac 2008-2013 CTS 3.0/3.6L RWD Automatic, 2014-2014 CTS 2.0/3.0/3.6L RWD Coupe/Wagon.Please verify vehicle compatibility via Philtop's Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (Reference Number)976938,25811730, 25811732, 25902501, 20990073
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 62.78 inch; ③Compressed Shaft Length: 60.41 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ63.5; ⑥Shaft Wall Thickness: 0.079 inch; ⑦Length is measured end to end across the entire driveshaft; ⑧Mounting Type: Ball Cage + Ball Cage; ⑨Design: Two-Piece; ⑩Adjustable Length for Custom Fit
  • (High Quality)Made with durable forged steel and advanced alloy materials, it efficiently transmits torque while accommodating shaft movement under load Dynamic balancing before delivery guarantees a smooth, reliable ride
  • (Drive with Pleasure)PHILTOP makes driving a pleasure with safer, smoother components Our OEM-grade replacement driveshaft restores original performance and delivers a noticeably more comfortable ride

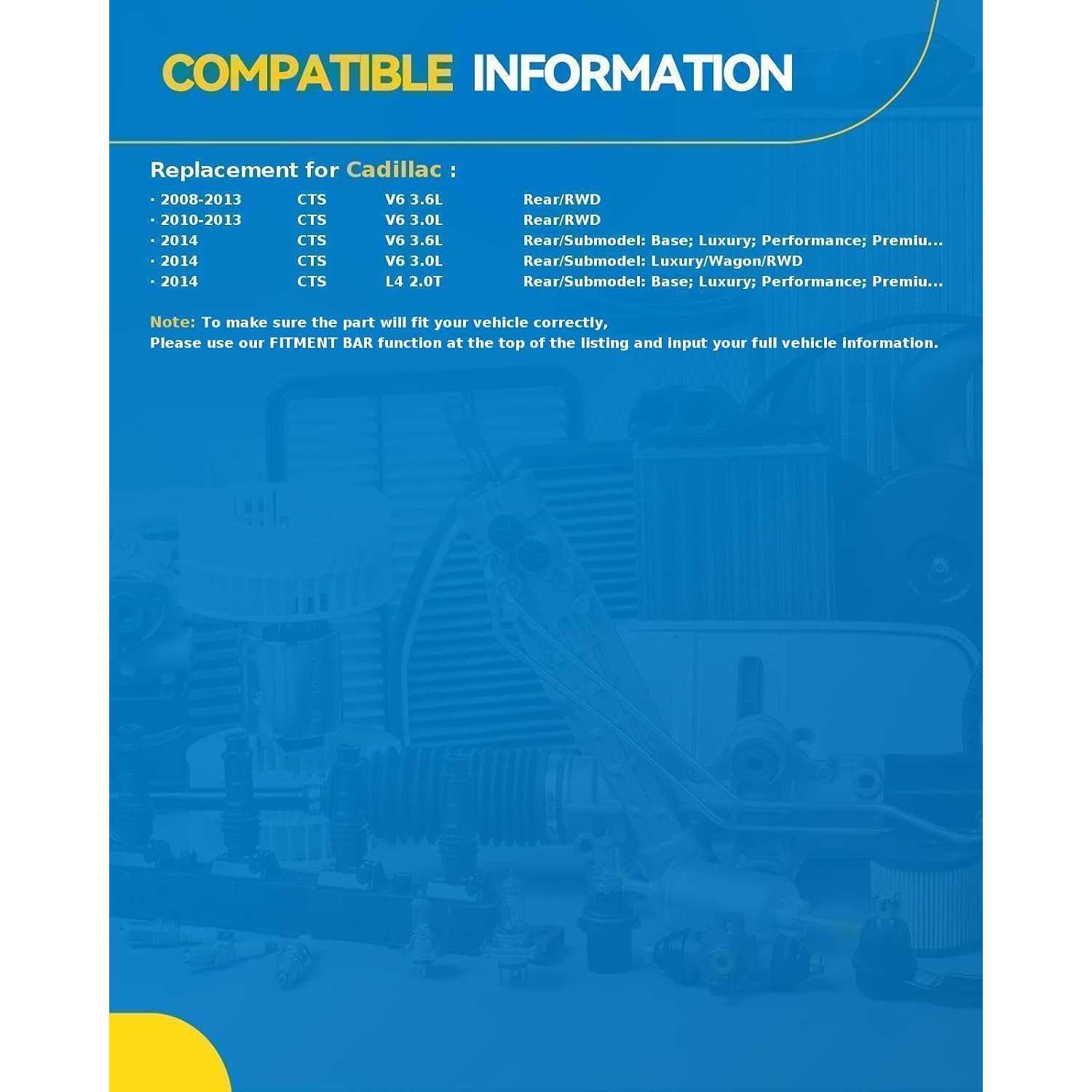

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20142010 - 20132008 - 20092011 - 201420142010 - 20142010201420142010 - 20112010 - 201420142010 - 2014
MakeCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillac
ModelCTSCTSCTSCTSCTSCTSCTSCTSCTSCTSCTSCTSCTS
TrimBaseBaseBaseBaseLuxuryLuxuryLuxuryLuxuryPerformancePerformancePerformancePremiumPremium
Engine2.0L L43.0L V63.6L V63.6L V62.0L L43.0L V63.6L V63.6L V62.0L L43.0L V63.6L V62.0L L43.6L V6
Note
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)
w/ RPO Code MX0 (Automatic Transmission, Overdrive)

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

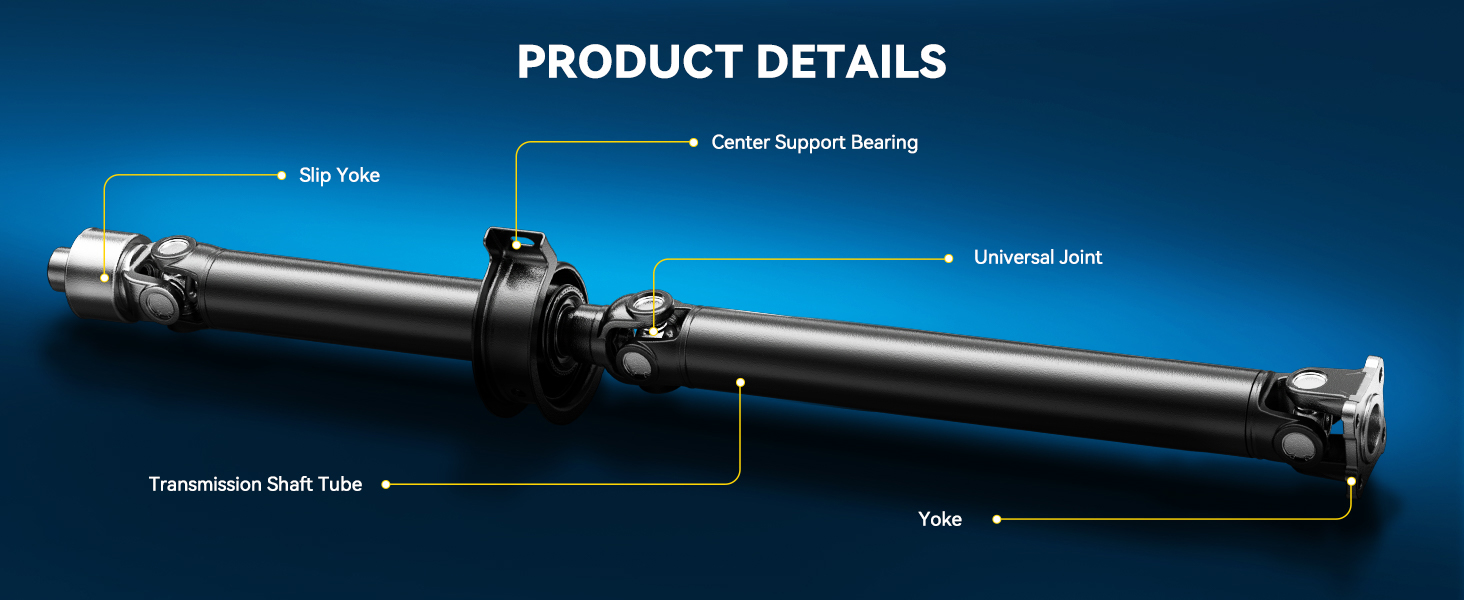

Drive Shaft AssemblyDrive Shaft Assembly

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

RickFixIt_106

03/13/2026

Got here quicker than I thought it would, which was awesome since my car was down. The packaging was solid, everything was secure. Had a quick question about torque specs and customer service answered it right away. Great service.

Kelly_SUV_Life_738

11/08/2025

Bolted right up to my CTS with no issues at all. I was a little worried about doing it myself, but it was surprisingly straightforward. Feels much smoother on the road now, and the price was way better than a local shop quoted.

FAQS

No FAQs have been added for this product yet.
