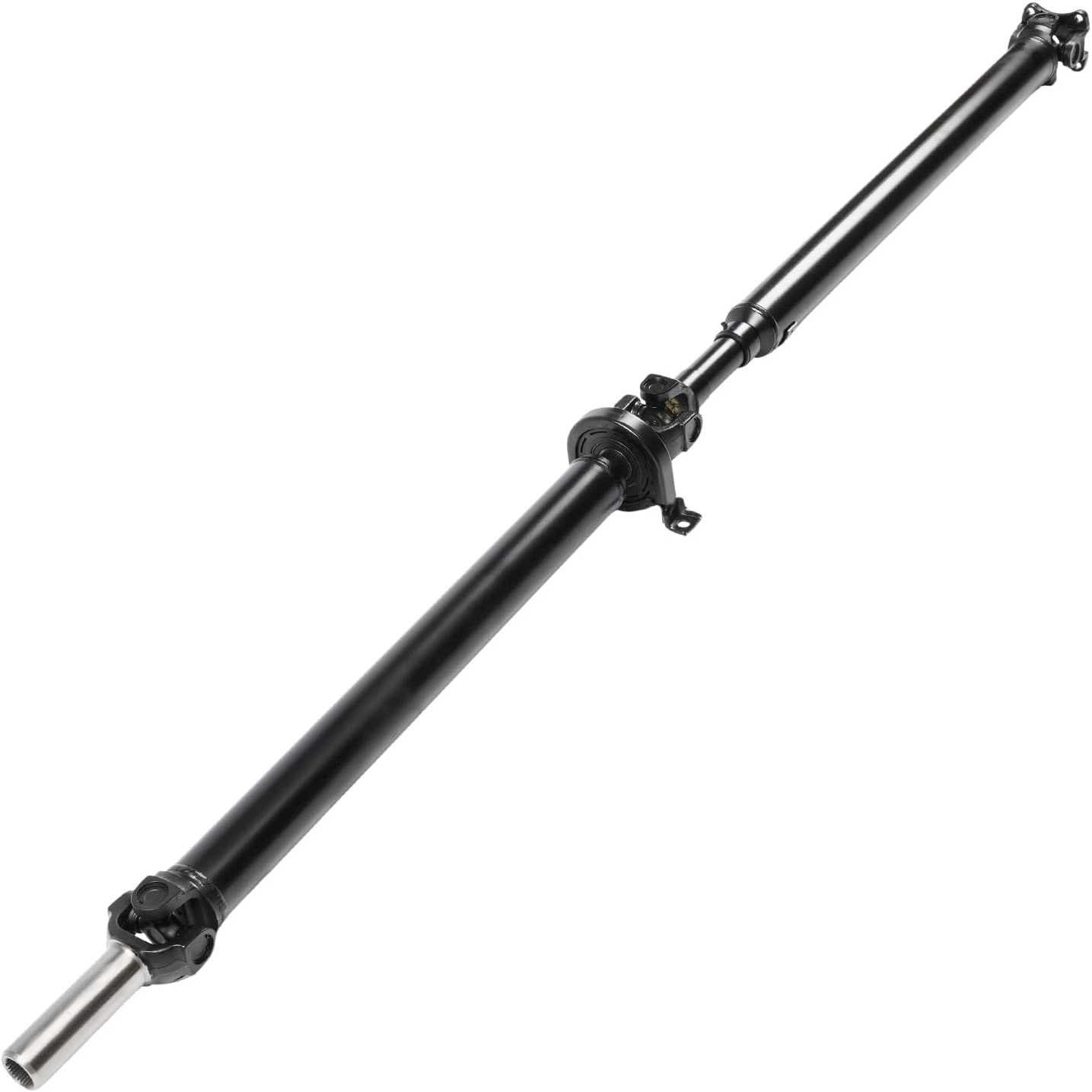

2011-2014 Ford F-150 3.5L V6 | Rear Drive Shaft | 936942 - PHILTOP

2011-2014 Ford F-150 3.5L V6 | Rear Drive Shaft | 936942 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
31ISDSA0837US

Specifications

Brand
PHILTOP
Mounting Type
Flange Mount
Position
Rear
Fully Extended Length
93.11 in/2365 mm
Fully Compressed Length
89.76 in/2280 mm
Shaft Diameter
Φ73
Items Included
1x Drive Shaft - 936942
Surface Finish
Painted
Flange Shape
Square
Output Shaft Spline Count
31-2T
Bolt Hole Quantity
4
Two-Piece Design
Yes
Adjustable Length
Yes
Tube Wall Thickness
0.08 in/2 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
936942

Highlights

  • (Vehicle Fitments)Designed for Ford 2011-2014 F-150 3.5L 4WD Crew Cab with BedLenth:78.8,WheelBase:157.0.Please verify vehicle compatibility via Philtop's Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (Reference Number)936942,DL3Z4R602T,DL3Z4R602E,BL3Z4R602D,DL3Z4R602AL
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 93.11 inch; ③Compressed Shaft Length: 89.76 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ73; ⑥Shaft Wall Thickness: 0.079 inch; ⑦Length is measured end to end across the entire driveshaft; ⑧Mounting Type: Flange mounting; ⑨Flange Type: Square Shape; ⑩Design: Two-Piece; ⑪Adjustable Length for Custom Fit
  • (Easy Installation)Manufactured to precise specifications for seamless compatibility with your model. Straightforward installation saves you time and effort. The thoughtful engineering behind this design ensures a confident, trouble-free experience from start to finish
  • (Buy with Confidence)PHILTOP's commitment is simple: safer, more comfortable, higher-quality driving. Our OEM-spec replacement shaft delivers on that promise, significantly enhancing your vehicle's ride smoothness and transforming daily commutes into genuinely enjoyable drives

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20142011 - 20142011 - 20142011 - 20142011 - 20142011 - 2014
MakeFordFordFordFordFordFord
ModelF-150F-150F-150F-150F-150F-150
TrimFX4King RanchLariatPlatinumXLXLT
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly
