2005-2015 Nissan Xterra 4.0L | Front Drive Shaft | 938209 - PHILTOP

2005-2015 Nissan Xterra 4.0L | Front Drive Shaft | 938209 - PHILTOP

Front

Factory-Balanced

Corrosion-Resistant

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
95ISDSA1197US

Specifications

Brand
PHILTOP
Mounting Type
Flange Mount
Position
Front
Fully Extended Length
33.46 in/850 mm
Fully Compressed Length
31.1 in/790 mm
Shaft Diameter
Φ63.5
Items Included
1x Drive Shaft - 938209
Surface Finish
Painted
Flange Shape
Square
Bolt Hole Quantity
4
Two-Piece Design
No
Universal Joint Size
φ25*64
Adjustable Length
Yes
Tube Wall Thickness
0.07 in/1.8 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
938209

Highlights

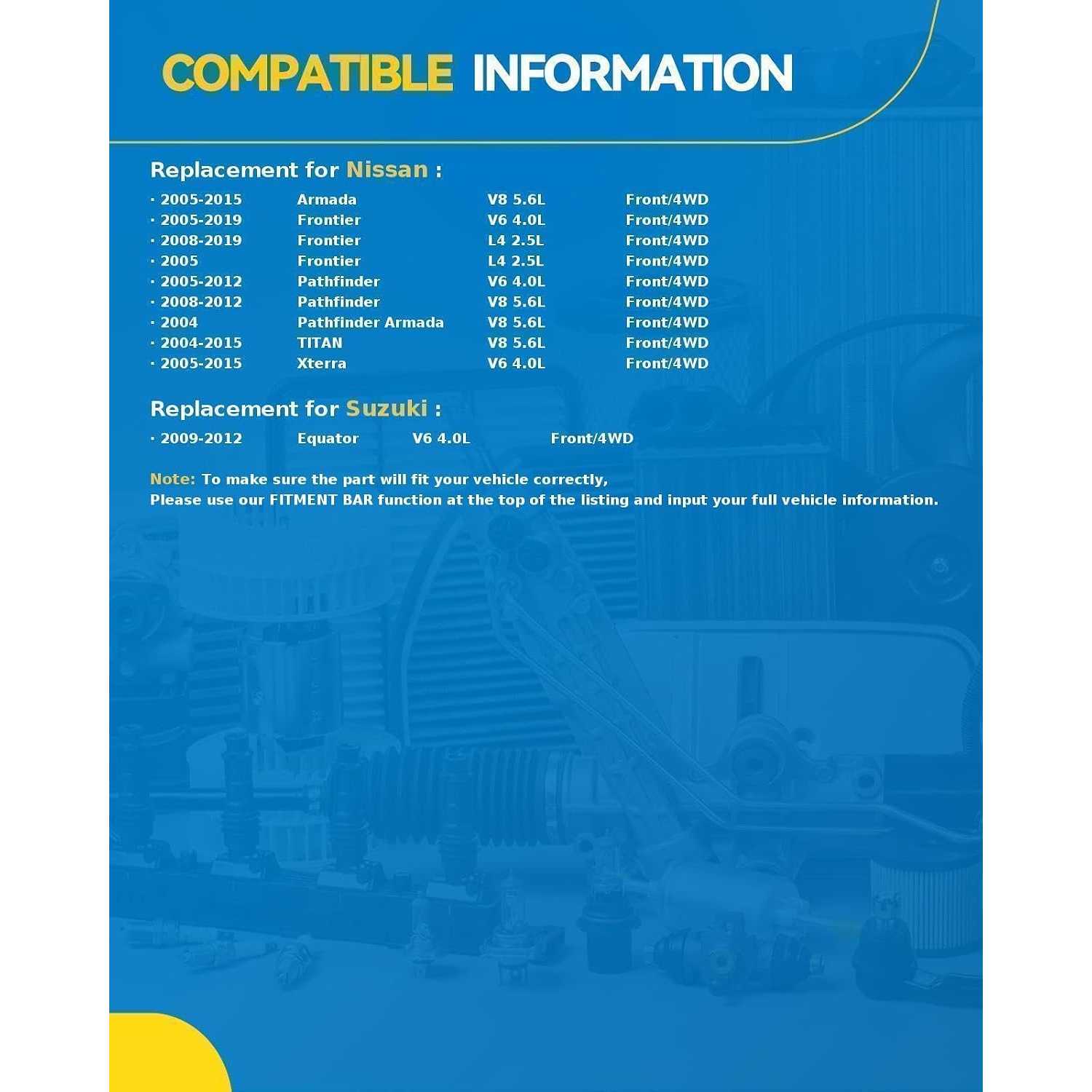

  • [Vehicle Fitment]: Front drive shaft assembly compatible with [Nissan] 2005-2019 Frontier 4WD, 2005-2015 Xterra 4WD, 2005-2012 Pathfinder 4WD, 2004-2015 TITAN/Armada/Pathfinder Armada 4WD. [Suzuki] 2009-2012 Equator 4WD.
  • [Reference Number]: 938209, 9227641620, 37200ZE20A, 372007S110, 372007S100, 37200ZZ70A, 2710182Z00, 37200ZP90A.
  • [Specifications]: ①Installation location: Front ②Extended Shaft Length(In): 33 7/16 ③Collapsed Length(In): 31 1/8 ④Shaft Wall Thickness(In): 1/16 ⑤Shaft Diameter(In): Φ2 1/2 ⑥Overall Length Adjustable: Yes ⑦Installation Type: Flange Installation ⑧Package Contains: 1x Drive Shaft - 938209.
  • [Superior Corrosion Resistance]: PHILTOP drive shaft assembly built from high-strength steel and carburized for a surface hardness of HRC 58–62, delivering exceptional durability and wear resistance. Finished with zinc plating and advanced e-coating to resist road salt, moisture, and harsh winter conditions, helping protect your undercarriage from rust and corrosion.
  • [OEM-Level Quality Tested]: Each driveshaft undergoes rigorous dynamic balancing, torque load, fatigue, and precision fitment testing before leaving the factory. Engineered to minimize vibration, reduce driveline noise, and withstand heavy loads for smooth, reliable performance mile after mile. Built to deliver 120,000+ miles of dependable service and 24-month unlimited mileage guarantee.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20092010 - 20152005 - 20102005 - 20062011 - 20152011 - 201520102005 - 20102005 - 20082009 - 20192011 - 20192011 - 20192008 - 20102005 - 20102011 - 20192011 - 20192011 - 201920052005 - 20122008 - 20122006 - 20122005 - 201020082005 - 20092011 - 20122011 - 20122005200420042004 - 20102008 - 20152011 - 20152004 - 20102011 - 20152011 - 20152004 - 20102005 - 20102011 - 20152005 - 20152005 - 20102006 - 20152009 - 20122009 - 2012
MakeNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanSuzukiSuzuki
ModelArmadaArmadaArmadaArmadaArmadaArmadaArmadaFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierFrontierPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinder ArmadaPathfinder ArmadaTITANTITANTITANTITANTITANTITANTITANXterraXterraXterraXterraXterraEquatorEquator
TrimLEPlatinumSESE Off-RoadSLSVTitaniumLENismo Off-RoadPRO-4XSSSESESLSVSVXELELESSESESE Off-RoadSVSilver EditionXELESELEPRO-4XSSESLSVXEOff-RoadPRO-4XSSEXRMZ-4Sport
Engine5.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V84.0L V64.0L V64.0L V62.5L L44.0L V62.5L L44.0L V64.0L V62.5L L44.0L V62.5L L44.0L V65.6L V84.0L V64.0L V65.6L V84.0L V64.0L V64.0L V64.0L V65.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V84.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.0L V6
Note-------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly
